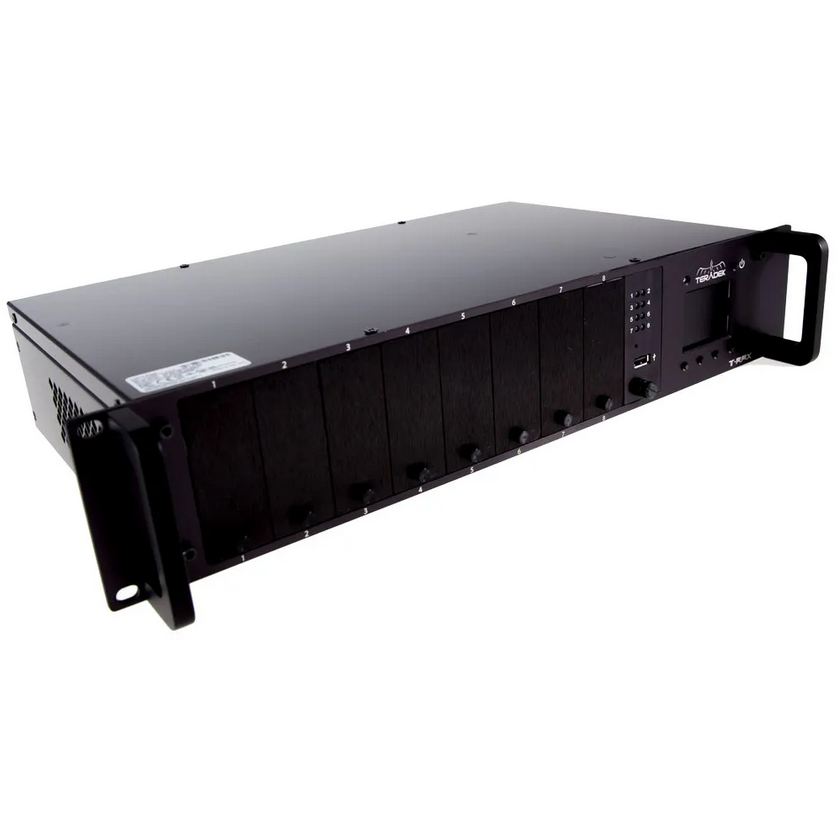

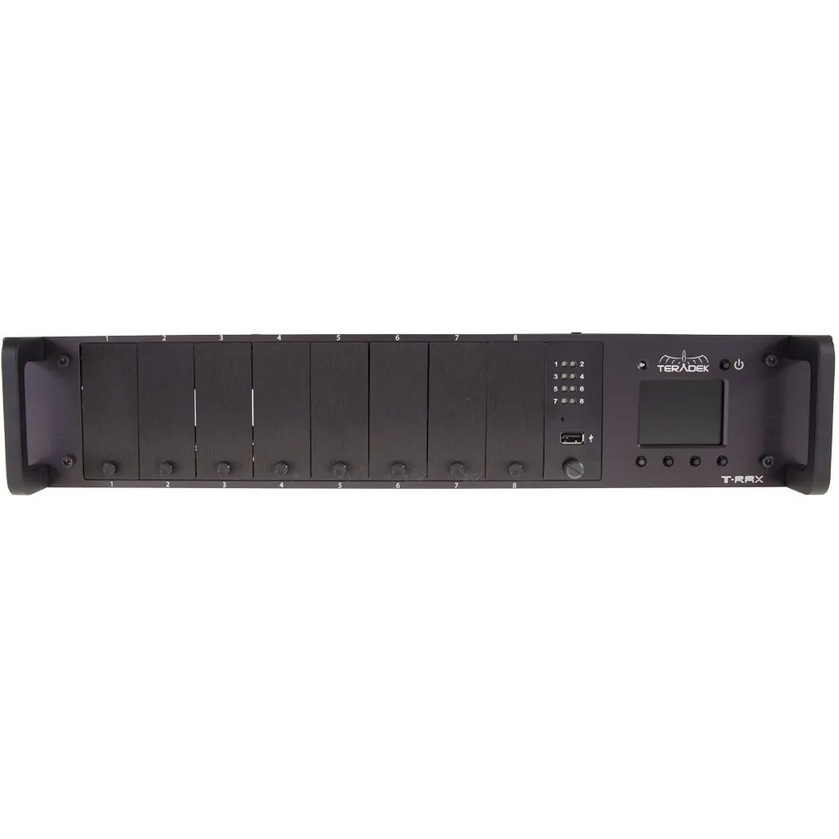

Teradek T-RAX Base System, with controller and PSU
Base Frame for T-RAX Card System
Supports 8 Cards + 1 Power Supply
Supports 7 Cards + 2 Power Supplies
Mix Control Card & Encoder/Decoder Cards
Compatible with H.264 & H.265 cards
Controller Card and PSU Included
Regular price
$3,330.00
Regular price
-0%
$3,345.00
Sale price
$3,330.00
For high density applications, T-Rax offers room for up to 8 HEVC / H.264 encoder or decoder cards in a 2RU chassis. Each codec is built on the Cube platform, which offers support for EIA-608 and EIA-708 closed-captioning, 3G-SDI I/O, and comprehensive protocol capabilities: SRT, MPEG-TS, RTMP, RTSP/RTP.
What's in the Box:
- 1 x Quickstart Guide - T-Rax
- 1 x Power Cable IEC
- 1 x Controller Card
- 1 x T-RAX Power Supply Unit
- Limited 1-Year Warranty
Specifications:
Video
- Video Inputs: 8x SD/HD/3G-SDI (75 Ohm BNC)
- Video Outputs: 8x SD/HD/3G-SDI (75 Ohm BNC)
Supported Resolutions
- 1080p 23.98/24/25/29.97/30/50/59.94/60*
- 1080i 50/59.94/60
- 1080PsF 23/24/25/29/30
- 720p 50/59.94/60
- 576i
- 480i
- *Encoder can ingests 1080p50/59/60 input but encoded output will be 1080p30
Video Processing
- Color Correction: None
Protocol Support
- Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
- Supported Video Transport Protocols
- RTMP
- RTSP, RTP, RTSP over HTTP
- MPEG-TS
- Remote Control: Teradek Core
Audio Processing
- Audio Compression: AAC-LC, MPEG Layer 2
Inputs
- Audio Input: Embedded Only
Physical
- Dimensions: (2U) 431.8 x 256.5 x 88.9 mm (17"W x 10.1"D x 3.5"H)
- Weight: 3997g
- Construction: Milled aluminum (chassis)
Interfaces
- Http: Feature-rich WebUI for Configuration and Control
- Configuration Interfaces: OLED Display with Joystick Navigation Buttons
- Switches: On/Off and Reset Switch
- Usb Interface Functionality: Powered USB 2.0 Host Port
Network
- Ethernet: 10/100/1000 BASE-T Gigabit
Power
- Power Input: 110/240V AC Power Input
- Nominal Power Consumption: 5W + 3W per Codec Card
