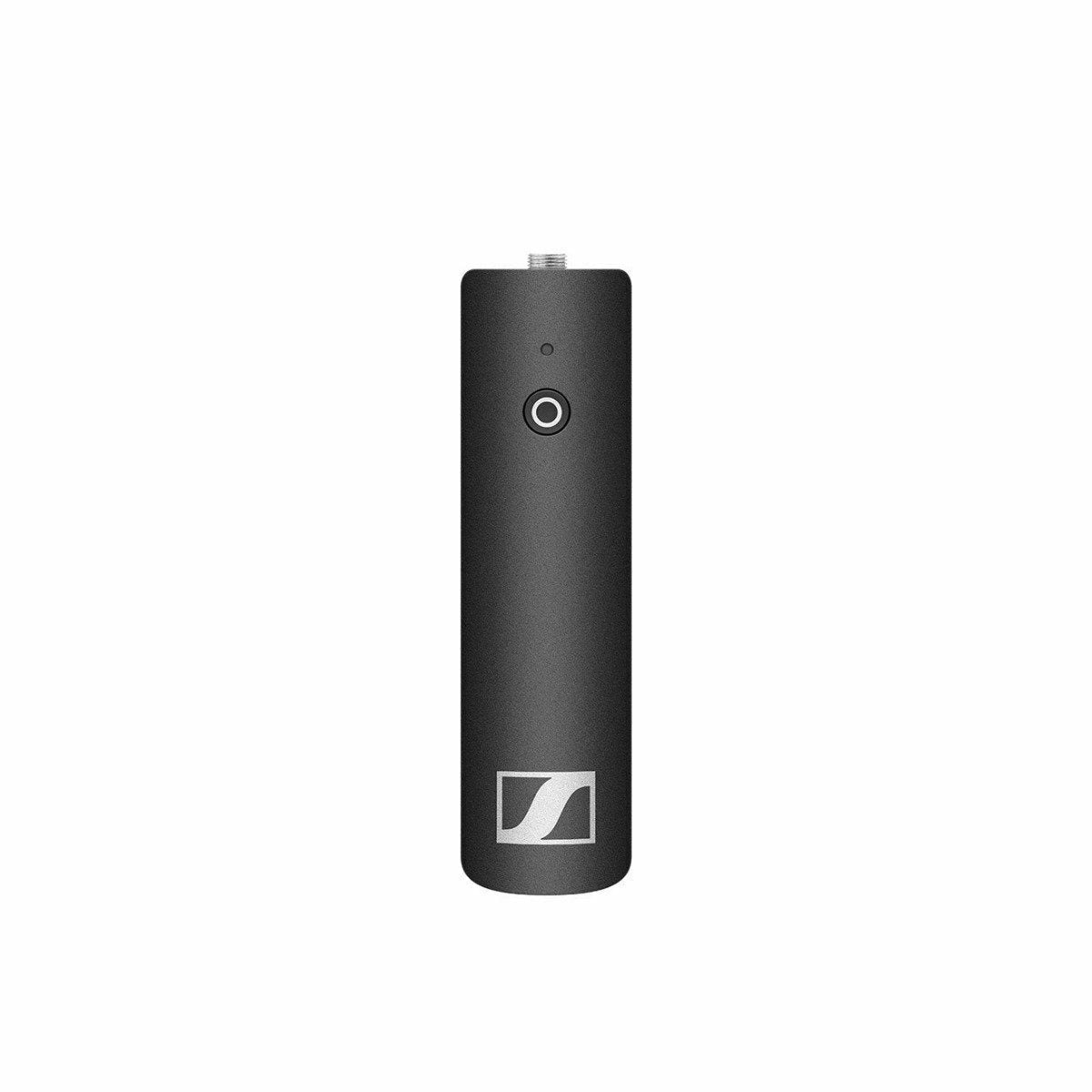

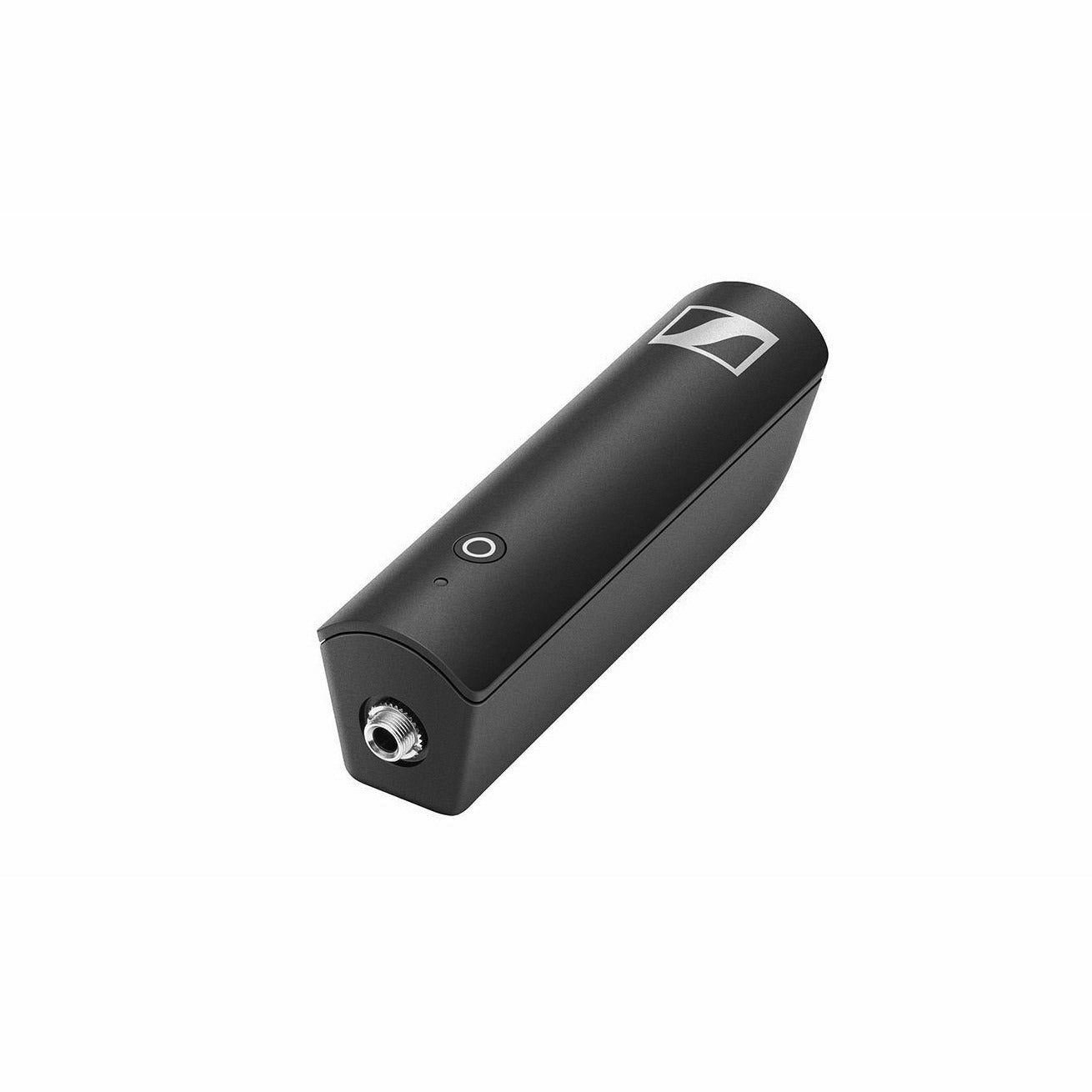

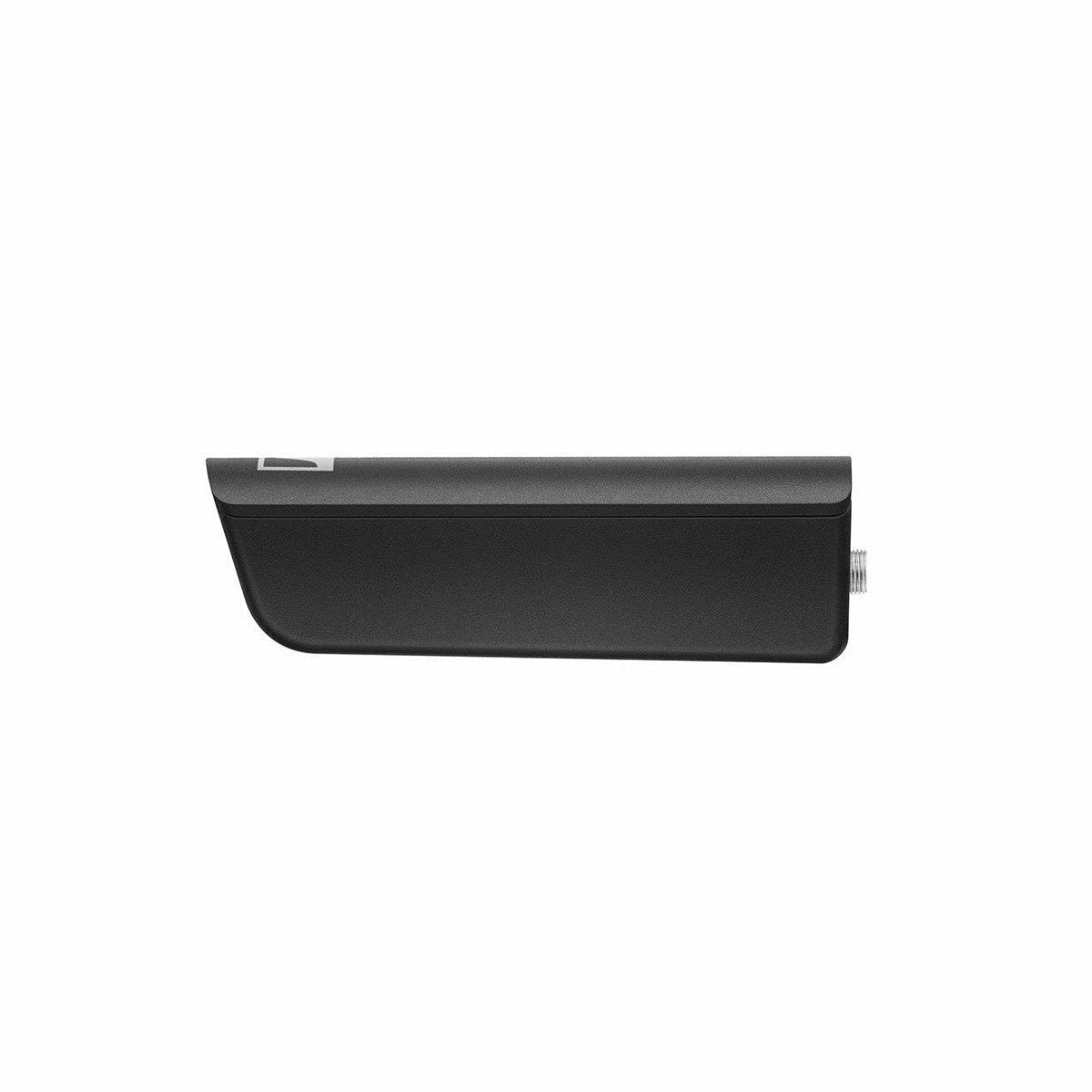

Sennheiser XSW-D MINI JACK RX Camera-Mount Receiver
- One touch pairing
- 2.4 GHz digital transmission for worldwide operation
- 75 m range (250 ft) in optimal conditions
- Up to 5 hours battery life on a single charge
- Automatic frequency and interference management
- Switch between multiple transmitters linked to one receiver
- Mute from either transmitter or receiver
XSW-D receiver with 3.5mm (1/8”) output
The Sennheiser XS Wireless Digital 3.5mm Receiver is a digital wireless receiver with a 3.5mm (1/8") connector.
When you pair the Sennheiser XS Wireless Digital 3.5mm Receiver with a transmitter, the device will work between 2.400-2.483.5 GHz. Up to five Sennheiser XS Wireless Digital 3.5mm Receiver and transmitter systems can be used simultaneously thanks to Sennheiser's automatic frequency and interference management technology.
The Sennheiser XS Wireless Digital 3.5mm Receiver operates at a range of up to 250' (75 m) and can last up to five hours on its built-in battery. It can be muted from either the transmitter or the receiver.
| Charging time | typ. 3 h |
| Cell type | Li-Ion |
| Nominal voltage | 3.7 V |
| Cell capacity | 850 mAh |
| Operating time | up to 5 h |
| Codec | aptX Live |
| 3.5 mm Jack/XLR | 80 - 18,000 Hz |
| 6.3 mm Jack | 10 - 18,000 Hz |
| Audio output max. | 12 dBu |
| Signal-to-noise ratio | 106 dB |
| THD | < 0.1 % |
| Audio latency | < 4 ms |
| XSW-D XLR FEMALE TX | approx. 102 x 24 x 28 mm |
| Frequency range | 2,400 - 2,483.5MHz |
| Transmission power | (EIRP) max. 10 mW |
| Modulation | GFSK with TDMA |
