Sennheiser XSW-D INSTRUMENT BASE SET Digital Wireless Guitar System
-
One touch ease-of-use
-
2.4 GHz digital transmission for worldwide operation
-
75m range (250ft) in optimal conditions
-
Up to 5 hours battery life on a single charge
-
Switch between multiple transmitters linked to one receiver
-
Configure any combination of transmitters and receivers
-
Mute from either transmitter or receiver
The Sennheiser XS Wireless Digital Instrument Base Set operates at a range of up to 250' (75 m) and can last up to five hours on its built-in battery. It can be muted from either the transmitter or the receiver.
The Sennheiser XS Wireless Digital Instrument Base Set is an instrument base set that contains a wireless digital transmitter and receiver with 1/4" connectors and one-touch pairing.
The Sennheiser XS Wireless Digital Instrument Base Set will work between 2.400-2.483.5 GHz. Up to five Sennheiser XS Wireless Digital Instrument Base Sets can be used simultaneously thanks to Sennheiser's automatic frequency and interference management technology.
One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution makes going wireless with instruments easier than ever before while maintaining a reliable connection.
One touch ease-of-use
It’s simple, each XS Wireless Digital has only one button. Press to power up and link simultaneously, click once to mute, and hold to power down. It’s as easy as plugging in a cable, minus the cable part.
Digital for worldwide operation
Your sound should be as boundless as your ideas. Forget about having to set frequencies and step into the world of digital. Using a 2.4 GHz transmission, sync and go anywhere, anytime - effortlessly.
| Dimensions |
XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm |
| THD, total harmonic distortion | < 0.1 % |
| Charging time | typ. 3 h |
| Audio output | max. 12 dBu |
| Operating temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Signal-to-noise ratio | ≥ 106 dB |
| Operating time | up to 5 h |
| Modulation | GFSK with TDMA |
| Battery Specification | Li-Ion |
| Capacity | 850 mAh |
| Codecs | aptX® Live |
| Frequency range | 2,400 - 2,483.5MHz |
| Max. Input voltage | typ. 5.0 V |
| Transmission power | max. 10 mW |
| Voltage | 3.7 V |
| Operating relative humidity | 95 % (non-condensing) |
| Latency | < 4 ms |
| Temperature Range | 0 °C - 60 °C (32 °F - 140 °F) |
| Audio frequency response |
3.5 mm Jack/XLR: 80 - 18,000 Hz
6.3 mm Jack: 10 - 18,000 Hz
|

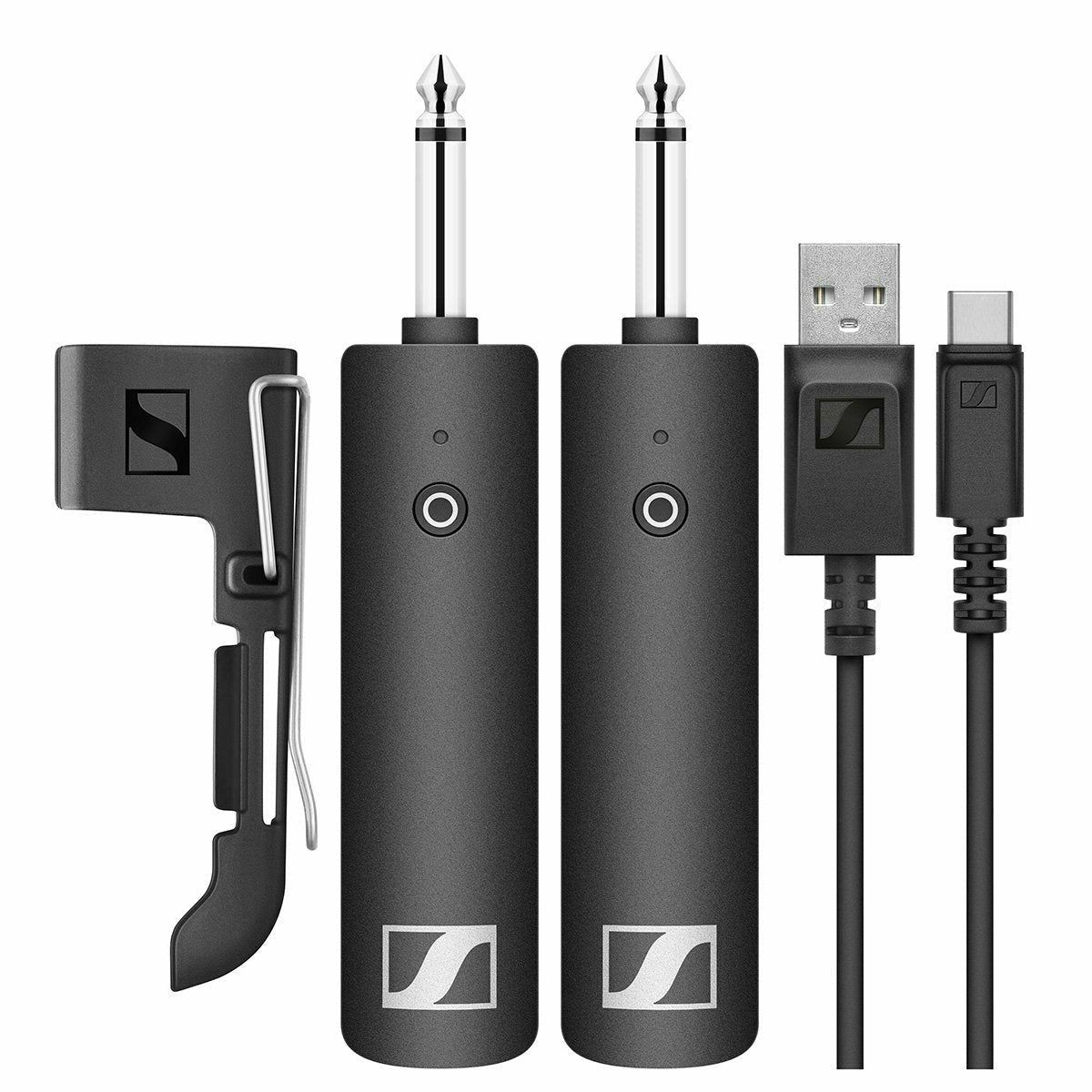

- XSW-D 6.3mm (1/4”) transmitter
- XSW-D 6.3mm (1/4”) receiver
- Extension cable 6.3mm (1/4“)
- Belt clip
- USB-A to USB-C charging cable
- Sennheiser Warranty
