Sennheiser Evolution Wireless Digital EW-DP ENG Wireless Lavalier and Plug on Transmitter Set (R1 - 6 520 - 576 MHz)

The Sennheiser Evolution Wireless Digital EW-DP ENG Wireless Lavalier and Plug-on Transmitter Set is a fully digital UHF wireless microphone system that features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters.

At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for those new to wireless and seasoned professionals alike. Convenient features like remote Bluetooth synchronization and system control via our Smart Assist app help you save time and energy on set. A front-facing OLED display allows for easy menu navigation and at-a-glance system status at any angle in any light. Smart Notifications help to troubleshoot your system and suggest solutions for various challenges you may encounter. Versatile, magnetically stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location.

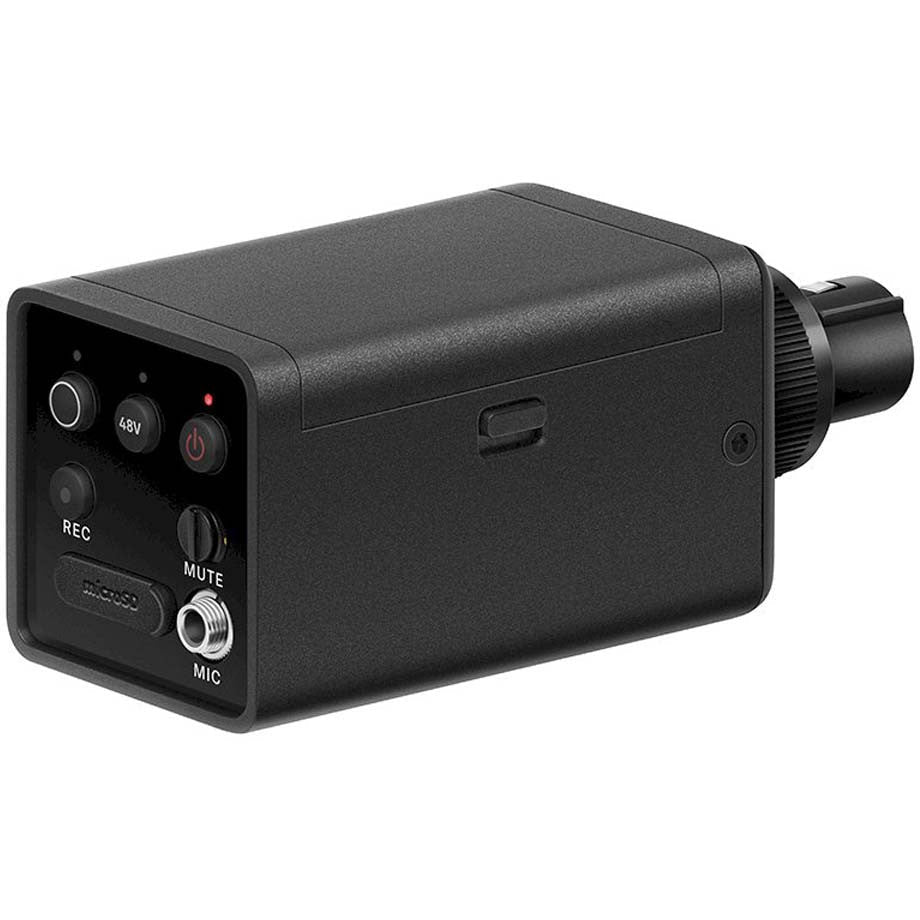

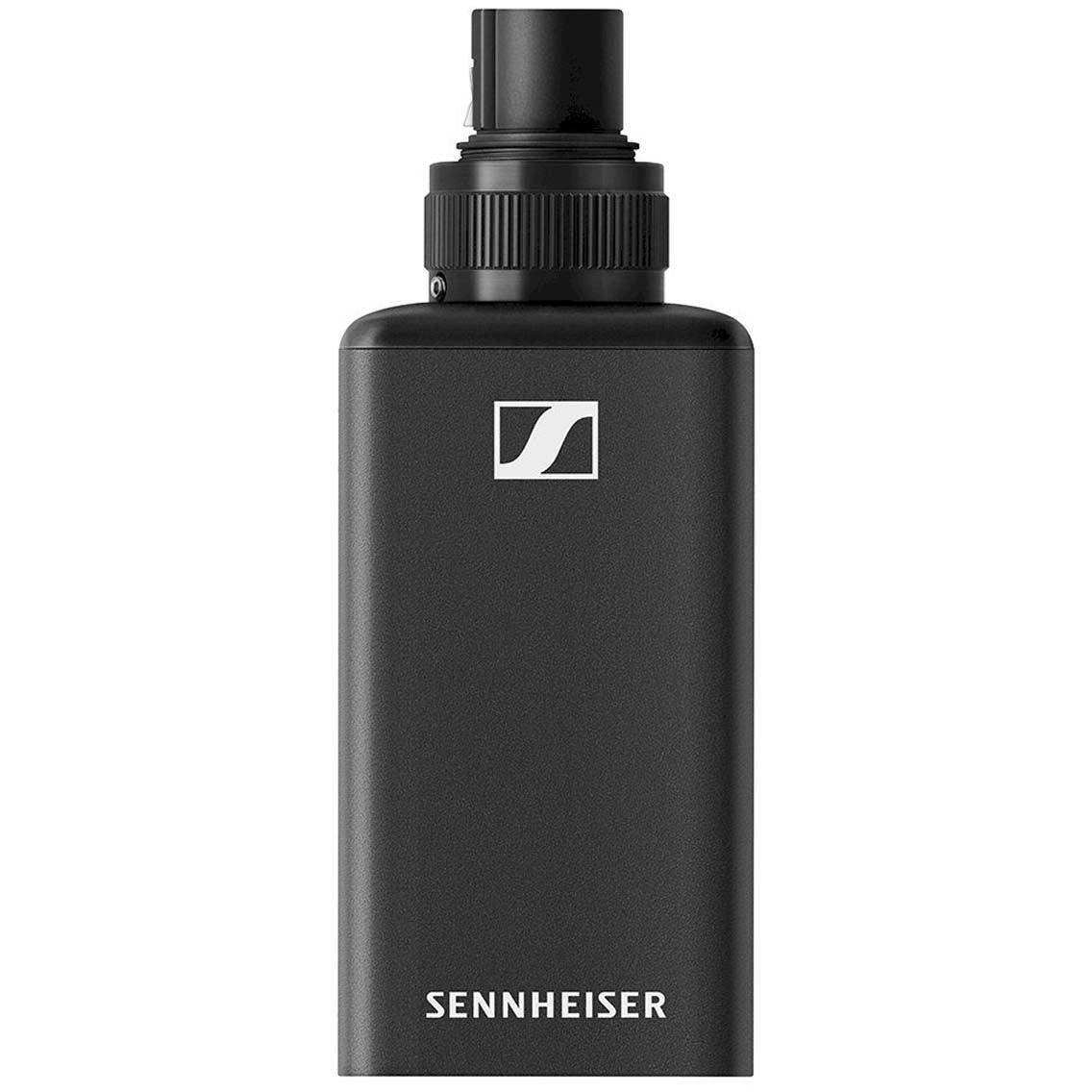

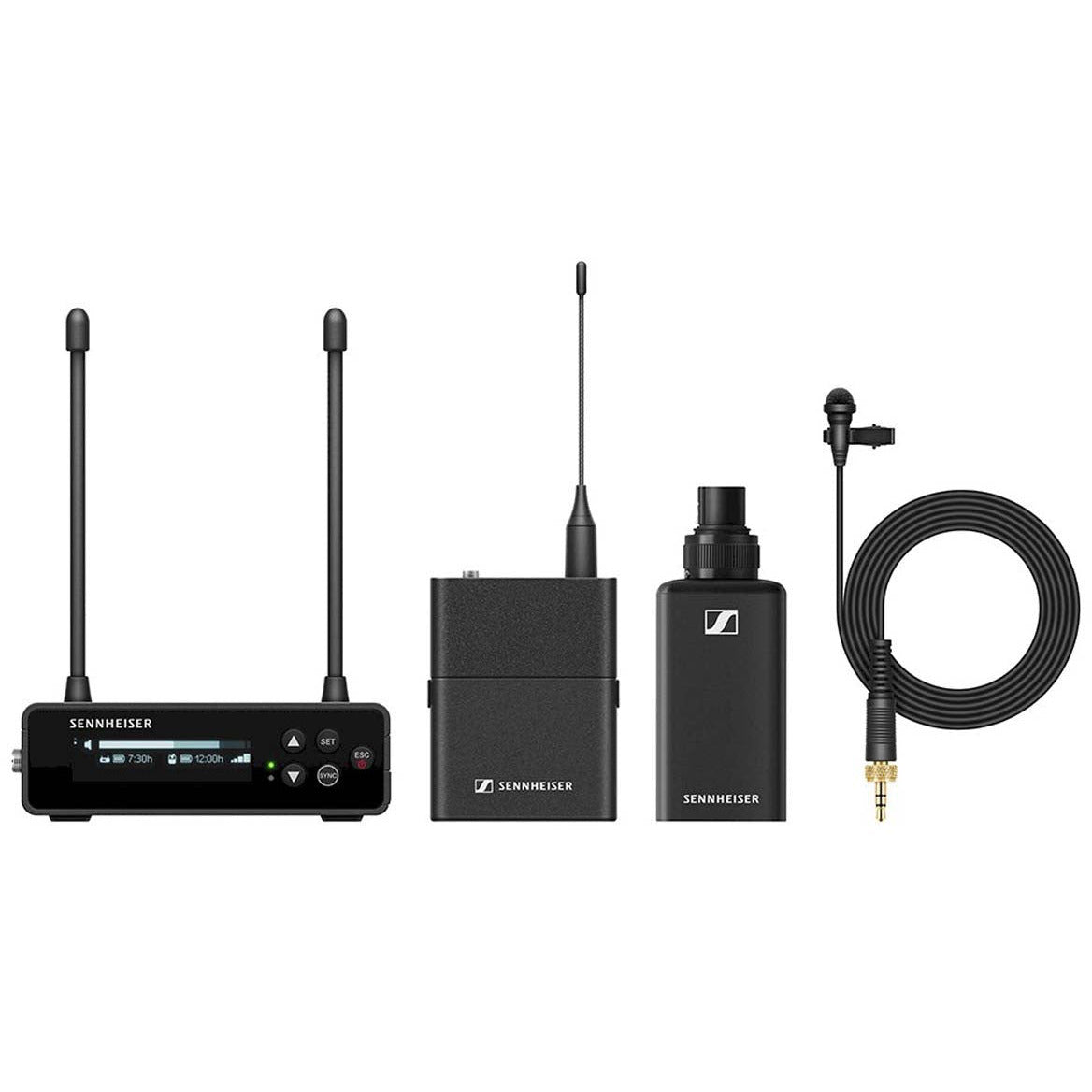

The EW-DP ENG Set includes both the SK bodypack transmitter with an ME 2 omnidirectional lavalier as well as the SKP plug-on transmitter for the most flexibility of any EW-DP system. The SKP transmitter turns any wired microphone into a wireless option. Features include an XLR input with +48V phantom power, a 3.5 mm locking input, and a micro-SD card slot for 24-bit, 48 kHz on-board recording.

System
Audio link frequency range	R1-6 520 - 576 MHz
Bluetooth® Low Energy (BLE) frequency range	2402 - 2480 MHz
Audio frequency response	20 Hz - 20 kHz (-3 dB)@ 3 dBfs
Audio THD	≤ -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range	134 dB
System latency	1.9 ms
Operating temperature	-10 °C - +55 °C
Relative humidity	5 - 95 % (non-condensing)

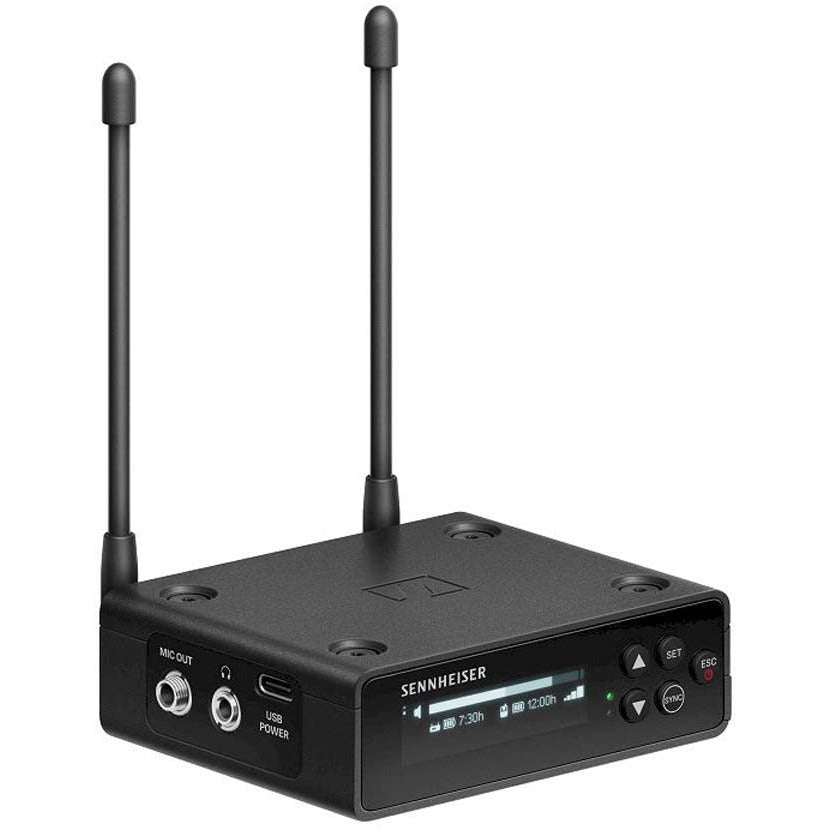

EW-DP EK Receiver:
Input voltage	~ 1.8 - 4.35 V
Input current	Typ. < 250 mA / Max. < 400 mA (BA 70) Typ. < 400 mA / Max. < 750 mA (2x AA batteries) <300 mA@5 V (USB-C standalone)
Power Supply	2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.): • 5V / 1500mA • 9V / 900mA • 12V / 700mA
Transmit power (radiated)	BLE: max. 10 mW EIRP
Audio output power	< 2 dBV max. (high level) / Headphone Output < 50 mW into 16 Ohms
Dimensions	86 x 67 x 28 mm
Weight (without antennas and power supply)	approx. 140g (0.31 lbs)

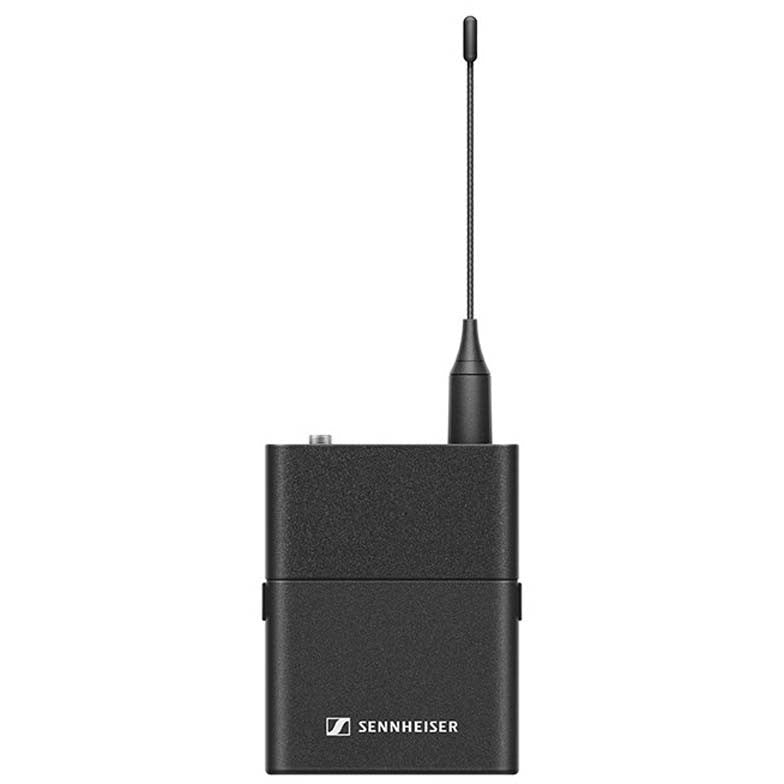

EW-D SK Bodypack Transmitter
Input voltage	2.0 - 4.35 V
Input current	< 300 mA
Power supply	2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth	200 kHz
Transmit power (radiated)	Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP
Dimensions (without antenna)	63 x 80 x 20 mm
Weight (without batteries)	approx. 120 g (0.26 lbs)

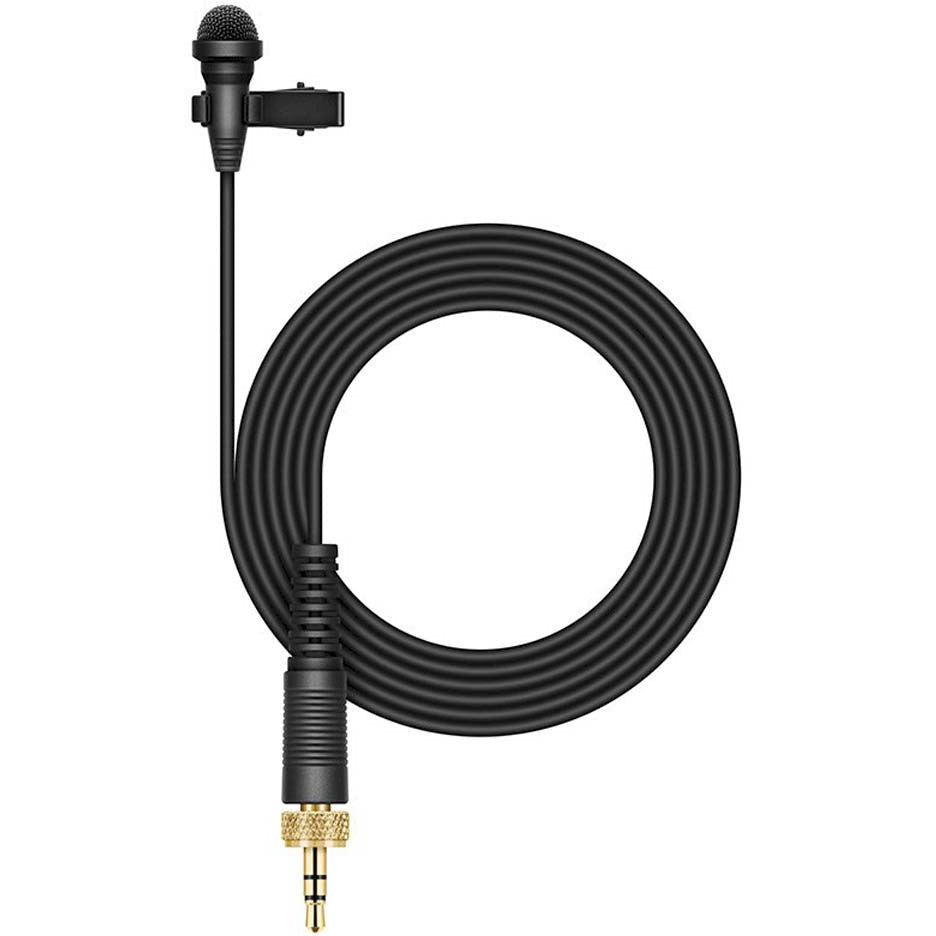

ME 2 (Lavalier Microphone)
Transducer principle	pre-polarized condenser microphone
Pick-up pattern	omni-directional
Sensitivity (free field, no load) (1 kHz)	17 mV/Pa
Max. SPL at 1 kHz	130 dB
Frequency response	50 to 18,000 Hz
Equivalent noise level (A-weighted)	32 dB
Connector	3.5 mm jack
Cable length	approx. 1.60 m (62.99")
Supply voltage	7.5 V
