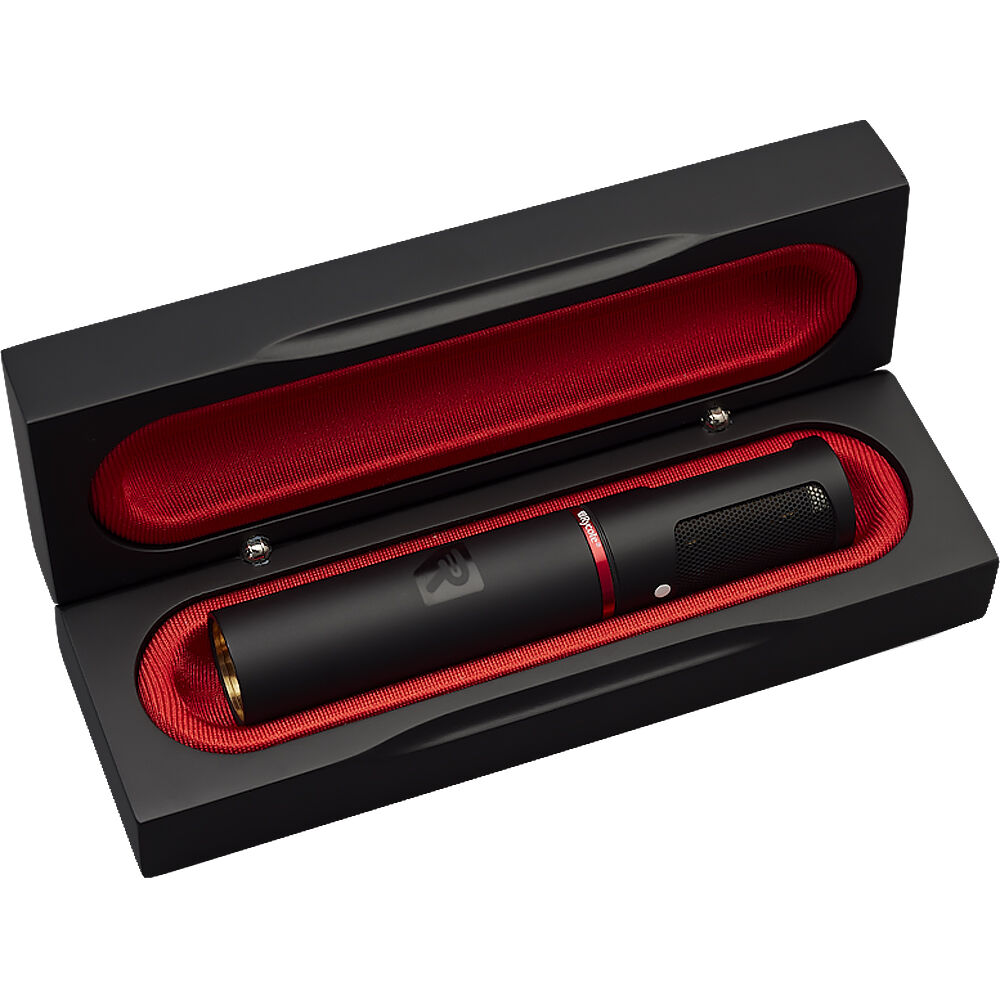

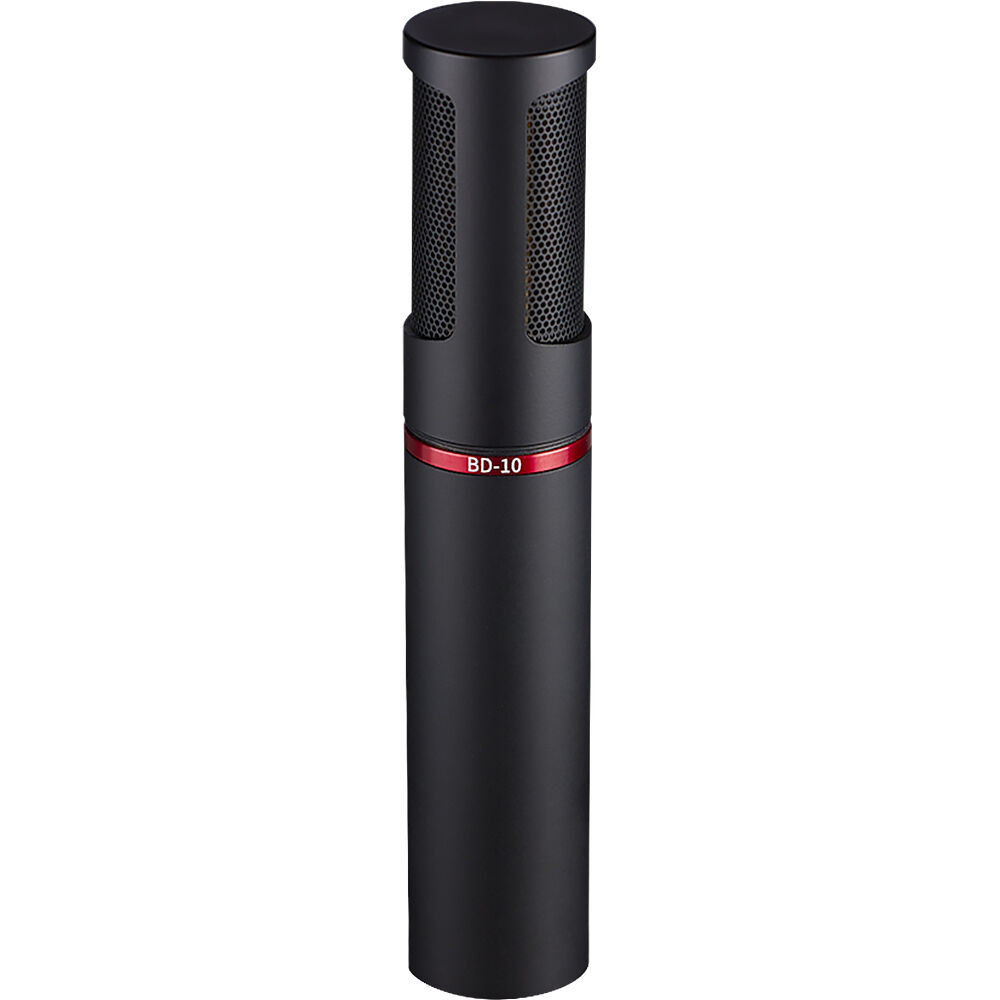

Rycote BD-10: Bidirectional Pencil Microphone

SKU: RYC979009
Experience professional-grade audio capture with the Rycote BD-10 Bidirectional Pencil Microphone. Its figure-8 design allows for versatile recording options, while the flat frequency response, low self-noise, and RF shielding deliver clear and detailed sound. Perfect for M/S stereo, ambient recording, and dual dialog.
Regular price $1,100.23

Low Self Noise
Rycote microphones can claim one of the lowest self-noise in the market (-8.5 dB) thanks to the high-quality capsule and preamp that positively affect the inherent electronic noise or hiss the mics usually produce.


This low self-noise allows professionals to catch a cleaner and more accurate recordings when recording quiet sounds or working in environments where high-sensitivity is required.


RF Shielding
Extremely efficient RF Shielding is designed into the electronics to make the microphone immune to wireless-transmitter and walkie talkies interference.


Non-Reflective Coating
The black, matte non-reflective coating is a must have for professional location-sound microphones when lighting on the mic surface could glare and distract talents. This non-reflective coating allows boom ops to move freely, especially when in proximity to the talent.


Gold Plated Connection
The XLR connector is gold-plated to prevent corrosion in high-humidity environments or applications with frequent thermal cycling or exposure to corrosive salts or acids. This benefits in the mic's longevity rather than in audio quality.


Durable Materials
The mic's extremely precise capsule design is made of machined aluminum and first-class electronics to ensure the best possible acoustic performance. All components are tested for durability, moisture, and humidity.


One Sonic Signature
All Rycote microphones are built using the same capsule and preamp design. This gives each mic a tonal and sonic signature that makes them cut together seamlessly. This allows sound engineers to benefit from a predictable tonal response to the same voice or sound source, resulting in an easier and faster mix & match postproduction workflow.

Microphone
Primary Applications
Audio for Video, Location Sound, Field Recording
Form Factor
Small Diaphragm
Intended Sound Sources
Dialogue, Room Ambiance
Sound Field
Mono
Element Type
Electret Condenser
Polar Pattern
Figure-8
Orientation
Side Address
Performance
Frequency Range
40 Hz to 18 kHz
Maximum SPL
135 dB SPL
Off-Axis Rejection
>60 dB
Impedance
100 Ohms at 1 kHz
Load Impedance
1 Kilohms (Minimum)
Sensitivity
14.2 mV/Pa
Signal-to-Noise Ratio
78 dB A-Weighted (1 kHz)
Equivalent Noise Level
18 dB A-Weighted
Connectivity
Analog Output
1x XLR 3-Pin Male
Power
Power Sources
Phantom Power
Operating Voltage
24 to 48 V (Phantom Power)
Physical
Color
Black
Mounting Thread Size
3/8"-16 Female
Construction Material
Aluminum, Brass
Dimensions
ø: 0.75 x L: 4.13" / ø: 1.91 x L: 10.49 cm
Weight
3 oz / 86 g
