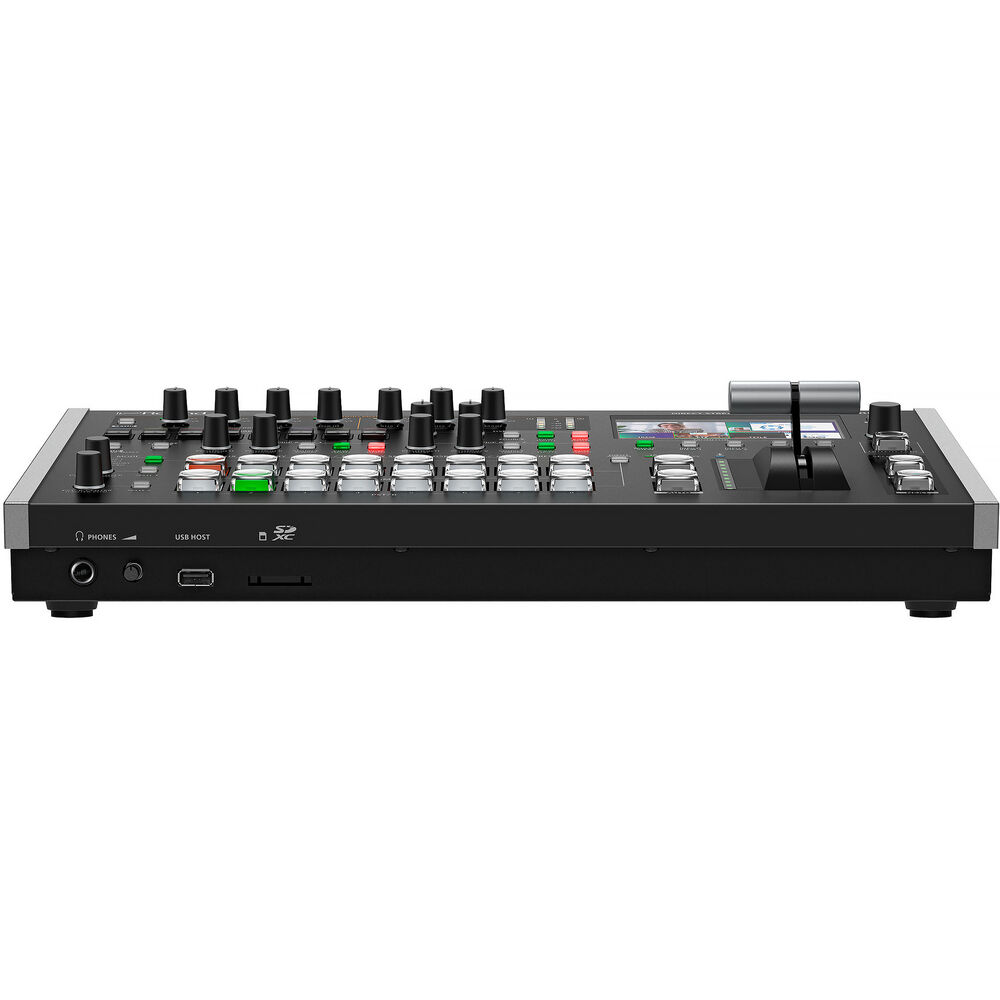

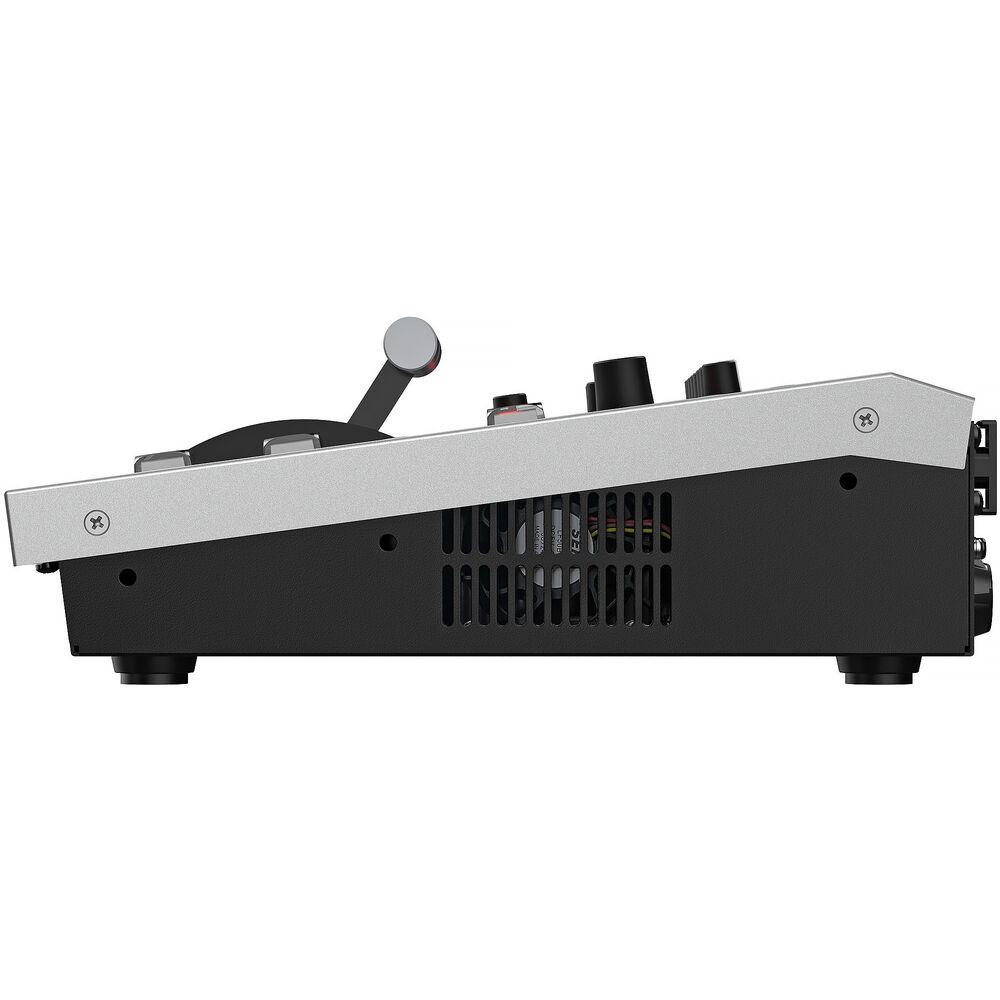

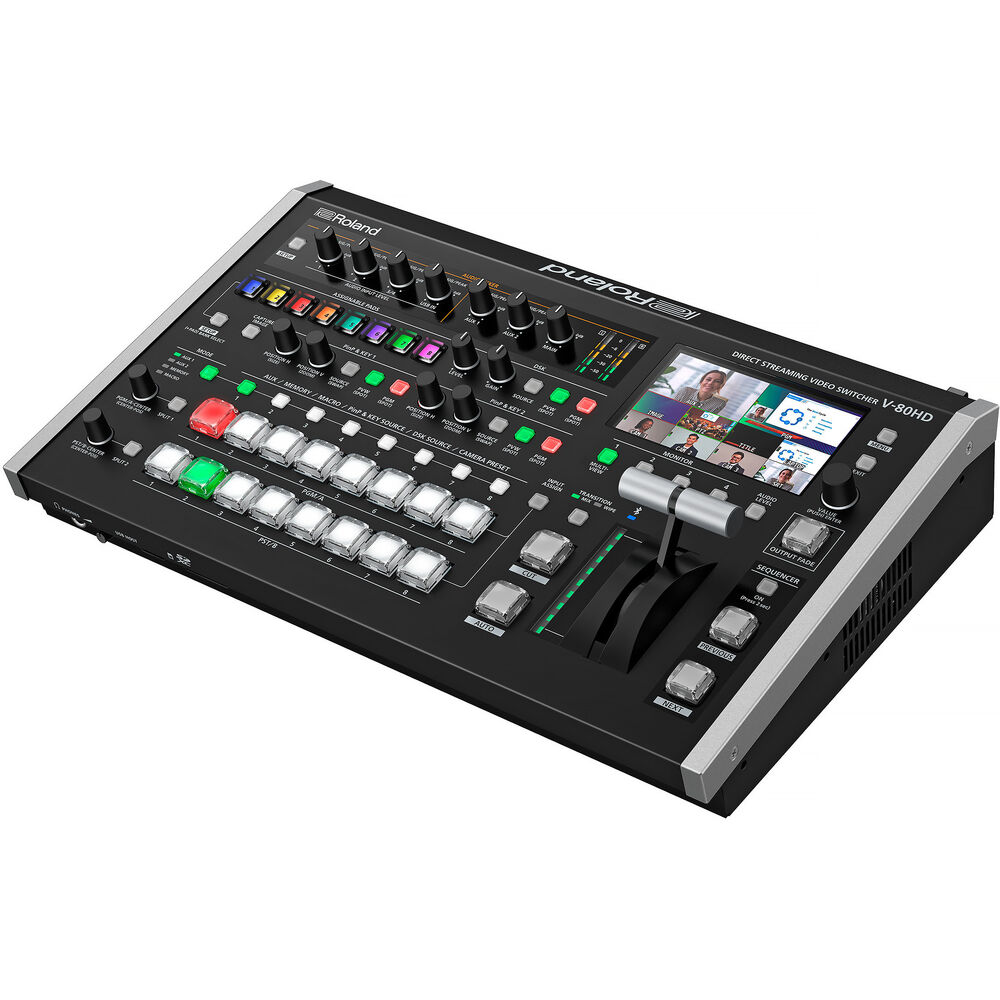

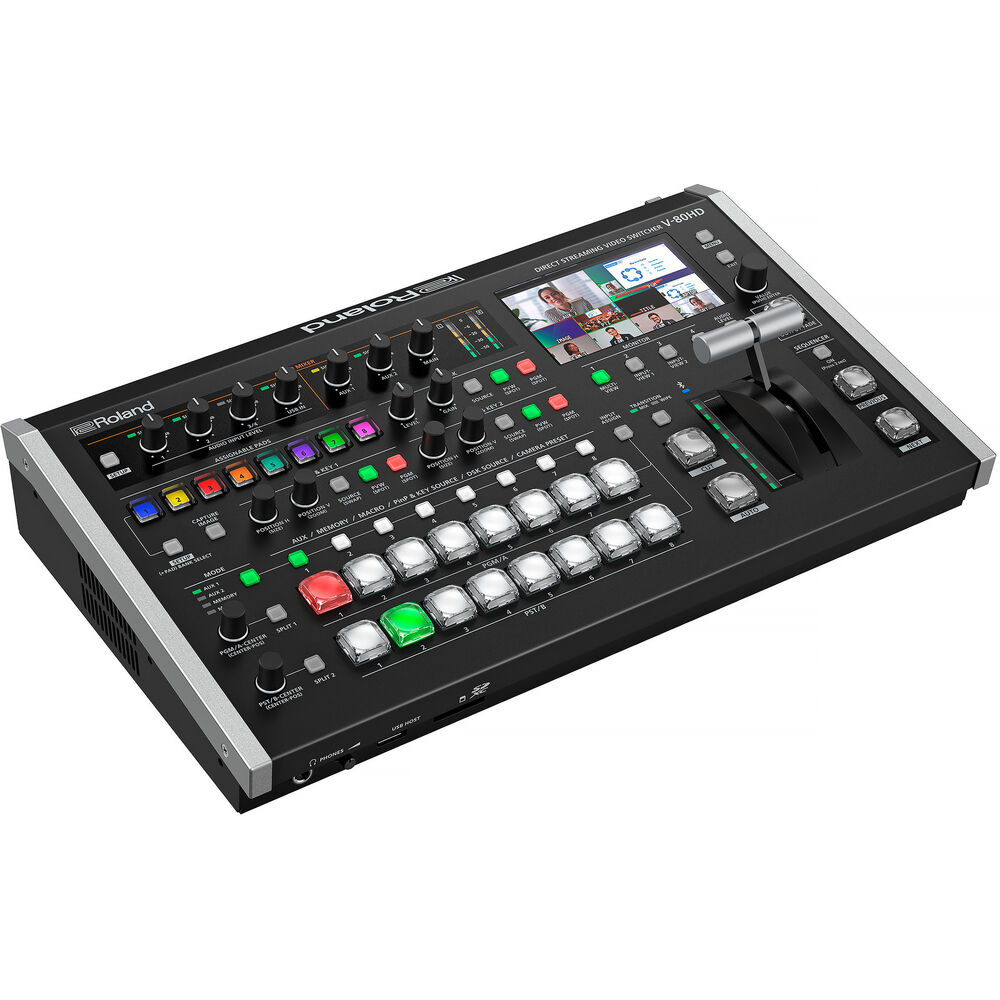

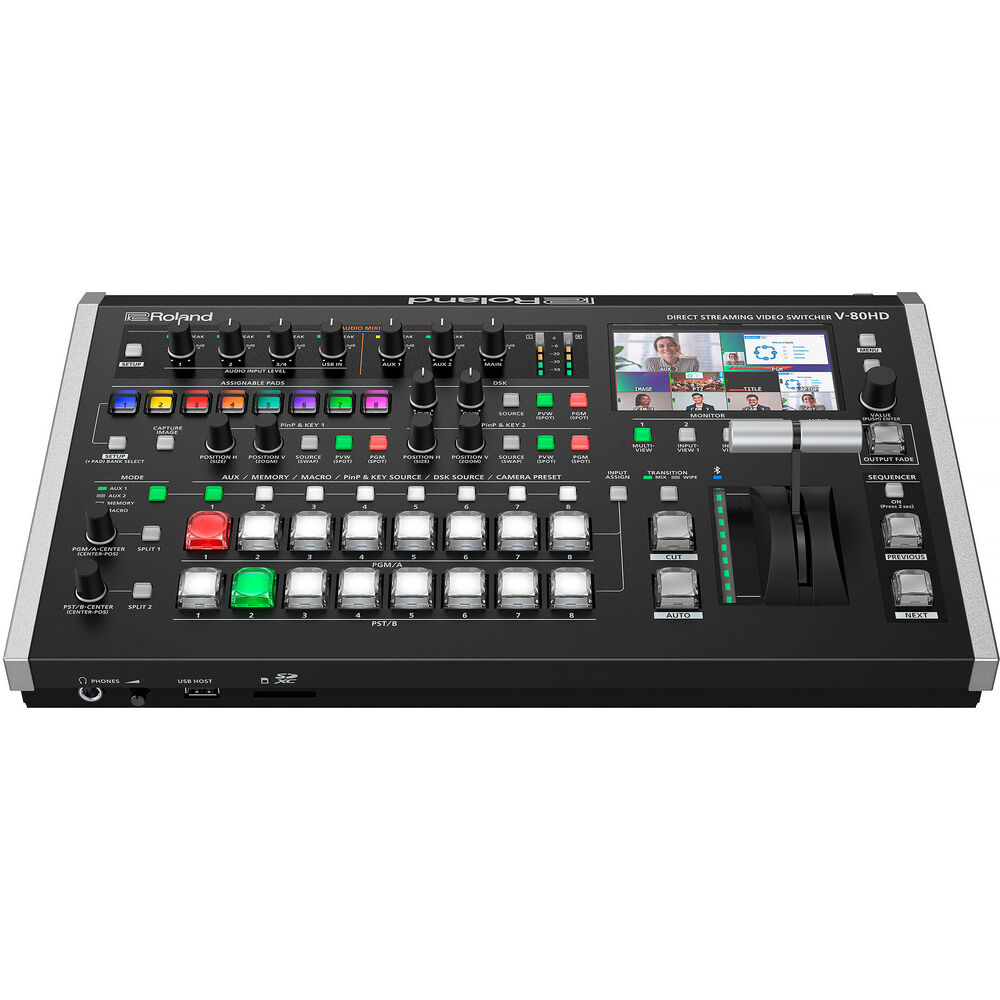

Roland V-80HD Direct Streaming Video Switcher
The Roland V-80HD Direct Streaming Video Switcher is designed for professional video production, offering versatile connectivity with four HDMI inputs—including two with downscalers for converting UHD 4K to HD—and four SDI inputs featuring frame rate converters. It supports multiple output options via HDMI, SDI, LAN Direct Stream, and USB-C streaming. Integrated multi-channel audio mixing and effects enhance production quality, while intuitive controls like LED color buttons, a T-bar, and an LCD screen streamline source switching for livestreaming, studio, and live event applications.
Regular price
$5,190.27
Regular price
-7%
$5,599.00
Sale price
$5,190.27
Available on Special-order
Switching TypePushbutton, Software, T-Bar
Colour Processing8-Bit 4:2:2
Audio Processing48 kHz / 16-Bit
Video Inputs4x HDMI, 4x BNC
HDMIUHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps, 1080p at 23.98/24/25/29.97/30/60 fps, 1080i at 50/59.94 fps, WUXGA (1920 x 1200) at 60 fps, UXGA (1600 x 1200) at 60 fps, SXGA+ (1400 x 1050) at 60 fps, FWXGA (1366 x 768) at 60 fps, SXVGA (1280 x 1024) at 60 fps, WXGA (1280 x 800) at 60 fps, XGA (1024 x 768) at 60 fps, SVGA (800 x 600) at 60 fps, VGA (640 x 480) at 60 fps, 720p at 50/59.94 fps, 576i / 625 lines at 50 fps, 576p at 50 fps, 480i / 525 lines at 59.94 fps, 480p at 59.94 fps
SDI1080p at 23.98/24/25/29.97/30/50/59.94/60 fps, 1080i at 50/59.94/60 fps, 720p at 50/59.94 fps
Audio Inputs2x Combo XLR-1/4" TRS Female, 1x 2RCA Female
Input Audio FormatAnalog
Embedded Audio InputHDMI, SDI
Video Outputs3x HDMI, 2x BNC
Output Video FormatHDMI, 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps, 1080i at 50/59.94/60 fps, 720p at 50/59.94/60 fps
Audio Outputs2x XLR 3-Pin, 1x 1/4" TRS Stereo
Output Audio FormatAnalog
Embedded Audio OutputHDMI, SDI, USB-C

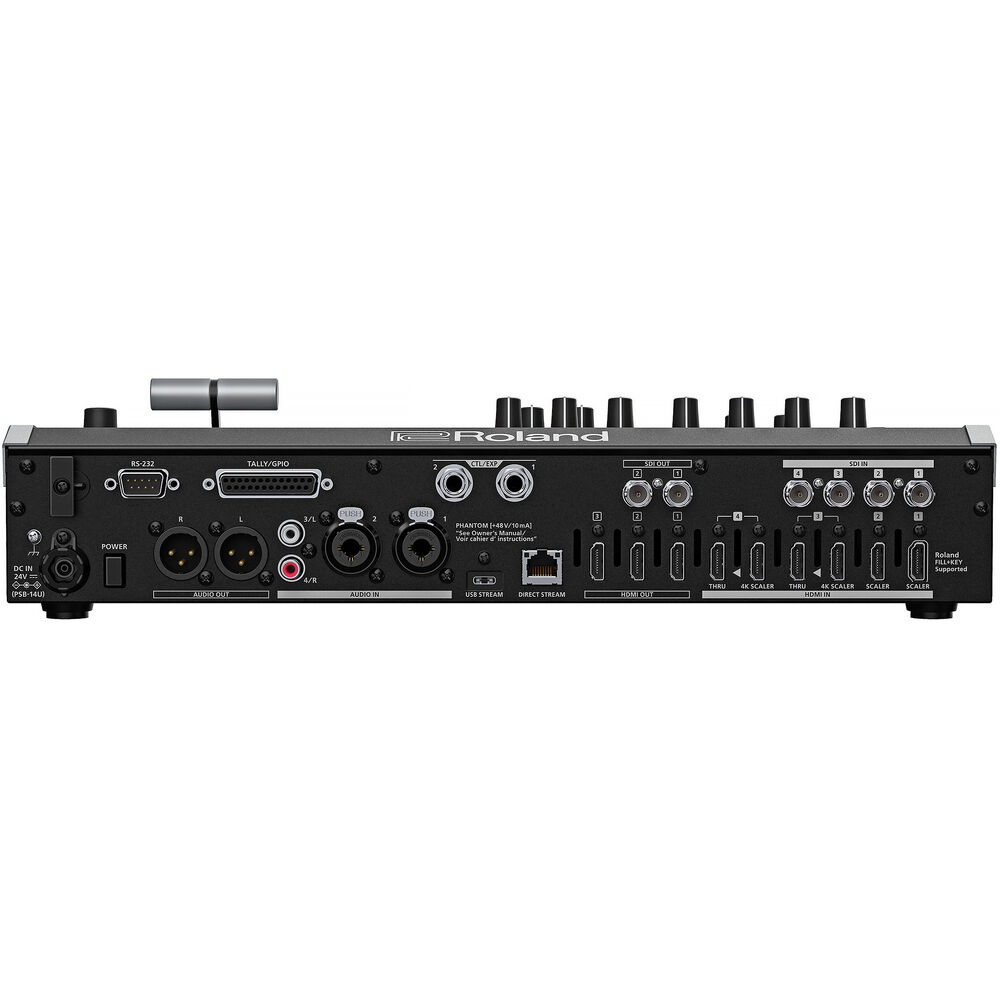

Other I/O1x USB-C, 1x USB-A, 2x 1/4" TRS Control, 1x DB-25 GPI, Tally, 1x DE-9/DB-9 RS-232, 1x RJ45 LAN
Video Standard ComplianceSMPTE 292M/425M-A/425M-B
HDCP SupportYes
HDR SupportYes
Display Size4.3"
Screen Resolution480 x 272
OS CompatibilitymacOS, Windows
Mobile App CompatibleYes: iOS Only
App NameV-80HD Remote
Wi-FiNo
Bluetooth5.0
Power I/O1x Barrel Input
Power ConsumptionPower Supply: 24 VAC at 2.1 A Device: 51 W
Operating Temperature0.0 to 40°C
Dimensions396 x 254 x 103 mm
Weight3.5 kg
Roland V-80HD Direct Streaming Video Switcher
AC Power Adapter
Power Cord
Limited 3-Year Manufacturer Warranty
