RGBlink - Mini

Mini makes the sophisticated simple. Switch seamlessly between any of the four HDMI inputs and output to both HDMI and the dedicated USB 3.0 output. Mini is ideal for live streaming applications and presentations, allowing multiple sources to be utilized. Onboard features include transition effects and external audio embedding, along with integration support for UVC PTZ cameras and more.

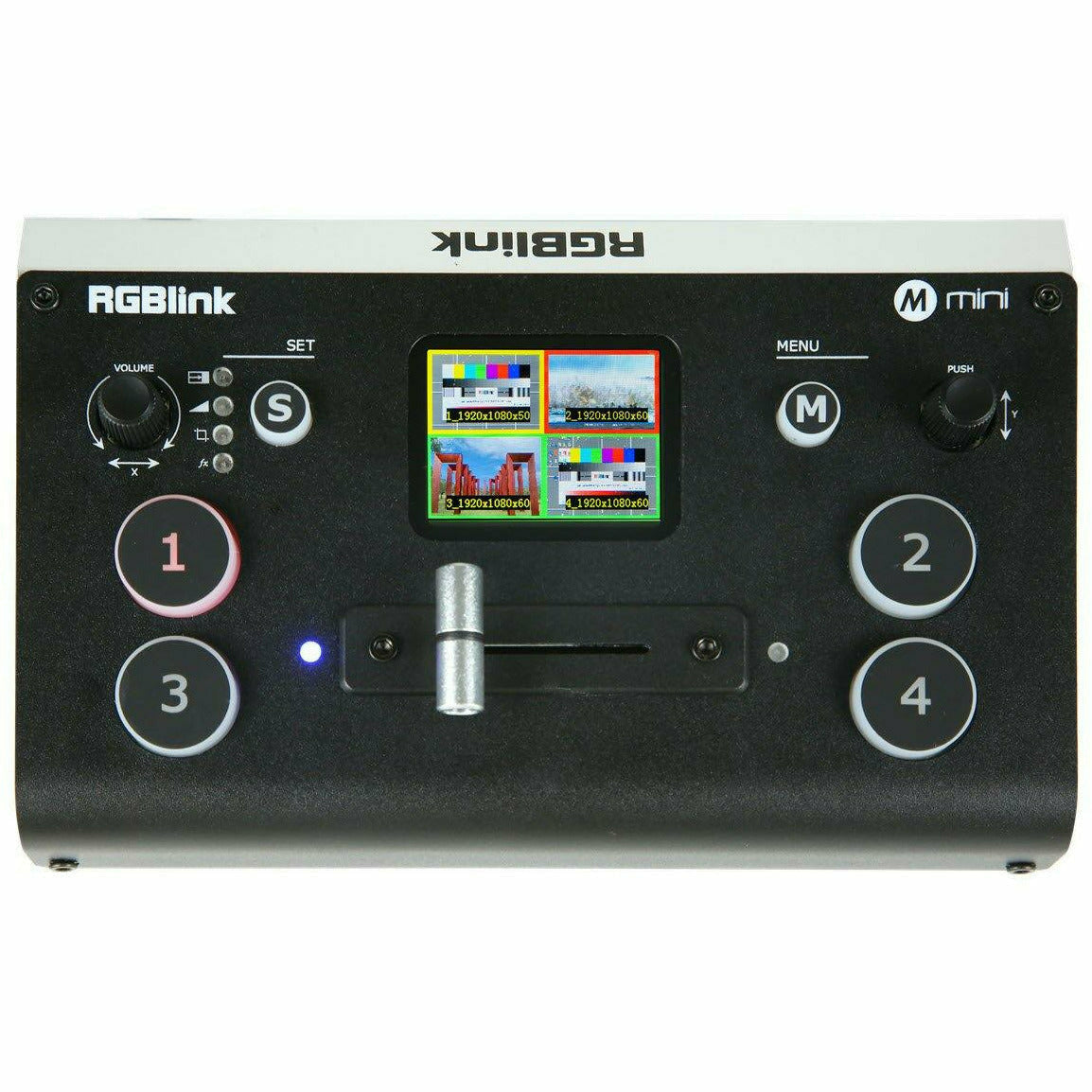

Large buttons make quick actions easy, while the provision of the T-bar allows a smooth transition between sources. Compact in size, the mini goes anywhere. And with handy features like the ability to mount to standard 1/4'' UNC accessories Mini can be used in studios as well.

Scale convert present

The RGBlink advanced hardware-based video processing engine supports scaling and full 4:4:4 colour space for optimal visual output

Preview built-in

Preview sources and PVW/PGM directly from the LCD display in the front panel.

Connect & control

Control directly from the front panel, or remotely via a LAN connection with apps for laptops, mobile apps and integrate with third-party apps.

Stream & capture

Connect Mini to a USB 3.0 device for capture or streaming virtually any platform via OBS.

Synchronise with audio

Utilise embedded or external audio and extract to audio mixers or other devices for video and audio synchronization.

Crop, position  & scale

Focus on exactly the video area required with pixel-to-pixel cropping, XY positioning and scaling to zoom.

Connectors

• Input

  •  HDMI: 4 x HDMI-A
• Output
  • HDMI: 1 x HDMI-A
  • USB 3.0: 1 x USB Type A
• Audio

  • In: 1 x 3.5mm Stereo Jack
  • Out: 1 x 3.5mm Stereo Jack
• Communications

  • LAN: 1 x RJ45
• Power: 1 x DC Jack

Performance

• Input Resolutions
  • HDMI
  • SMPTE: 720p@50/60 | 1080i@50 | 1080p@23/24/30/50/60
  • VESA: 1024×768@60 | 1280×720@60 | 1280×768@60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 | 1366×768@60| 1440×900@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 1920×1200@60
• Output Resolutions

  • HDMI
  • SMPTE: 720p@60 | 1080p@60
  • VESA: 1024×768@60 | 1280×720@60 | 1280×768 | 1280×1024@60 | 1360×768@60 | 1600×1200@60 | 1920×1080@60 | 1900×1200@60
  • USB Streaming: 1280×720@60 | 1920×1080@60
• Supported Standards

  • HDMI: 1.3
  • USB: 3.0

Power

• Input Voltage: DC 12V/4A (via Plug Pack supplied)
• Max Power: 48W

Environment

• Temperature: -0℃～70℃
• Humidity: 10% ~ 85% RH

Physical

• Weight

  • Net: 0.5kg
  • Packaged: 0.9kg
• Dimensions

  • Net: 180mm x 113mm x 49mm
  • Packaged: 276mm x 176mm x 141mm
