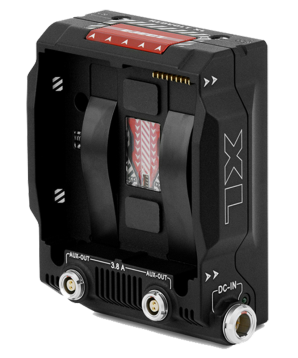

The DSMC2 REDVOLT XL Module mounts seamlessly to the back of the DSMC2 BRAIN—and select other I/O expanders—to provide support for long-lasting and rechargeable REDVOLT XL batteries. The DSMC2 REDVOLT XL Module features a smaller, more ergonomic design compared to the REDVOLT XL Module with one (1) dual-action release button for removing an attached battery.

The DSMC2 REDVOLT XL Module offers a DC IN power port that can be used to power the camera system when the module is attached to the BRAIN^®. An included protective baseplate enables the DSMC2 REDVOLT XL Module to serve as a portable and stand-alone REDVOLT XL battery charger. Plug in the DSMC^® AC Power Adaptor to the 6-pin 1B DC IN connector on the module and connect a REDVOLT XL battery. While the module is mounted to the BRAIN, it only charges an attached REDVOLT XL battery if the BRAIN is powered off.

Two (2) rear facing auxiliary ports provide power for external camera accessories, while remaining out of your way while shooting.

WARNING: DO NOT attempt to power a third-party device without first verifying the cabling and connections are correct, since that may cause damage. Damage to the device, the module, or other components of the camera system caused by attempting to power a third-party device incorrectly may not be covered under warranty.

NOTE: The DSMC2 REDVOLT XL Module ONLY supports REDVOLT XL batteries. DO NOT use a REDVOLT battery.

RED DSMC2 REDVOLT XL Module 740-0034
