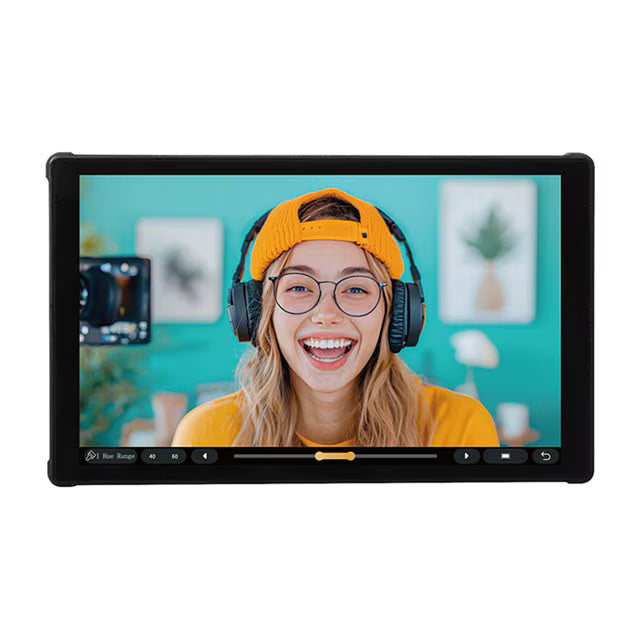

Portkeys PT5-III - 5.4-inch 4K HDMI Colour Grading Touchscreen Monitor

SKU: PK-PT5-III
$399.00
Only 1 left!
Display
Panel Type
LCD
Display Size
5.4" / 13.7 cm
Native Resolution
1920 x 1152
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
Yes
Maximum Brightness
800 nits / cd/m2
Contrast Ratio
1000:1
HDR Support
Yes: Hybrid Log Gamma
Color Gamut
85% NTSC
LUT Support
Yes
Image Controls
Color Temperature Selection, False Color, Focus Peaking, Histogram, Waveform
Inputs/Outputs
Video I/O
1x HDMI 1.4 Input
1x HDMI 1.4 Output
Embedded Audio
HDMI
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
1x 1/8" / 3.5 mm Mic Input
Built-In Speaker
No
Power I/O
1x USB-C (5 VDC) Input
Other I/O
1x USB-A (Firmware/LUT Upload)
Media/Memory Card Slot
No
Wireless
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
HDMI (8-Bit)
DCI 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Power
Input Power
7 to 24 VDC
Battery
1x L-Series Mount on Fixed Plate
Power Consumption
7.5 W
Mounting
Tripod/Accessory Mounting
Bottom
1x Anti-Twist 1/4"-20 Female
Right
1x Anti-Twist 1/4"-20 Female
General
Environmental Resistance
No
Material of Construction
Plastic, Polycarbonate
Dimensions
5.3 x 3.2 x 0.9" / 135.1 x 82.5 x 22 mm
Weight
5.7 oz / 162.00 g
