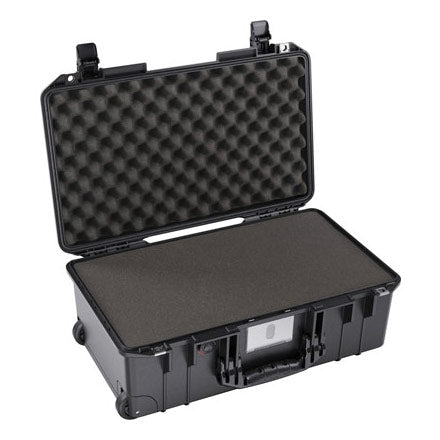

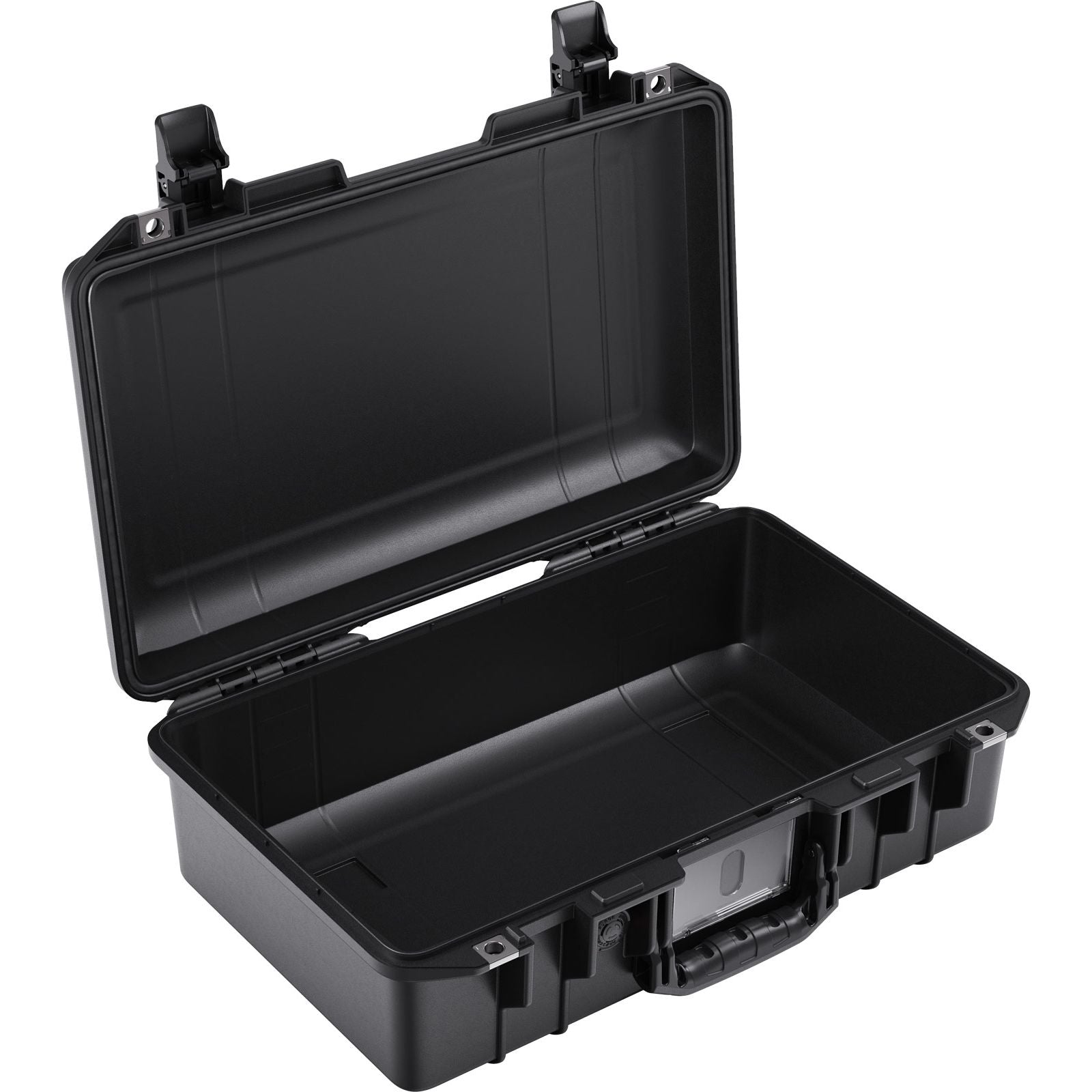

Pelican Air 1485 Case

Pelican Air 1485 Case — Ultimate Transit Security for High-Value Production Assets

The Pelican Air 1485 Case is a professional-grade, lightweight protective hard case engineered to safeguard delicate camera bodies, cinema lenses, and sensitive production electronics during demanding commercial transport and studio deployments.

Maximizing Commercial Production Value

In high-stakes commercial production, protecting equipment is directly linked to maintaining profitability and client trust. Equipment failure or calibration shifts due to transport shock can derail a tight shooting schedule, leading to costly delays and compromised deliverables. This case offers an elite defense mechanism using proprietary HPX² polymer construction, ensuring that expensive cinema bodies and sensitive optical gear arrive at the venue in perfect operational condition, ready to deliver flawless results for paying clientele.

Maintaining absolute consistency across multi-camera configurations is essential for fast-paced studio workflows. This protective container ensures that critical production tools—such as matched prime lens sets, calibrated field monitors, and audio systems—remain structurally isolated from external stressors. By minimizing the risk of mechanical misalignment or impact damage during transit between stages, rental houses and production agencies can maintain a highly reliable studio ecosystem, ensuring uniform performance across all camera packages.

Investing in robust, flight-ready transit protection represents a long-term strategy for mitigating asset depreciation and unexpected overhead. Built to withstand rigorous travel schedules and extreme environments, the resilient shell eliminates the need for frequent replacements or makeshift padding solutions. For commercial studios, this means reduced insurance liabilities, fewer equipment rental backups, and a professional aesthetic that reinforces operational excellence when high-profile clients are on set.

Critical Performance Benchmarks

• Material Construction: Proprietary super-light HPX²™ Polymer blend with honeycomb structural elements

• Interior Dimensions: 17.75" x 10.18" x 6.15" (45.1 x 25.9 x 15.6 cm)

• Exterior Dimensions: 19.17" x 12.80" x 6.89" (48.7 x 32.5 x 17.5 cm)

• Internal Lid Depth: 1.80" (4.6 cm)

• Internal Base Depth: 4.35" (11.0 cm)

• Total Internal Depth: 6.15" (15.6 cm)

• Internal Volume: 0.64 cubic feet (18.1 L)

• Weight with Foam: 5.39 lbs (2.4 kg)

• Weight Empty: 4.57 lbs (2.1 kg)

• Maximum Buoyancy: 41.10 lbs (18.6 kg)

• Ingress Protection Rating: IP67 (Dustproof and watertight submersible to 1 meter for 30 minutes)

• Certifications: MIL-SPEC certified, drop-tested on concrete across all corners and sides

• Latching System: Press and Pull™ push-button dual latches

• Pressure Valve: Automatic pressure equalization valve with Hi-Flow Gore-Tex 3-micron hydrophobic non-woven vent

• O-Ring Gasket: EPDM watertight seal

• Hardware Components: Stainless steel pins and reinforced padlock hasp protectors

• Handle Design: Fold-down over-molded comfort grip handle

• Temperature Thresholds: Minimum 0°F (-18°C) to Maximum 140°F (60°C)

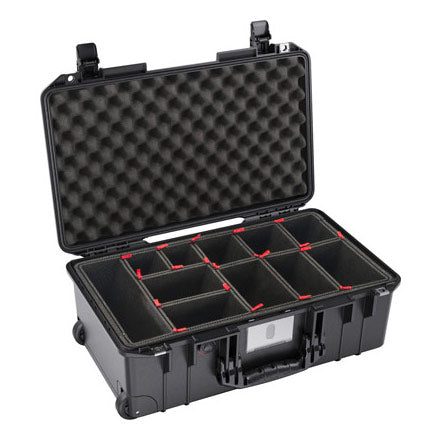

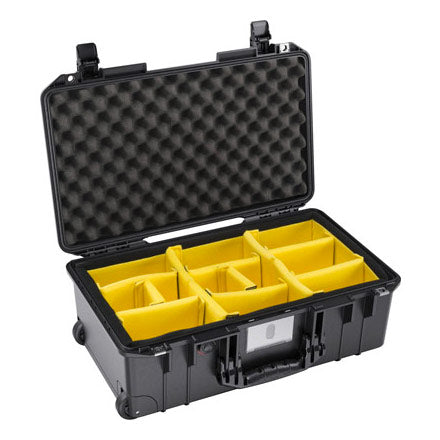

• Additional Layout Features: Removable polycarbonate business card/ID holder; fully compatible with Pick N Pluck™ foam, padded dividers, or TrekPak™ configurations

Integration & Deployment FAQ

Q: How does this case preserve the delicate calibration of color-profiled production monitors and multi-camera sensors during travel?

A: Internal shifting and thermal shock can cause subtle misalignments in multi-camera sensors and calibrated reference monitors, degrading preset studio color profiles and matrix configurations. The watertight EPDM seal and impact-absorbent polymer shell maintain a stable micro-climate, isolating sensitive monitoring systems and optical components from the physical stress and temperature fluctuations that destabilize precise studio setups.

Q: Can the internal architecture be configured to accommodate standardized multi-camera corporate or broadcast rental kits?

A: Yes. The interior space is fully compatible with custom modular systems like TrekPak or padded divider grids. This allows production managers to design uniform, repeatable system configurations across an entire rental fleet, ensuring that every operator has an identical gear matrix layout for multi-camera deployments, which speeds up on-set deployment and post-shoot inventory tracking.

Q: Is the automatic purge valve safe for transport containing highly sensitive studio audio components and wireless transmitter matrices?

A: Absolutely. The automatic pressure equalization valve utilizes a Hi-Flow Gore-Tex 3-micron hydrophobic non-woven vent that continuously balances internal air pressure without allowing moisture or dust to breach the seal. This prevents pressure lock during air travel, ensuring instant access to wireless transmitter packages and acoustic instruments without risking structural damage to fragile diaphragms or delicate internal circuit configurations.

Q: How does the external footprint integrate into a standard studio grip truck or production matrix cart?

A: The compact exterior dimensions are specifically engineered to enhance space efficiency within standard production vehicles, utility crates, and logistics carts. The flat, non-slip profile allows multiple units to stack securely, safeguarding spatial configurations inside the studio pack while providing rapid, unhindered access to key production assets during fast-moving commercial timelines.
