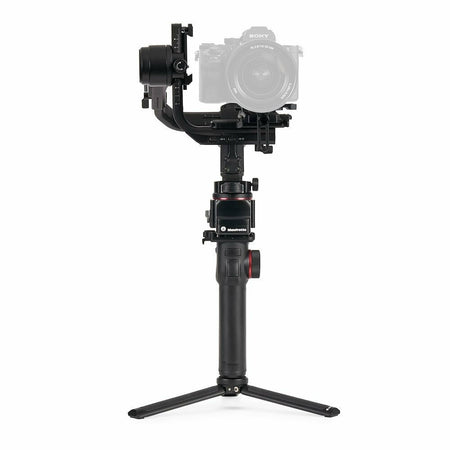

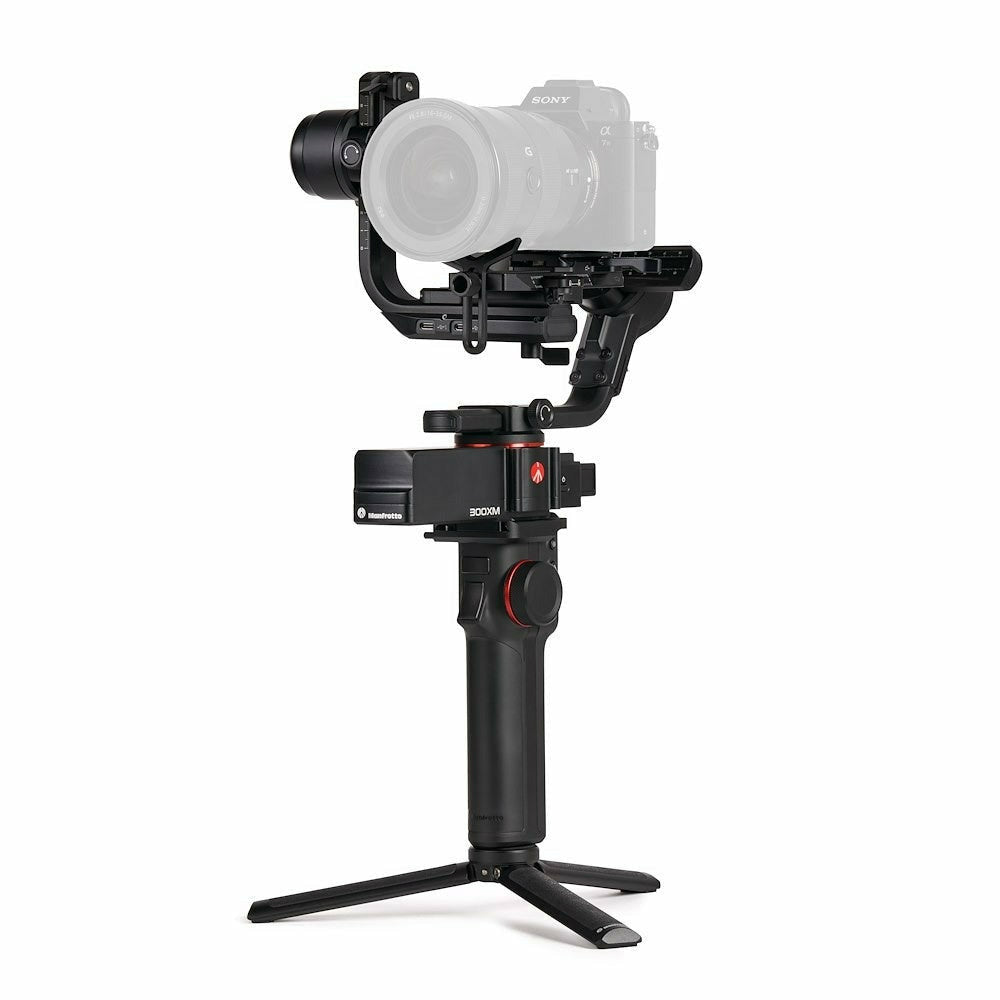

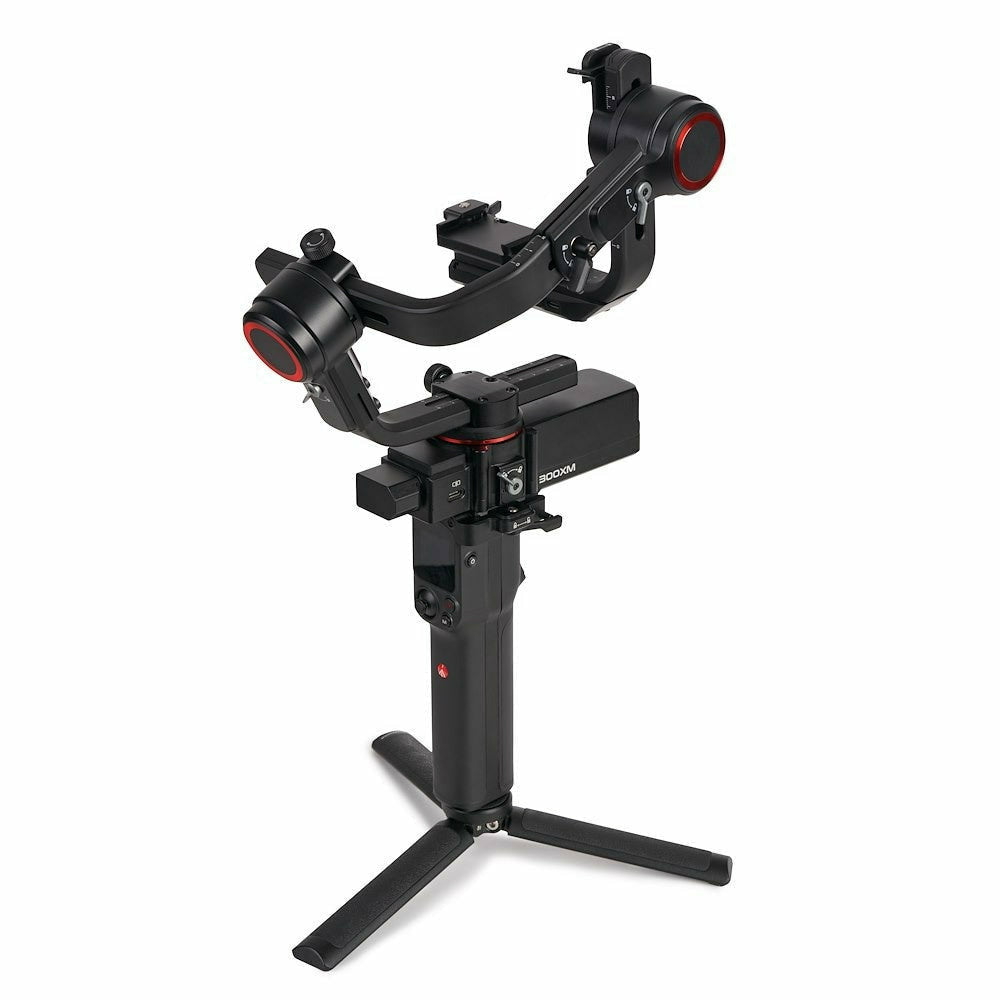

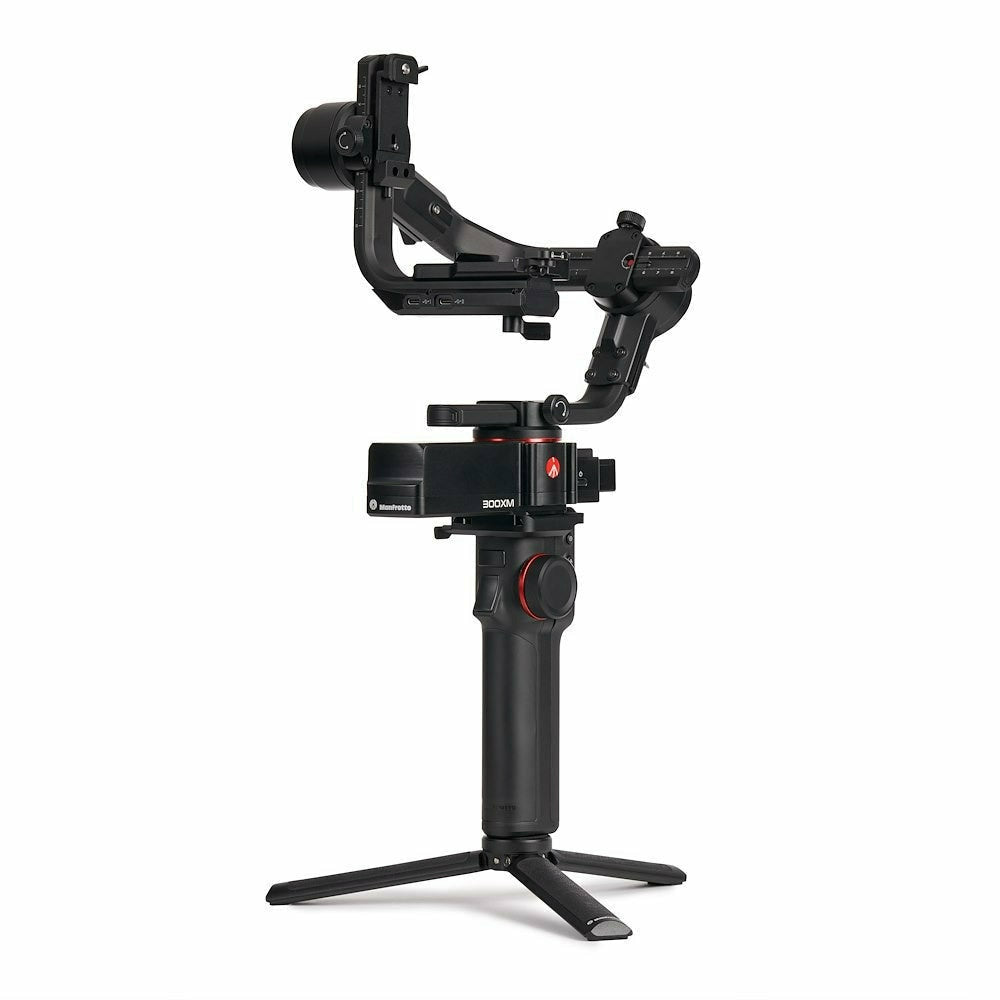

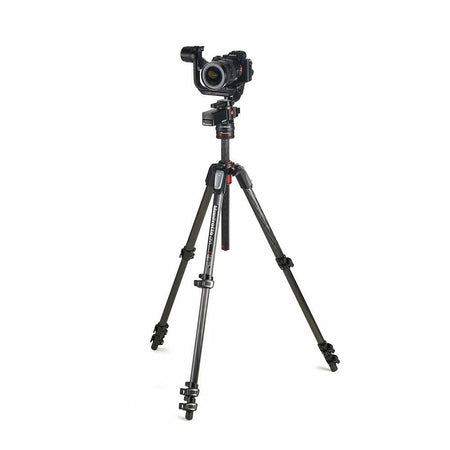

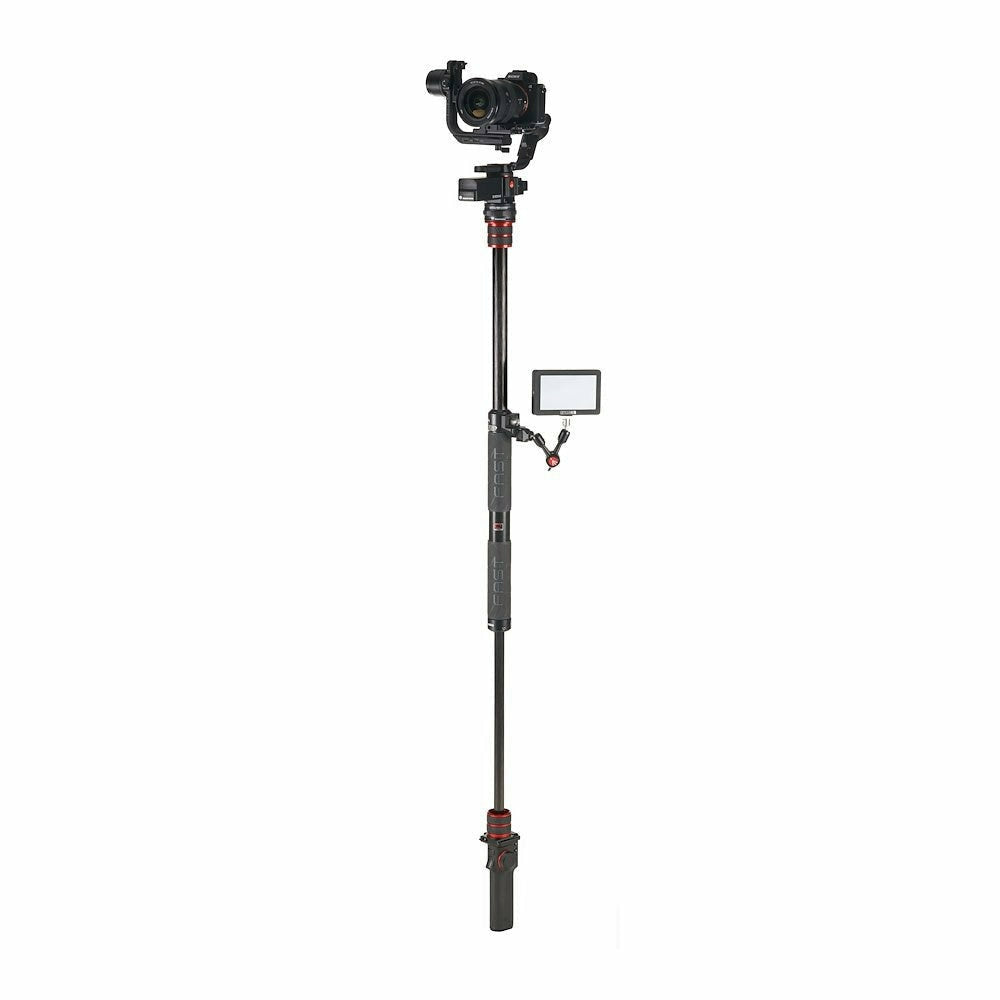

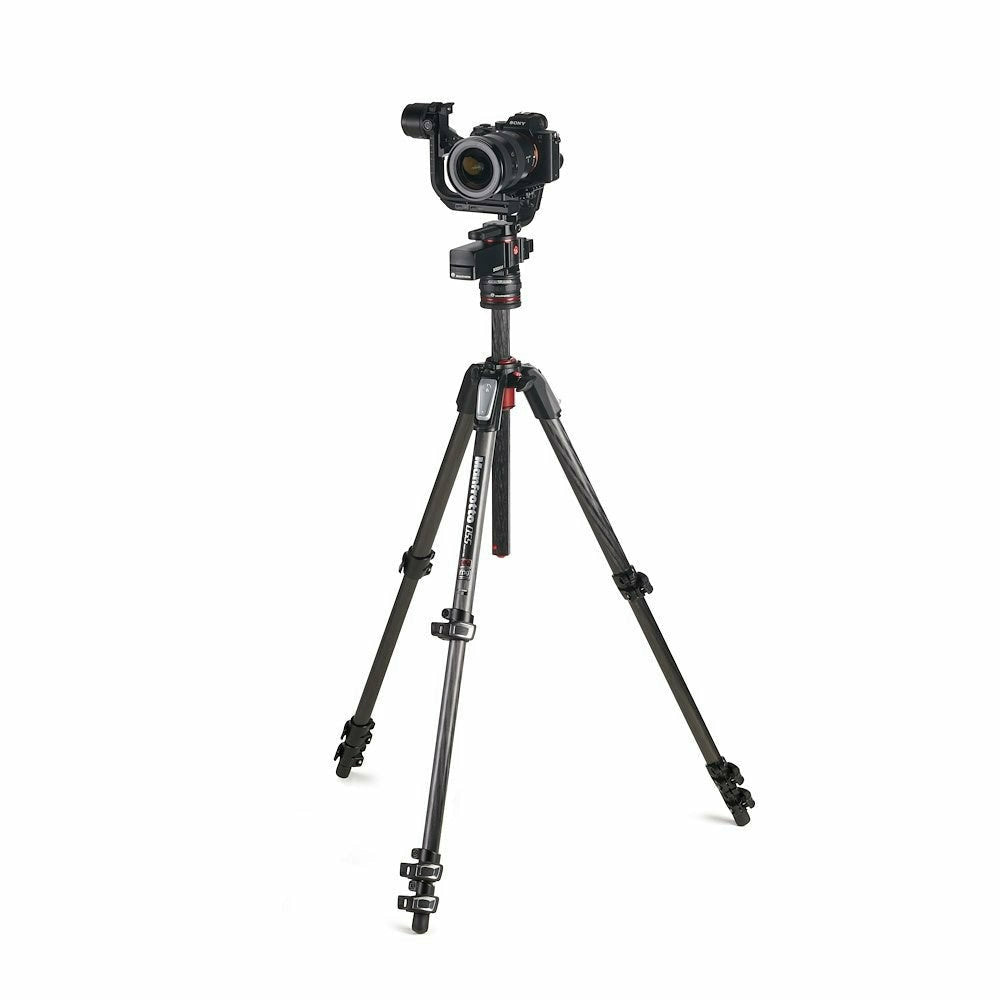

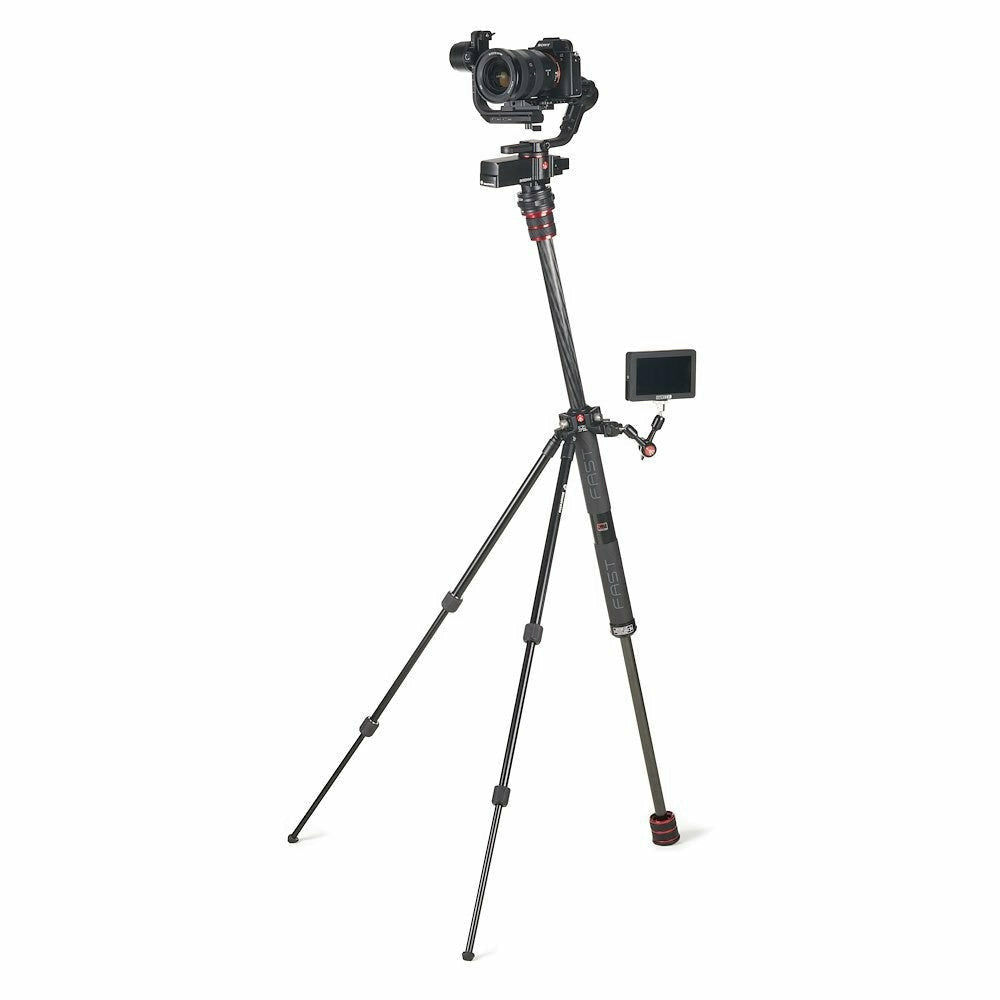

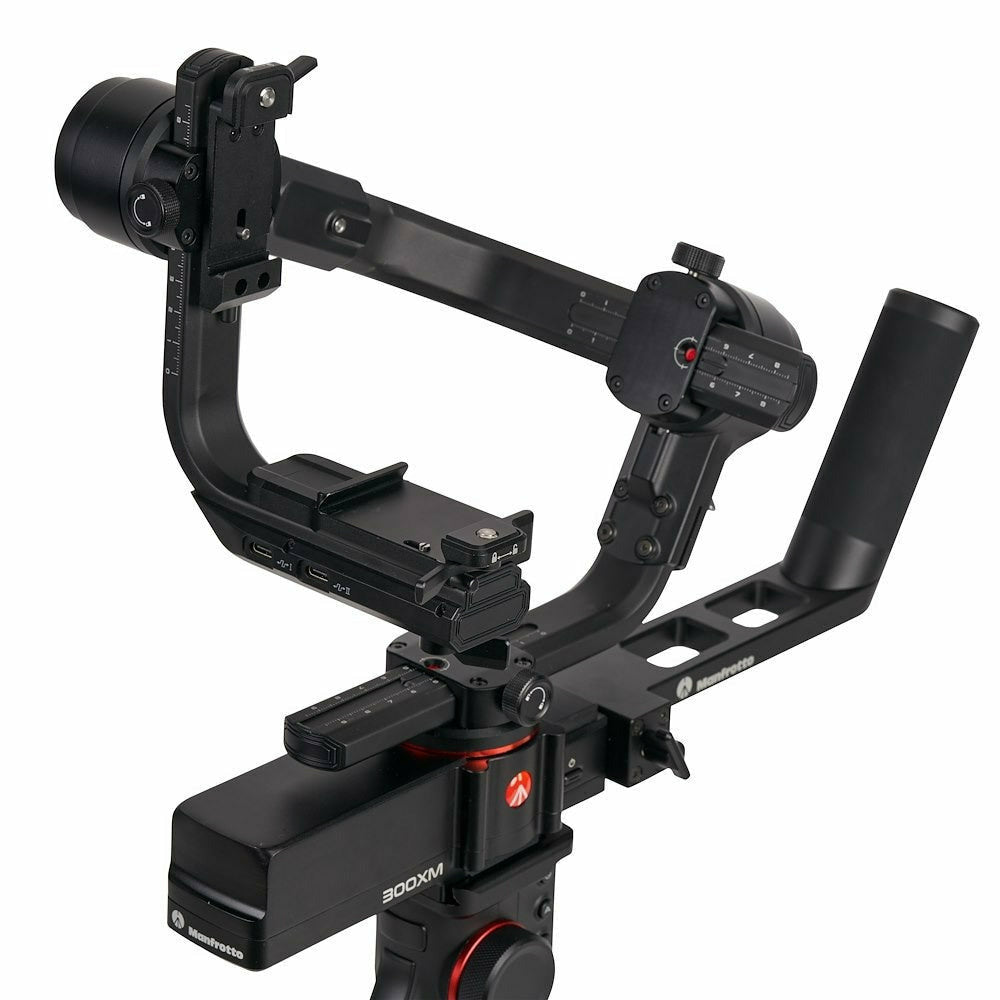

Manfrotto Modular Gimbal MVG300XM is a professional 3-Axis Stabilized Handheld Modular Gimbal. The handle can be easily detached to be used as a remote control and allows the gimbal to be used in combination with many different types of support.
Designed for CSC and DSLR cameras, it can support up to 3.4 kg / 7.495 lbs and is perfect for videographers looking for versatility and modularity.

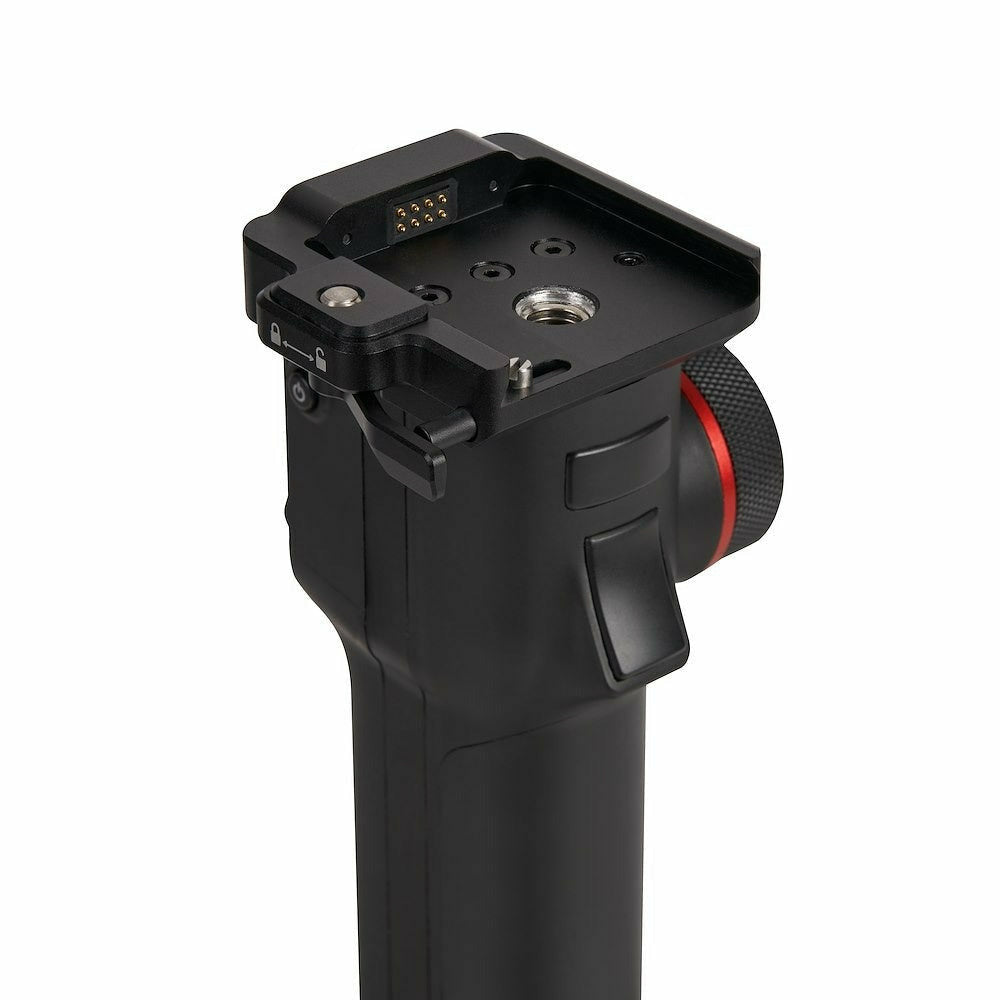

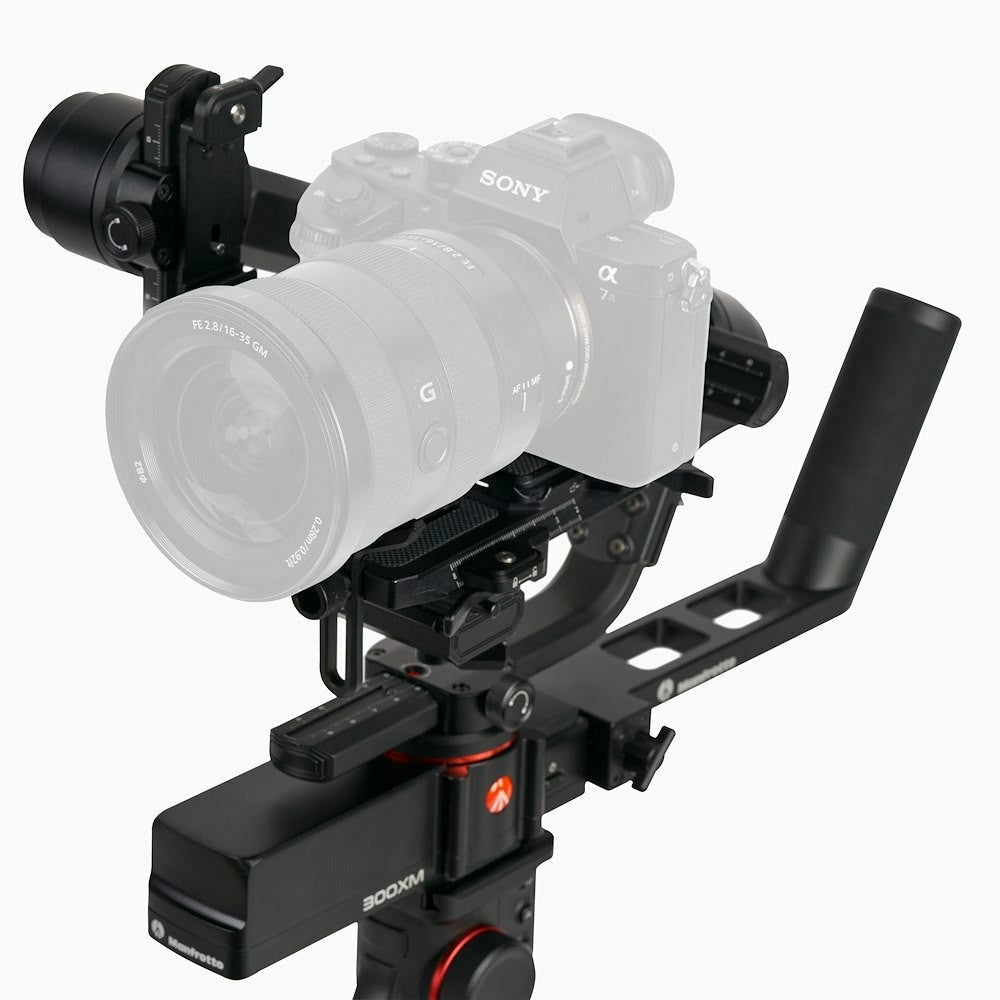

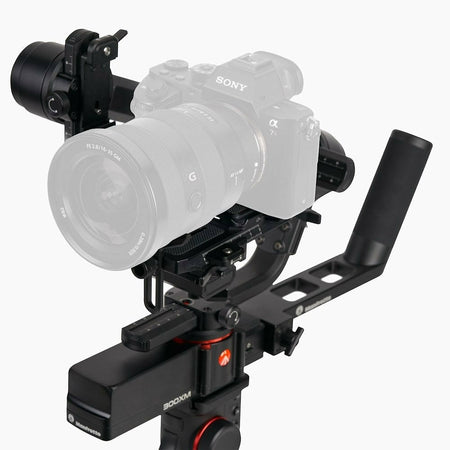

The Gimbal handle features a LCD touch screen allowing easy choice of settings. A joystick enables straightforward operation of gimbal movements, while a multifunction knob provides greater control and focus control*.

When the handle is detached, it allows the gimbal to be controlled remotely and thanks to the integrated gyro, the handle movements can be mimic.

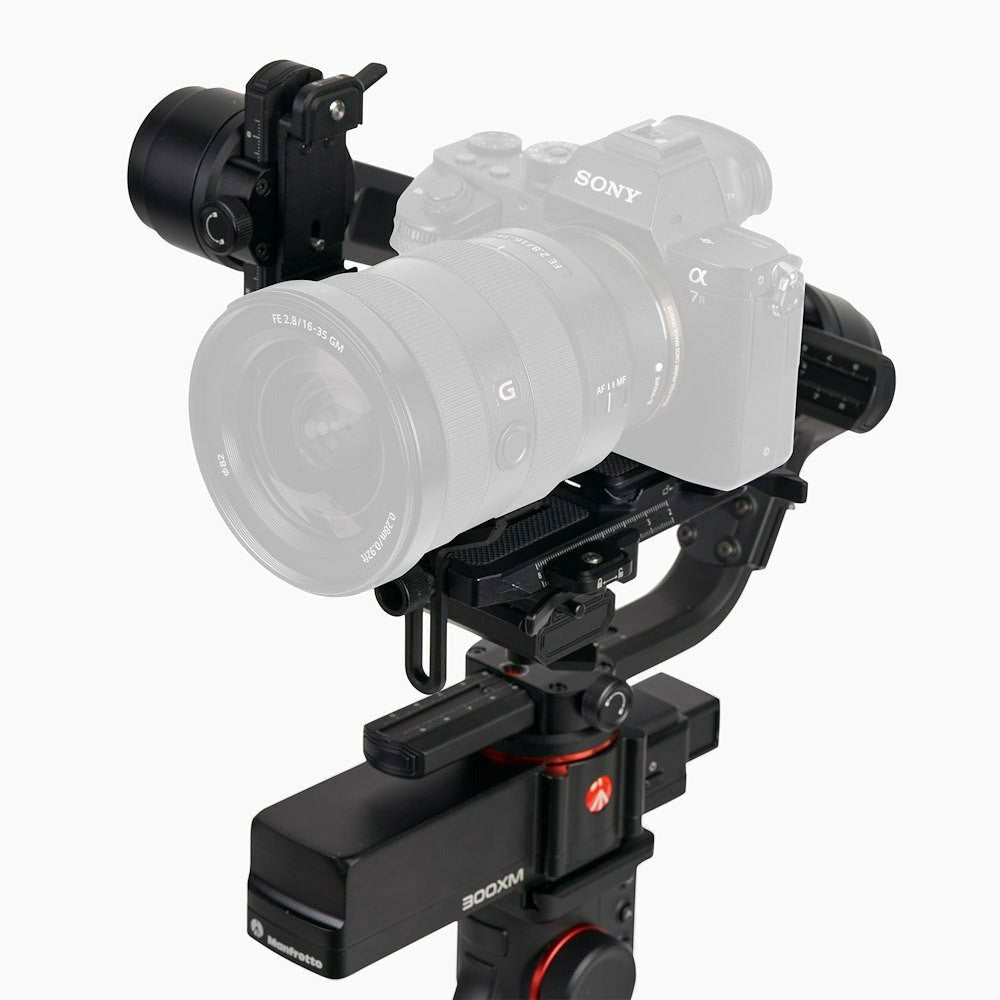

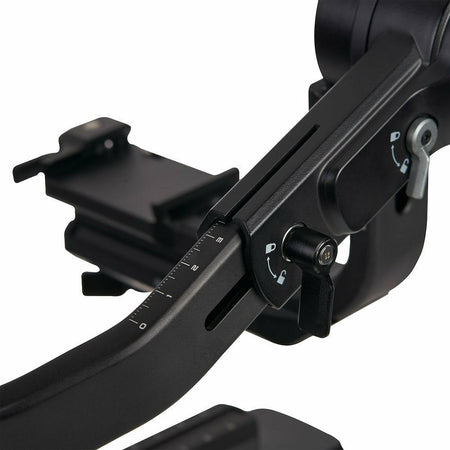

Balancing is made easier with a position memory red dot on both the vertical and cross arms.

300XM Gimbal offers different shooting modes including:

- Timelapse
- Inception
- Panorama
- Portrait
- Selfie

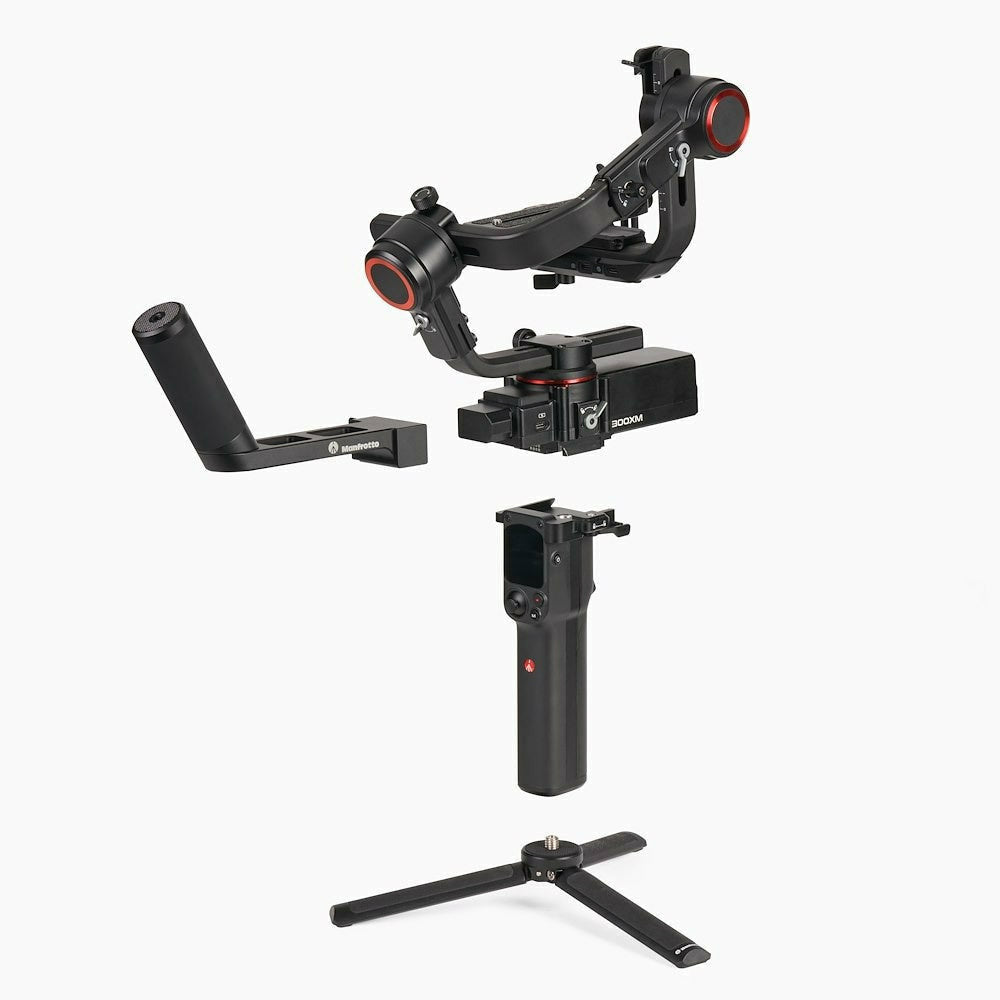

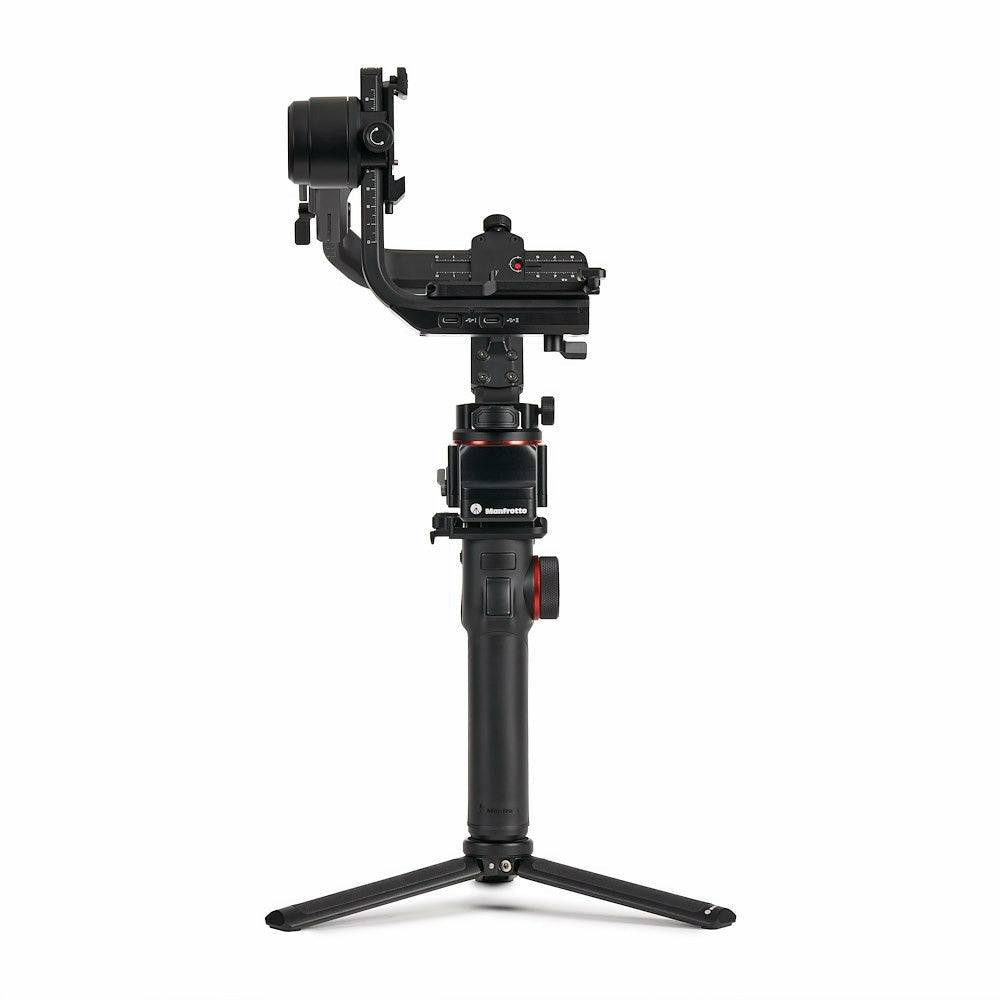

It is also supplied with a removable rear versatile handle that can be used for better support, especially when shooting at different angle. Also included a mini tripod for easy camera installation and balancing.

A dedicated Manfrotto Gimbal 300XM App is available for simple control of your gimbal and allow some functions to be performed remotely.

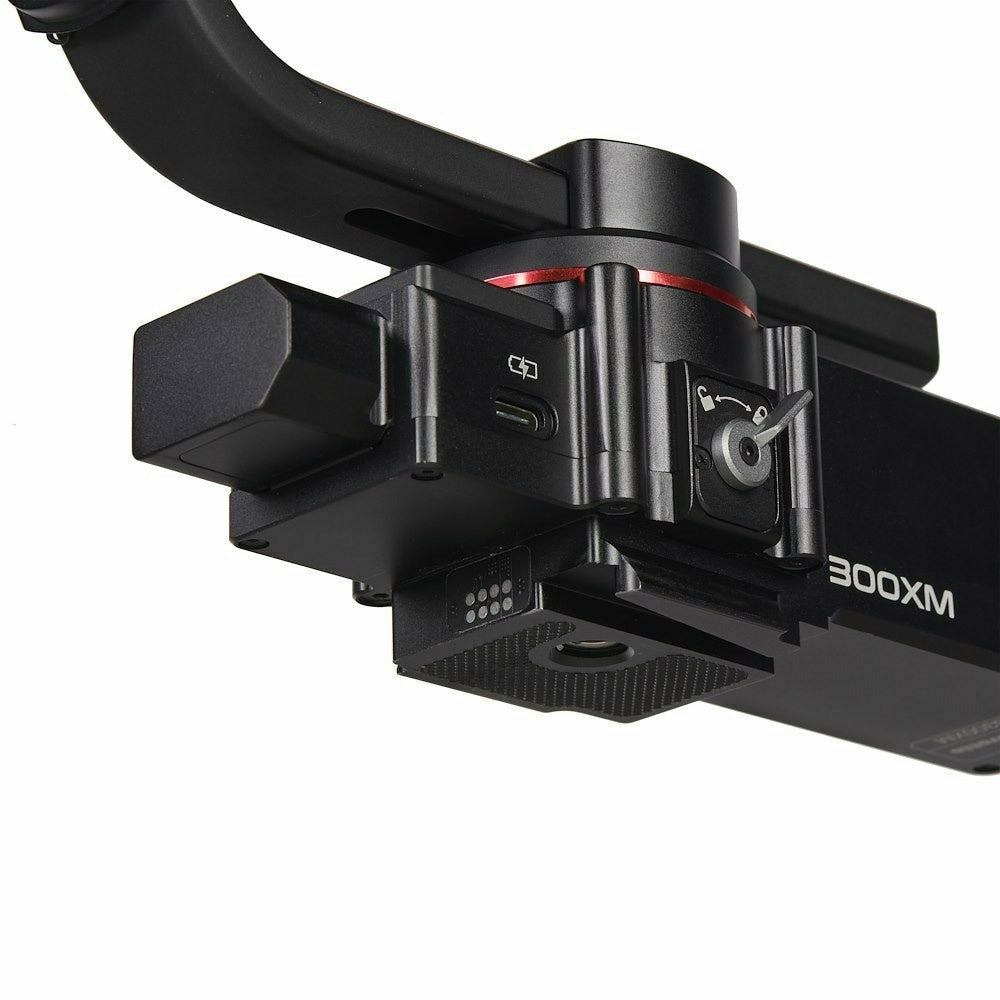

To prevent shaking and for easy transportation, the motor is equipped with independent locking for each axis.

*Please check the camera compatibility chart.

Specifications
Weight
2 kg

Dimensions
19.6 x 29 x 46 cm

Payload
3.4 kg

Tilting Angle
340 °

Rolling Angle
340 °

Panning Angle
360 °

Battery Life
10 hours hrs

Certifications
CE, EAC, KC, FCC, IC, NCC, RCM, SRRC, TELEC

Controllable Tilt Range
+175° to -55°

Powered By (Batteries)
Li-Ion

Charging Mode
USB-C

Attachment Type
3/8" adapter, 1/4 inch thread hole on the bottom of the gimbal

Charging Time
2,6 hours

Usage Time
Up to 10 hours

Output Connection
Wi-Fi, USB-C port

App
Manfrotto Gimbal 300XM

Minimum Working Temperature
-10 °C

Maximum Working Temperature
45 °C

Product Contents
USB 2.0 to Type-C; Type-C to Micro(A03); Type-C to TRS2.5 (T02); Type-C to Mini (B02); Type-C to Type-C (C02); Type-C to Multi Sony shutter cable; Type-C to 2.5mm Panasonic shutter cable(DC2.5mm); Tripod; Versatile handle; Quick release plate; Higher block; Short quick release plate (GimBoom); Lens holder screw; Camera fixed screw; 3/8 to 1/4 inch transition screw; Lens holder
