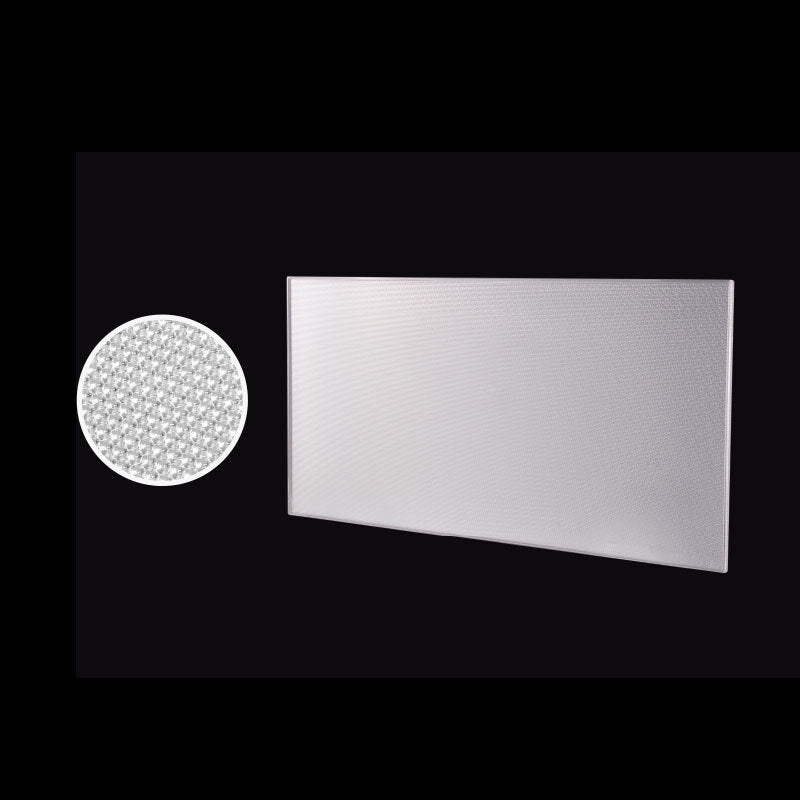

Kupo KBIT-S60 Brewster Intensifier panel for Arri S60 Skypanel
BREWSTER Intensifier Panels can be installed on LED panels to help focusing and intensifying light. The BREWSTER Intensifier Panel can increase light output by up to 50% via its unique hexagonal pyramid micro-structures that help capturing light going off to the side and re-directing it in a more forward direction.
The patented micro-optics design of BREWSTER Intensifier Panels can significantly decrease the Unified Glare Rating (UGR) by shaping the light transmission, reducing the light above 72 degree, and producing a soft, even beam.
This product is specifically designed to fit the Arri Skypanel S60. Other BREWSTER Intensifier Panels are available in both standard and customized sizes. Intensifier panels with different surface patterns such as prism, microlens, and microcones are also available to satisfy specific needs.
Dimensions
660 x 315 x 5mm
Designed to specifically fit the Arri S60 panel
Illumination parameters
| Item No. | Specifications (mm) |
3m/9.8ft | 5m/16.4ft | 7m/23.0ft | 9m/29.5ft | ||||
|---|---|---|---|---|---|---|---|---|---|
| 3200K | 5600K | 3200K | 5600K | 3200K | 5600K | 3200K | 5600K | ||
| KIT-30 | Light Intensifier Panel 355*300 （14×11.8 inches） |
886lx 82fc |
908lx 84fc |
319lx 30fc |
327lx 30fc |
163lx 15fc |
167lx 16fc |
98lx 9fc |
101lx 9fc |
| KIT-60 | Light Intensifier Panel 645*300 （25.4×11.8 inches) |
1981lx 184fc |
1942lx 180fc |
713lx 66fc |
699lx 65fc |
364lx 34fc |
357lx 33fc |
220lx 20fc |
216lx 20fc |
| KIT-120 | Light Intensifier Panel 1290*300 （50.8×11.8 inches） |
2151lx 200fc |
1944lx 181fc |
774lx 72fc |
700lx 65fc |
395lx 37fc |
357lx 33fc |
239lx 22fc |
216lx 20fc |
