Hire Equipment - Vaxis Storm 800 SDI & HDMI Wireless Transmission Kit
Please ensure to bring Australian Photo ID - We will contact you to get the hire dates once ordered.

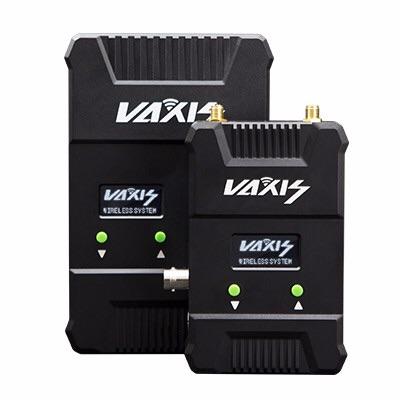

The Vaxis Storm 800 wireless transmission system features an 800 feet range. It supports up to 1080p60 uncompressed signal transmission with less than 1 ms of latency over the 5.1 to 5.9 GHz license-free operation frequency.
The transmitter features 3G-SDI and HDMI inputs plus a 3G-SDI loop output for local monitoring, and it comes with an L-series battery plate. The receiver offers 3G-SDI and HDMI outputs and has a V-mount plate. Both units also support continuous power via 2-pin LEMO power inputs. Two D-Tap to LEMO cables are included for running power from D-Tap sources.
Both units have an OLED screen that confirms various parameters. The transmitter is capable of multicasting to up to 10 receivers at the same time. The Storm 800 system accepts and transmits camera timecode, metadata, and start/stop flags for ARRI, Canon, RED, Panasonic, and Sony cameras. It also has a built-in HDMI to SDI converter. Both units feature a robust metal housing.
Key Features
Up to 1080p60 uncompressed transmission
800′ range with less than 1 ms of latency over 5.1-5.9 GHz frequency
User-configurable frequency bands
Transmitter: SDI input, HDMI input, SDI loop output; L-series battery plate
Receiver: SDI and HDMI outputs; V-mount battery plate
2-pin LEMO power inputs
WHDI (MIMO/OFDM) technology
OLED screens
Timecode and metadata support
Multicasting to up to 10 receivers
Built-in HDMI to SDI converter
All-metal housing
Less than 63mW radio power
1/4″-20 mounting thread on the bottom of each unit
