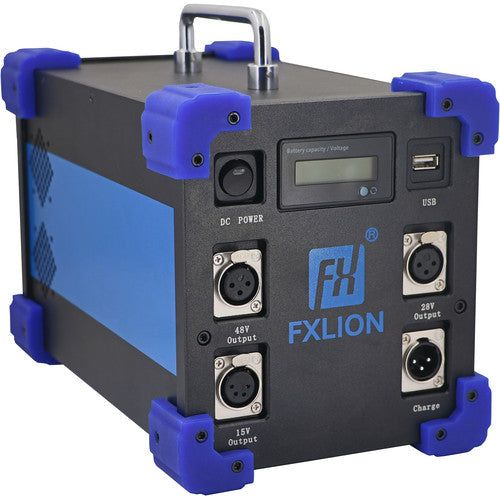

48V / 620Wh MEGA Battery
FX-HP-7224-48D
One 48V, one 28V and one 15V Output – totally 620Wh give you a lot of power storage – usable for High power LED lights – and any other suitable film equipment. Get a maximum of 30 Amps out of the 28V Output, 10 Amps out of the 48V Output and 8 Amps out of the 15V Output. The indicator LED shows you the status of the battery. For charging – use the PL-7115 charger – charges your battery in 5 hours.
Capacity:
620Wh / 24Ah
DC Input:
PL-7115 Charger (29.4VDC/5A)
DC Outputs:
CH1 48V / 10A (max.)
CH2: 28V / 30A (max.)
CH3: 15V / 8A (max.)
Pinout:
48V Output: 3-Pin XLR-F socket
28V Output: 3-Pin XLR-F socket
15V Output: 4-Pin XLR-F socket
Dimensions:
280(L)mm×164(W)mm×189(H)mm
Weight:
9300g
Fxlion 1232Wh 15/28/48V Lithium-Ion Mega Battery
Fxlion XLR Cable Charger for 26V 620Wh Mega Battery
Limited 1-Year Manufacturer Warranty
