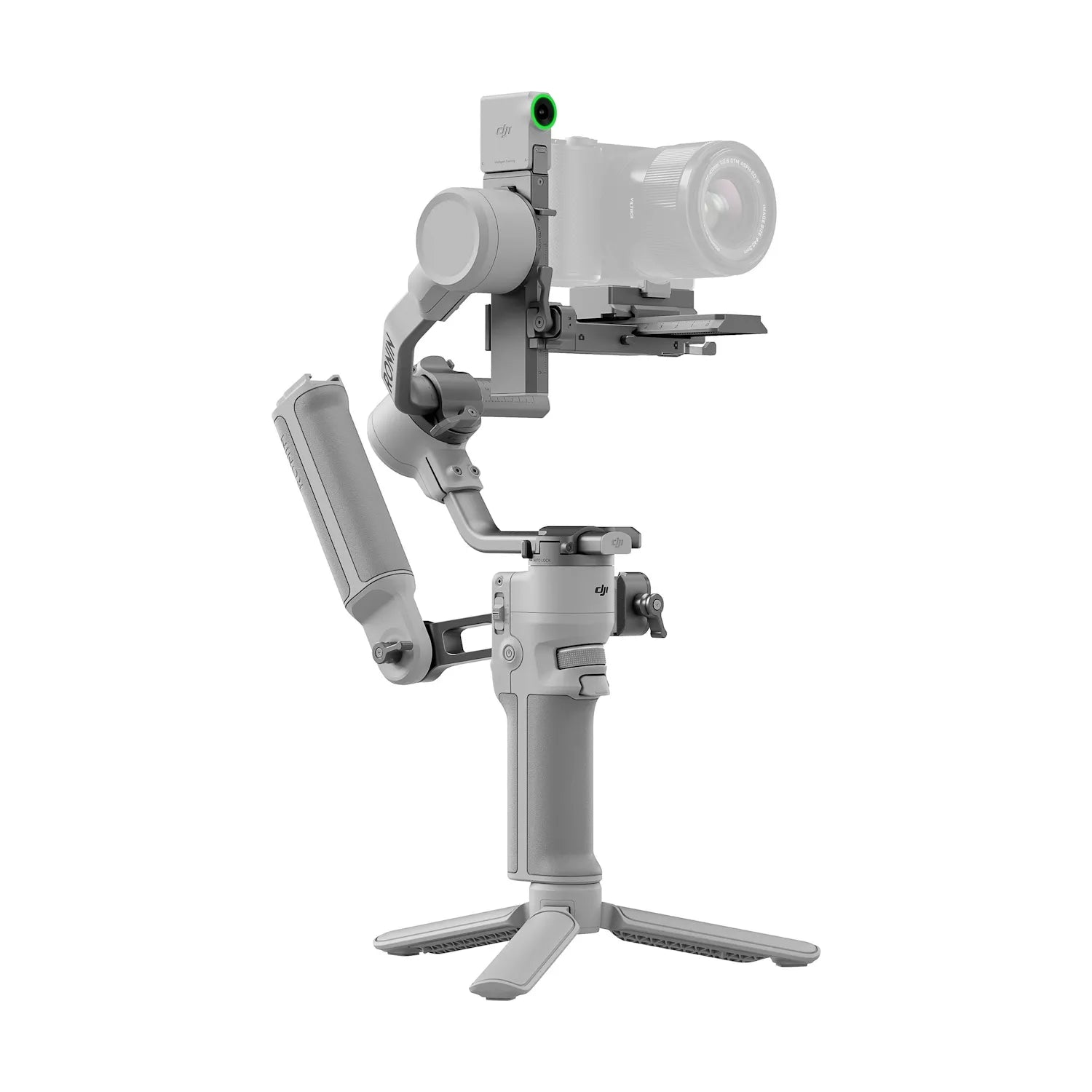

- Handheld Camera/Smartphone Gimbal
- Includes Intelligent Tracking Module
- Lightweight Design, up to 4.4 lb Payload
- Camera Control via Bluetooth/USB-C
- Horizontal & Vertical Modes, 360° Axes
- 3100mAh Battery, 13-Hour Runtime
- Panorama, Time-Lapse, Tracking Functions
- NATO Port for Handles & Accessories
- Includes Extended Grip/Tripod

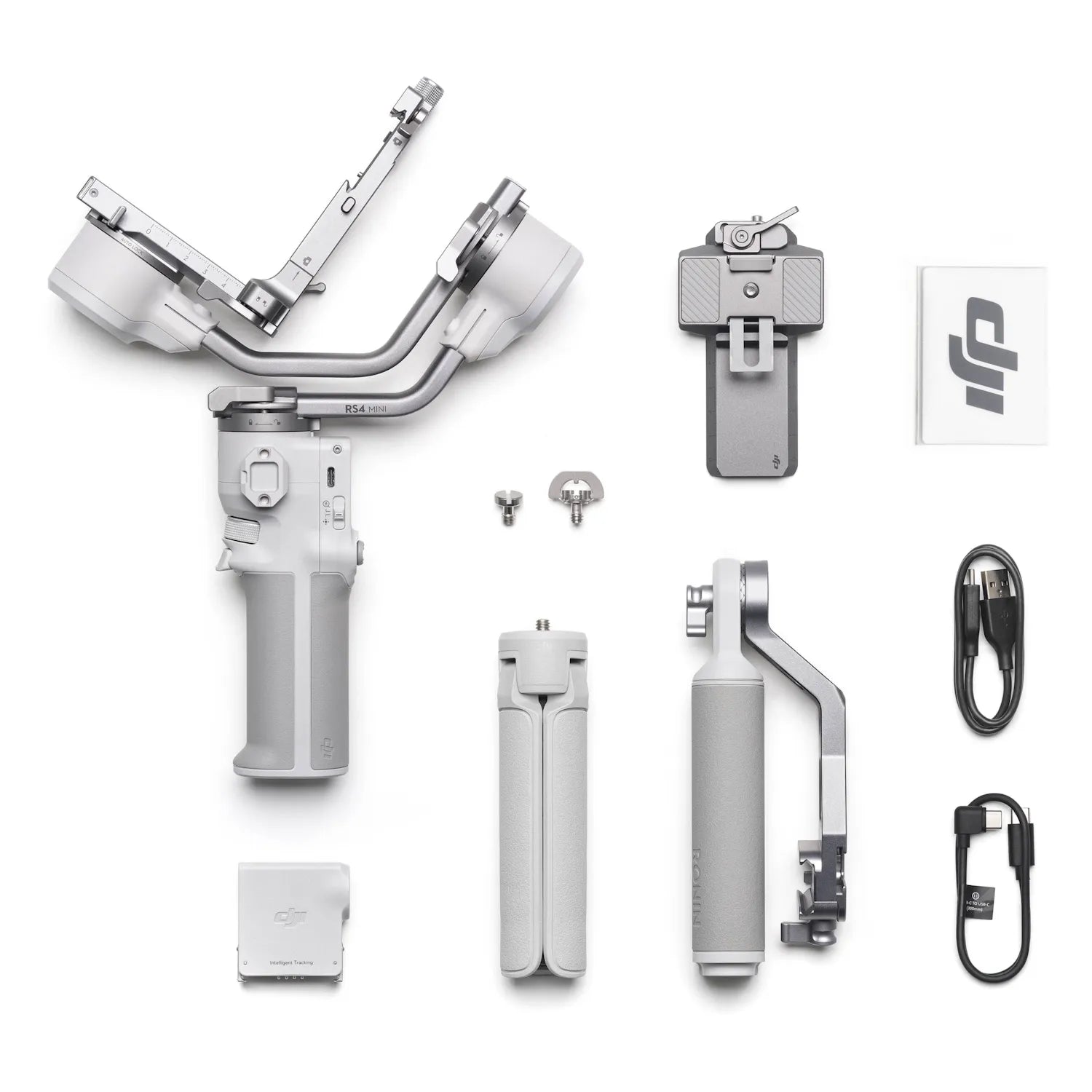

In The Box
- DJI RS 4 Mini Handheld Gimbal Stabilizer
- Quick Release Plate
- Extended Grip/Tripod
- USB-C Charging Cable (15.7")
- L-Shaped Multicamera USB-C Control Cable (11.8")
- Screw Kit
- DJI RS Intelligent Tracking Module
- USB-C Cable (Firmware Updates)
- Magnetic Adapter Mount
- RS 4 Mini Briefcase Handle
|
Gimbal Design |
Single Handgrip |
|
Load Capacity |
0.9 to 4.4 lb / 0.4 to 2 kg |
|
Number of Axes |
3: Pitch (Tilt), Roll, Yaw (Pan) |
|
Wireless Frequency |
2.4 GHz |
|
Wireless Protocol |
Bluetooth 5.1 |
|
Mobile App Compatible |
Yes: Android & iOS |
|
Mounting |
1 x 1/4"-20 Female |
|
Weight |
2.0 lb / 890 g |
Gimbal
|
Load Capacity |
0.9 to 4.4 lb / 0.4 to 2 kg |
|
Number of Axes |
3: Pitch (Tilt), Roll, Yaw (Pan) |
|
Rotation Range |
Mechanical Range |
|
Follow Speed |
Pan/Tilt/Roll: 360°/s |
Compatibility
|
Camera Control |
On Compatible Models |
|
Camera Mounting Screw |
1x 1/4"-20 Male |
Connectivity
|
Inputs/Outputs |
1x USB-C (2.5 A 9 VDC Power) |
|
Wireless Frequency |
2.4 GHz |
|
Wireless Protocol |
Bluetooth 5.1 |
|
Mobile App Compatible |
Yes: Android & iOS |
Battery
|
Battery Type |
1x Built-In |
|
Battery Capacity |
3100 mAh / 22.32 Wh |
|
Battery Runtime |
13 Hours |
|
Battery Charging Time |
2 Hours |
|
Battery Chemistry |
Lithium-Ion |
|
Voltage |
9.0 VDC |
Power
|
Operating Voltage |
7.2 VDC |
General
|
Display Type |
Fixed Touchscreen OLED |
|
Operating Conditions |
14 to 113°F / -10 to 45°C |
|
Materials |
Aluminum Alloy |
|
Mounting |
1 x 1/4"-20 Female |
|
Dimensions |
13.3 x 7.2 x 6.9" / 338 x 182 x 175 mm (without Tripod) |
|
Weight |
2.0 lb / 890 g |
Packaging Info
|
Package Weight |
3.095 lb |
|
Box Dimensions (LxWxH) |
13.1 x 11.7 x 2.8" |
DJI RS 4 Mini Specs
General
|
Compatibility |
DJI RS 4 Mini Gimbal Stabilizer / RS 4 Gimbal Stabilizer / RS 4 Pro Gimbal Stabilizer |
|
Max Luminance |
20 lux |
Inputs/Outputs
|
USB I/O |
1 x USB-C 2.0 Female Output |
Power
|
Power Source |
Proprietary Interface |
|
Power Consumption |
1 W |
Physical
|
Mounting |
1x Magnetic Slot |
|
Color |
White |
|
Material of Construction |
Plastic |
|
Operating Conditions |
14 to 113°F / -10 to 45°C |
|
Dimensions |
1.5 x 1.3 x 0.7" / 38.5 x 33.5 x 17.5 mm |
|
Weight |
0.7 oz / 19 g |
