Blackmagic Decklink SDI Micro (Pre-approved orders only)

SKU: BDLKMICROSDI
  • Miniature M.2 card with 3G‑SDI connections for simultaneous capture and playback in all SD and HD formats up to 1080p60.
  • DeckLink SDI Micro also includes Black Burst and Tri‑Sync reference input and its miniature size makes it great for use on portable solutions which are based on compact computers!
Regular price $211.51
Regular price -10% $235.00 Sale price $211.51

Connections

M.2

M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280.

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

SDI Video Sampling

4:2:2, 4:4:4

SDI Color Precision

8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, ITU-R BT.656 and ITU-R BT.601.

Available Accessories

DeckLink SDI Micro

Part Numbers

DeckLink SDI Micro, order code: BDLKMICROSDI

SDI Cable, order code: CABLE-BDLKMIR/SDI

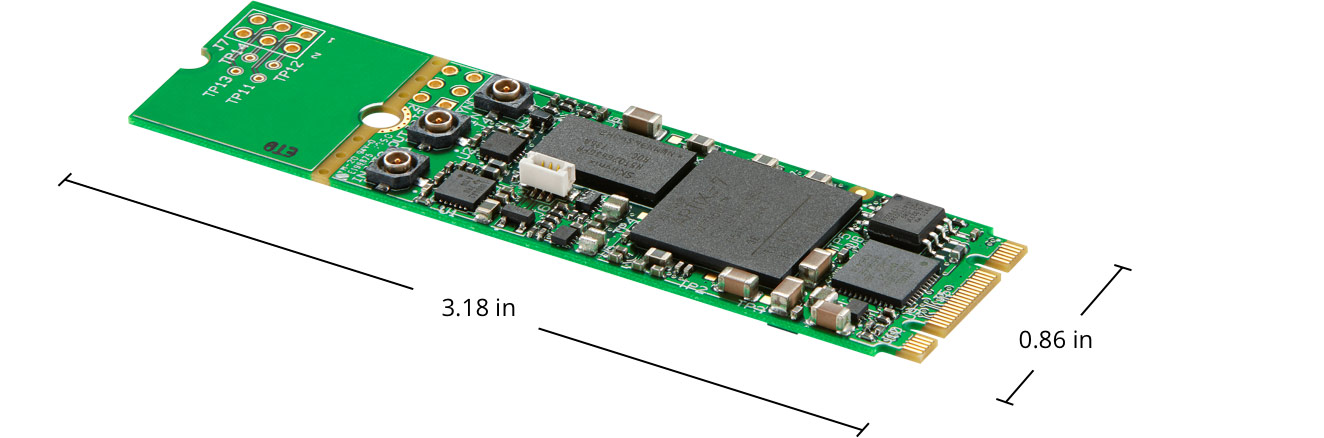

Physical Specifications

DeckLink SDI Micro

Operating Systems

Windows icon

Windows 7, 8 or 10, all 64-bit.

Linux icon

Linux

Power Requirements

Power Consumption

4.03W (max)

EMC Certifications

EMC, FCC, CE, C-Tick and KCC

Environmental Specifications

Operating Temperature

-25°C to 55°C (-13°F to 131°F)

Storage Temperature

-40°C to 75°C (-40°F to 167°F)

Relative Humidity

0% to 90% non-condensing

1 x Blackmagic Design Decklink SDI Micro
