Blackmagic ATEM 4 M/E Constellation HD
Blackmagic ATEM 4 M/E Constellation HD

Blackmagic ATEM 4 M/E Constellation HD

Regular price
$5,475.00 547500
Sale price
$5,475.00 547500
ATEM 4 M/E Constellation HD by Blackmagic Design is a high definition live production switcher packed with advanced features! The 4 M/E design includes 40 standards converted 3G SDI inputs and 24 independent 3G SDI aux outputs! It also includes a USB webcam output, SuperSource processor, DVEs, chroma keyers, media players, multiviews and more! You even get built in talkback and a professional built in Fairlight audio mixer with EQ and dynamics!
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more
remove add
Compare
Delivery & Returns guide

1. QUOTATION

Any quotation made by the company is not an offer to sell or to provide services and no order given in pursuance of any quotation shall bind the Company until accepted by it in writing or by the commencement of the supply or provision of services.

1.1 Delivery / Shipping Policy

Average delivery days will be 03 days up to a maximum of 10 days. If you still have not received your purchase within this time frame, please contact us URGENTLY.

1.2 Refund/Returns Policy

Should the product be faulty or defective on arrival, we will offer you, a full replacement or a full refund including postage /shipping

1.3 Privacy Policy:

we will not disclose customers personal information.

2. ACCEPTANCE OF BUYERS ORDER

Unless otherwise agreed in writing all orders are subject to acceptance by the Company within 30 days of receipt by the Company of the Purchaser's order and these terms and conditions will be deemed to be incorporated in any agreement between the Company and the Purchaser. Any terms and conditions contained in the order offer acceptance or other documents of the Purchaser and, subject to the provisions of the Trade Practices Act, all representations statements terms conditions and warranties (whether implied by statute or otherwise) not embodied herein are expressly excluded to the fullest extent permitted by law.

3. CANCELLATION OF ORDERS

Once placed, no order may be cancelled by the Purchaser except in writing and then and then only with the prior consent of the Company.

4. SUBSTITUTION

While descriptions of the equipment or services and brochures accompanying any quotations are as accurate as possible, we reserve the right to supply the equipment or services with such modifications and specifications at the company's discretion.

5. PRICES

The prices of Goods shall be EX warehouse and shall be specified in the Company’s price list current at the time of invoice by the Company which prices and list may be varied by the Company at any time without notice. Unless we state in writing to the contrary the price does not include GST or installation. The Company reserves the right to charge freight at an amount determined from time to time at the Companies discretion. Unless a price is stated in writing to include GST, the Company will, in addition to the price for a supply, charge the Purchaser any GST which may be payable in respect of that supply.

6. PAYMENT TERMS

Payment Terms are Net 30 days from the end of the month in which the goods are purchased, to approved Purchasers only. All other sales are Cash With Order unless agreed in writing by the Company.

If any payment is not made by the Purchaser to Dragon Image Australia on the due date thereof: a) the Purchaser shall, without prejudice to Dragon Image Australia's other rights, pay Dragon Image Australia a default charge at the rate of two per cent (2%) per month or part thereof from the due date for payment until the date payment is made; b) Dragon Image Australia reserves the right, and without prejudice to its other rights hereunder and at law, to cancel orders or to suspend deliveries of other Goods until such payment has been made; and c) all moneys owing to Dragon Image Australia including all monies owing to Dragon Image Australia for Goods sold shall become immediately due and payable and the Purchaser shall indemnify Dragon Image Australia against all costs (including Solicitor and own client costs, commercial agents, commissions, freight, surcharges, fees, insurances, accounting costs, loss of profit and all interest) incurred by Dragon Image Australia as a result of such default and the action taken by Dragon Image Australia in respect of the same.

7. DELIVERY

The Company may deliver the goods by instalments or partial shipments and the Purchaser will accept each delivery. Requirements shall not be a condition or of the essence of the contract. The Company shall not be under any liability for direct or consequential loss or damage to the Purchaser arising from delay or postponement of delivery. The Company shall have the sole and absolute discretion as to the choice of carrier and method of carriage of the goods. Should the purchaser nominate their own carrier then all charges relating to such delivery will be for the Purchaser’s own account. In the event that the Purchaser alleges that any of the Goods have not been delivered as ordered it shall give written notification of such alleged non-delivery to Dragon Image Australia within seven (7) days of the date of the invoice relating to those Goods and a full description of the goods.

8. WARRANTY

Goods supplied by the Company to the Purchaser shall have the benefit of any warranty given by the Manufacturer, however, subject to the Trade Practices Act, the Company shall not be liable for any damage direct, or consequential arising out of any defects. All other Conditions hereby expressly negated so far as they lawfully can be.

9. CLAIM AND RETURN POLICY

The Purchaser shall be responsible for inspecting the goods immediately upon delivery to ensure that the goods are those ordered by the Purchaser. The Purchaser's responsibility shall not in any way be diminished or extinguished in the case of goods that are delivered to a third party at the direction of the Purchaser. All claims must be submitted in writing within 7 days of receipt of the invoice. Goods cannot be returned for credit, except with prior issuance by the Company of its Goods Return Authorisation Number. Goods will not be accepted by the warehouse unless the-Goods Return Authorisation is clearly marked on documents accompanying returned goods. All goods returned should be in new condition, original packaging and include all, accessories manuals and instructions. Where any part of a product is not returned, Dragon Image Australia reserves the right to reduce the credit by the price for said accessories, manuals and instructions. Returned goods will be subject to count & inspection before credit is passed. Where goods are returned for reasons other than faulty, damaged or incorrectly delivered goods, the Company reserves the right to apply a re-stocking fee of 25% of the sale price of the returned goods

10. TITLE & RISK

The Purchaser acknowledges and warrants to Dragon Image Australia that the Purchaser is not insolvent and being a natural person has not committed an act of bankruptcy or made an arrangement with his creditors or being a company knows of no circumstances which would entitle any debenture holder or secured creditor, or any other party, to appoint a receiver, to petition for winding up of the Purchaser or apply for the appointment of a manager or administrator or exercise any other rights over or against the Purchaser's assets. The Purchaser will immediately notify Dragon Image Australia if it becomes aware of any such circumstances. The Purchaser acknowledges that these Terms and Conditions constitute an agreement to supply Goods to the Purchaser upon the Terms and Conditions herein set out and are not an unconditional sale of Goods to the Purchaser or until the Purchaser sells the goods to a third party or until the Goods are incorporated into end products and are not severable therefrom.

The Purchaser acknowledges and agrees that no title to the Goods shall pass to the Purchaser by reason of the delivery of the Goods or the acceptance by Dragon Image Australia of the Purchaser's request to supply the Goods, although risk shall pass to the Purchaser on the delivery of the Goods. It is a condition of these Terms and Conditions that Dragon Image Australia shall remain the sole and absolute owner of the goods until such time as the agreed price of the Goods the subject of this supply contract, and all other Goods supplied by Dragon Image Australia to the Purchaser and all debts owing by the Purchaser to Dragon Image Australia shall have been paid in full to Dragon Image Australia by the Purchaser.

Until such time as payment in full has been made for the Goods and all debts, the Purchaser shall be the bailee of all of the Goods for Dragon Image Australia and shall store them upon its premises separately from its own goods or those of any other person in a manner which makes them readily identifiable as the Goods of Dragon Image Australia.

The Purchaser's right to possession of the Goods in which Dragon Image Australia retains title shall cease at whichever is the earliest of the following dates: a) upon the expiration of time given by Dragon Image Australia for payment in full of the Goods; b) if the Purchaser being a natural person commits an act of bankruptcy or compounds or makes an arrangement with his creditors or any of them, or if any execution or distress is levied upon the Goods of the Purchaser, c) if the Purchaser is a company is wound up, either compulsory or voluntary, or a receiver and manager appointed over the whole or a material part of its assets, or an administrator is appointed or the Purchaser reaches any composition or arrangement with its creditors.

Upon the cessation of the Purchaser's right to possession of the Goods in which Dragon Image Australia retains title, Dragon Image Australia or its agents may for the purpose of recovery of the Goods enter upon any premises where the goods are stored or where they are reasonably thought to be stored and may repossess the same and the Purchaser shall assist and indemnify Dragon Image Australia in relation to such recovery.

At any time prior to payment in full for all Goods supplied if the Purchaser sells on his or its own account, the Purchaser shall sell as agent and bailee of Dragon Image Australia in law and in equity and shall hold the proceeds thereof in trust for Dragon Image Australia and shall not mingle the proceeds with other monies and shall not pay the cheque or cash therefore into an overdrawn bank account.

In the case where a receiver, liquidator, manager or administrator is appointed to the Purchaser and at the time thereof the Purchaser shall not have received the proceeds of the sale, the Purchaser or the receiver, liquidator, manager or administrator as agent for the Purchaser shall at the election of Dragon Image Australia assign to Dragon Image Australia within seven (7) days all rights against the person obliged to pay the proceeds of the sale.

11. FORCE MAJEURE

The Company shall not be liable for any delay or failure to perform its obligations if such failure was caused by any event for which the Company could not reasonably have exercised control.

12. GENERAL

a) Dragon Image Australia may amend these Terms at any time by giving Purchaser notice by mail, e-mail or by posting a notice on Dragon Image Australia's public website. By continuing to place orders for Products, the Purchaser will be deemed to have accepted the revised Terms. b) Any provision of these Terms which is invalid or unenforceable will be read down to the extent necessary, and the remaining provisions will continue unaffected, c) Purchaser may not assign or attempt to assign any of its rights and obligations under these terms. d) These terms are governed by the laws of the State of New South Wales.

13. INSURANCE

Where the Company agrees to store or hold on consignment goods on behalf of the Purchaser, all risk remains with the Purchaser. Any goods so held are to be insured for full purchase value by the Purchaser.

14. ADDRESS

Where in these Terms & Conditions reference is made to the address Dragon Image Australia Pty LTD the registered office is: Dragon Image Pty Ltd 22 Herbert Street ARTARMON NSW 2064

15. JURISDICTION & APPLICABLE LAW

The Terms and Conditions shall be governed and construed in accordance with the laws of the Commonwealth of Australia and in particular the State of New South Wales. The parties agree that the Courts of New South Wales shall have jurisdiction to hear and determine any dispute arising hereunder.

16. SEVERABILITY

In the event that any or part of these terms, conditions or provisions shall be determined invalid, unlawful or unenforceable to any extent such terms, conditions or provisions shall be severed from the remaining terms and conditions which shall continue to be valid and enforceable to the fullest extent permitted by law.

Blackmagic
digital
SWATEMSCN2/1ME4/HD

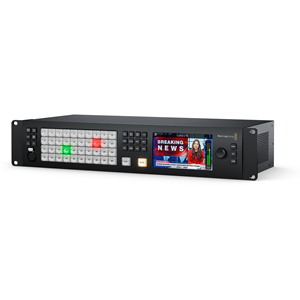

ATEM Constellation HD switchers feature a compact rack mount design with a built in control panel. This allows operation of the switcher, critical during setup or for emergency use. Also included is a large LCD so customers can see program output and change switcher settings via on screen menus. The compact design is perfect for portable live production, with the rear of the switcher including the connections for 3G-SDI inputs, 3G-SDI aux outputs, balanced audio and Ethernet for control. The top 4 M/E model even includes RS-422 for serial control and MADI digital audio connections.

With a control panel built into the front panel, customers can simply walk up and operate the ATEM Constellation at any time. Plus the front panel control buttons are the same premium type used on full sized panels so they are extremely reliable. Customers can even control keyers, media and fade to black from the front panel. Plus the front panel LCD and menu buttons also allow almost every single operational feature of the switcher to be accessed.

The ATEM Constellation HD family features models that have up to 40 independent 3G-SDI inputs, with each input featuring its own dedicated up and cross converter. That means it’s possible to convert any 1080p input source to the video standard of the switcher. That means customers could have each switcher SDI input running a different television standard and all the inputs will just work.

The ATEM Constellation HD family have a massive number of fully independent 3G-SDI outputs. Even the small 1 M/E model has 6 x 3G-SDI outputs. Then the 2 M/E model has 12 x 3G-SDI outputs and the 4 M/E model has a massive 24 x 3G-SDI outputs. These SDI outputs are very powerful because customers can independently route any SDI input or any internal source to each SDI output. Or use the SDI outputs for ISO recorders, where each deck will get a resynchronized switcher input with matching timecode. All SDI outputs contain program audio, RP-188 timecode, SDI camera control, tally and talkback.

The built in multiview lets customers monitor multiple sources on a single monitor. The 1 M/E model includes 1 multiview, the 2 M/E model has 2 independent multiviews and the 4 M/E model has 4 independent multiviews. All external SDI inputs, plus all internal video sources can be routed to any view. All multiviews are fully customizable and can be independently set to 4, 7, 10, 13 or 16 simultaneous views. Customers can add the tally border plus source label and VU meters as an overlay on each view. Plus a red and green border will show tally on each view, so customers know what sources are on air.

ATEM Constellation HD includes a wide range of broadcast quality native transitions such as mix, dip, wipe, and more. All transitions can be customized in the system control menus with adjustments for border color, border width, position, direction and a lot more. The ATEM Constellation switcher includes a powerful digital video effects processor for DVE transitions, which can be used to squeeze the current picture off screen revealing a new video under it. The DVE can even be used to create graphic wipe transitions.

To keep crews working as a single creative team, ATEM Constellation features built in talkback. Talkback supports a 5 pin XLR headset connector, plus a rear mounted RJ12 connector for interfacing with industry standard talkback systems such as ClearCom or RTS. Customers get full talkback control including program and engineering loops, sidetone control for hearing the headset mic into the headphones and program mix. ATEM Constellation HD also supports SDI talkback that uses SDI channels 15 and 16 for 2-way communication with Blackmagic Design cameras. Customers can even use channels 13 and 14 for engineering talkback.

The built in media pool stores broadcast quality RGBA graphics and animations that can be played back instantly by the 2 or 4 media players. The built in media pool holds graphics for use with the media players and the 1 M/E model can hold 20 stills and 200 frame animations, the 2 M/E model can hold 40 stills and 400 frame animations and the 4 M/E model can hold 60 stills and 600 frame animations.

For news or virtual set work, ATEM Constellation HD is perfect as it features lots of ATEM advanced keyers for high quality chroma or luminance keying. The chroma keyer is incredibly powerful and features a color picker to sample background colors for automatic generation of the key parameters. Customers get precise controls for edge and flare, and there is even a foreground color corrector so customers can match the "look" of the foreground layer to the background layer making seamless compositions possible. The keyer can also be used for pattern and DVE keying. Customers get 4 ATEM Advanced Keyers on the 1 M/E model, 8 ATEM Advanced Keyers on the 2 M/E model and 16 ATEM Advanced Keyers on the 4 M/E model.

With 4 upstream chroma keyers per M/E row, customers get the perfect solution for building virtual sets. With so many ATEM advanced chroma keyers, customers can use a keyer per camera to create a seamless composition of the camera over the custom background. Even the 1 M/E model has enough keyers to generate a 4 camera virtual set. Customers can use external image processors for virtual sets, or customers can even build a fixed camera virtual set by loading pre rendered still image backgrounds from the media players and media pool. Customers can setup macros to change cameras and load the correct background into the media players. With so much flexibility, customers can experiment to try out different studio setups.

In addition to the DVEs in the M/E rows, the 2 M/E and 4 M/E models include powerful SuperSource multi layer processors with 4 extra DVE layers plus a background layer, that all appear to ATEM Constellation HD as an additional input source. Any switcher video input can be used for each SuperSource DVE, then it’s all layered together over a media pool custom background. SuperSource is just like having an extra multi-layer VFX switcher built in. SuperSource is perfect for doing picture in picture displays for interviews because customers can set up the effect while keeping the main DVEs free for other tasks. The ATEM 4 M/E Constellation even has 2 completely independent SuperSource processors.

The SDI inputs will also handle embedded audio and mix audio from all video inputs. Plus the program outputs include talkback, tally and camera control information. That means customers can connect any of the switcher SDI outputs back to the camera for program return, camera control, and talkback.

With a built in Fairlight audio mixer, the ATEM Constellation makes it possible to do extremely complex live sound mixing. The internal mixer has up to 156 input channels, for the biggest audio mixer in a live production switcher. Audio is de-embedded from all the SDI video inputs and passed to the audio mixer. Then the 4 M/E model has extra audio mixer input channels for the MADI audio inputs. Each input channel features the highest quality 6 band parametric EQ and compressor, limiter, expander and noise gate as well as full panning. Customers get extra channels for the analog input, talkback microphone and media players. All this audio power can be controlled via the ATEM Software Control or a Mackie compatible panel.

The ATEM Software Control Panel gives customers total control over their switcher and is included free. The ATEM Software Control Panel features a beautifully designed interface with a visual switcher and parameter palettes for making quick adjustments. The ATEM Software Control also lets customers access camera control, audio mixing, media, macro programming and even control of HyperDeck disk recorders. Customers can even save the full state of the switcher as XML files, plus all media is backed up from the media pool.

All rows of M/E buttons include integrated LCDs for dynamic input button labeling. The 1 M/E model features a single M/E row with 10 input buttons. The 2 M/E model features 2 M/E rows with 20 input buttons. The massive 4 M/E model features 4 M/E rows with 40 input buttons per row and 4 independent system control LCD screens.

Unlike other switchers, all features are included in the purchase price. That means customers get all features fully enabled and always ready for use. There are no license fees to allow customers to use features and no ongoing monthly costs. This means users will never experience a license expiring 5 minutes before their program starts. Advanced features such as multiview, SuperSource, DVEs or the ATEM Advanced Keyers are always enabled and always ready to use.

"We are excited to introduce these new live production switchers, as many high end broadcasters don't need Ultra HD, but they still need to upgrade their studios," said Grant Petty, Blackmagic Design CEO. "Plus a lot of our ATEM Mini customers have been growing and doing innovative work. They are now looking to upgrade and purchase more advanced switchers that can keep up with their work as their streaming channels grow. It’s a very exciting time!"

ATEM Constellation HD Switchers Features
•    Advanced design with built in front panel controls.
•    Up to 40 standards converted 3G-SDI inputs.
•    Up to 24 customizable 3G-SDI outputs.
•    Includes up to 4 independent multiviews with multiple layout options.
•    Includes DVE and stinger transitions.
•    Includes up to 4 DVEs.
•    Professional talkback compatible with ClearCom and RTS.
•    Internal media for stills and motion graphics.
•    Includes new ATEM Advanced Chroma Key.
•    4 upstream ATEM Advanced Chroma keyers per M/E row for green/blue screen work.
•    Up to 4 independent DVEs.
•    Multi rate 3G-SDI for all HD television standards including 720p, 1080i and 1080p.
•    Built in 156 channel Fairlight audio mixer.
•    Includes free software control panel.
•    Compatible with all ATEM hardware control panels.
•    All features are included with no extra customer costs.
