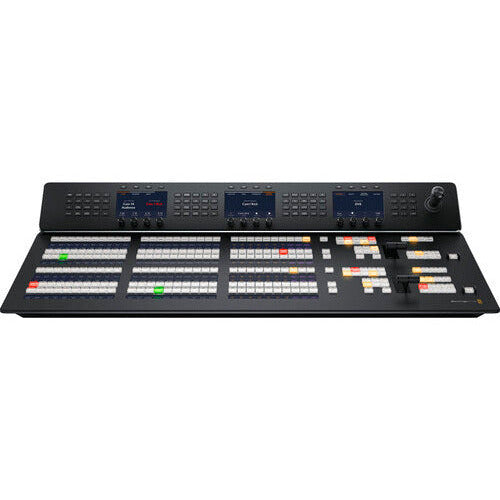

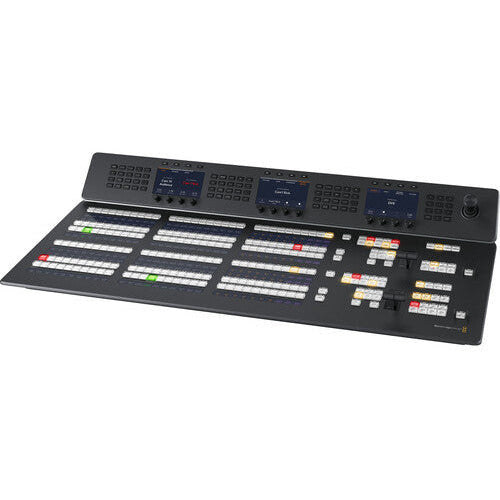

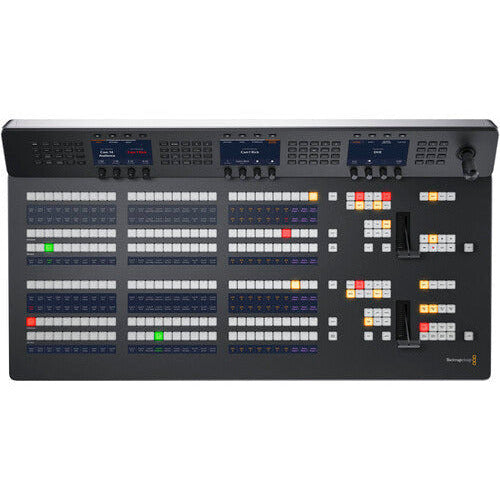

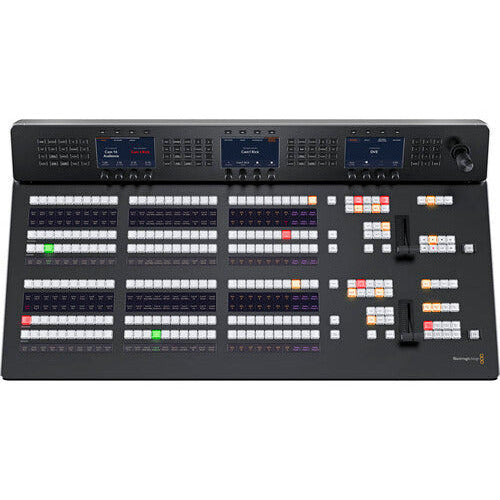

The ATEM 2 M/E Advanced Panel 30 by Blackmagic Design is an advanced control interface that is compatible with the ATEM Constellation Switcher, sold separately. This sophisticated panel comes equipped with an array of buttons, knobs, two fader bars, and a 3-axis joystick, giving you unparalleled control over your program/preview operations.

Intended for use in complex live productions, the ATEM 2 M/E Advanced Panel 30 allows you to customize, monitor, and switch your live broadcast events with ease. It offers a range of features, including camera switching, transitions, fades, DVE effects, and 12 on-air indicators. To connect to your switcher, the ATEM 2 M/E Advanced Panel 30 uses 10/100/1000 BaseT Ethernet, and it also features four Ethernet loop outputs for connecting to additional panels or media-management computers.

Compatibility
Provides pro switching controls for the ATEM Constellation HD line of switchers
Interface

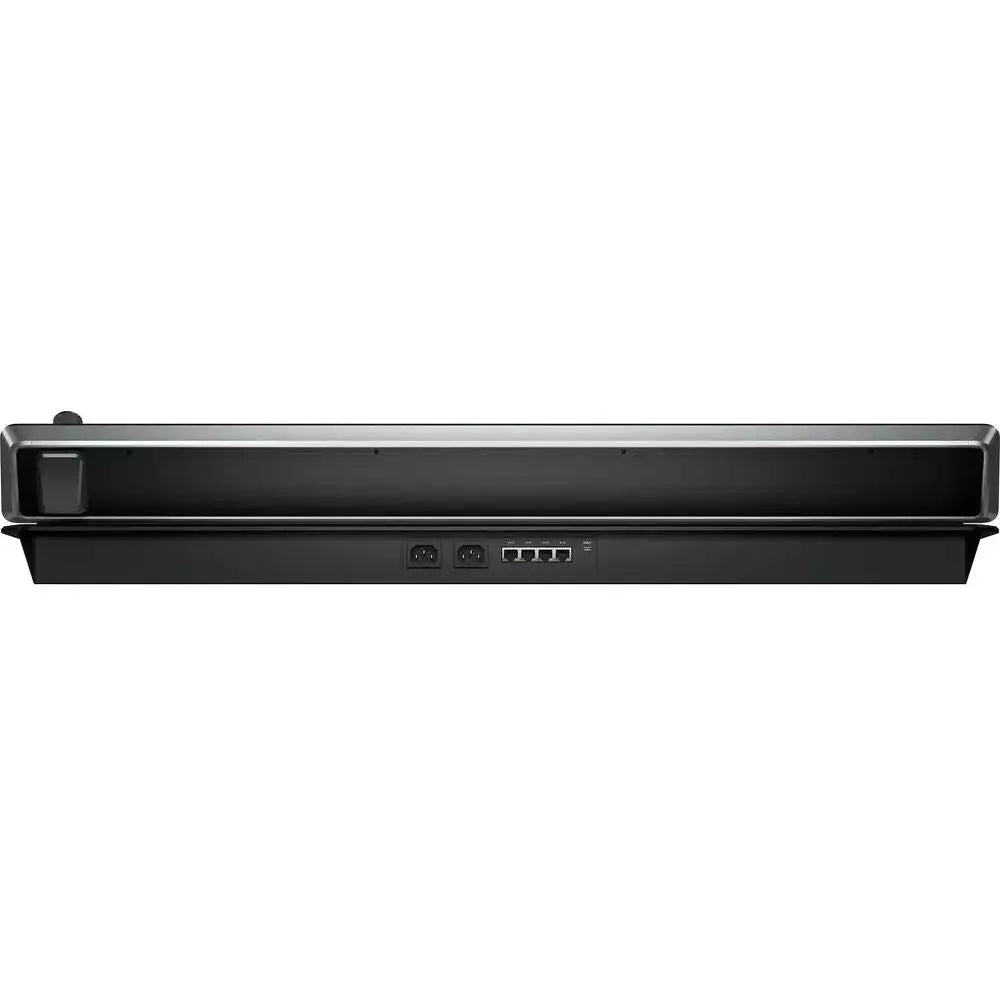

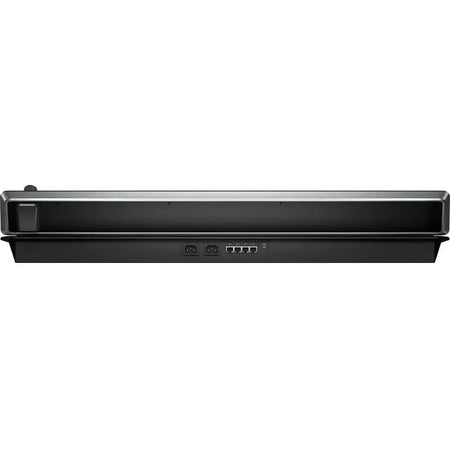

Four 10/100/1000 BASE-T Ethernet ports with loop output for linking to additional control panels or computers
USB Type-C for firmware updates

Cross-Points
Tri-color LED cross-point buttons; 30 direct cross-points, and 60 shifted cross-points

Mix Effect Rows
Two M/E rows, 30 input buttons per row

LCD Menu Displays
Three system control LCDs for each row with custom labeling for all rows and input buttons

Controls
One 3-axis joystick, one numeric keypad, and two fader bars

On-Air Indicators
12 indicators let you easily see which feeds are on air

DSK Selectors
Four transition previews with auto, cut, and tie/preview options
