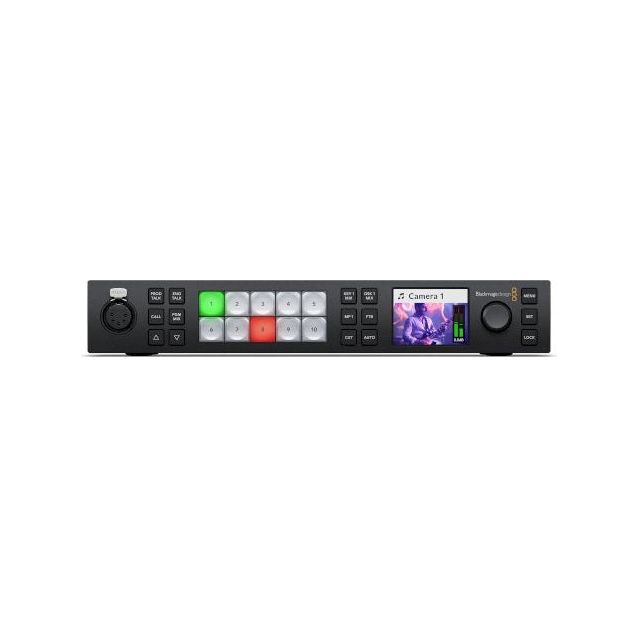

The ATEM 1 M/E Constellation UHD 4K Live Production Switcher adds UHD 4K capabilities and 12G-SDI ports to the familiar switcher construction of its predecessor. Designed for powerful live event UHD 4K switching, the unit features 10 individual 12G-SDI inputs that support 12G/3G/HD-SDI signals and deliver them to six 12G-SDI outputs or webcam USB-C output. In addition, the switcher has a multiview output with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 28 channels of audio.

Specifications

Available M/E Layers 1 M/E

Effect Types 4x Chroma Key 5x Luma Key 1x DVE, Stinger 1x DVE

Downstream Keys 1x Chroma, Luma, DVE

Generators 2x Color 5x Pattern

Audio Mixing 48-Channel Mixing

Processing

Switching Type Pushbutton, Software

Latency 10 Lines

Processing Resolution UHD 4K

Color Processing 10-Bit 4:2:2

Input

Number of Video Input Sources 10

Video Inputs 10x BNC (12G-SDI) Female

Input Video Format SDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps

Audio Inputs 2x 1/4" TRS

Embedded Audio Input SDI: 16-Channel

Output

Video Output Channels 6

Video Outputs 6x BNC (12G-SDI) Female

Output Video Format SDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps

Embedded Audio Output SDI: 16-Channel

Multiview Output 16-Way Multiview

Connectivity

Other I/O 1x USB-C 1x XLR 5-Pin Talkback Input 1x XLR 5-Pin Talkback Output 1x RJ45 Control, LAN Input/Output 1x RJ45 Talkback Input/Output 1x BNC Blackburst, Reference, Tri-Level Sync Input

Video Standard Compliance SMPTE 292M/296M/424M/424M-A/424M-B/ST 2081-10/ST-2081-1/ST-2082-1/ST-2082-10

Display

Display Size 2.2"

Hardware

OS Compatibility Windows 10 to 11 macOS 13.0 to 14.0

Processor Not Specified by Manufacturer

Wi-Fi Yes

Bluetooth No

Power I/O 1x IEC C13 Input

Power Consumption Device: 100 to 240 VAC (90 W)

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C

Storage Temperature -4 to 140°F / -20 to 60°C

Operating Humidity 0 to 90%

General

Rack Form Factor 1 RU

Dimensions 11 x 8.91 x 1.74" / 27.9 x 22.63 x 4.42 cm

Weight 4.12 lb / 1.87 kg
