The 2110 IP SDI to HDMI 12G Converter from Blackmagic Design converts signals from 12G-SDI or 2110 IP to HDMI to facilitate the usage of the latest OLED displays for color-accurate monitoring, color grading, or editing. two XLR analog outputs provide two channels of audio monitoring via optional external speakers. A headphone jack on the front panel allows users to monitor audio in a more conservative manner for applications where multiple operators are working on projects side by side.

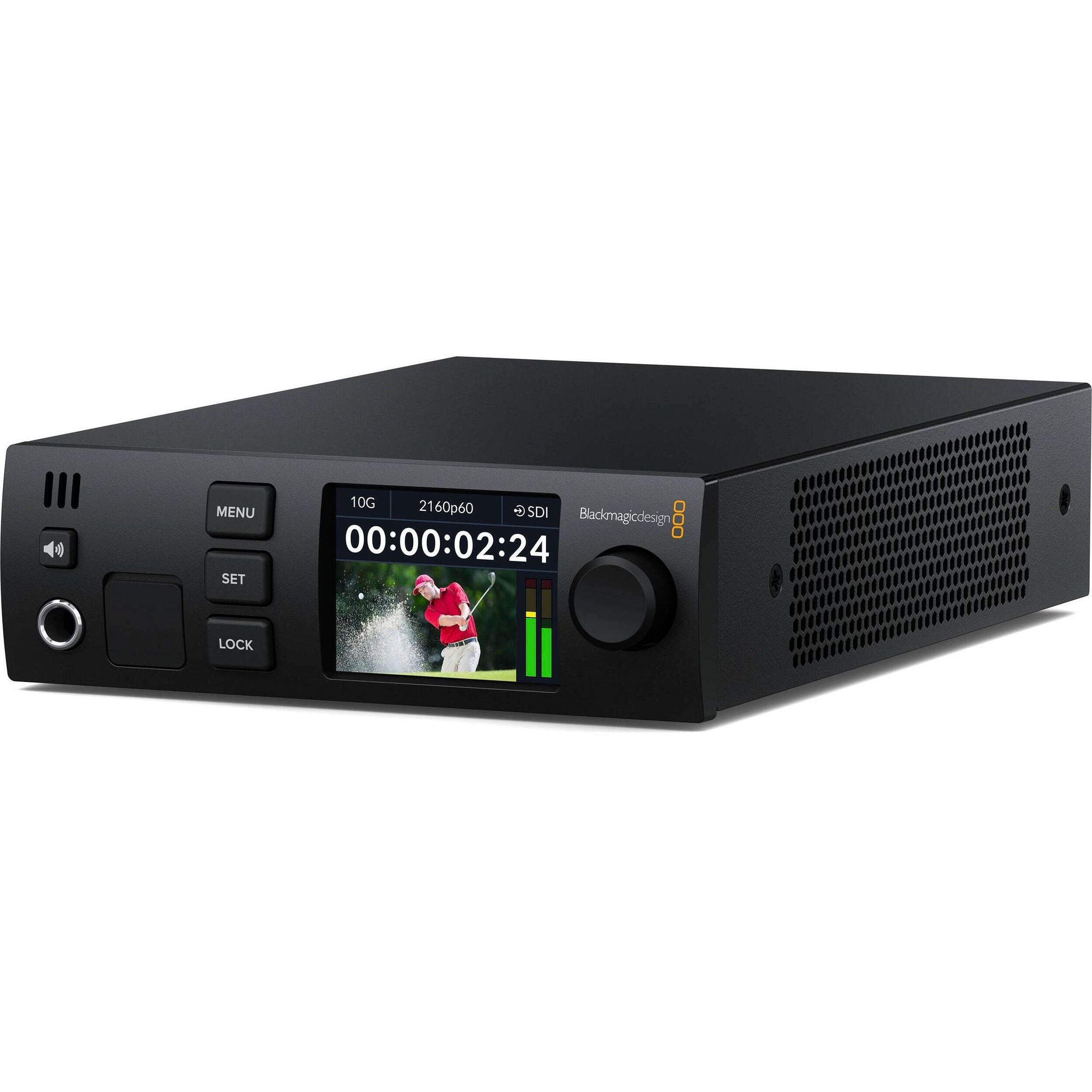

Variable gain and audio delay provide spot-on audio and video synchronization, with support for 3D LUTs for accurate monitor calibration. Designed to seamlessly integrate SDI gear with 2110 IP broadcast systems, the versatile converter offers an LCD for audio/video monitoring and menus, front-panel controls, and redundant power supply options for worry-free reliability.

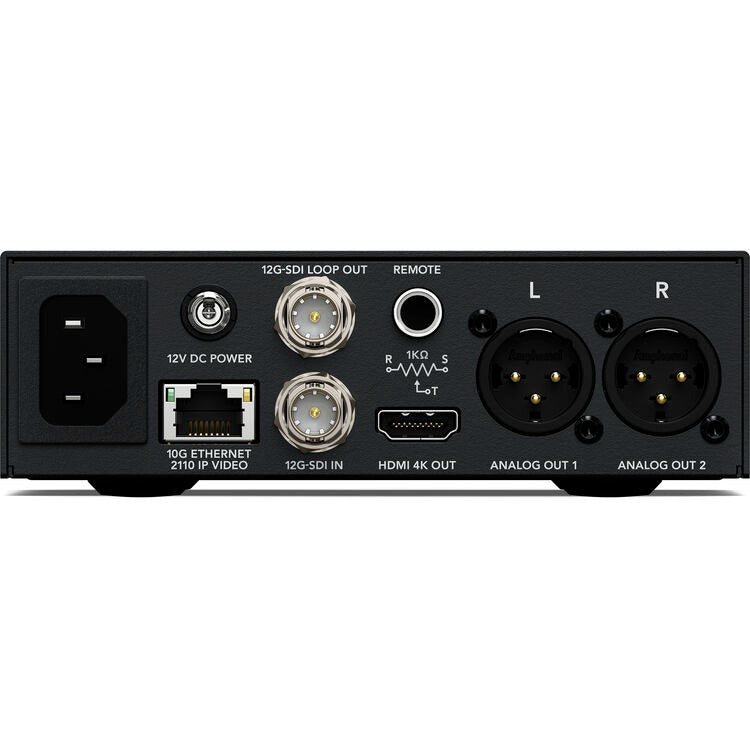

Inputs/Outputs
Video I/O
Input
1x BNC (12G-SDI)
Output
1x BNC (12G-SDI) (Loop Output)
Output
1x HDMI (Unspecified Signal)
Audio I/O
Output
2x XLR 3-Pin Analog Male
1x 1/4" TRS Stereo Analog Female
Other I/O
Input/Output
1x RJ45 (10 GbE)
Input
1x 1/4" TRS (Remote)
Expansion Slots
No
Latency
No

Format Support
Video Resolution
SDI Input/Output
3840 x 2160 up to 60 fps
HDMI Input/Output
3840 x 2160
RJ45 Input/Output
3840 x 2160 up to 60 fps
Audio Format
Analog Output
Embedded Audio
HDMI/LAN (RJ45)/SDI

Standards
Video Standard Compliance
SMPTE: ST-2110
Broadcast System Compatibility
NTSC, PAL

Hardware
Wireless
No
Display
Display
LCD

Power
Power I/O
1x IEC C13 Input
1x Barrel (12 VDC ) Input

General
Rack Form Factor
1 RU

Packaging Info
Package Weight
2.575 lb
Box Dimensions (LxWxH)
11.4 x 7.2 x 2.7"

Blackmagic 2110 IP SDI to HDMI 12G
