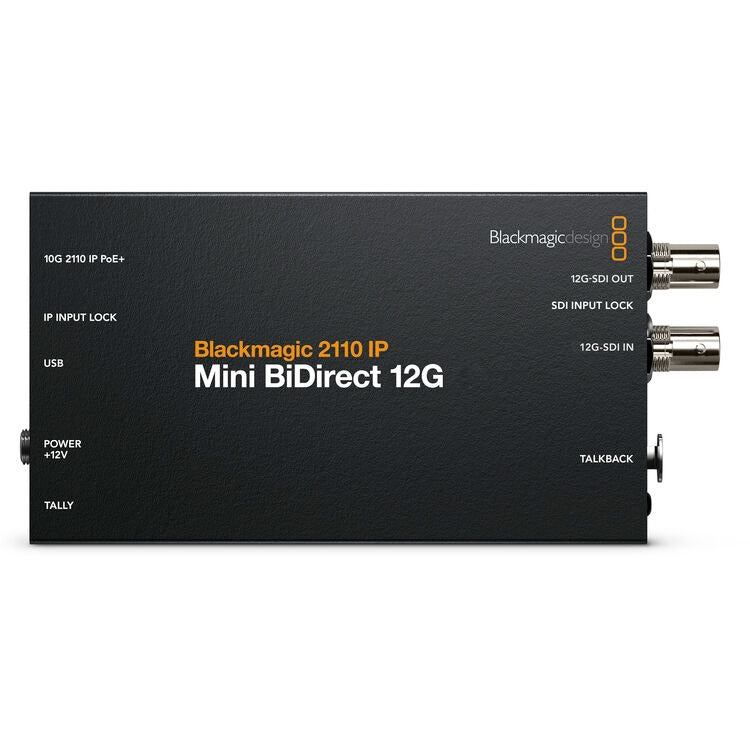

Connect your 12G-SDI broadcast studio camera to SMPTE-2110 IP systems with this 2110 IP Mini BiDirect 12G Converter from Blackmagic Design. The converter allows you to send up to UHD 4K 12G-SDI camera video and program return using the same converter, and it is so compact that it can easily mount onto your camera rig. The converter also features a 5-pin XLR talkback headset and a press-to-talk button to keep communication between camera operators and the broadcast production booth.

Features
This converter is bidirectional and allows 12G-SDI cameras to connect to SMPTE-2110 systems
Handles the SDI camera feed and SDI program return in the one converter
5-pin XLR talkback headset connection with volume and press to talk buttons
Supports all SD, HD, and UHD standards up to 2160p60
Includes a 12 VDC power supply

Inputs/Outputs
Video I/O
Input
1x BNC (12G-SDI) Female
Output
1x BNC (12G-SDI) Female
Audio I/O
Input
1x XLR 5-Pin Analog Female
Output
1x XLR 5-Pin Analog Female
Other I/O
Input/Output
1x RJ45 (10 GbE)
Input
1x USB-C (Firmware)
1x USB-C (Device)
Expansion Slots
No
Format Support
Video Resolution
BNC Input/Output (4:2:2)
4096 x 2160 up to 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 up to 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p up to 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
Embedded Audio
LAN (RJ45)/SDI
Standards
HDCP Support
No
Hardware
Wireless
No
Power
Power I/O
1x Barrel (12 VDC ) Input
PoE Support
Yes: PoE++ 802.3bt
General
Operating Conditions
41 to 104°F / 5 to 40°C up to 90% Humidity
Storage Conditions
-4 to 113°F / -20 to 45°C up to 90% Humidity
Dimensions
5.75 x 2.91 x 1.34" / 14.61 x 7.39 x 3.4 cm
Weight
10.41 oz / 295 g
Packaging Info
Package Weight
1.56 lb
Box Dimensions (LxWxH)
10.4 x 3.3 x 2.5"
