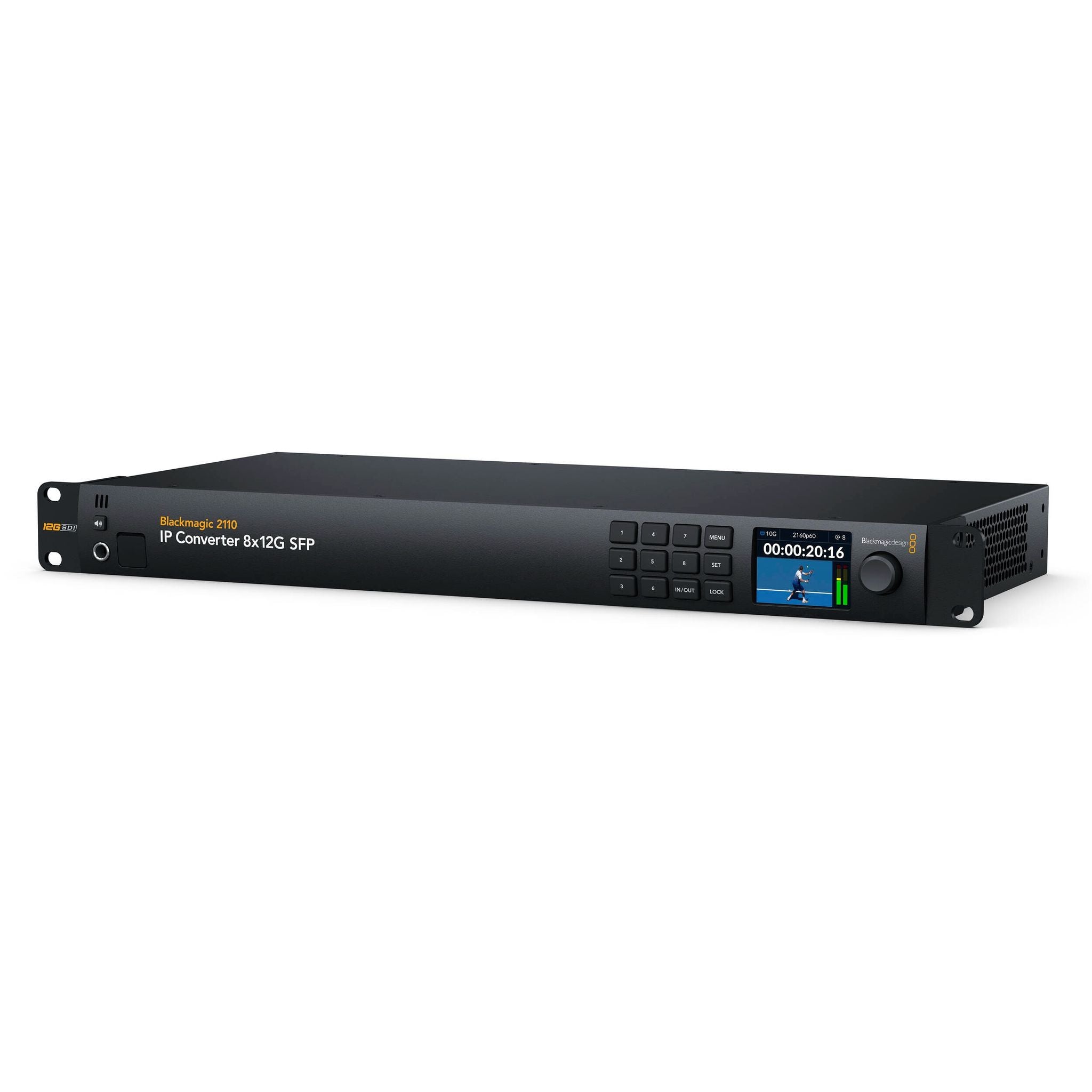

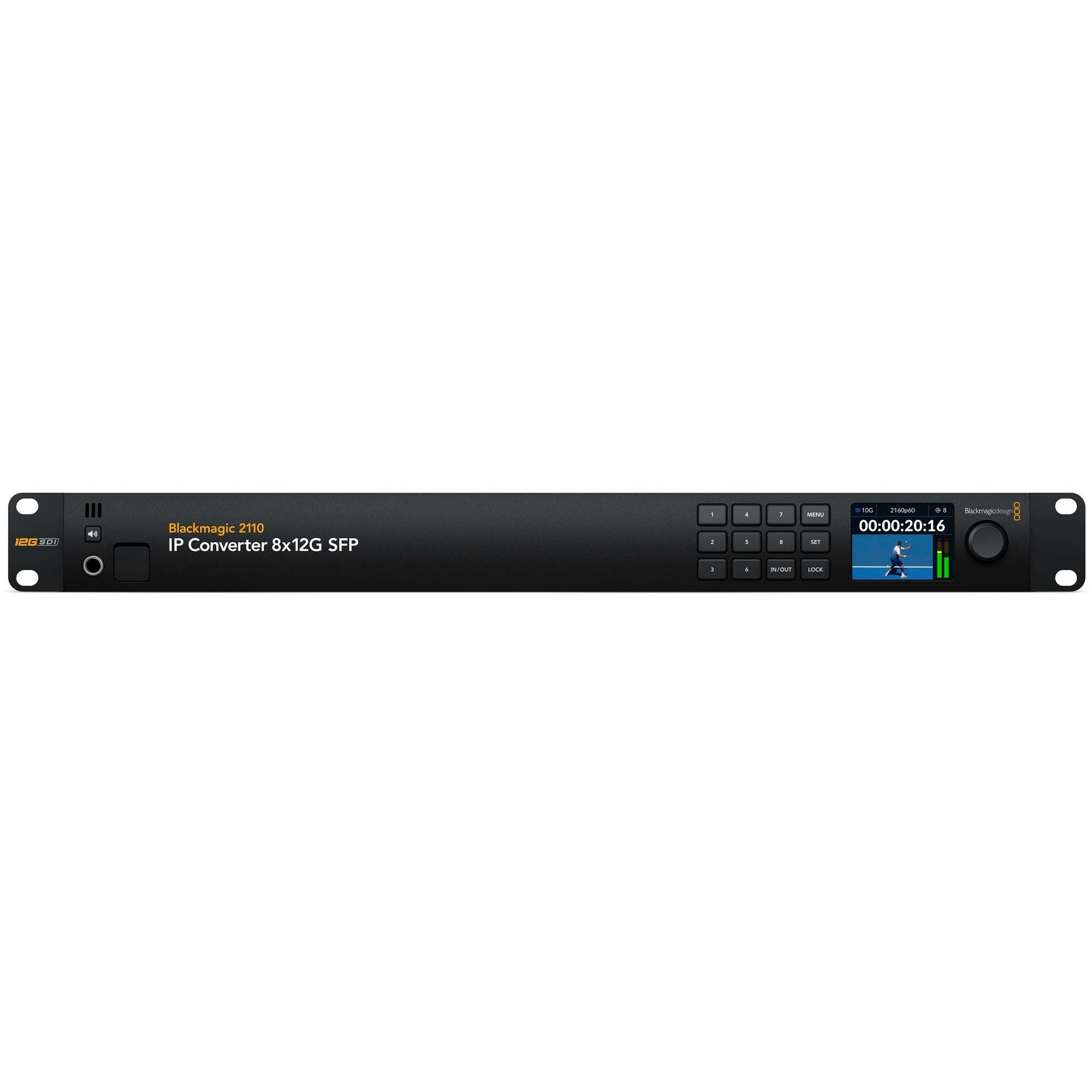

Blackmagic 2110 IP Converter 8x12G SFP
Bring your 12G-SDI broadcast gear up to SMPTE-2110 compliance with this 2110 IP Converter 8x12G SFP from Blackmagic Design. The converter provides eight bidirectional 12G-SDI video conversion connections, and it features eight SMPTE-2110 SFP IP fiber ports to extend connectivity over long distances. Its 1 RU design fits in a standard studio rack, as well as a 12G-SDI return input.
Video I/O
Input
8x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Program)
Output
8x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Loop Output)
Audio I/O
Output
1x 1/4" TRS Stereo Analog Female
Video Resolution
BNC Input/Output (4:2:2 YUV)
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
Wireless
No
OS Compatibility
macOS 13 or Later
Windows 10 to 11
Inputs/Outputs
Video I/O
Input
8x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Program)
Output
8x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Loop Output)
Audio I/O
Output
1x 1/4" TRS Stereo Analog Female
Other I/O
Input
1x USB-C 3.0 / 3.1/3.2 Gen 1
Expansion Slots
8x SFP Slot (Occupied by 10 Gb/s SMPTE 2110 IP SFP)
Format Support
Video Resolution
BNC Input/Output (4:2:2 YUV)
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
Embedded Audio
LAN (RJ45)/SDI
Standards
Video Standard Compliance
SMPTE: ST-2110
HDCP Support
No
HDR Support
Yes
Hardware
Wireless
No
OS Compatibility
macOS 13 or Later
Windows 10 to 11
Display
Display
2.2" LCD
Power
Power I/O
2x IEC C14 (100 to 240 VAC ) Input
General
Operating Conditions
41 to 104°F / 5 to 40°C up to 90% Humidity
Storage Conditions
-4 to 113°F / -20 to 45°C up to 90% Humidity
Rack Form Factor
1 RU
Dimensions
19 x 9.22 x 1.74" / 48.3 x 23.42 x 4.42 cm
Weight
8.22 lb / 3.73 kg
Packaging Info
Package Weight
9.035 lb
Box Dimensions (LxWxH)
21.6 x 11.3 x 3.5"
