Bring your 12G-SDI broadcast gear up to SMPTE-2110 compliance with this 2110 IP Converter 4x12G PWR from Blackmagic Design. The converter provides bidirectional 12G-SDI to SMPTE-2110 IP video conversion connections, and it supports up to four Studio 6K Pro cameras via its 10G Ethernet connections with a 12G-SDI input for each connection. It also supports providing power to the Studio cameras over each 10G Ethernet connection via PoE. Its 1 RU design fits in a standard studio rack, as well as a 12G-SDI return input and redundant power.

Features
This converter is designed to add SMPTE-2110 IP video to 12G-SDI broadcast equipment
1 RU design
Four independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45 10G Ethernet connections
It can supply high power to each 10G Ethernet connection guaranteed, so you can connect 4 Blackmagic Studio Camera 6K Pros, all at the same time
Each channel has a 12G-SDI input, and there's even a 12G-SDI program return input that sends to all channels

Specs

Video I/O
Input
4x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Program)
Output
4x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Loop Output)
Audio I/O
Output
1x 1/4" TRS Stereo Analog Female
Video Resolution
BNC Input/Output
4096 x 2160 at 24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
Wireless - No
OS Compatibility
macOS 13 or Later
Windows 10 to 11

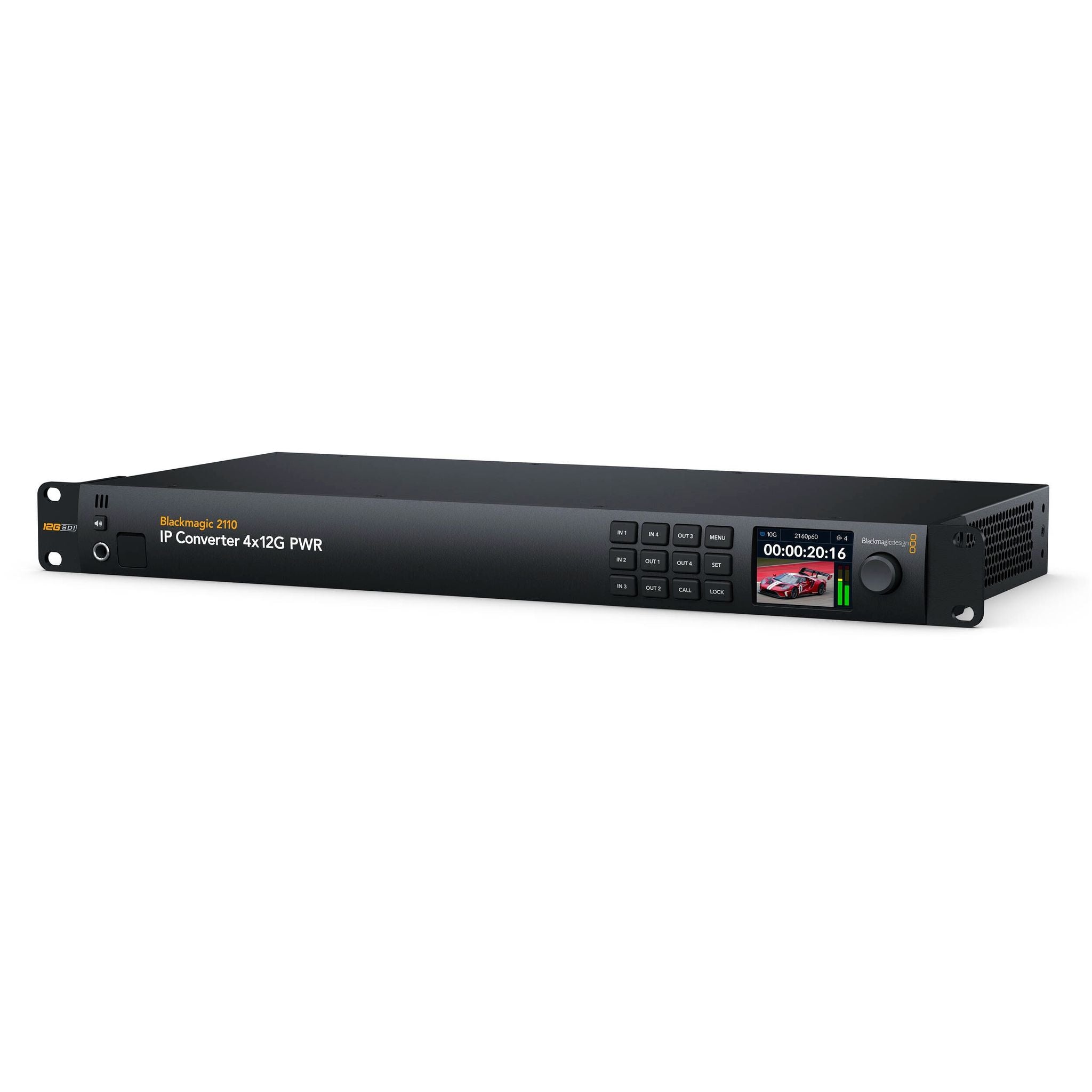

Blackmagic 2110 IP Converter 4x12G PWR
