ATEM Mini Extreme ISO G2

The Blackmagic Design ATEM Mini Extreme ISO G2 is a powerful second-generation live production switcher built for professional multicamera workflows. It features 8 HDMI inputs, 3 independent HDMI outputs, and a redesigned control panel, making it ideal for live streaming, content creation, and broadcast-style productions.

It can record all 8 inputs as separate ISO files for easy post-production, while built-in streaming and Thunderbolt connectivity enable direct capture, playback, and fast media access over high-speed networks. Integration with DaVinci Resolve allows advanced replay and editing workflows straight from recorded footage.

With professional audio via XLR and MADI, a Fairlight audio display, and hands-on controls including a transition fader and media effects, it delivers a complete live production solution in a compact unit.

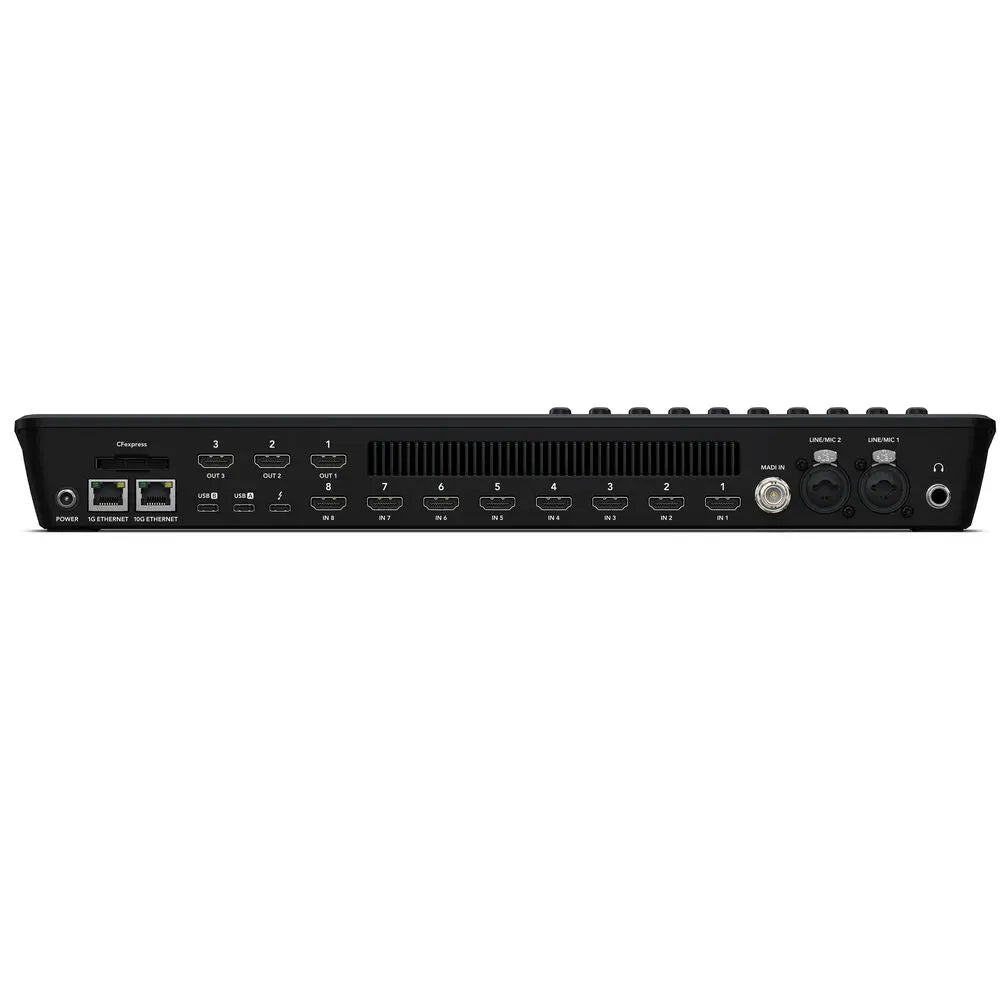

Connections

Total Video Inputs: 9
Total Outputs: 4
Total Aux Outputs: 4
SDI Rates: 1.5G, 3G
HDMI Video Inputs: 8 x HDMI type A, 10-bit HD switchable. 2-channel embedded audio.
HDMI Video Outputs: 3
HDMI Program Outputs: 3
Total Audio Inputs: 2 x XLR Combo with phantom power, 1 x BNC 32 Ch MADI digital audio
Total Audio Outputs: 1 x 6.35mm headphone jack
Timecode Connection: None
Reference Input: None
Video Input Re-Sync: On all 8 HDMI inputs and remote sources
Frame Rate and Format Converters: On all 8 HDMI inputs and remote sources
Webcam Output: 2 x USB-C (720p or 1080p at PGM frame rate)
Total Multi Views: 1 x HDMI, 1 x Webcam
Control Panel Connection: Ethernet (direct or network)
Internal Timecode Generator: Yes
Tally Output: On Blackmagic HDMI and remote cameras
Ethernet: 1 x 1G, 1 x 10G
Computer Interface: 2 x USB-C 3.1 Gen 1, 1 x Thunderbolt

Standards

HD Video Input Standards: 720p, 1080p, 1080i (various frame rates)
HD Video Output Standards: 1080p (various frame rates)
Video Streaming Standards: 1080p (various frame rates)
Video Sampling: 4:2:2 YUV
Color Precision: 10-bit
Color Space: Rec 709
HDMI Input Resolutions from Computers: 720p, 1080p, 1080i (various frame rates)
Colorspace Conversion: Hardware-based real-time
SDI Auto Switching: -

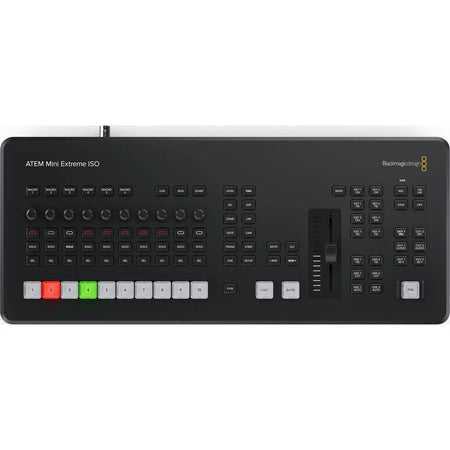

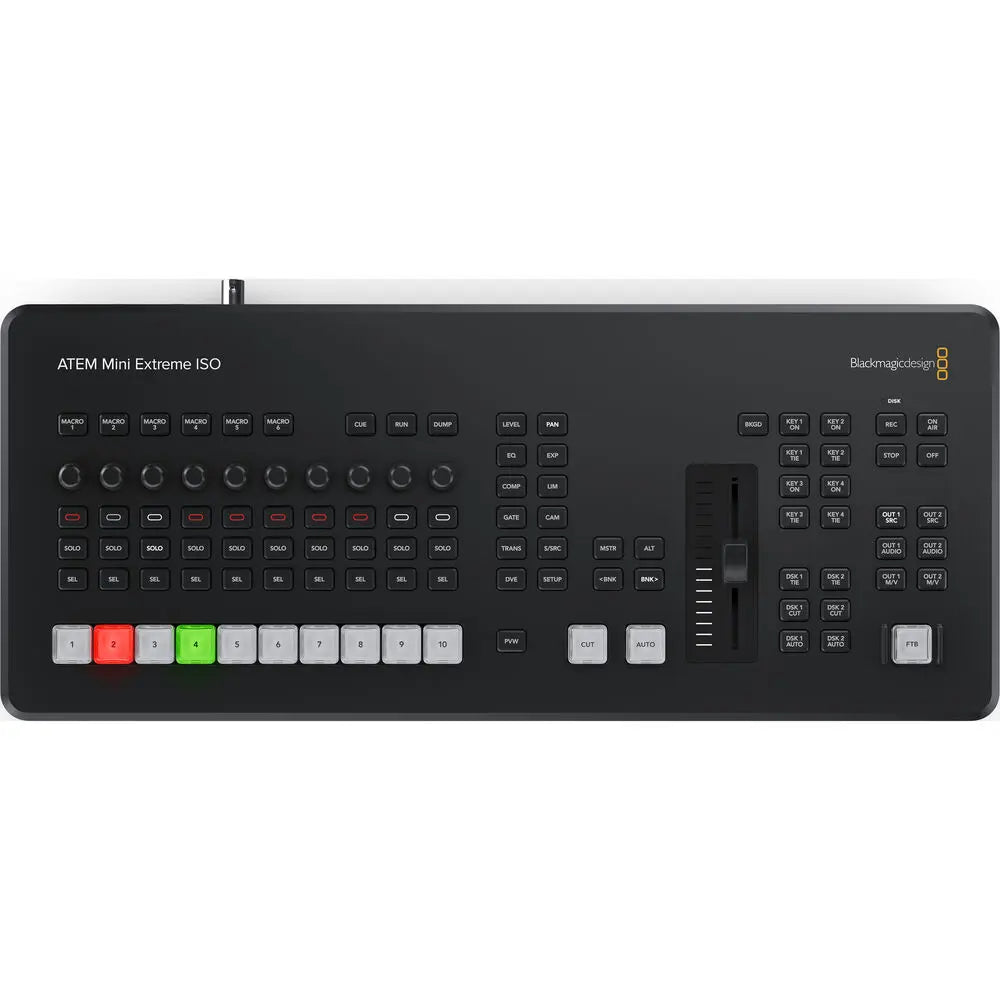

Product Specifics

Number of Mix Effects Rows: 1
Direct Cross Points: 10
Crosspoint Button Type: NKK Buttons
Preview Transition: 1
Key Buttons: 8
AUX Buttons: 6
Fader Bar: 1
Record Buttons: 2
Stream Buttons: 2
DSK Transition Selectors: 6
Fade to Black Buttons: 1 NKK button
Upstream Keyers: 4
Downstream Keyers: 2
Advanced Chroma Keyers: Up to 4
SuperSource: 1
DVEs: 2
Linear/Luma Keyers: Up to 4
Transition Keyer: DVE only
Colour Generators: 2
Routable Windows: 16
Tally: Red (Program), Green (Preview)

Audio

Audio Mixer: 26 input x 2 channel mixer (includes HDMI, MADI, XLR, Thunderbolt)
Analog Input: Balanced stereo XLR combo connectors
Analog Input Delay: Up to 8 frames
Mic Plug-In Power: +48V phantom power on XLR
Audio Features: Compressor, Gate, Limiter, 6-band EQ

Streaming

Total Streaming Sources: Up to 8
Streaming Source Format: RTMP/SRT video with audio
Streaming Source Setup: Mapped via ATEM Software Control
Direct Streaming: RTMP and SRT over Ethernet or USB-C

Recording

Direct Recording: CFExpress slot
Network Recording: USB-C
Video Recording: 8 x HDMI ISO, 1 x Program (H.264 .mp4)
Audio Recording: 26 x 2 channel (WAV format)
Switching Recording: DaVinci Resolve project (.drp)
Media Format: ExFAT, APFS, HFS+
Multi View Monitoring
Configurable Views: 16, 13, 10, 7, 4 up
Video Standard: HD

Media Player

Media Players: 2
Channels: Fill and Key
Still Image Capacity: 20 (1080 HD)
Still Image Formats: PNG, TGA, BMP, GIF, JPEG, TIFF
Video Format: TGA Sequence
Audio Format: WAV, MP3, AIFF

Control

Control Panel: Built-in and Software Control
Control Panel Connection: Ethernet or USB-C
Panel Compatibility: ATEM panels and Videohub controls
Software: ATEM Software Control Panel (macOS, Windows)
Software Updates: Via USB or Ethernet
Configuration: Set via Software Control (IP via USB)
Operating Systems
Mac: macOS 14.0 Sonoma, 15.0 Sequoia or later
Windows: Windows 10, 11 (including ARM)
Power Requirements
Power Supply: 1 x External 12V
Power Usage: -
Environmental Specifications
Operating Temperature: 5°C to 40°C (41°F to 104°F)
Storage Temperature: -10°C to 60°C (14°F to 140°F)
Relative Humidity: 0% to 90% non-condensing
