Aputure Storm 80c Blair LED Light

What is the Aputure STORM 80c?

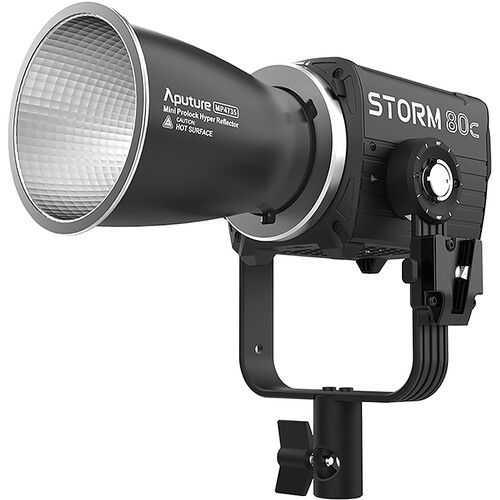

The Aputure STORM 80c is a ultra-compact 80W full-color point-source LED light fixture designed for film, television, and photo productions. It is the first fixture in Aputure's lineup to feature the upgraded BLAIR-CG (Blue, Lime, Amber, Indigo, Red, Cyan, Green) LED chipset, delivering 20,185 lux @ 1m (5600K with included reflector) in a lightweight 1.35 kg body.

What makes the BLAIR-CG chipset different from standard RGBWW LEDs?

The BLAIR-CG chipset adds Cyan and Green diodes to the original BLAIR spectrum. Key advantages include:

• Expanded Gamut: Covers 90%+ of the Rec. 2020 color gamut for deeper, more vibrant saturated colors.

• Ultra-Wide CCT Range: Adjusts from an ultra-warm 1,800K to a daylight-cool 20,000K.

• Full Tint Tuning: Offers ±100% ASC MITC Green/Magenta color correction.

• Fluorescing Accuracy: The included Indigo diode accurately stimulates fluorescing materials to match natural daylight and tungsten rendition.

What modifier mount does the Aputure STORM 80c use?

The STORM 80c features the Mini ProLock Mount, a locking accessory mount designed specifically for compact modifiers. It ensures a twist-free, perfectly aligned fit for included and optional Mini ProLock modifiers (like the included Mini Hyper Reflector and Mini Lantern). It can also be adapted to standard, full-size Bowens mount accessories using an adapter.

How can the Aputure STORM 80c be powered on set?

The STORM 80c offers versatile power options for both studio and location shoots:

• AC Mains Power: Includes an AC power adapter (100V–240V).

• USB-C Power Delivery: Accepts 100W USB-C PD input (20V/5A) for operation using power banks or fast-charging adapters.

• V-Mount Battery: Can be powered via an optional V-Mount battery plate / handheld bracket using standard 14.4V cinema batteries.

Is the Aputure STORM 80c weather-resistant?

Yes. The Aputure STORM 80c lamp head is IP65 dust and weather-resistant, allowing filmmakers to shoot in rain, mist, or harsh outdoor conditions without risk of damage.

What wireless and DMX control options are built into the STORM 80c?

The STORM 80c includes complete professional control protocols:

• App Control: Sidus Link and Sidus Link Pro apps via Bluetooth Mesh.

• Wireless DMX: Built-in LumenRadio CRMX.

• Wired Protocols: 16-bit 5-Pin DMX512 In/Out, plus Art-net & sACN via etherCON Ethernet.

Key Specifications Summary

Introducing the Aputure STORM 80c, Aputure’s second light in our new STORM family and first to feature our new BLAIR-CG LED chipset. As an 80W colour-tunable point source fixture with a colour engine based on our breakthrough BLAIR chipset, a Mini ProLock locking Bowens mount, and compact profile, the STORM 80c is a feature-packed versatile fixture suitable for a tremendous range of professional imaging applications from high-end film productions to small-crew video or photo shoots.

With the new BLAIR-CG chipset, the STORM 80c delivers exceptional brightness and colour accuracy. The added Cyan and Green diodes allows the STORM 80c to cover 90%+ of the Rec.2020 colour gamut, giving users access to a far greater range of saturated colours compared to the BLAIR chipset.

The STORM 80c offers 20,185 lux @1m at 5,600K with its included hyper reflector while maintaining an SSI [P3200] of 88 and SSI [CIE D5600] of 84 at 3,200K and 5,600K respectively. The inclusion of an indigo diode in this chipset enhances the colours of fluorescing materials, resulting in an image that is lit more accurately to match natural daylight and tungsten sources.

Featuring a wide CCT range of 1,800K-20,000K and advanced white-point control with green-magenta colour correction (±G 100% ASC MITC range), this fixture offers the versatility and critical colour accuracy that professionals call for on set.

Equipped with advanced dimming technology, the STORM 80c ensures flicker-free, colour-accurate operation during shooting even at its lowest output level of <19.8lux @1m (5,600K). In addition, this dimming technology provides users with an unprecedented 0.1-100% stepless brightness control.

Armed with a newly designed Mini ProLock locking accessory mount, the STORM 80c can support compact modifiers designed specifically for the 80c or be adapted to a full-size Bowens mount while maintaining an easy coupling procedure that reduces the need to make rotational adjustments with accessories to achieve a secure, optically aligned lock.

Featuring comprehensive lighting control protocol options, including 16-bit DMX512, LumenRadio CRMX, Art-net & sACN Ethernet, and Sidus Link/Sidus Link Pro® App control, the STORM 80c ensures seamless integration into professional lighting workflows at the lamp head and behind the console.

The STORM 80c ships with the new OSII operating system installed, which gives users a more seamless, quick, and intuitive user experience when operating the fixture.

With a rugged IP65 dust and weather resistant rating, the STORM 80c is capable of withstanding even the most demanding filming environments in inclement weather without any impact to performance or reliability.

Features:

• 80W Full-colour Compact Point Source Fixture
• New Breakthrough Proprietary LED Chipset: Blue, Lime, Amber, Indigo, Red, Cyan, Green (BLAIR-CG)
• 20,185 Lux @1m (5600K) When Using Included 35o Hyper Reflector
• CCT Range of 1,800K-20,000K
• Advanced Diode colour Mixing Allows Fixture to More Effectively Utilize Each Diode’s Light Output
• Advanced White Point Control with Green/Magenta colour Correction (±G 100% Full ASC MITC Range)
• Ultra-High colour Accuracy: CRI≥97, TLCI≥98, CQS [CIE D5600]≥96, SSI [P3200]: 88, SSI [CIE D5600]: 84, TM-30 Rf (avg) 96, TM-30 Rg (avg) 103
• 90%+ Coverage of Rec.2020 colour gamut
• Compact Design (Lamp Head Weight with Yoke: 1.35kg / 2.98lbs)
• Removable Yoke Offers 360o Rotation of Lamp Head
• Versatile Rigging Potential with Four 3/8-16in Threads
• All-New Robust Mini ProLock Locking Accessory Mount Design Allows For More Secure and Optically Aligned Modifier Accessory Connection
• IP65 Weather Resistance
• Multiple Control Methods: Sidus Link and Sidus Link Pro App, LumenRadio CRMX, Art-net & sACN via etherCON, 16-bit 5-Pin DMX512 In & Out
• Smooth 0.1-100% Stepless Dimming
• Minimum Output: <19.8 lux @ 1m, 5,600K
• Dual Output Modes: Max and Constant
• High-Speed Photography, Lead-Follow, and Studio Modes
• 4 Fan Modes: Smart, High, Medium, Silent
• 74 DMX Control Profiles with Multiple DMX Dimming Modes and Customizable DMX Signal Loss Behaviors
• 4 Dimming Curves: Linear, Exponential, Logarithmic, S-shaped
• 15 Built-In Light Effects: Lightning II; Paparazzi; colour Chase; Candle; Explosion II; Strobe II; Cop Car II; Fireworks; Welding II; Pulsing II; Faulty Bulb II; Fire II; Club lights; TV II; Party Lights
• 10 Savable Presets
