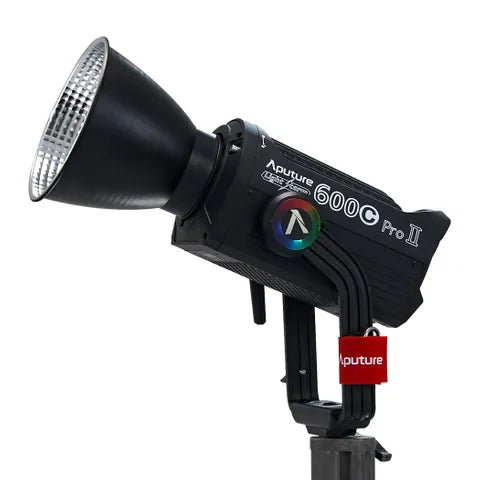

APUTURE LS600C PROII RGBWW LED LIGHT WITH V LOCK

What is the Aputure LS 600c Pro II?

The Aputure LS 600c Pro II is a high-output 600W full-color RGBWW point-source LED light fixture designed for professional filmmaking, studio production, and broadcast. It is the upgraded successor to the original LS 600c Pro, featuring double the brightness (up to 35,000+ lux at 3m with Hyper Reflector), enhanced Hyper-Color algorithms, IP65 weather resistance, and an integrated V-Lock battery plate.

What are the main improvements in the LS 600c Pro II compared to the original Mark I?

The LS 600c Pro II delivers up to 35% higher efficiency and nearly double the output in certain CCT ranges compared to the original LS 600c Pro. Key upgrades include:

• Significantly Higher Output: Up to 35,600 lux @ 3m (5600K with BM1215 Hyper Reflector).

• New Hyper Reflector Design: Comes standard with a redesigned, higher-efficiency BM1215 Hyper Reflector.

• Improved Redesigned Yoke: Features a redesigned curved yoke with 360-degree rotation and better clearance for large modifiers.

• Enhanced Dust & Weather Resistance: IP65 rating against rain, dust, and harsh filming environments.

• Advanced Color Control: Higher fidelity color rendering across its full CCT range (2,300K to 10,000K) with green-magenta adjustability.

What is the power consumption and battery compatibility of the LS 600c Pro II V-Lock version?

The LS 600c Pro II draws a maximum power of 720W and operates on standard AC power (100V–240V) or V-Mount/V-Lock cinema batteries:

• Half Power (360W): Can be powered using two standard 14.4V / 26V / 28.8V V-Mount batteries capable of 15A continuous draw.

• Full Power (720W): Requires high-draw V-Mount batteries capable of 26V/28.8V with 15A+ continuous current, or dedicated block batteries via 48V DC 3-pin XLR input.

What modifier mount does the LS 600c Pro II use?

The LS 600c Pro II uses a standard Bowens S-Type Mount. It is fully compatible with Aputure Bowens-mount light shaping tools—including the Light Dome III, Lantern 90, F10 Fresnel, and Spotlight Mount—as well as third-party Bowens modifiers.

What wireless control protocols are supported on the LS 600c Pro II?

The LS 600c Pro II offers comprehensive wireless and wired control options:

• Wireless Control: Sidus Link app control (Bluetooth Mesh), LumenRadio CRMX, and Art-net/sACN via Ethernet.

• Wired Control: 5-Pin DMX512 In/Out, Ethernet (etherCON), and on-board control box menu system.

Key Specifications Summary

Description

The new LS 600c Pro II adopts upgraded COB design and technology. In addition to all the functions of the LS 600c Pro, the second generation: LS 600c Pro II supports a higher output and more outstanding features as full colour LED light fixture for professionals.

The LS 600c Pro II features a smaller COB and a much higher output efficiency than the first generation. At 5,600K, LS 600c Pro II bare light has 21,610 lux @1m which is about 35% higher than the first generation.

With the new hyper reflector, LS 600c Pro II has 91,500 lux @1m, which is about 82% higher than the first generation. The new HyperSync technology further ensures that the LS 600c Pro II is flicker-free during shooting to meet the demands of professional film and television production.

HyperSync technology also brings a smoother 0.1-100% stepless brightness control. At the same time, LS 600c Pro II has better low-output performance that the output at 1m can be as low as <50lux. LS 600c Pro II covers 90% of Rec.2020 colour space, the LS 600c Pro II provides a full gamut of colour choices while still maintaining a high quality of white light and high brightness output. The LS 600c Pro II has an adjustable CCT range of 2,300K~10,000K and offers six light modes: CCT mode, Advanced HSI mode, RGB mode, GEL mode, XY coordinate mode, and Source mode.

The LS 600c Pro II is equipped with industry-standard Bowens mounts and a variety of control options. The control box has an integrated 5-pin DMX 512 port that supports 16-bit DMX512 control, LumenRadio CRMX control, Art-net & sACN Ethernet, as well as Sidus Link® App control.

The LS 600c Pro II supports AC power, battery power (14.4V/26V/28.8V) and 48V (15A) power supply box. With IP65 weatherproof protection, the LS 600c Pro II is ableto cope with all kinds of working environments, and with its professional light output modes, complete power supply options, and professional control system, the LS 600c Pro II is able to bring a top filmmaking experience to the production team.

Main Features

• 600W Output Full Color Bowens Mount Point Source LED
  • 720W Maximum Power Draw
  • Upgraded Design Brings Higher Output than Previous
  Generation
  • 10,167 lux @ 3m with New Hyper Reflector at 5,600K
  • CRI≥95, TLCI≥98, SSI (D56)≥74, SSI (Tungsten) ≥85
  • ≥90% of Colors Within Rec.2020 Color Space
  • Smother 0.1-100% Stepless Brightness Control using
  HyperSync technology
  • Minimum Output Goes Down to <50 lux @ 1m
  • Fully Tunable CCT from 2,300K to 10,000K
  • Fully-Tunable Green-Magenta Adjustment
  • 6 Light Modes:CCT、Advanced HSI、RGB、GEL、XY
  Coordinate、Source
  • 300+ Gel Presets
  • 46 Built-in Preset Source Effects in Source Mode
  • Multiple Control Methods: Sidus Link Bluetooth App
  Control, LumenRadio CRMX, Art_x0002_net & sACN via
  etherCON, 16-bit 5-Pin DMX512 In & Out • 22 Built-in DMX Profiles and Customized DMX Setting
  When Losing Signal • Suppots All SidusPro® FX: Manual FX, Picker FX, Magic
  Program, Music FX
  • CFX Mode Can Save 10 Picker FX and 10 Music FX
  • 15 Built-in Lighting FX
  • Supports Studio Mode
  • 2 Output Modes: Max & Constant • 4 Built-in Dimming Curves
  • 4 Fan Modes: Smart, High, Medium, Silent • IP65 Dust & Water-Resistant • 360° Rotation, Curved Dual Disk-brake Yoke
  • Utilizes Universal Bowens Mount Standard
  • V/Gold Mount Battery Charging
  • Multi-Voltage Battery Plates (V/Gold Mount): Half Power
  (14.4V/15A, 26V/8.5A, 28.8V/7.5A) • Supports 48V/15A DC Input (3-pin XLR): Battery Power
  Stations & Block Batteries
  • Included Rolling Case

In The Box

LS 600c Pro II Lamp Head x  1
Control Box x  1
Lightning Clamp x  1
Protection Cover x  1
BM5645 Reflector x  1
Rolling Case x  1
7-Pin Weatherproof Head Cable (7.5m) x  1
Neutrik powerCON AC Power Cable (6m) x  1
