Aputure INFINIMAT 8x8 with Clear Softbox Kit

Product Overview

Elevate your lighting setups with the Aputure INFINIMAT 8x8 with Clear Softbox, a comprehensive 8x8ft tunable color mat light system built for elite-tier cinema, broadcast, and commercial video production. Delivering up to double the brightness of competing mat lights in its class, this production workhorse punches through ambient daylight with ease while maintaining an incredibly slim profile.

At the core of this system is a 16-pixel LED mat paired with a rugged, clear inflatable airbag softbox. By utilizing an inflatable structure, it drastically cuts down on setup times and eliminates the bulky, heavy diffusion rigs traditionally required for large-scale overhead lighting. Powered by the universal 1,600W Control Box, the INFINIMAT 8x8 gives filmmakers, gaffers, and rental houses ultimate color precision, fluid pixel control, and rental-grade reliability in any environmental condition.

Key Features

• Double the Intensity & Output: Significantly brighter than other same-sized mats on the market. With 1,600W of maximum power output, it serves as a highly capable overhead soft source or key light—even in bright daylight settings.

• Inflatable Clear Softbox & Dynamic Diffusion: Features a clear airbag that inflates in just 2 minutes via the included Air Pump Max. Swap out the included 1-stop and 2-stop diffusion cloths, use the light control skirt, or clip on the 8x8 grid to effortlessly shape your beam and control spill.

• 16-Pixel Control at Scale: Take control over 16 independent color-tunable pixels. Ideal for large arrays and intricate motion lighting effects, seamlessly integrated with professional workflows via Sidus Link, CRMX, or DMX/RDM.

• Ultra-Low Dimming Without Color Shift: Equipped with a state-of-the-art dual-dimming internal control system. Smoothly dim down to an ultra-precise 0.1%—up to 10x lower than the competition—with zero color temperature or tint drifting.

• Universal 1,600W Control Box: The universal architecture allows the control box to power multiple mats in the INFINIMAT ecosystem. It features low-noise cooling modes (as quiet as 34.2dBA) to ensure your sound rolling on set stays pristine.

• Rental-Grade, Rugged IP65 Build: Built to withstand the harshest sets, featuring a full IP65 dust and water-resistance rating. Rigid metal backing plates provide rapid heat dispersion while shielding the high-performance LEDs from physical damage.

Technical Specifications

• Dimensions (Mat): 239.0 x 239.0 cm / 7.8 x 7.8 ft

• Pixel Count: 16 Pixels (2x2 Pixel Module layout)

• CCT Range: 2,000K – 10,000K

• Color Accuracy: CRI ≥96 | TLCI ≥97 | CQS ≥95 | SSI (Tungsten): 84 | SSI (D56): 73

• Max Power Output / Consumption: 1,600W Output / 2,000W Consumption

• Dimming Range: 0.1% to 100% (Smooth Dual-Dimming)

• Control Protocols: On-board, Sidus Link App (Bluetooth), DMX/RDM, CRMX (LumenRadio), etherCON

• Weather Resistance: IP65 Rated

• Inflation Time: ~2 minutes via Air Pump Max (Full inflation holds for up to 2 days)

• Operating Temperature: -20ºC to 50ºC (-4ºF to 122ºF)

What’s in the Box?

• 1x Aputure INFINIMAT 8x8 LED Mat

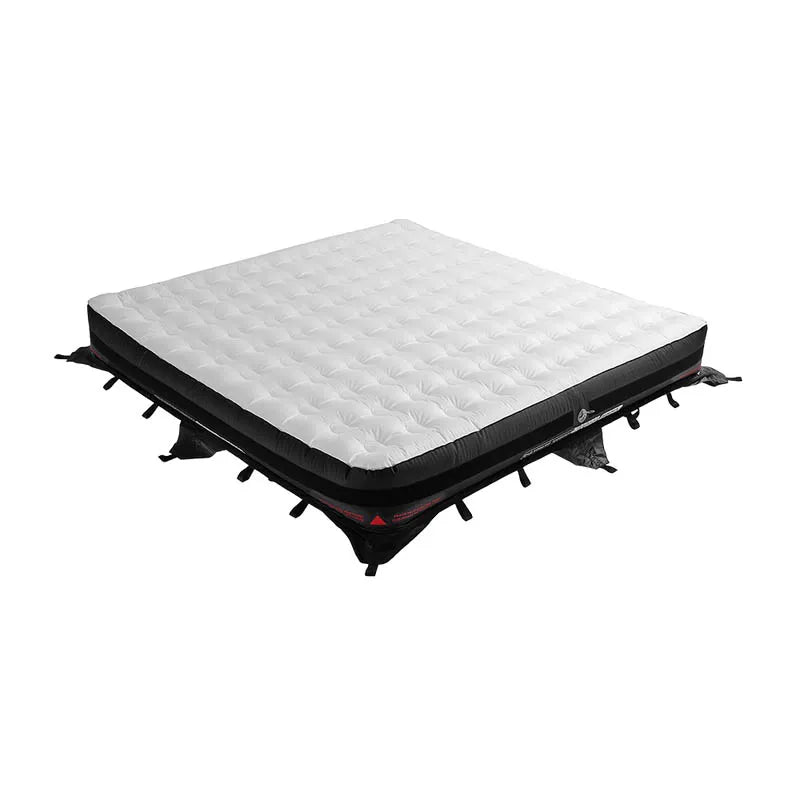

• 1x Aputure INFINIMAT Inflatable Clear Softbox 8x8

• 1x Aputure INFINIMAT Control Box 1600W

• 1x Aputure INFINIMAT Air Pump Max & Cushion

• 1x INFINIMAT 1-Stop Diffusion Cloth 8x8

• 1x INFINIMAT 2-Stop Diffusion Cloth 8x8

• 1x Aputure INFINIMAT Light Control Skirt 8x8

• 1x Aputure INFINIMAT Light Control Grid 8x8 (with Carrying Case)

• 1x Aputure INFINIMAT 15m Head Cable (1600W)

• 1x LP-24 AC Power Cable

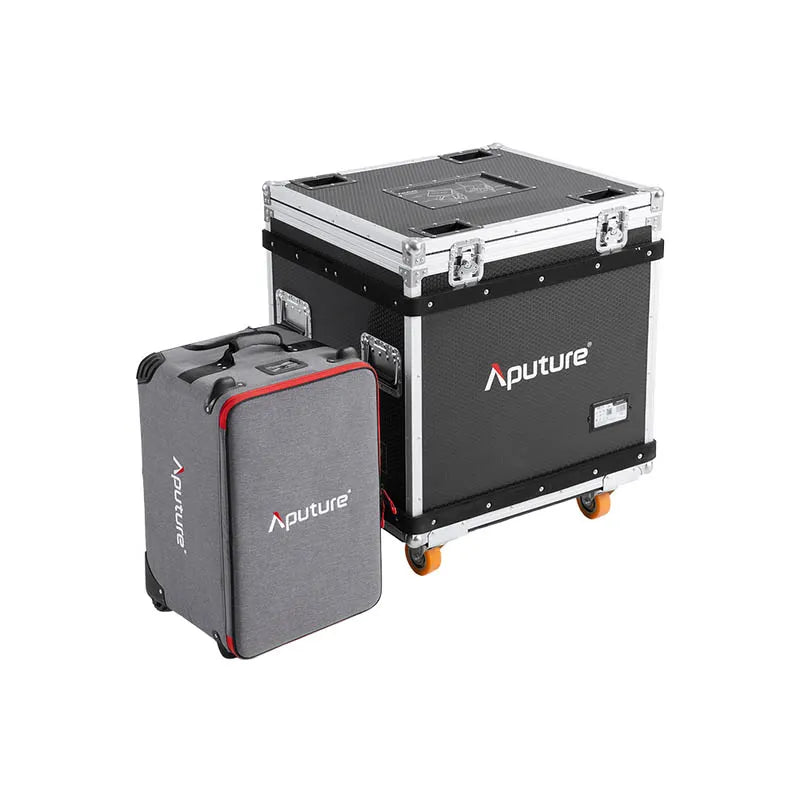

• 1x Flight Case for INFINIMAT LED & Clear Softbox 8x8

• 1x Rolling Case for Control Box 1600w Pack

• 1x Patch Kit & 1.3m Safety Rope
