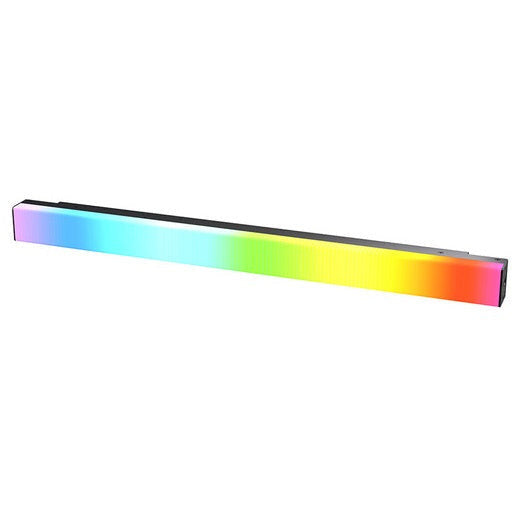

Aputure INFINIBAR PB6
Featuring 48 pixels of CRI 96/TLCI 98 colour quality throughout its multiple colour modes, the INFINIBAR is designed to be a key light, built directly into sets, or used with its connector ecosystem to create new shapes and designs. The unit's proprietary RGBWW chipset produces colour temperature light of 2000 to 10,000K with full green-magenta adjustment, and it has advanced hue, saturation, and intensity controls for a wide gamut of precise and accurate colours. Connect multiple INFINIBAR panels of any size with up to ten different connectors, available separately, then synchronize them via the Sidus Link app, LumenRadio CRMX, or through wired DMX with an optional USB-C to DMX adapter.
Lightweight at 2.2 lb, the INFINIBAR features a durable aluminium housing that's also mountable with the included Clamp to Baby Pin Adapter, two 1/4-20" female threads , magnetic spacers, and the Straight Connector for the INFINIBAR Rail system. The unit can be powered with a built-in lithium battery that can operate at 100% brightness for 100 minutes or via the included AC adapter. Alternately, multiple units can share one power supply when linked together with the power-sharing connectors.
- 2' 14W panel light with proprietary RGBWW chipset and 48 individual pixels (or lighting zones)
- 328 lux at 6500K
- 0 to 100% brightness control at increments of .1%
- Nine built-in lighting effects: Fireworks II, Fire II, Paparazzi II, Faulty Bulb II, TV III, Pulsing III, Cop Car III, Lightning III, Party II
- Seven pixel effects: Colour Fade, Colour Cycle, 1-Pixel Chase, 2-Pixel Chase, 3-Pixel Chase, Rainbow, Pixel Fire
- Fully tunable correlated colour temperature (CCT) from 2000 to 10,000K with green and magenta adjustment
- High colour standards of CRI: 96+, TLCI: 98+, SSI (D56): 74, SSI (Tungsten): 85, TM-30 Rf: 94, and TM-30 Rg: 103
- Advanced HSI with white point CCT control, industry-standard xy (CIE 1931), RGB, 300+ gel presets, and greater than 90% of colours within Rec.2020 colour space
- AC adapter included
- Built-in 29.6Wh lithium battery lasts up to 100 minutes at maximum output
- Smart Battery Life Mode adjusts the runtime to 2, 4, 6, and 8 hours
- Share AC Power over multiple INFINIBARs with connector ecosystem
- Multiple control methods: Sidus Link App, LumenRadio CRMX, DMX/RDM via USB-C cable available separately
- Straight connector included; nine other splicing connectors available separately (triangle flat, triangle 3D, hexagon flat, hexagon 3D, 3-way flat, 4-way flat, 6-way flat, square flat, and square 3D)
- Infinite blending design to reduce visible gaps when connecting multiple lights
- Included mounting options: Clamp to Baby Pin Adapter, two 1/4-20" female threads, magnetic spacers, and the Straight Connector for the INFINIBAR Rail system
Item Type | 1 x LED Light Panel |
Included Storage Case | 1 x Case |
Lumens | 1110 |
Photometrics | 2000K 18 fc / 200 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 2700K 26 fc / 282 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 3200K 26 fc / 288 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 4300K 27 fc / 301 Lux at 3.3' / 1 m* 5600K 29 fc / 317 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 6500K 30 fc / 328 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 7500K 30 fc / 328 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 10000K 26 fc / 288 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer |
Colour Temperature | 2000 to 10,000K |
Colour Modes | RGB, Daylight, Tungsten |
Colour Accuracy Standard | CRI 96 TLCI 98 SSI 74 at 5600K SSI 85 at 3000K TM-30 Rf 94 TM-30 Rg 100 |
Cooling System | Passive |
Dimming | Yes, Built-In Dimmer |
Expected Lamp Life | 50,000 Hours |
Beam Angle | 120° |
Built-In Flash | No |
Umbrella Mount | No |
Front Accessory Mount | None |
Wireless Remote Control Type | Bluetooth Wireless CRMX (LumenRadio) |
Mobile App Compatible | Yes: Android & iOS App Name: Sidus Link *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
Wireless Channels | None |
Wireless Groups | None |
Wireless Range | 262.5' / 80 m (Bluetooth) |
Power Source | AC Power (Cable Included) Battery (Built-In) |
Battery | 1 x Proprietary Lithium (Built-In) • Up to 100-Minute Runtime at 100% Brightness • 120-Minute Charge Time |
Battery Charging | AC to DC Adapter (Included) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A |
DC Input Power | 24 VDC at 0.9 A |
Included Adapter / Cable | 1 x Edison Plug to Barrel / Coax AC to DC Adapter |
Inline Switch | No |
Power Pass-Thru | No |
Power Consumption | 18 W |
Fixture Mounting | Support Mount 2 x 1/4"-20 Female Thread |
Water Resistance | None |
Display | None |
Dimensions | 23.8 x 1.8 x 1.7" / 60.4 x 4.5 x 4.3 cm |
Weight | 2.2 lb / 1 kg (Fixture) |
1 x INFINIBAR PB6
1 x 48W DC Power Adapter (3m)
1 x AC Locking Power Cable (1.5m)
2 x Magnetic Spacer
1 x INFINIBAR Clamp to Baby Pin Adapter
1 x INFINIBAR Straight Connector
1 x 5mm Hex Wrench
1 x Carrying Case
