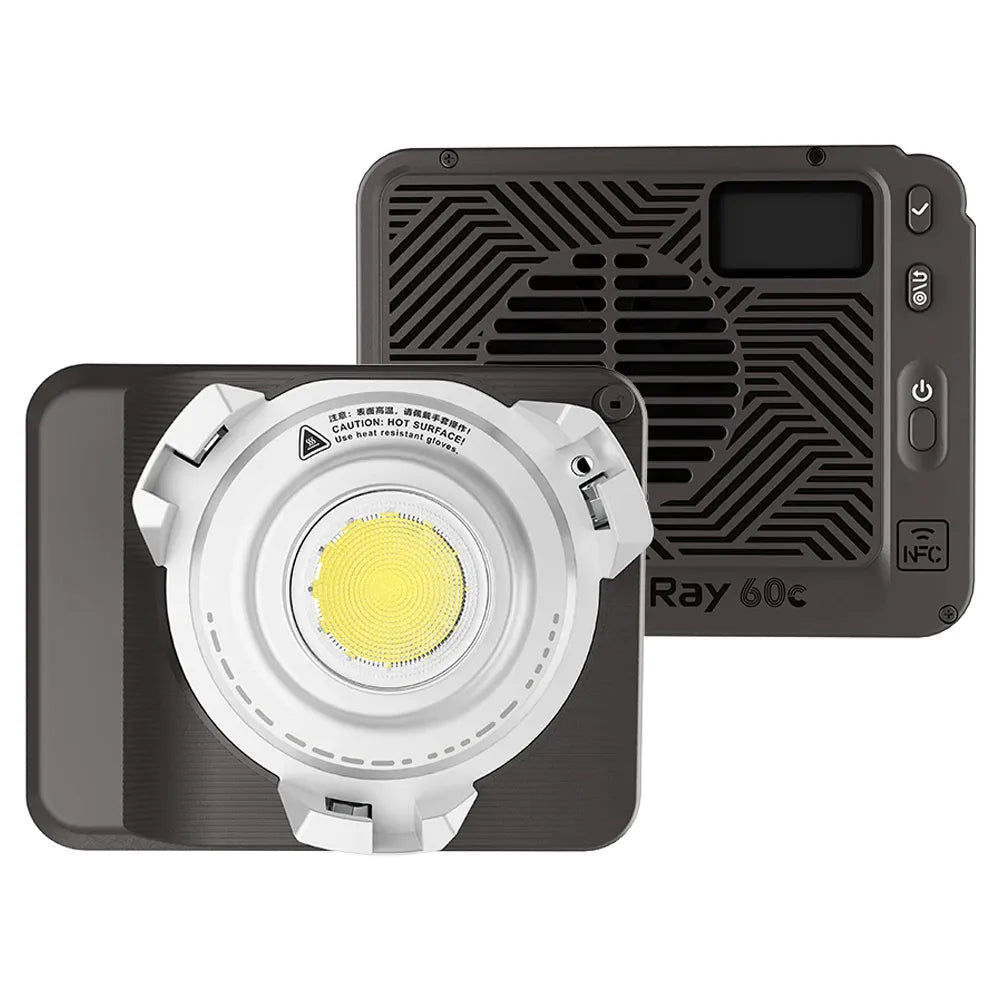

Amaran Ray 60C RGB Bowens Mount Light Kit

amaran Ray 60c RGB Bowens Mount Light Kit — Redefining the Professional Standard

The amaran Ray 60c RGB Bowens Mount Light Kit stands as the definitive ultra-slim, full-color cinematic powerhouse designed to deliver flawless color accuracy and absolute creative command on the world's most demanding closed-set productions and high-stakes sets.

Engineered for Elite Studios, Trusted by Industry Leaders

In high-end commercial environments and rigorous cinematic sets, compromises in space or setup velocity can dismantle an entire production schedule. The amaran Ray 60c eliminates these limitations entirely by fusing elite color precision with an unprecedented, ultra-slim form factor. Measuring a mere 43mm in thickness and weighing only 450 grams, this system delivers an astonishing 3,910 lux of raw, unadulterated illumination at 1 meter. Driven by a revolutionary OmniColor light engine, it expands the physical boundaries of traditional point-source architectures, providing a richer, more balanced spectral distribution that ensures immaculate skin tones and crisp, natural whites that translate flawlessly onto premium large-format cinema sensors.

Engineered to withstand the unforgiving, rapid-fire conditions of modern location scouting and elite closed-set studio operations, the Ray 60c features an officially certified IP54-rated chassis for uncompromising dust and splash resistance. This rugged durability is matched internally by a sophisticated active cooling architecture that caps noise levels at an ultra-quiet 28 dBA, safeguarding pristine set acoustics during critical takes. Rather than compromising utility with sub-sized, proprietary mounts, this fixture preserves a robust, professional-grade, full-size metal Bowens mount. This engineering choice unlocks seamless integration with an exhaustive global ecosystem of modifiers, from high-performance fresnels to deep softboxes, without requiring clumsy adapters or fracturing production workflows.

On-set command velocity is radically redefined through an advanced tactile and wireless interface. Featuring integrated Near Field Communication (NFC) for instant, one-touch smartphone pairing alongside a high-fidelity FlowTurn dial, real-time lighting adjustments are made instantaneous and micro-precise. Combined with highly versatile power configurations—encompassing universal AC input, professional-grade USB-C Power Delivery 3.0, and the proprietary Ace E-Lock ecosystem for cable-free, high-capacity field batteries—the Ray 60c represents a monumental leap forward. It bridges the gap between ultra-portable engineering and elite studio-grade performance, standing as the undisputed choice for visionaries who command zero compromises.

Uncompromised Technical Specifications

• Illumination Engine: Advanced OmniColor RGB LED Chipset with full 360° color control (HSI and RGB modes) and continuous Green/Magenta tint adjustment.

• Photometric Performance: Delivers up to 3,910 lux @ 1 meter (at 4300K, unmodified) and a total luminous flux of 4,021 lumens.

• Correlated Color Temperature (CCT): Ultra-wide standard range of 2,300K to 10,000K; expandable via CCT+ mode to an unmatched 1,800K to 20,000K.

• Elite Color Fidelity Standards: Certified ratings of CRI 95+, TLCI 95+, TM-30 Rf (Average) of 94, TM-30 Rg (Average) of 100, SSI (Tungsten) of 87, and SSI (D56) of 80 for impeccable color rendering.

• Physical Architecture: Ultra-slim profile measuring just 43mm (1.7 inches) in thickness and an ultra-lightweight chassis of 450 grams (1.0 lb).

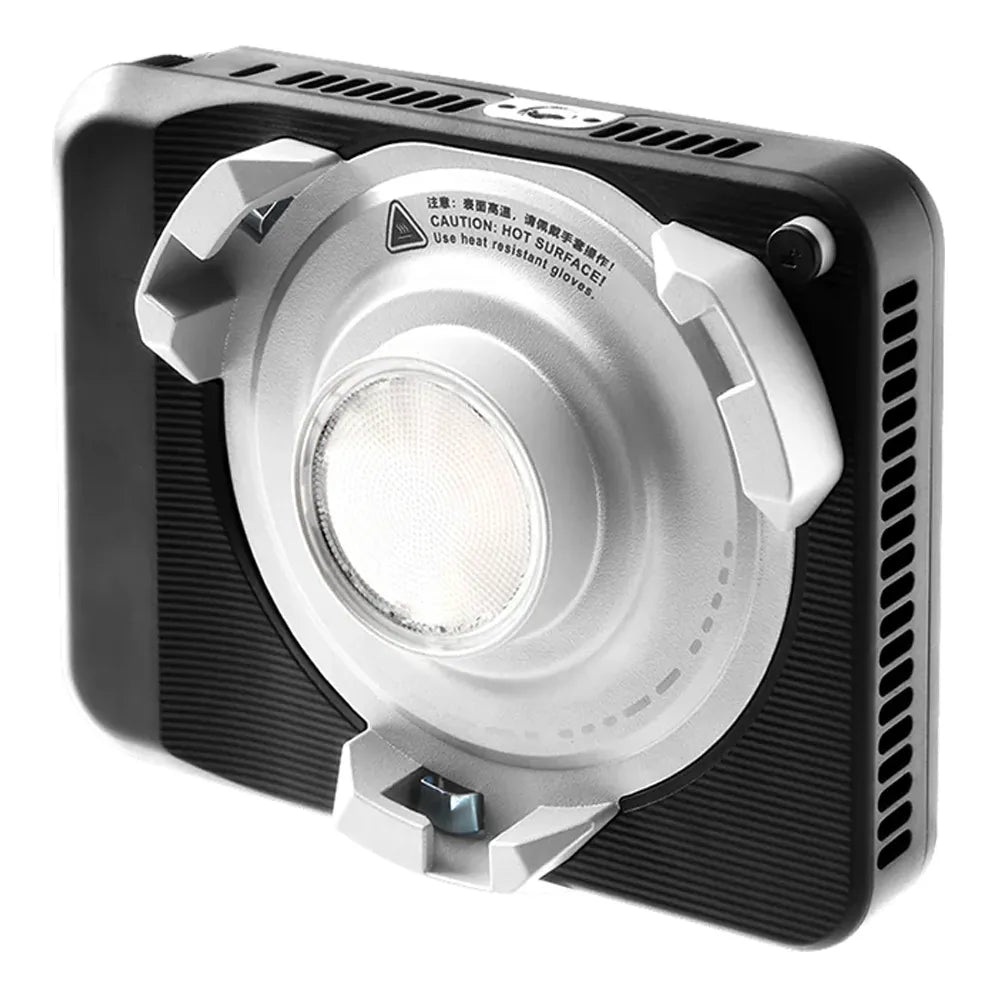

• Modifier Compatibility: Heavy-duty, full-size metal Bowens Mount alongside a 1/4"-20 standard female mounting thread.

• Environmental Protection: Officially certified IP54 weatherproof rating for rigorous dust and water-splash resistance.

• Acoustic Management: Intelligent active cooling system operating at an ultra-quiet maximum sound floor of 28 dBA at 30°C (86°F) with selectable Smart and Silent fan modes.

• Power Dynamics & Consumption: 60W nominal power output with a maximum consumption of 75W via high-speed USB-C.

• Multi-Source Power Input: Universal AC power (100V-240V / 2.5A), DC 12V–24V input, USB-C PD 3.0, and amaran Ace E-Lock battery compatibility (up to 46 minutes of cable-free operation at 100% output using an optional Peak 75 battery).

• Wireless Command Ecosystem: Built-in NFC fast-pairing configuration with professional Bluetooth app control supporting a reliable operating range of up to 80 meters (262.5 feet).

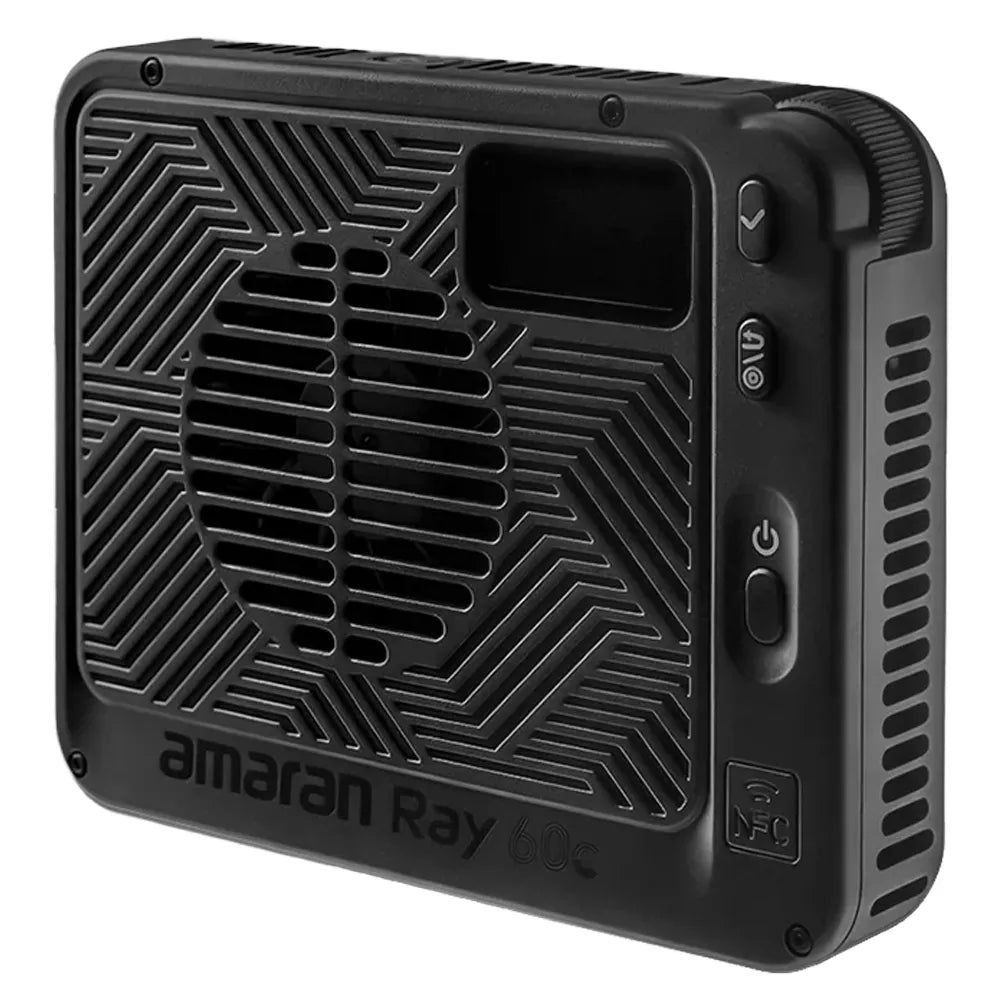

• On-Board Interface: High-contrast, crystal-clear TFT display screen accompanied by a professional-grade tactile FlowTurn knob, Quick Operation modes, custom shortcuts, and High-Speed Photography and Studio modes.

• Cinematic Effects Engine: 12 built-in studio-grade lighting FX (including Lightning, TV, Fire, Strobe, Paparazzi, Fireworks, Faulty Bulb, Pulsing, Explosion, Welding, Cop Car, and Party).

• Complete Professional Kit Inclusions: amaran Octa Dome 30 softbox (30cm diameter, one-snap configuration with grid and diffuser), Ace Lock to Baby Pin Adapter Grip, heavy-duty AC power adapter with cable, and a custom studio transport bag.

Professional Integration FAQ

How does the OmniColor engine maintain color consistency and skin tone accuracy across high-frame-rate cinematic workflows?

Powered by an advanced color chipset featuring expanded red and blue ranges, the amaran Ray 60c achieves an exceptional TLCI of 95+ and features a specialized High-Speed Photography mode, guaranteeing zero color shift or flicker even on high-stakes, high-frame-rate commercial sets.

Can the fixture's cooling system handle continuous full-power operation on a silent closed-set studio without compromising audio capture?

Engineered with a precision thermal management design, the amaran Ray 60c limits its active acoustic footprint to a maximum of 28 dBA, which can be locked into a dedicated Silent fan mode to ensure completely transparent operation around sensitive boom microphones.

How does the fixture adapt to mixed-lighting environments when precisely matching existing heavy HMI or tungsten setups on set?

By exploiting its ultra-wide expanded CCT+ range of 1,800K to 20,000K combined with continuous, stepless Green/Magenta shift adjustment, Gaffers can execute precise, microscopic tint adjustments to flawlessly match any ambient light source.

What mechanisms secure the light fixture when deployed in fast-paced, high-vibration rigging setups or mobile vehicular shoots?

The integration of a rugged 1/4"-20 mounting receiver paired with the secure Ace Lock to Baby Pin Adapter Grip provides absolute mechanical locking stability, while the IP54 all-weather chassis ensures complete reliability against dust and rain during extreme location filming.
