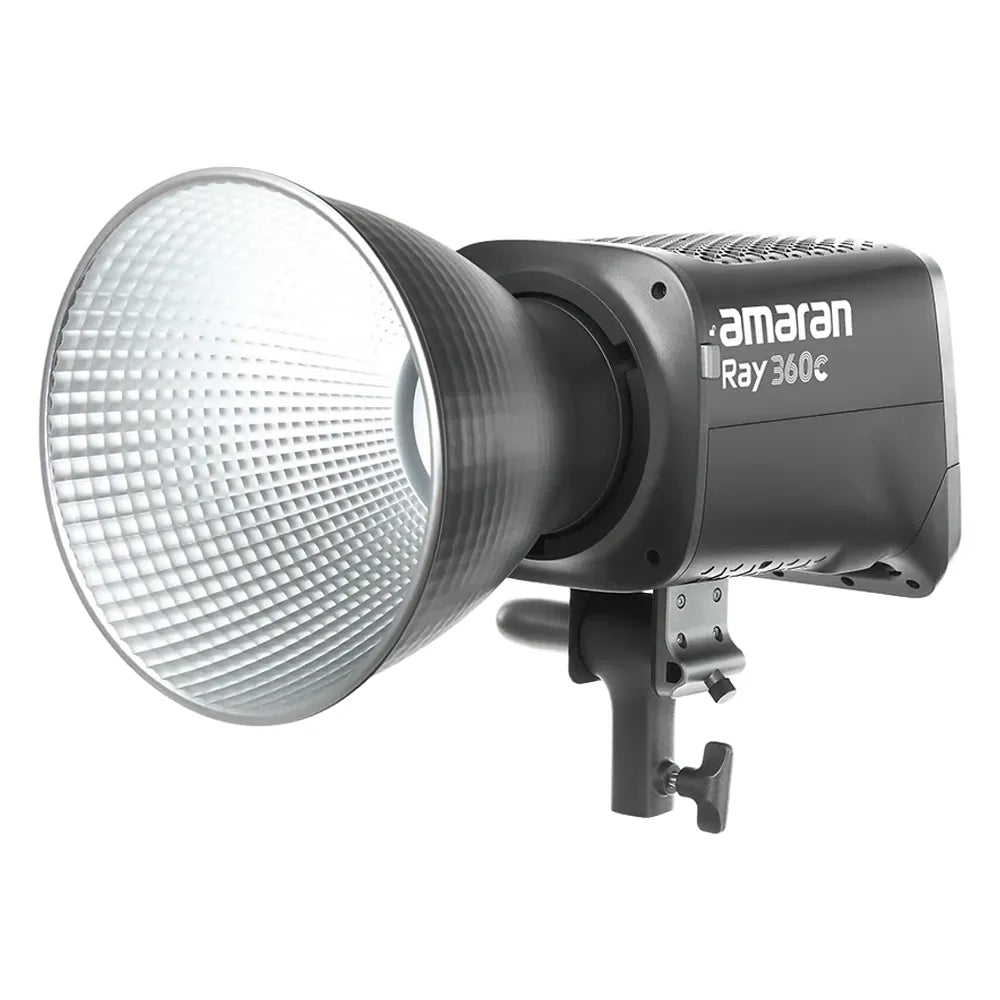

amaran Ray 360c RGB Bowens Mount LED Light — Redefining the Professional Standard

The amaran Ray 360c RGB Bowens Mount LED Light stands as the definitive pinnacle of full-color point-source illumination, seamlessly combining an integrated monolight form factor with uncompromised spectral purity for elite cinema and commercial sets.

Engineered for Elite Studios, Trusted by Industry Leaders

Modern cinematography demands immediate, uncompromising performance and flawless color execution without the burden of cumbersome equipment. The amaran Ray 360c disrupts traditional lighting workflows by packing an immense 360-watt full-color output directly into a single, beautifully streamlined monolight chassis. By completely integrating the internal AC power supply and eliminating the traditional external power ballast, this advanced light head declutters studio floors, maximizing set efficiency while offering unrivaled structural agility on heavy-duty overhead grids, boom arms, and rolling stands alike. Operating via a single heavy-duty cable, it provides an unshakeable foundation for fast-paced, high-end productions that refuse to settle for anything less than operational perfection.

At the core of this tier-one fixture lies the advanced OmniColor light engine, a monumental breakthrough in engineering that enriches the red and blue color spectrums to achieve an exceptionally balanced, full-spectrum light profile. This revolutionary color science ensures pristine white light generation and unparalleled accuracy across skin tones, maintaining supreme chromatic consistency across modern high-resolution cinema camera sensors. For directors of photography executing meticulous creative looks or balancing complex environmental light, the system provides total color authority through an ultra-extended color temperature spectrum and flawless green-magenta shift corrections, completely erasing the need for time-consuming color corrections in post-production.

Forged to withstand the brutal rigor of closed-set environments and unpredictable location shoots, the Ray 360c features an IP54-rated weatherproof build that shrugs off dust, wind, and water splashes with ease. Its sophisticated thermal architecture relies on an intelligent active cooling system that keeps the fixture operating at absolute peak performance while generating a near-silent maximum noise floor of 28 dBA. Whether integrated into a complex console layout for synchronized studio cues or deployed on location with rapid wireless pairing via near-field communication, this powerhouse fixture delivers the absolute reliability, elite craftsmanship, and class-leading fidelity demanded by the industry's most discerning creators.

Uncompromised Technical Specifications

• Light Engine Technology: OmniColor full-color chipset with expanded spectral red and blue saturation ranges

• Power Output & Consumption: 360-watt maximum output; 410-watt maximum system power draw

• Luminous Performance: Delivers an exceptional 23,174 lumens of total luminous flux

• Peak Illuminance Metrics: Produces up to 17,130 lux at 1 meter (bare light source at 4300K) and scales up to 45,000 lux at 1 meter when paired with the included high-efficiency reflector

• Color Temperature Range: Standard adjustable CCT from 2,300K to 10,000K; expandable via CCT+ mode to a massive 1,800K to 20,000K range

• Color Fidelity Standards: Certified CRI 95+, TLCI 95+, SSI (D56) 80, SSI (P3200) 87, TM-30 Rf 94, and TM-30 Rg 100 for immaculate color reproduction

• Creative Chromatic Modes: Complete 360° Hue, Saturation, and Intensity (HSI) control, absolute RGB spectrum tuning, and granular green-magenta shift calibration

• Dimming Capabilities: Precision 0% to 100% continuous, stepless digital dimming with zero flicker or color drift

• Chassis & Build Quality: All-in-one monolight structural design with an internal AC power supply and an IP54 weather-resistance rating for dust and splash protection

• Acoustic & Thermal Dynamics: Active cooling system with selectable smart and ultra-silent fan modes, capping maximum noise at an imperceptible 28 dBA

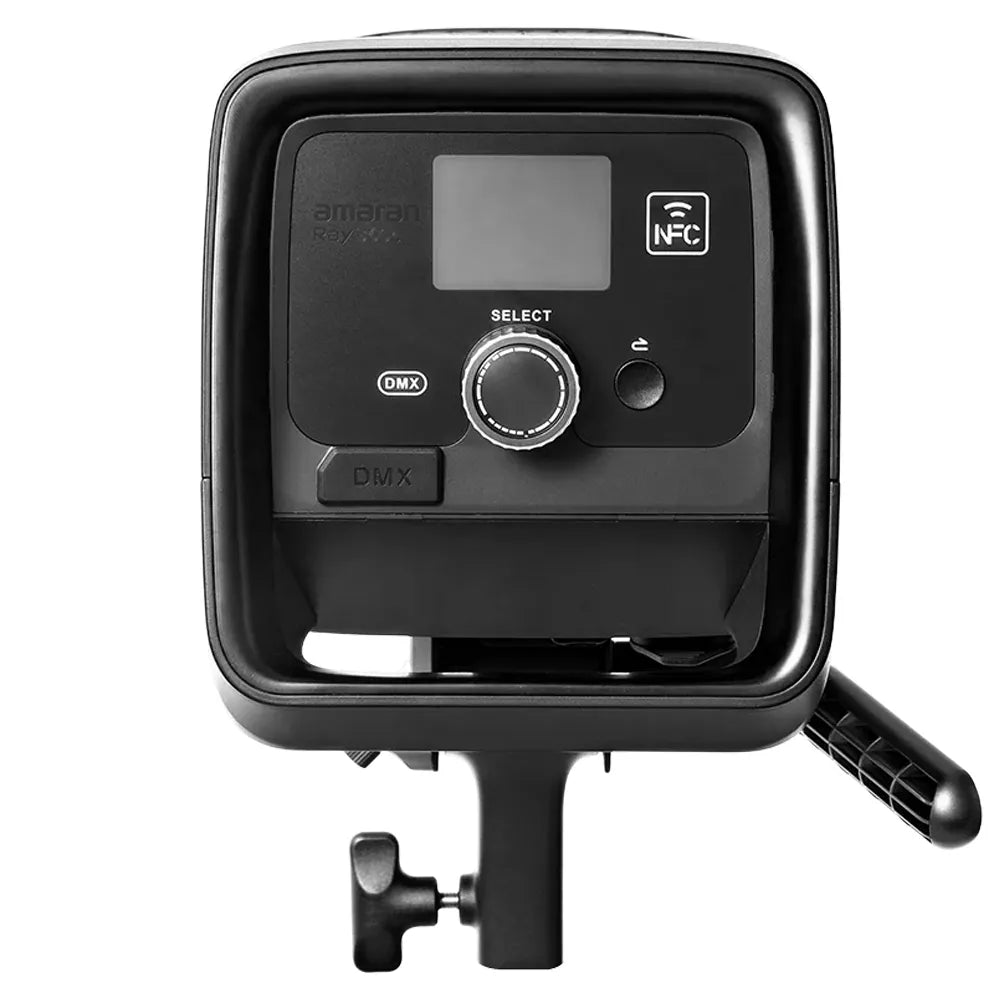

• Professional Connectivity: High-contrast onboard TFT screen with a tactile FlowTurn response knob; instant one-tap near-field communication (NFC) pairing; long-range Bluetooth app wireless control up to 80 meters (262.5 feet); master DMX architecture capability via a dedicated USB-C interface

• Accessory Architecture: Full-sized, heavy-duty metal Bowens S-Mount modifier interface with an integrated mechanical umbrella holder

• Mounting Infrastructure: Reinforced metal tilting yoke bracket featuring a standard 5/8-inch (16mm) receiver and an integrated overhead safety chain anchorage point

• Power Delivery System: Universal AC auto-switching input (100V to 240V, 50/60Hz) via a premium 5-meter (16.4-foot) locking power cord

Professional Integration FAQ

How does this fixture maintain precise color consistency and prevent chromatic drift during marathon production days?

Engineered with a state-of-the-art internal active thermal management system, the amaran Ray 360c continuously stabilizes its internal components to guarantee zero color shift and maintain its exceptional CRI and TLCI ratings of 95+ across continuous multi-hour shooting cycles.

Can this fixture be scaled seamlessly into large-scale network studio environments requiring centralized lighting control?

Yes, the amaran Ray 360c features a built-in USB-C interface that unlocks comprehensive DMX control through an optional adapter, allowing studio engineers to integrate the fixture flawlessly into industry-standard consoles for precise macro-level programming, real-time lighting cues, and multi-light synchronization.

How does the integrated power supply design benefit high-stakes workflows on tightly packed commercial sets?

By housing the entire AC power supply directly within the reinforced light head chassis, the amaran Ray 360c eliminates traditional external ballasts and heavy cable clutter, enabling rapid rigging transitions, safer closed-set environments, and immediate single-cable direct-to-wall operation.

Does the fixture support high-frame-rate cinematography without introducing artifacting or shutter interference?

Absolutely, the fixture is designed with elite-grade digital dimming circuitry that delivers true stepless 0-100% adjustments, ensuring flawless, flicker-free performance even when filming at extreme high-speed frame rates or ultra-narrow shutter angles.
