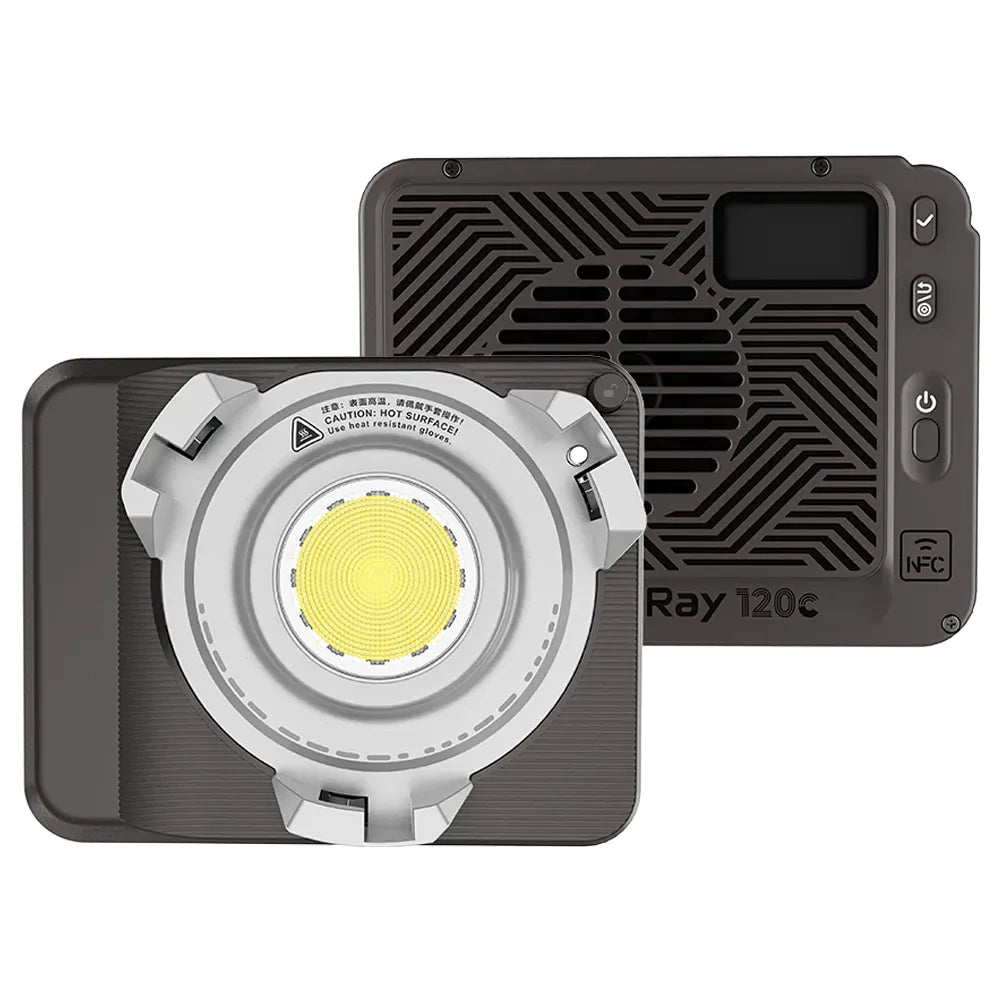

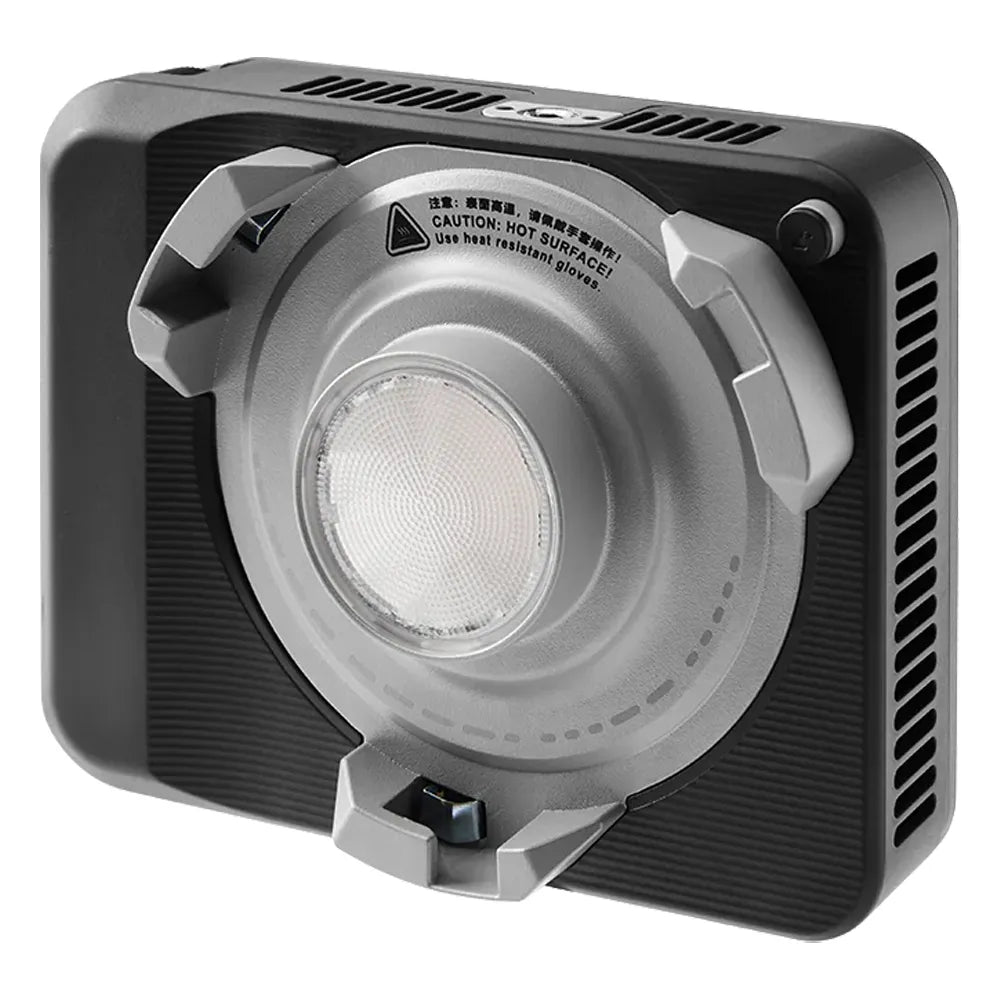

Amaran Ray 120C RGB Bowens Mount Light Kit

amaran Ray 120c RGB Bowens Mount Light Kit — Redefining the Professional Standard

The amaran Ray 120c RGB Bowens Mount Light Kit establishes a profound paradigm shift in professional illumination, packing an uncompromising 120W full-color engine into an ultra-compact, cinema-grade architectural footprint.

Engineered for Elite Studios, Trusted by Industry Leaders

In high-stakes commercial environments and rigorous closed-set productions, equipment limitations dictate creative boundaries. The amaran Ray 120c shatters these boundaries, engineered specifically to transcend the limitations of traditional, cumbersome point-source fixtures by delivering an astonishing 6,850 lux at 1 meter from a chassis that measures a mere 5.1 centimeters in thickness. This revolutionary architectural form factor gives cinematographers and studio heads unprecedented spatial freedom without sacrificing raw output, effortlessly dismantling conventional workflow restrictions on complex, fast-moving sets.

At the absolute core of this powerhouse is the advanced OmniColour light engine, delivering an expanded, meticulously balanced color spectrum with enhanced red and blue coverage. Moving far beyond ordinary bicolor or primitive color setups, the Ray 120c boasts an expanded CCT+ range stretching from 1,800K to an ultra-crisp 20,000K, coupled with flawless green-magenta shifting and full 360-degree chromatic command. With elite-tier color fidelity metrics including a CRI of 95+, a TLCI of 95+, and a stellar TM-30 Rf score of 94, this system guarantees absolute precision, preserving pristine, true-to-life skin tones and rendering intensive post-production color correction obsolete.

Built to survive the unrelenting, brutal demands of high-intensity studio schedules and exterior environments, the fixture features a rugged IP54-rated dust and splash-resistant chassis. This elite thermal architecture manages heat silently, capping active cooling fan noise at an imperceptible 28 dBA to protect pristine audio capture during critical dialogue scenes. Supported by an advanced power infrastructure featuring AC mains, high-delivery USB-C PD 3.0, and the proprietary Ace E-Lock system for untethered cable-free operation, the Ray 120c represents an elite tool for professionals who accept zero compromises.

Uncompromised Technical Specifications

• Light Engine & Chipset: Advanced OmniColour Spectrum LED Engine

• Maximum Power Output: 120W (140W Maximum Power Consumption via USB-C)

• Total Luminous Flux: 8,719 Lumens

• Photometric Performance: Up to 6,850 lux @ 1 meter (Bare Fixture at 3,200K)

• Standard Correlated Color Temperature (CCT): 2,300K – 10,000K (Continuous Stepless Adjustment)

• Expanded CCT+ Range: 1,800K – 20,000K

• Color Fidelity Standards: CRI 95+, TLCI 95+, SSI (Tungsten/P3200) 87, SSI (D56) 80

• TM-30 Metrics: Rf (Color Fidelity Average) 94, Rg (Color Gamut Average) 100

• Beam Angle: 70° Native Beam Distribution

• Color Control Modes: 360° Hue, Saturation, and Intensity (HSI), Full RGB, and Precision Green-Magenta (G/M) Shift

• Chassis Weatherproofing: Fully Certified IP54 Dust and Splash Resistance

• Acoustic Profile: Ultra-Quiet Active Cooling System (≤28 dBA Maximum Ambient Noise at 30°C)

• Onboard User Interface: High-Resolution TFT Display Screen with Tactile FlowTurn Control Knob

• Wireless Connectivity & Control: Built-in Near Field Communication (NFC) One-Tap Pairing, Bluetooth Mesh App Control (≤80m / ≤262.5ft Range)

• Power Integration Architecture: AC 100V–240V / 2.5A (50-60Hz), DC 12V–24V Input, USB-C PD 3.0, and amaran Ace E-Lock

• Modifier Integration: Heavy-Duty Full-Size Metal Bowens Mount & Integrated 1/4-20" Rigging Point

• Physical Dynamics: Fixture Weight: 599.4g (1.32 lbs) | Dimensions: 14.5 x 11.5 x 5.1 cm (5.7 x 4.5 x 2.0 in)

• Included Cinema Kit Accessories: amaran Octa Dome 30 Softbox (with dedicated diffusion cloth and light control grid), Ace Lock to Baby Pin Adapter Grip, 150W AC-to-DC Power Adapter, 4m AC Power Cable, Premium Ray Carrying Bag

Professional Integration FAQ

• How does this fixture maintain spectral and color consistency across an extended production day?

  Engineered with an advanced internal thermal management system and the OmniColour engine, the amaran Ray 120c maintains a guaranteed TLCI of 95+ and zero color drift, even during back-to-back 12-hour production cycles.

• Can this lighting system handle high-speed cinematography workflows without introducing banding or artifacting?

  Engineered with an ultra-high-frequency digital LED driver, the amaran Ray 120c eliminates flicker entirely across specialized High-Speed Photography and Studio modes to safeguard your high-frame-rate master shots.

• How does the power architecture accommodate remote location workflows without traditional AC power access?

  Engineered with multiple input modalities, the amaran Ray 120c supports native cable-free operation via the secure Ace E-Lock battery system, high-wattage USB-C PD 3.0, and wide-voltage DC inputs to maintain peak performance anywhere in the world.

• How can a multi-light array be deployed and managed efficiently by a single technician on a complex set?

  Engineered with a built-in NFC configuration module and robust Bluetooth mesh networking, the amaran Ray 120c enables instant one-tap pairing and wireless control of comprehensive arrays from up to 80 meters away.
