Introducing the YoloBox Pro Portable Multi-Camera Encoder/Streamer/Switcher/Monitor/Recorder from YoloLiv - the ultimate solution for creating live stream productions on-the-go. With the YoloBox Pro, you can simultaneously broadcast up to three video streams using Wi-Fi, RJ45 Ethernet, or via 4G LTE with an optional SIM card and subscription. This updated version of the YoloBox features HDCP compliance, mic and line analog audio inputs, a USB input, three HDMI inputs, a Qualcomm 660 encoder/processor, a high-capacity 10,000mAh internal battery, and a larger 8" LCD touchscreen display with 400 cd/m² brightness.

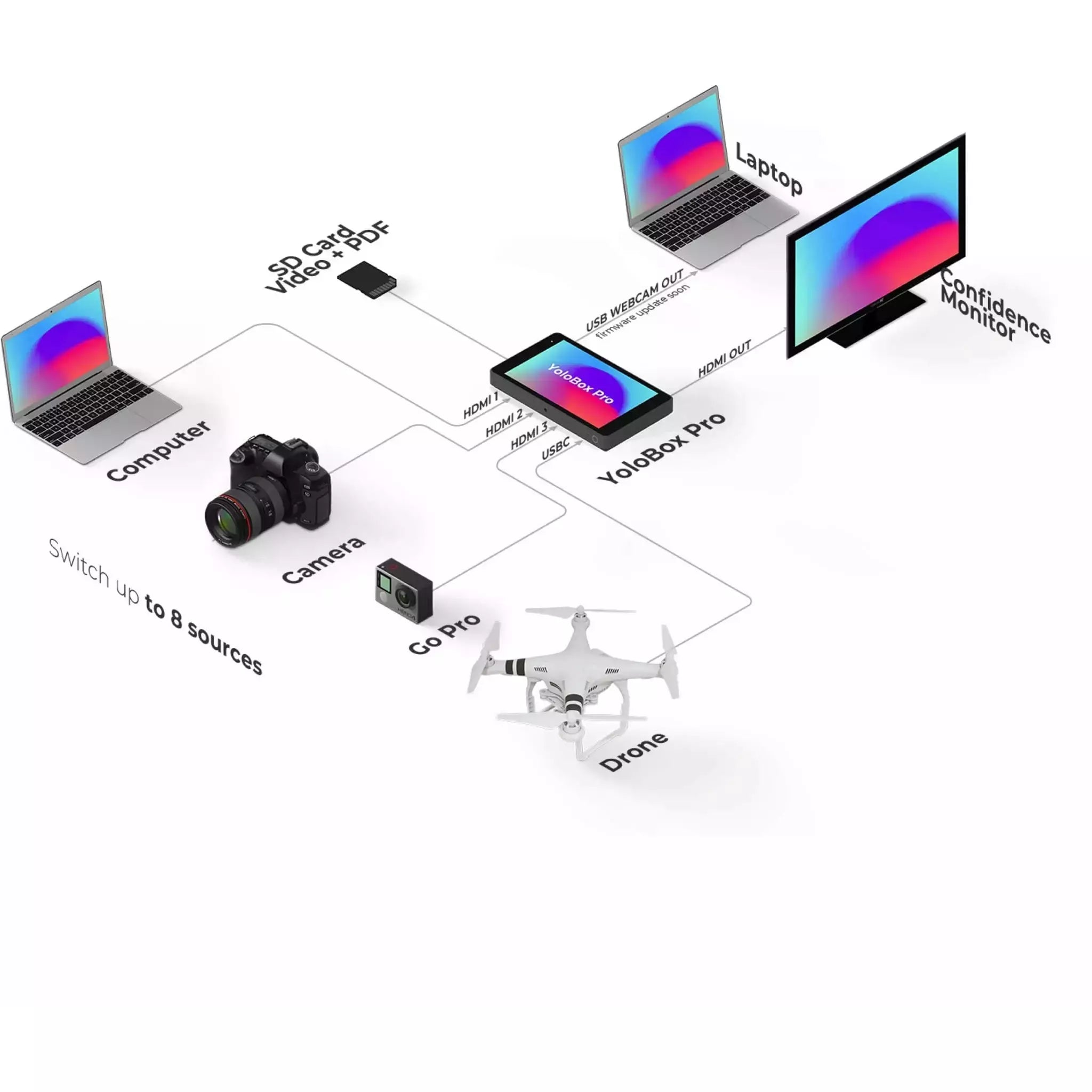

The YoloBox Pro allows you to connect and switch up to 8 video sources, and connect to a local area network via Wi-Fi, Ethernet, or LTE (SIM card and data plan not included). The touchscreen display shows the streaming image, input streams, and control interface, enabling you to switch between info sources with ease. Additionally, there's an HDMI output to display your stream locally on an optional HDMI display, a line-level audio input, mic-level audio input, and discrete headphone audio out.

With support for input resolutions ranging up to 1080p using the H.264 codec, you can stream resolutions from 540p to 1080p to popular platforms like YouTube, Twitch, and more using custom RTMP presets. Utilize a 4G cellular network, such as Vodafone, Spark, or 2 Degrees, to stream to the internet with a nano-size SIM card and data plan (not included). The YoloBox Pro also has a built-in SD card slot that allows you to record your stream directly in .mp4 format with up to 128 GB capacity (SD card sold separately).

Key Features:

• Touch control without a computer
• 8" LCD display with 400 cd/m² brightness
• Built-in simultaneoulsy streaming to up to 3 destinations
• HDCP compliant
• Stream via Ethernet, Wi-Fi, LTE 4G

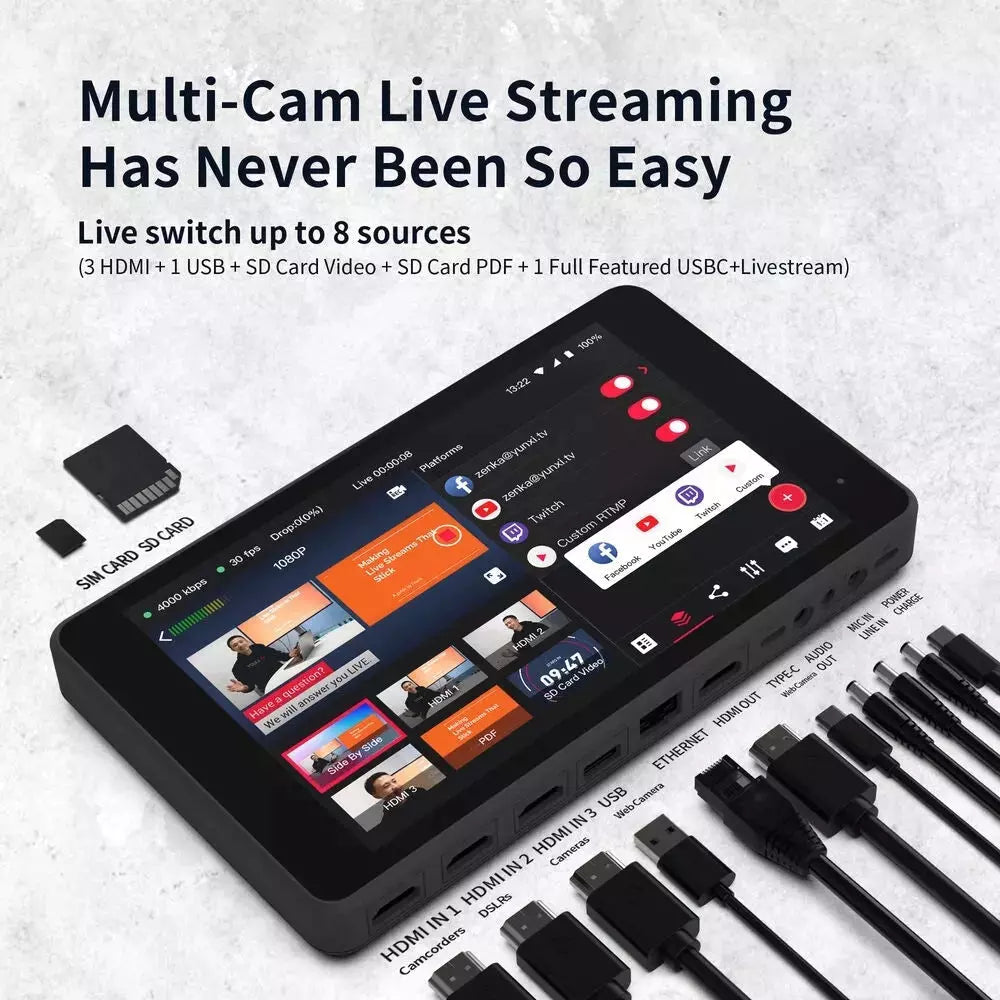

• Live switch up to 8 sources

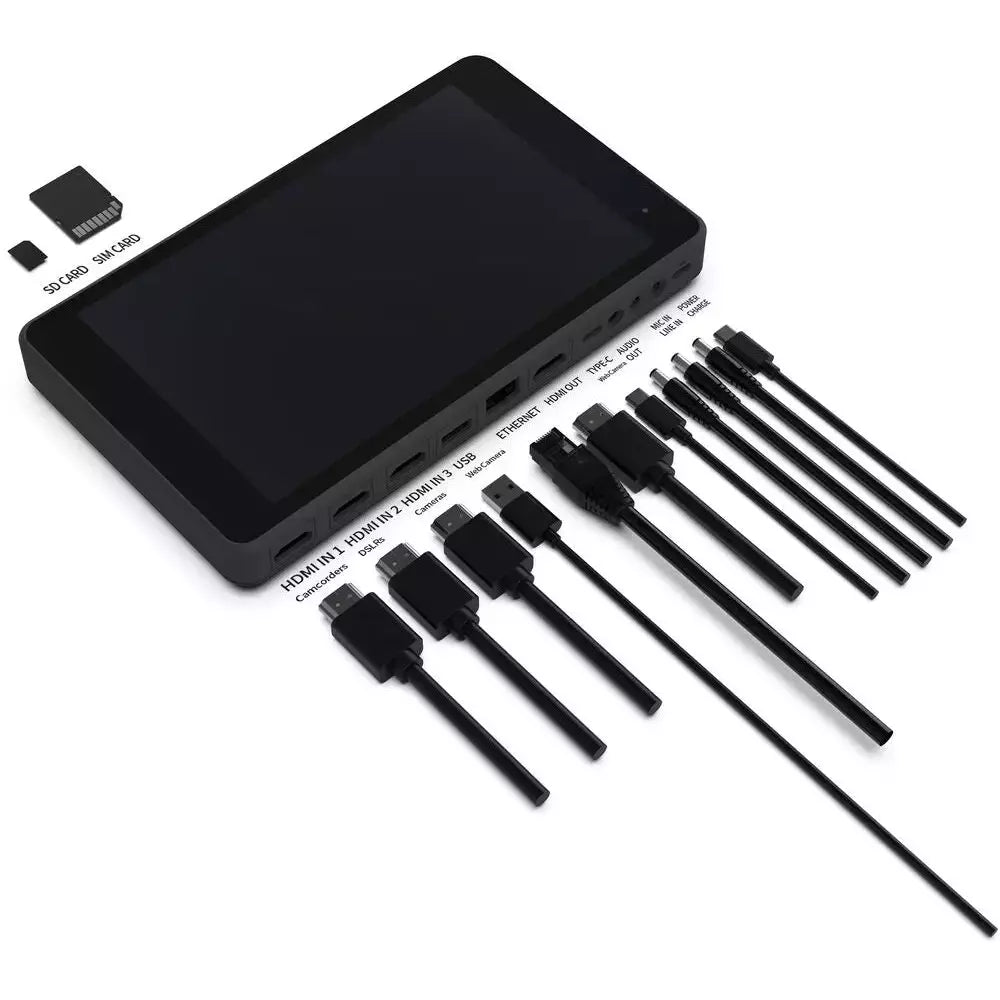

• 3 x HDMI inputs, 1 x USB video input, 1 x SD card slot, 1 x HDMI output
• One USB Type-C charging input
• Mic and Line audio input, 1 x audio output
• Ability to input PDF
• Add logos/comments to the stream
• Import pictures/videos from SD card
• Records internally to SD card up to 128GB
• Direct integration with YouTube/Facebook/RTMP(s)
• Supports up to 1080p60 video

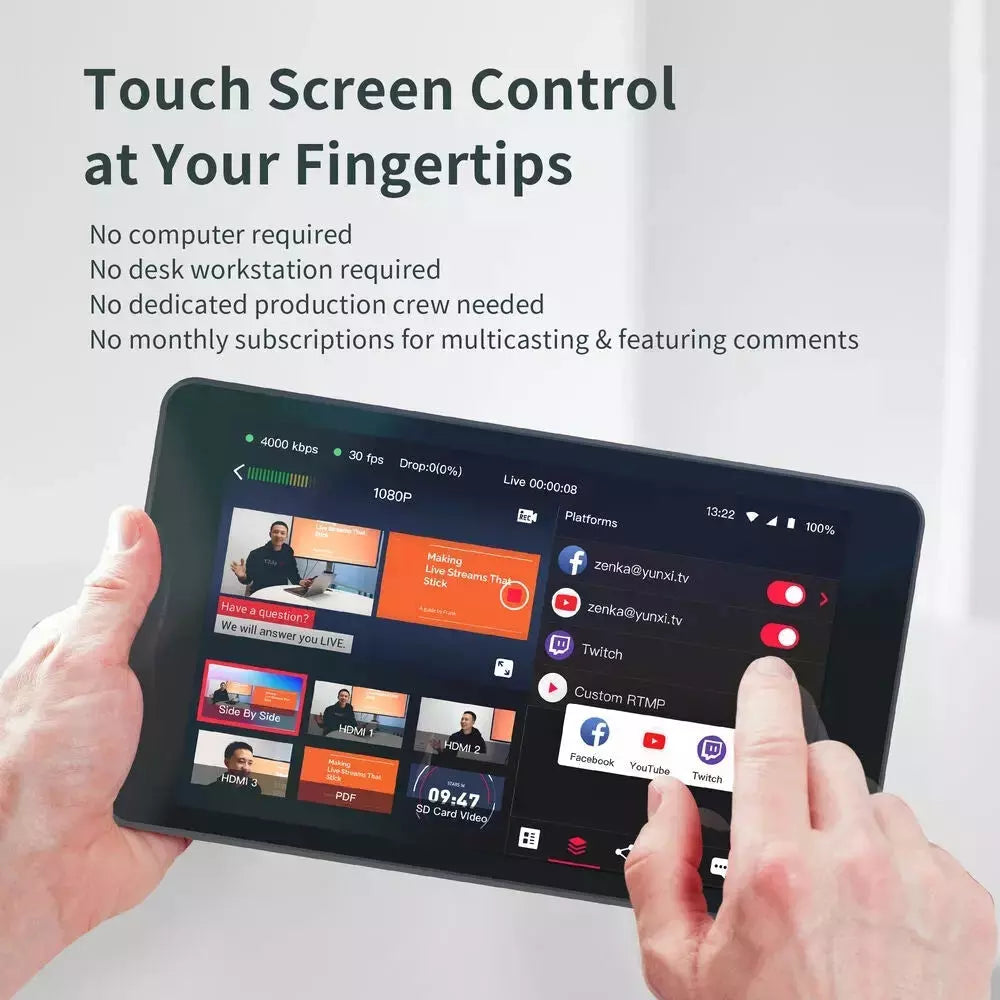

Touchscreen Control
The YoloBox Pro comes equipped with a spacious touchscreen interface that makes streaming and controlling the device effortless.

Functions
The device functions as a switcher and offers various picture-in-picture templates and graphic layers. Additionally, it comes equipped with a built-in encoder for seamless live streaming and the option to record directly to SD cards of up to 128GB (sold separately).

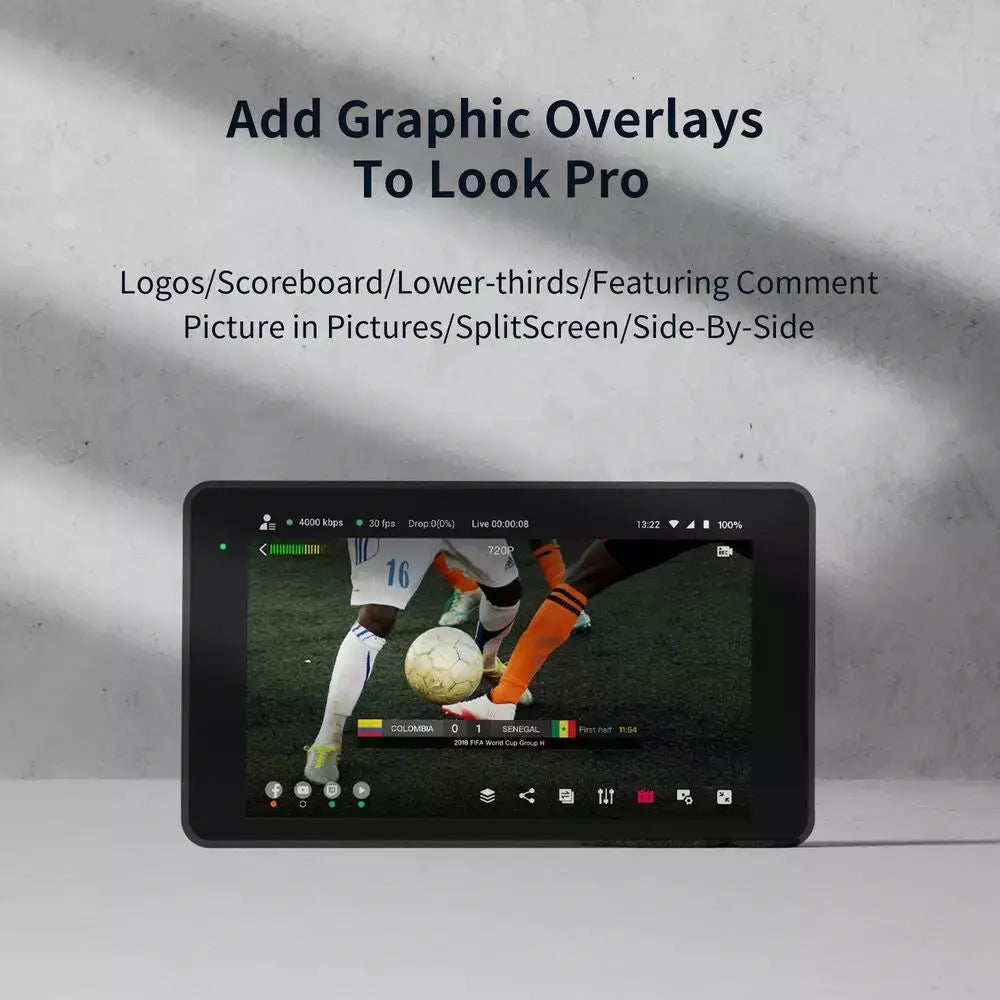

Overlays
Personalize your live stream with branded logos, watermarks, and rolling captions. The YoloBox Pro offers a range of customized picture-in-picture options, including interview mode, allowing you to create a unique look and feel for your stream. Engage with your audience in real-time using comment overlays. The customizable scoreboard feature lets you display a real-time-controlled scoreboard for a professional-looking result. The built-in lower-thirds templates are editable, or you can create your own to further enhance your branding.

Internet
You have multiple options to connect to the internet with the YoloBox Pro, including the integrated RJ45 (Ethernet) port, Wi-Fi, and even via cell service using an optional SIM card. With simultaneous streaming, the YoloBox Pro first sends your feed to the YoloLIV platform, which then automatically forwards your feed to a maximum of three destinations at the same time.

Note: Please note that at times a streaming service may change their policies, which will cause issues with integration; this is usually a temporary situation.

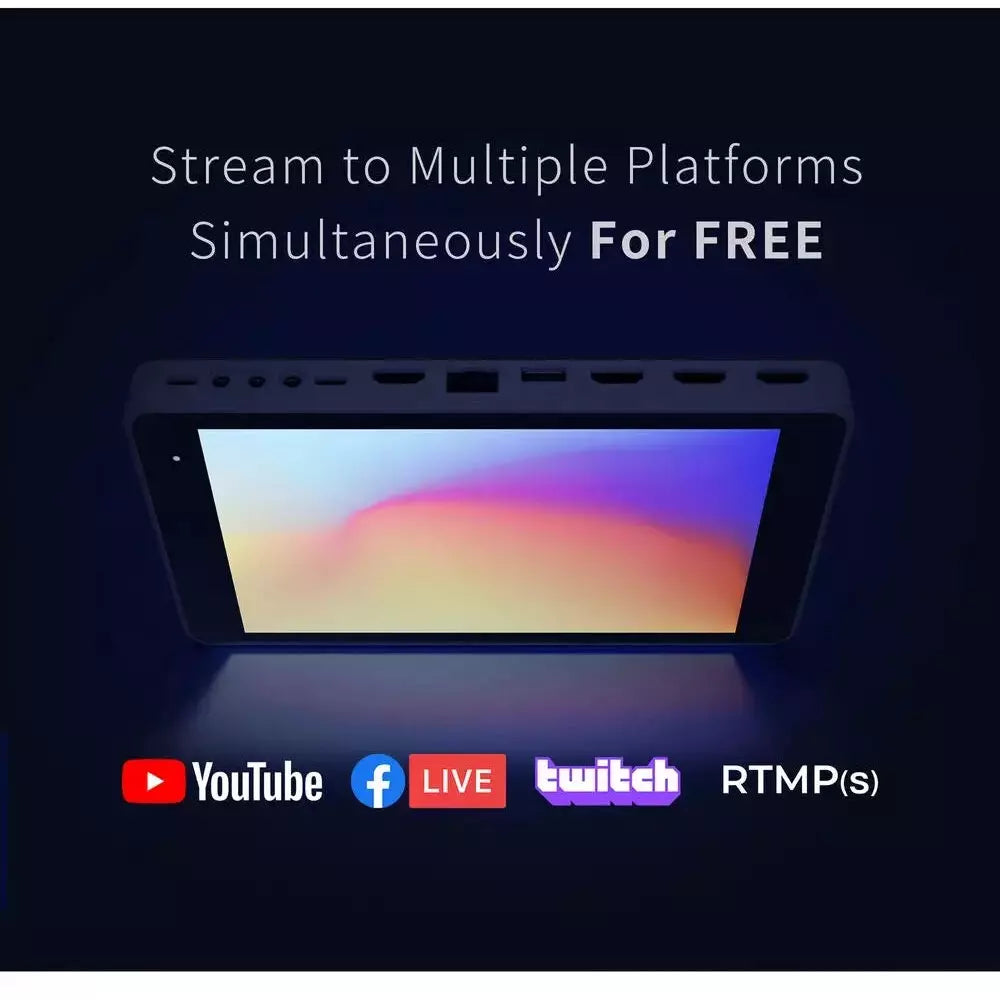

Streaming Platforms
The YoloBox Pro supports popular streaming platforms such as Facebook Live, YouTube, and Twitch, in addition to the YoloLIV platform. It also allows for streaming to custom RTMP destinations through the use of RTMP protocols, including YouTube.

SD Card Input
Roll in pre-recorded videos for intro, countdown, B-roll, or special segments from an SD media card.

PDF
It is possible to use a PDF file as a local source for your YoloBox.

Battery Life
The YoloBox Pro comes equipped with a high-capacity 10,000mAh internal battery that provides power for up to 3 hours of continuous use. To charge the device, you can use the USB Type-C input, which is solely intended for power input.

Charging (Charger not included)
To charge the YoloBox Pro, you will need a charger that supports QC2.0 or higher protocol with an output of 5V=3A. The charging cable provided in the package is a USB-C to USB-A wire, which should be used for charging. Please keep in mind that a regular Mac or iPhone USB-C charger may not be compatible.

Note: Please make sure you are using the right charger that supports QC2.O protocol with Output: 5V=3A and a USB-C to USB-A charger cable. Please note a normal Mac or iPhone USBC charger might not work. If you cannot get your device to power up, please press and hold the button for 10-15 seconds.



Specifications
IP Encoding/Decoding
IP Video	H.264: 960 x 540 to 1920 x 1080 Encoding
IP Audio	AAC-LC: Encoding
Transport Protocols	RTMP
Simultaneous Streams	3 Streams
Compatible Services	Facebook Live, Twitch, YouTube Live
Wireless
Wi-Fi	2.4/5 GHz
Cellular
SIM Card Slots	1 x Nano SIM
4G LTE	LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 20, 25, 26, 28, 38, 39, 40, 41, 66, 71 Bands
Interfaces

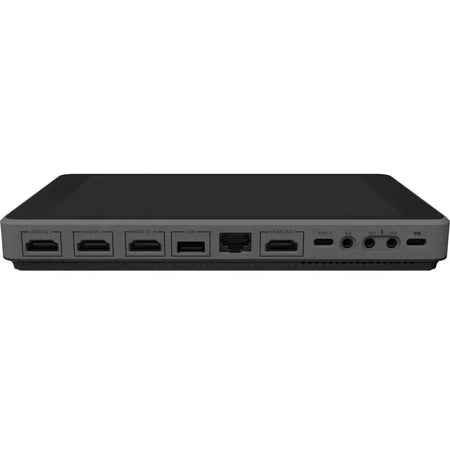

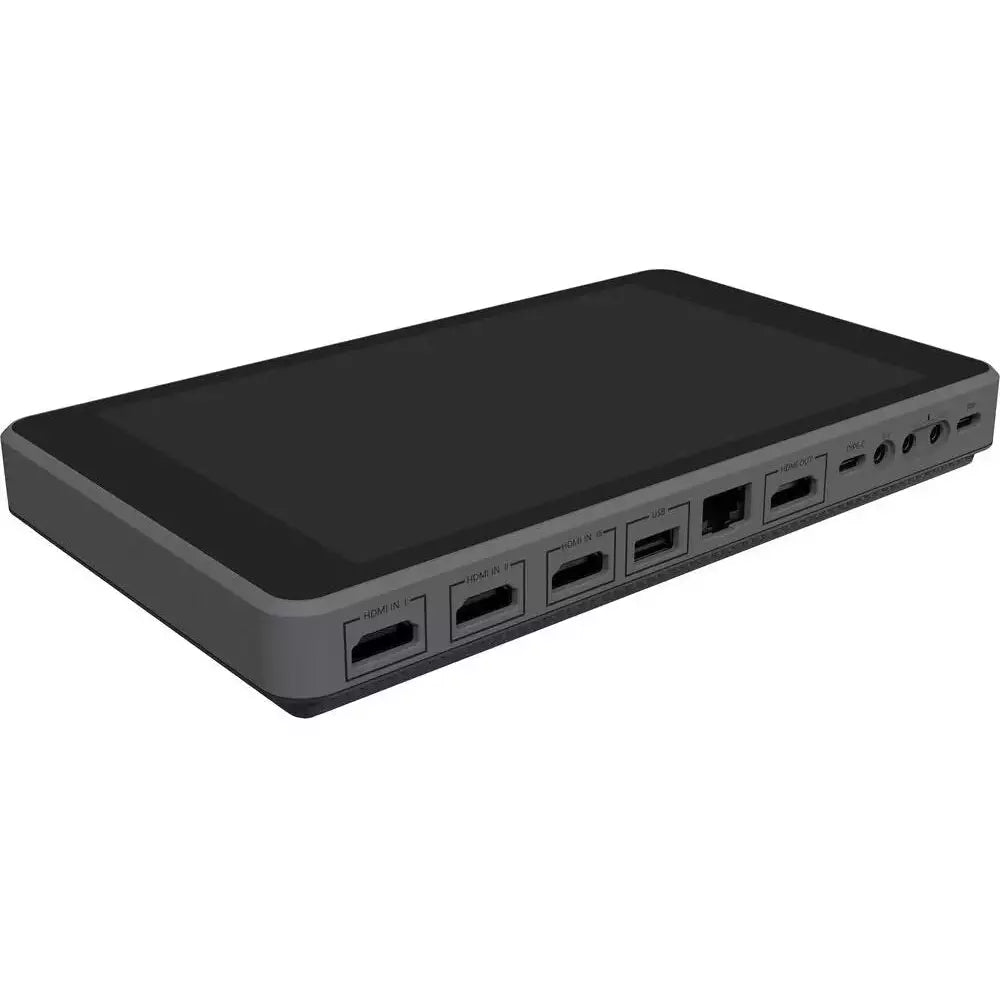

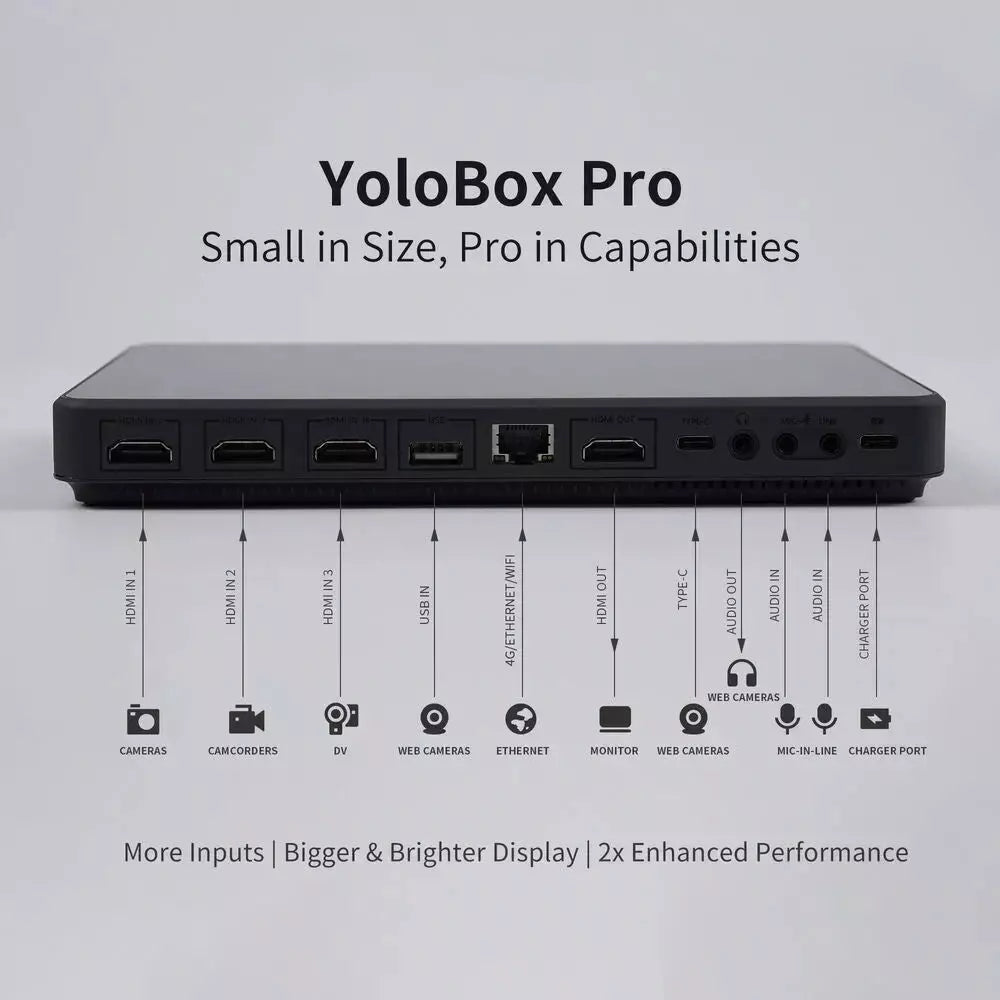

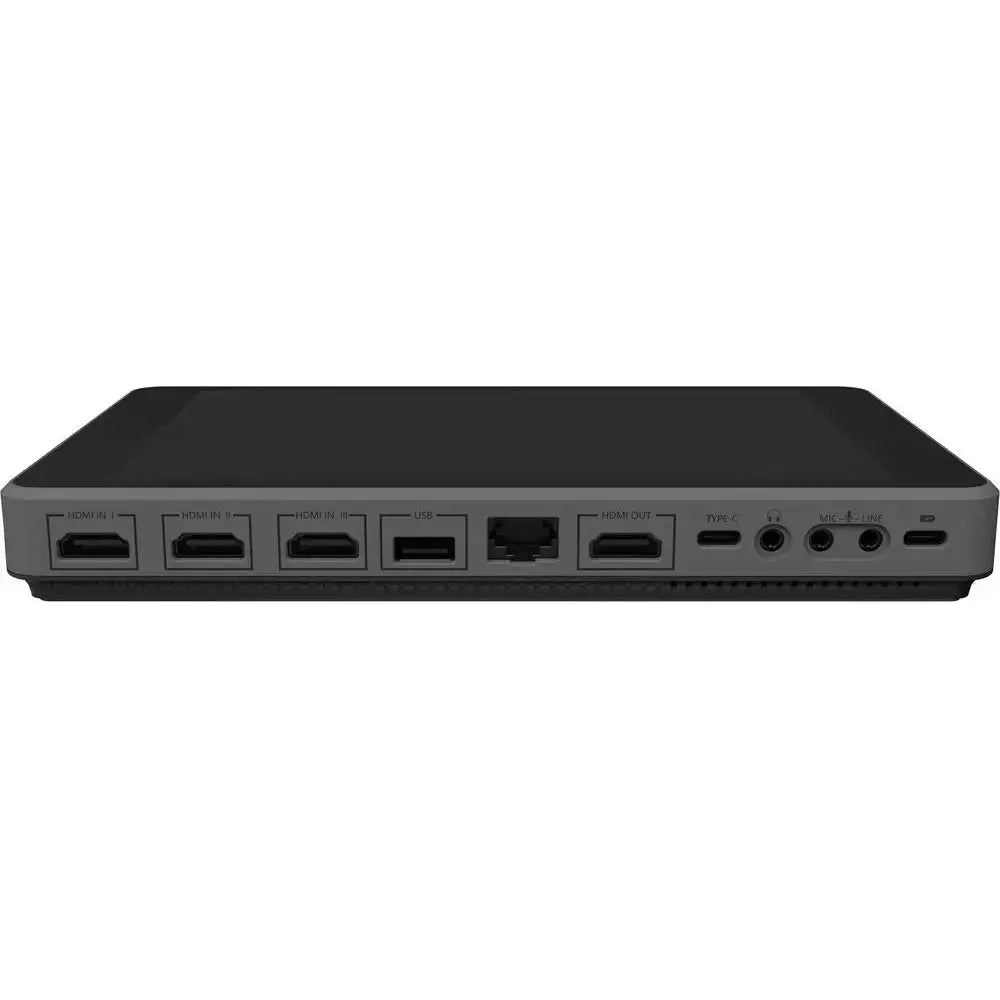

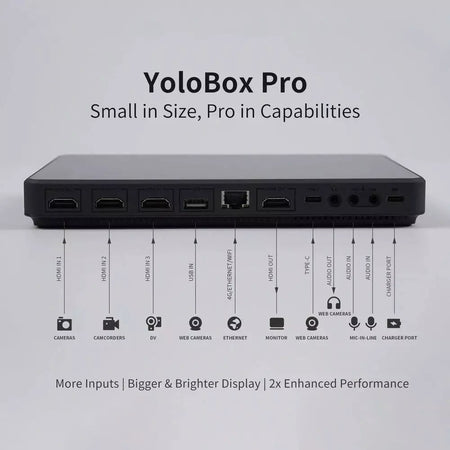

Video Connectors	3 x HDMI Input 1 x HDMI Output
Audio Connectors	1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Input 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Mono Analog Input 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Output
Other I/O	1 x RJ45 10/100 Ethernet Input/Output 1 x USB Type-A USB 3.1 Gen 1 Input 1 x USB Type-C USB 3.1 Gen 1 Input/Output
Embedded Audio	HDMI/USB Type-C/Wireless: 2-Channel
Internal Recording
Recording Media	1 x SD (Unspecified Type)
Recording Modes	1920 x 1080p up
