Vaxis Storm Cine 8 Wireless Monitor with V-Mount
- Unprecedentedly powerful 8.9" touch screen
- 1500 nit peak brightness, 2560 x1600 screen resolution
- Loaded with Vaxis's self-developed CINE OS touch operating system
- Built-in wireless receiver, compatible with all Storm series transmitters
- Screen split, Simultaneous display of wireless signal and SDI/HDMI
Regular price
$5,950.00
Available on Special-order

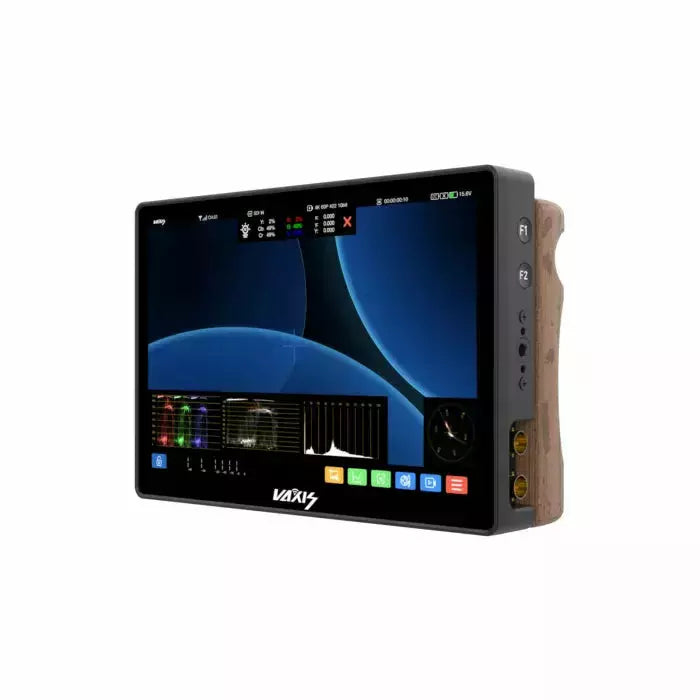

Introducing the Vaxis Cine8, a 4K-ready wireless monitor with an 8.9" 2560 x 1600 touchscreen, a built-in RX unit, and Vaxis's custom CINE OS touch operating system. Compatible with the Vaxis Storm wireless video system, Cine8 offers all the features you'd expect from a professional production monitor, optimised for wireless control.
Key Features:
- Unprecedentedly powerful 8.9" touch screen, 1500 nit peak brightness, 2560 x1600 screen resolution
- Loaded with Vaxis's self-developed CINE OS touch operating system
- Built-in wireless receiver, compatible with all Storm series transmitters
- Screen split, monitor different signal sources on the same screen. Simultaneous display of wireless signal and SDI/HDMI
- 6G SDI image input and output, true full-frame 4K display, 330PPI super retina visual clarity
- Self-developed AFCA intelligent focus assist algorithm and dynamic video enhancement algorithm for unprecedented sharpness and focusing precision
- Tetrahedral interpolation 3D-LUT, precise colour adjustment in three-dimensional space
- All the functions of traditional wireless video systems, optimised for wireless control. Provides different antenna selection methods and integrates frequency sweep function
- Antenna-free design, with attractive appearance and stable performance at the same time. External antennas can be connected for better distance and performance
- Professional design for professional filmmakers, directors, focus pullers, etc.
- Removable V-Mount Battery Plate. (Gold Mount and NP-F Battery Plates Sold Separately.)
Specifications
| Input Voltage | 8-18V |
| Power Consumption | <21w |
| Battery Mounting Plate | V-Mount (Standard) NPF (Sold Separately) Gold Mount (Sold Separately) |
| Screen Size | 8.9" |
| Screen Resolution | 2560 x 1600 pixels |
| Brightness | 1500cd/m² |
| Contrast Ratio | 1000:1 |
| Dimensions | 216 x 144 x 28.6 mm (w/o battery mount) |
| Net Weight | 816g |
| HDMI Input Video Format | 4096x2160p25/24/23.98 3840x2160p30/29.97/25/24/23.98 1920x1080p60/59.94/50/30/29.97/25/24/23.98 1920x1080i60/59/94/50 1280x270p60/59.94/50 |
| SDI Input Video Format |
422-10bit-YCbCr 4096x2160p25/24/23.98 (4K DCI) 3840x2160p30/29.97/25/24/23.98 (4K UHD) 2048x1080p60/59.94/50 1920x1080p60/59.94/50/48 1280x270p60/59.94/50 422-12bit-YCbCr 2048x1080p30/29.97/25/24/23.98 2048x1080psf30/29.97/25/24/23.98 1920x1080p30/29.97/25/24/23.98 1920x1080psf30/29.97/25/24/23.98 1920x1080i60/59.94/50 422-10/12bit-YCbCr/RGB 2048x1080p30/29.97/25/24/23.98 2048x1080psf30/29.97/25/24/23.98 1920x1080p30/29.97/25/24/23.98 1920x1080psf30/29.97/25/24/23.98 1920x1080i60/59.94/50 |
| WHDI Supported Video Formats | 1920x1080p60/59.94/50/30/29.97/25/24/23.98 1920x1080psf30/29.97/25/24/23.98 1920x1080i60/59.94/50 1280x270p60/59.94/50 |
| SDI Output Video Format (DUT Output Supported) |
SDI Input to SDI Output: 422-10bit-YCbCr 4096x2160p25/24/23.98 (4K DCI) 3840x2160p30/29.97/25/24/23.98 (4K UHD) 2048x1080p60/59.94/50 1920x1080p60/59.94/50/48 1280x270p60/59.94/50 422-12bit-YCbCr 2048x1080p30/29.97/25/24/23.98 2048x1080psf30/29.97/25/24/23.98 1920x1080p30/29.97/25/24/23.98 1920x1080psf30/29.97/25/24/23.98 1920x1080i60/59.94/50 422-10/12bit-YCbCr/RGB 2048x1080p30/29.97/25/24/23.98 2048x1080psf30/29.97/25/24/23.98 1920x1080p30/29.97/25/24/23.98 1920x1080psf30/29.97/25/24/23.98 1920x1080i60/59.94/50 HDMI Input to SDI Output 1920x1080p60/59.94/50/30/29.97/25/24/23.98 1920x1080psf30/29.97/25/24/23.98 1920x1080i60/59.94/50 1280x270p60/59.94/50 WHDI to SDI Output 1920x1080p60/59.94/50/30/29.97/25/24/23.9 1920x1080psf30/29.97/25/24/23.98 1920x1080i60/59.94/50 1280x270p60/59.94/50 |
| Audio | 3.5mm Headphone Output |
| Upgrade Method | USB Flash Drive (Type-C), Storage Format FAT32 |
| Wireless Modulation | QFDM 16QAM |
| Wireless Operating Frequency | 5.1GHz - 5.9 GHz |
| Wireless Reception Sensitivity | -75dBm |
- Vaxis Cine 8 Wireless Monitor
- Flight Case
- 5 x Blade Antenna
- Power Cable
- 2 x Wooden Handle
- Tempered Glass Screen Protector
