Vaxis Atom A5 Monitor & Vaxis Atom 500 HDMI/SDI Transmitter Bundle

Vaxis Atom A5 TX Wireless Monitor and Atom 500 SDI/HDMI Transmitter Kit: The Unified Signal Transmission and High-Bright Monitoring Ecosystem

This custom-engineered monitoring and wireless transmission suite integrates a high-brightness touchscreen display with robust dual-interface wireless hardware to provide solo operators and production crews with real-time, cross-signal video monitoring in high-pressure field environments.

Streamlining the Modern Production Workflow

Eliminating cable clutter and reducing camera rig footprint are paramount for fast-paced field operations. This wireless kit bridges the gap between hardware transmission and active monitoring by allowing the video team to deploy a streamlined rigging setup. By utilizing the dedicated transmitter box directly on the camera cage via SDI or HDMI, the main camera setup remains nimble, lightweight, and balanced for gimbal or shoulder operations. The video feed is broadcasted instantly without requiring bulky external antenna arrays or complex line-of-sight configurations.

On the receiving end, the five-and-a-half-inch touchscreen unit serves as a self-contained director's monitor or a precise focus-pulling station. The dual L-series battery plates provide long continuous runtimes, shifting weight distribution closer to the center of the handgrip to minimize physical fatigue during extended handheld operation. Crews can swap between transmission modes or switch channels seamlessly using the responsive touchscreen interface or the bright OLED status screen on the compact transmitter body, ensuring zero downtime when moving between different studio setups or rugged locations.

Furthermore, the inclusion of local MP4 proxy recording directly onto a microSD card inside the monitor simplifies immediate review pipelines. Focus pullers and directors can instantly play back takes without demanding log access from the camera department or interrupting the primary operator's shooting rhythm. The integrated cross-conversion and signal loop-through capabilities ensure that adding secondary client monitors or routing downstream feeds to production switchers requires no extra adapters or auxiliary power bricks.

Core Hardware Essentials

• Integrated Wireless Ecosystem: Includes the Atom A5 TX 5.5-inch touchscreen monitor and the standalone Atom 500 SDI/HDMI wireless video transmitter box.

• Dual Signal Connectivity: The transmitter box features 1 x 3G-SDI (BNC) input and 1 x HDMI input; the monitor features 1 x HDMI input and 1 x HDMI loop-through output.

• Transmission Range & Frequency: Up to 500 feet line-of-sight range for the transmitter and 492 feet for the monitor, operating across the stable 5.1 to 5.9 GHz frequency band.

• Ultra-Low Latency Performance: Wireless transmission speed achieves less than 80 milliseconds of latency, critical for critical focus pulling and real-time shot composition.

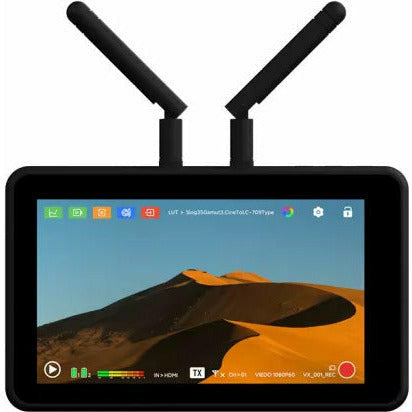

• High-Bright Touchscreen Display: 5.5-inch native 1920 x 1080 LCD panel with an impressive 1000 cd/m² brightness and a 1200:1 contrast ratio for clear outdoor visibility.

• Advanced Monitoring Software: Built-in CineOS toolkit featuring professional waveform, vectorscope, histogram, focus peaking, pixel zoom, and storage support for up to 50 custom 3D LUTs.

• Proxy Recording & Playback: Single microSD/microSDHC card slot allows real-time MP4 video proxy recording and instant on-monitor playback.

• Multi-Device Wireless Multicasting: Transmits compressed H.265 video signals simultaneously to dedicated hardware receivers and up to three mobile devices (iOS/Android) via the companion app.

• Smart Thermal Management: Transmitter features an adjustable, silent-running internal cooling fan that can be deactivated manually during sound-sensitive takes.

• Versatile Power Options: Dual integrated NP-F L-series battery plates on the monitor and a single NP-F plate on the transmitter; both units support power input via USB-C or DC barrel jacks.

• Physical Profile: Lightweight metal and durable composite construction with integrated antennas on the transmitter and replaceable antennas on the monitor unit.

Production Field Test FAQ

• Q: How does the system handle high-interference wireless environments during active multi-camera shoots?

  A: The wireless system features automatic channel scanning across thirteen selectable frequencies. By constantly sampling the 5.1 to 5.9 GHz spectrum, the devices automatically route the H.265 compressed signal away from congested bands. Operators can also manually lock channels via the monitor's touchscreen or the transmitter's OLED interface to guarantee a solid link in crowded venues.

• Q: Can the monitor be powered continuously on a gimbal or cage setup without adding excessive weight?

  A: Yes. While the monitor features dual built-in L-series plates for handheld mobility, it also provides a dedicated DC barrel input and a USB-C port. This allows crews to run the monitor off large V-mount or Gold-mount baseplates using standard D-Tap cables, keeping the camera rig light, compact, and perfectly balanced on professional stabilizers.

• Q: How does the signal routing function if the camera outputs an SDI feed but the monitor only accepts HDMI?

  A: The kit excels at cross-signal flexibility. You can connect your camera's 3G-SDI output directly to the Atom 500 transmitter. The transmitter converts and broadcasts the signal wirelessly, which is then picked up natively by the built-in receiver within the Atom A5 monitor, decoding the video without needing external signal converters.

• Q: Is the cooling fan on the wireless transmitter quiet enough to be mounted near a directional shotgun microphone?

  A: The transmitter utilizes a smart, adjustable internal fan designed for closed spaces. For critical dialogue scenes where absolute silence is mandatory, the fan speed can be modified or turned off completely from the device menu. The rugged metal body naturally dissipates heat, protecting the internal electronics during short silent takes.
