Set of 4 PA1000 Mini Electric Hoists Synchronized Control

Ultimate Quad-Lift Hoist System | Set of 4 PA1000 Mini Electric Hoists

Take full command of your heavy-duty lifting projects with our exclusive Quad-Lift Synchronization Set. Designed for industrial-grade performance, this kit includes four high-capacity PA1000 Mini Electric Hoists and a specialized Unified Remote System, allowing you to control all four units simultaneously with precision and ease.

Whether you are lifting large platforms, heavy machinery, or oversized structural components, this 4-piece set provides the stability and synchronized power required for complex material handling.

Key Features

• Synchronized Control: No more juggling multiple controllers. Our custom remote system allows you to operate all four hoists at once, ensuring a level, balanced lift for large or uneven loads.

• Enormous Combined Capacity: Each PA1000 unit is a powerhouse. Using the double-hook method, each hoist handles up to 1000kg (2,200 lbs), giving your set a theoretical combined lifting potential of 4,000kg (8,800 lbs).

• High-Efficiency 220V Motor: Built with a 100% copper-core motor (approx. 1600W–1800W) for superior heat dissipation, quiet operation, and long-lasting durability.

• Built for Safety: Every hoist features an automatic limit switch to prevent over-winding and a thermal protection system to guard against motor overheating during intense use.

• Durable Construction: Housed in high-strength alloy steel with anti-twist galvanized wire rope (6mm diameter), these hoists are designed to thrive in demanding environments like warehouses, construction sites, and workshops.

Technical Specifications (Per Unit)

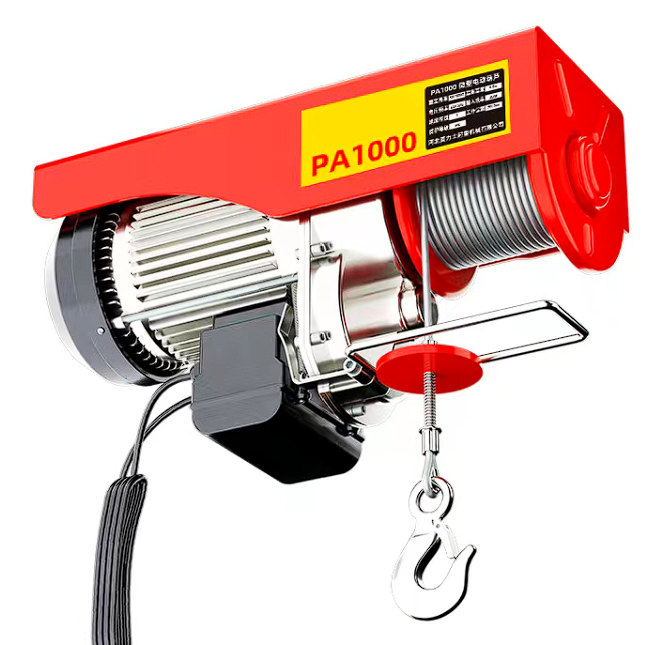

• Model: PA1000 Mini Portable Electric Hoist

• Voltage: 220V / Single Phase (50Hz)

• Input Power: 1600W - 1800W

• Lifting Capacity: * Single Hook: 500kg (1,100 lbs)

  • Double Hook: 1000kg (2,200 lbs)

• Lifting Speed: 10m/min (Single) | 5m/min (Double)

• Lifting Height: 12 meters (up to 30m available upon request)

• Wire Rope: 6mm Anti-twist Galvanized Steel

• Protection Grade: IP54

What’s Included in the Box?

• 4x PA1000 Electric Hoists (220V)

• 1x Specialized Multi-Hoist Unified Remote Control

• 4x Weighted Pulley Hooks (for Double-Line operation)

• 8x Mounting Brackets/Clamps for easy installation

• Complete Hardware Kit and Instruction Manual

Why Choose the Set of 4?

Standard single-hoist setups often struggle with load tilting or "swinging" when handling large surface areas. By distributing the weight across four points and controlling them from a single source, you significantly reduce the risk of structural stress and increase safety for your crew and equipment.
