Sennheiser XSW-D PORTABLE INTERVIEW SET Digital Camera-Mount Wireless Plug-On Microphone System with No Mic
-
One touch ease-of-use
-
2.4 GHz digital transmission for worldwide operation
-
75m range (250ft) in optimal conditions
-
Up to 5 hours battery life on a single charge
-
Switch between multiple transmitters linked to one receiver
-
Configure any combination of transmitters and receivers
-
Mute from either transmitter or receiver

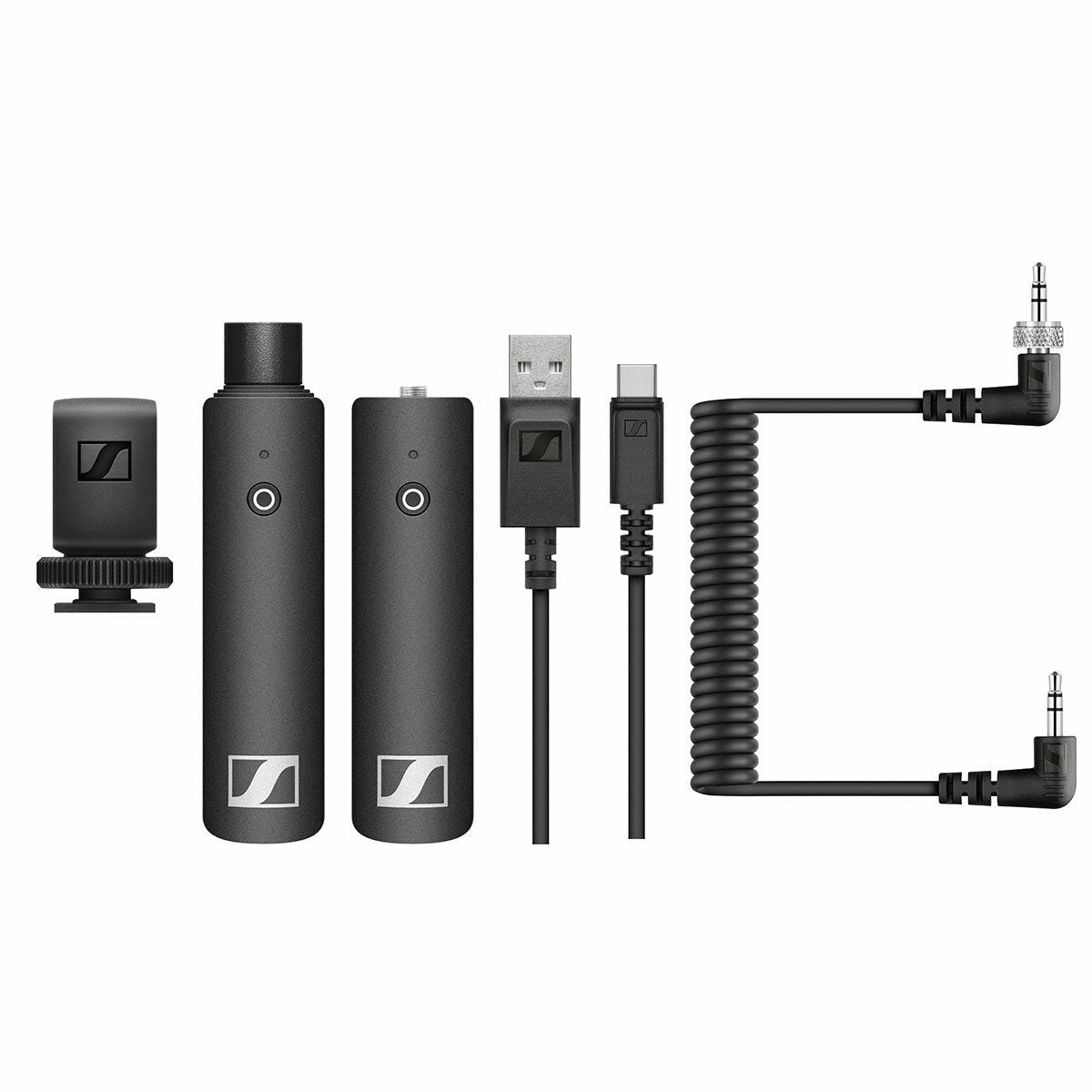

XS Wireless Digital Portable Interview Set. One-touch ease-of-use wireless audio set with XSW-D XLR Female transmitter, XSW-D 3.5mm (1/8”) receiver, 3.5mm (1/8") coiled cable, cold shoe mount and USB-A to USB-C charging cable
The Sennheiser XS Wireless Digital Portable Interview Set operates at a range of up to 250' (75 m) and can last up to five hours on its built-in battery. It can be muted from either the transmitter or the receiver.
The Sennheiser XS Wireless Digital Portable Interview Set is an interview system that contains a wireless digital transmitter with a 3.5mm (1/8") connector and receiver with an XLRF connector.
The Sennheiser XS Wireless Digital Portable Interview Set will work between 2.400-2.483.5 GHz. Up to five Sennheiser XS Wireless Digital Portable Interview Sets can be used simultaneously thanks to Sennheiser's automatic frequency and interference management technology.
One touch ease-of-use
It’s simple, each XS Wireless Digital has only one button. Press to power up and link simultaneously, click once to mute, and hold to power down. It’s as easy as plugging in a cable, minus the cable part.
Digital for worldwide operation
Your sound should be as boundless as your ideas. Forget about having to set frequencies and step into the world of digital. Using a 2.4 GHz transmission, sync and go anywhere, anytime - effortlessly.
| Dimensions |
XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm |
| THD, total harmonic distortion | < 0.1 % |
| Charging time | typ. 3 h |
| Audio output | max. 12 dBu |
| Operating temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Signal-to-noise ratio | ≥ 106 dB |
| Operating time | up to 5 h |
| Modulation | GFSK with TDMA |
| Battery Specification | Li-Ion |
| Capacity | 850 mAh |
| Codecs | aptX® Live |
| Frequency range | 2,400 - 2,483.5MHz |
| Max. Input voltage | typ. 5.0 V |
| Transmission power | max. 10 mW |
| Voltage | 3.7 V |
| Operating relative humidity | 95 % (non-condensing) |
| Latency | < 4 ms |
| Temperature Range | 0 °C - 60 °C (32 °F - 140 °F) |
| Audio frequency response |
3.5 mm Jack/XLR: 80 - 18,000 Hz
6.3 mm Jack: 10 - 18,000 Hz
|
- XSW-D XLR Female transmitter
- XSW-D 3.5mm (1/8”) receiver
- 3.5mm (1/8") coiled cable
- Cold shoe mount
- USB-A to USB-C charging cable
- Sennheiser Warranty
