Sennheiser XSW-D PEDALBOARD SET Digital Wireless Pedalboard Guitar System
- One touch pairing
- 2.4 GHz digital transmission for worldwide operation
- 75 m range (250 ft) in optimal conditions
- Up to 5 hours battery life on a single charge
- Automatic frequency and interference management
- Switch between multiple transmitters linked to one receiver
- Mute from either transmitter or receiver
The Sennheiser XS Wireless Digital Pedalboard System will work between 2.400-2.483.5 GHz. Up to five Sennheiser XS Wireless Digital Pedalboard Systems can be used simultaneously thanks to Sennheiser's automatic frequency and interference management technology.
The Sennheiser XS Wireless Digital Pedalboard System is a pedalboard system that contains a wireless digital transmitter with a 1/4" connector and a pedalboard receiver.
The Sennheiser XS Wireless Digital Pedalboard System operates at a range of up to 250' (75 m) and can last up to five hours on its built-in battery. It can be muted from either the transmitter or the receiver.
The receiver and transmitter are pre-paired at the factory so when you turn on the system, it works—without the need for any additional button pressing.
| Dimensions |
XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm |
| THD, total harmonic distortion | < 0.1 % |
| Charging time | typ. 3 h |
| Audio output | max. 12 dBu |
| Operating temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Signal-to-noise ratio | ≥ 106 dB |
| Operating time | up to 5 h |
| Modulation | GFSK with TDMA |
| Battery Specification | Li-Ion |
| Capacity | 850 mAh |
| Codecs | aptX® Live |
| Frequency range | 2,400 - 2,483.5MHz |
| Max. Input voltage | typ. 5.0 V |
| Transmission power | max. 10 mW |
| Voltage | 3.7 V |
| Operating relative humidity | 95 % (non-condensing) |
| Latency | < 4 ms |
| Temperature Range | 0 °C - 60 °C (32 °F - 140 °F) |
| Audio frequency response |
3.5 mm Jack/XLR: 80 - 18,000 Hz
6.3 mm Jack: 10 - 18,000 Hz
|

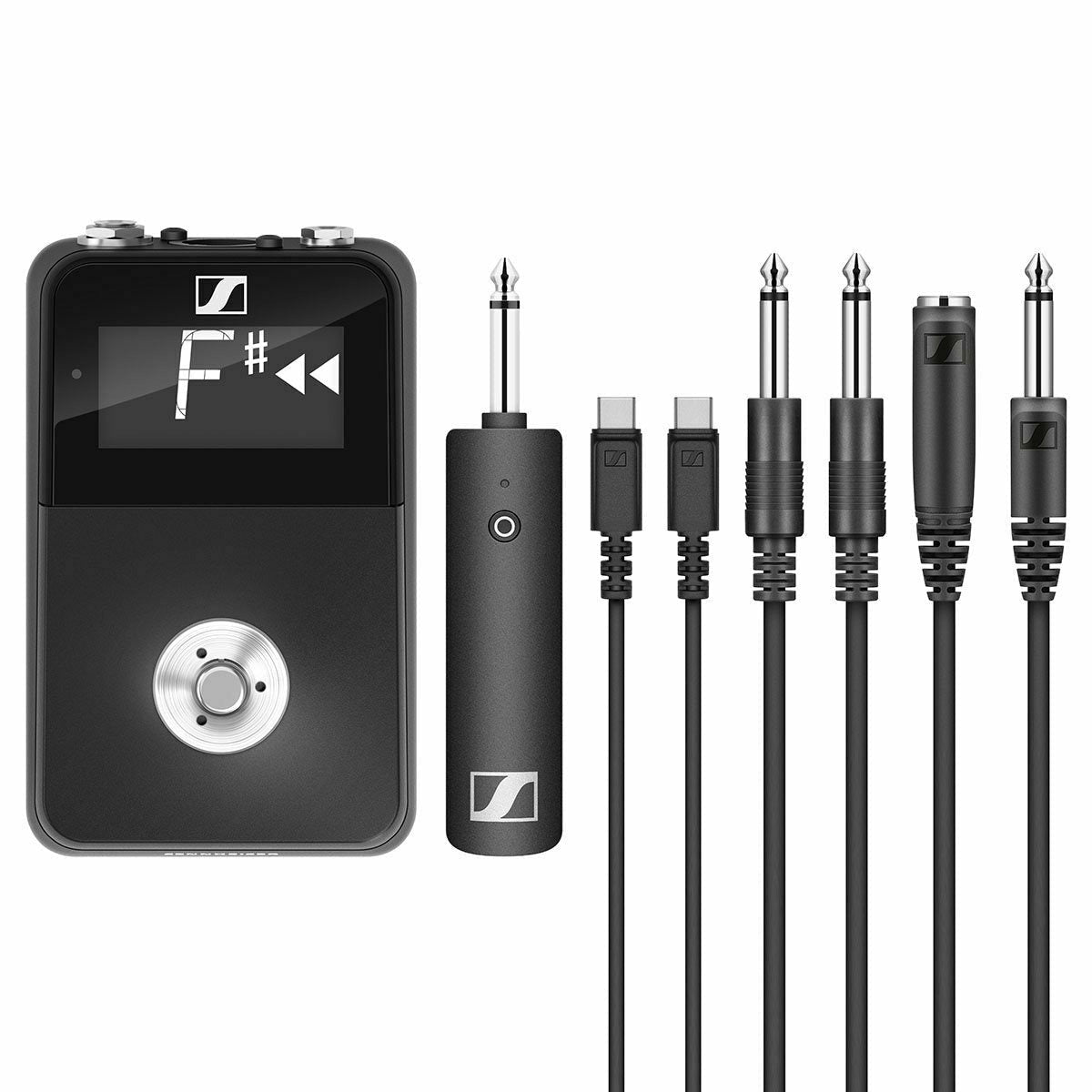

- XSW-D 6.3mm (1/4”) transmitter
- XSW-D Pedalboard receiver
- Receiver power supply
- Extension cable 6.3mm (1/4”)
- Belt clip
- USB-A to USB-C charging cable
- Sennheiser Warranty
