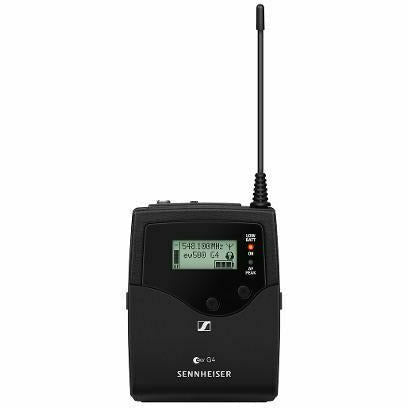

Sennheiser SK500G4-GBW Bodypack transmitter 606-678Mhz
- Powerful bodypack transmitter with increased bandwidth and transmission power
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
Regular price
$620.46
Regular price
-25%
$829.00
Sale price
$620.46
Powerful bodypack transmitter with increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems.
| Dimensions | Approx. 82 x 64 x 24 mm |
| Compander | Sennheiser HDX |
| THD, total harmonic distortion | ≤ 0.9 % |
| Weight | (incl. batteries) approx. 160 g |
| Signal-to-noise ratio | ≥ 115 dBA |
| RF output power | switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW |
| Switching bandwidth | up to 88 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Operating time | Typically 8 h |
| Modulation | Wideband FM |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA |
| Input impedance | 40 kΩ, unbalanced / 1 MΩ |
| Max. Input voltage | 3 Veff |
| Powering | 3 V battery / 2.4 V rechargeable battery |
| Transmission frequency | Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels |
| AF frequency response | Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz |
| Temperature Range | -10 °C to +55 °C |
| Frequency stability | ≤ ±15 ppm |
