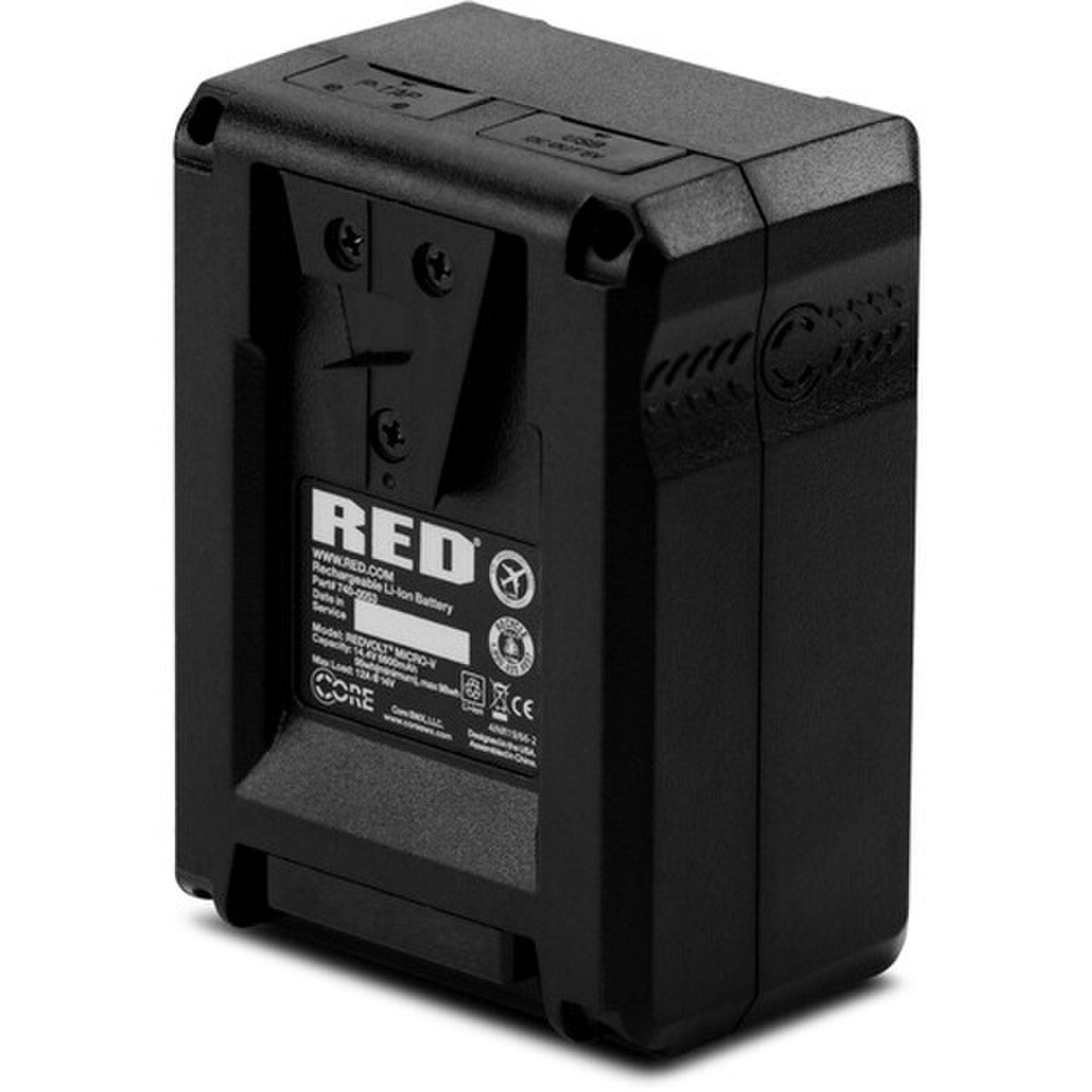

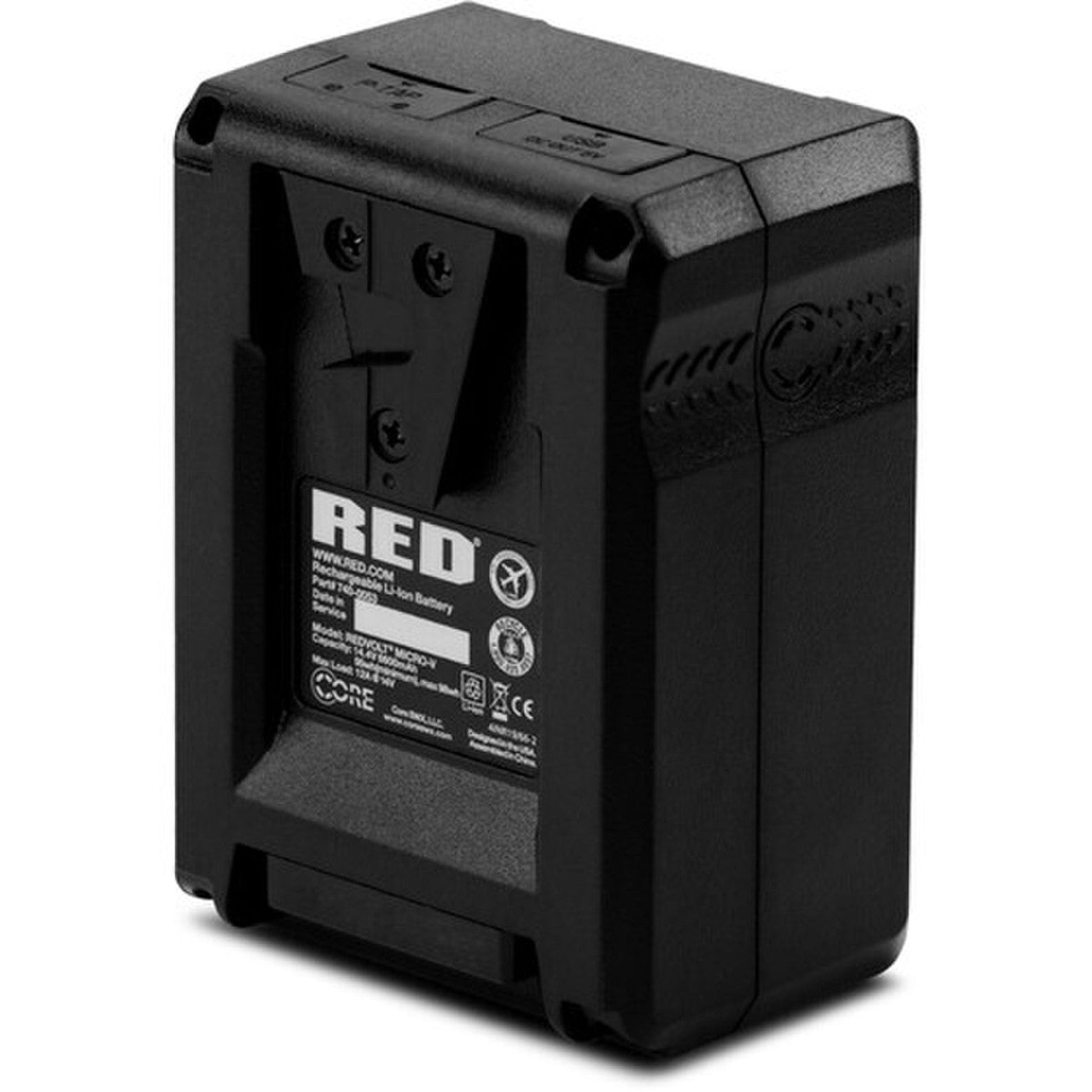

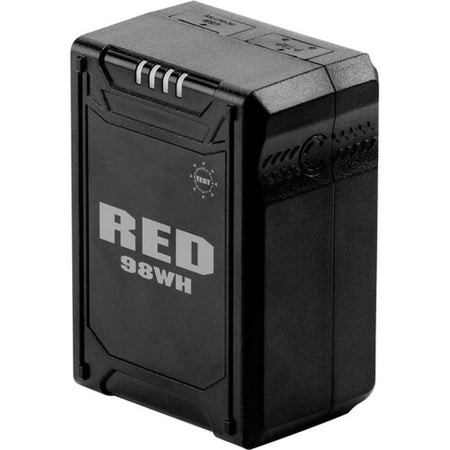

The Red REDVOLT Micro-V Battery 98Wh V-Lock features a compact, lightweight form, up to 12A draw, and data transmission of the remaining time and select accessory information. Designed in conjunction with battery-maker Core SWX, the compact REDVOLT BP is compatible with select other cameras when used with a full-size V-mount adapter.

Note: Not compatible with the KOMODO but may be compatible with DSMC, DSMC2, and RANGER systems when used with a V-mount adapter.

Compatibility

• RED V-RAPTOR camera
• Select other cameras using a full-size V-mount adapter

Lightweight, Compact Form

• Ideal for handheld capture
• Weighs just over 1 lb and measures less than 4" wide

In-Camera Display
Communicates with your V-RAPTOR and select accessories to offer in-camera status display

Mount / Series Type	V-Mount
Chemistry	Lithium-Ion
Battery Capacity	98 Wh
Output Voltage	14.8 VDC
Maximum Load	12 A
Accessory Port
D-Tap Output	1 x D-Tap Output
USB Type-A Output	1 x USB Type-A Output
USB Output
Output Voltage	5 V
Dimensions (W x H x D)
Dimensions	3.9 x 2.8 x 1.9" / 99.8 x 71.6 x 49.2 mm
Weight	1.2 lb / 544.3 g
