RED

RED KOMODO Side Ribs

SKU: RED-790-0721

For KOMODO 6K Cinema Camera
Right and Left Cage-Style Brackets
Multiple 1/4"-20 and 3/8"-16 Threads
ARRI Rosette Mounts
Mounts for KOMODO RF to PL Brackets
Secure Captive Mounting Screws

$346.50

-1% ~~$350.00~~ $346.50

Available on Special-order

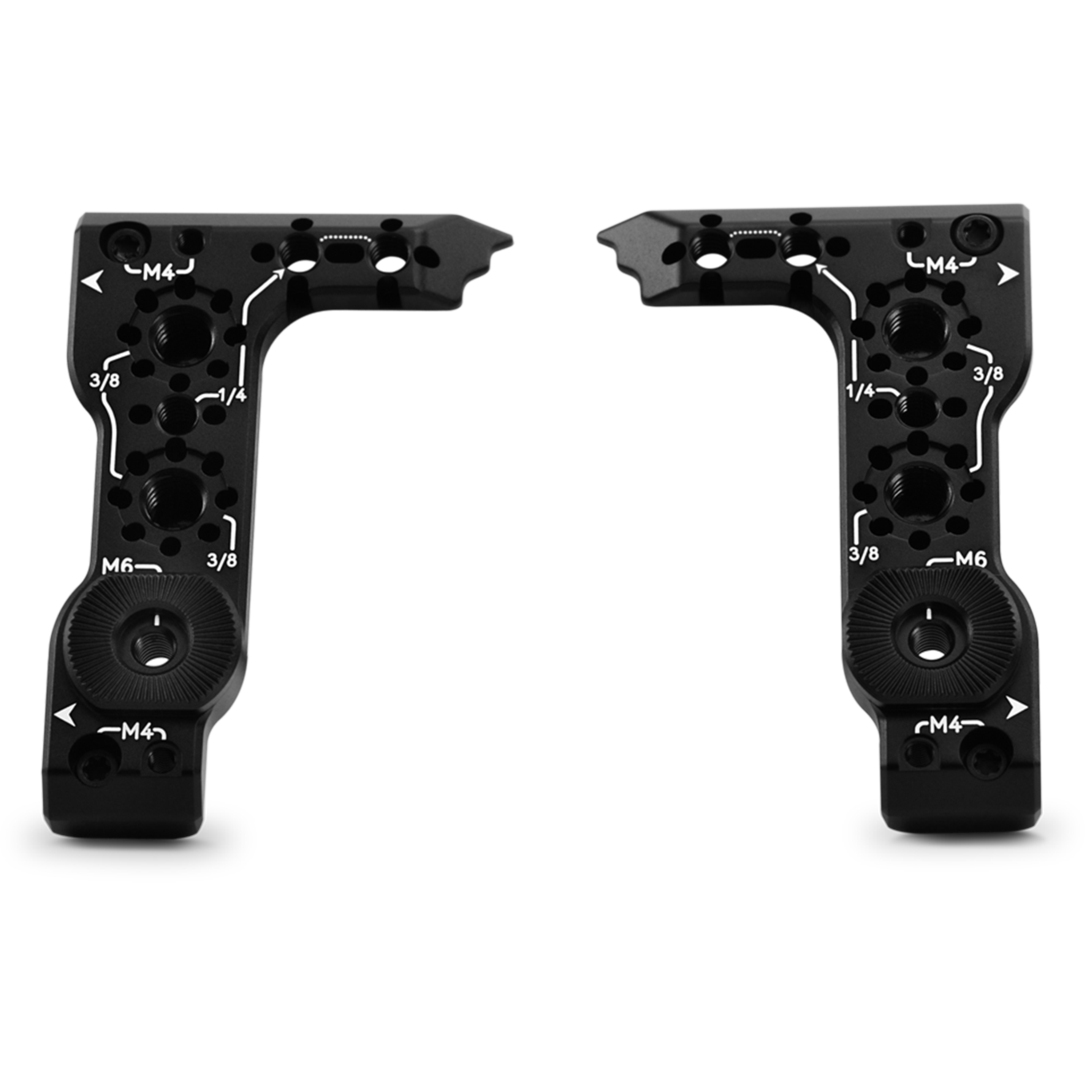

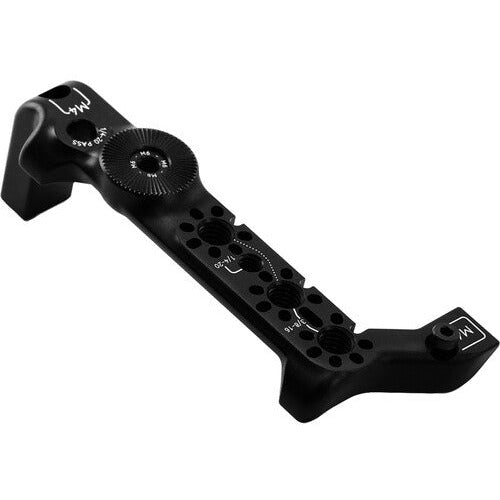

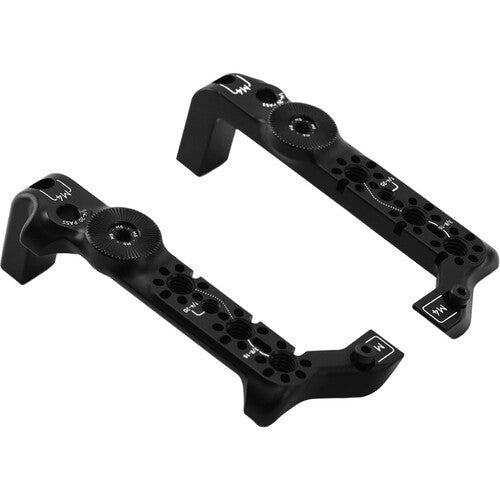

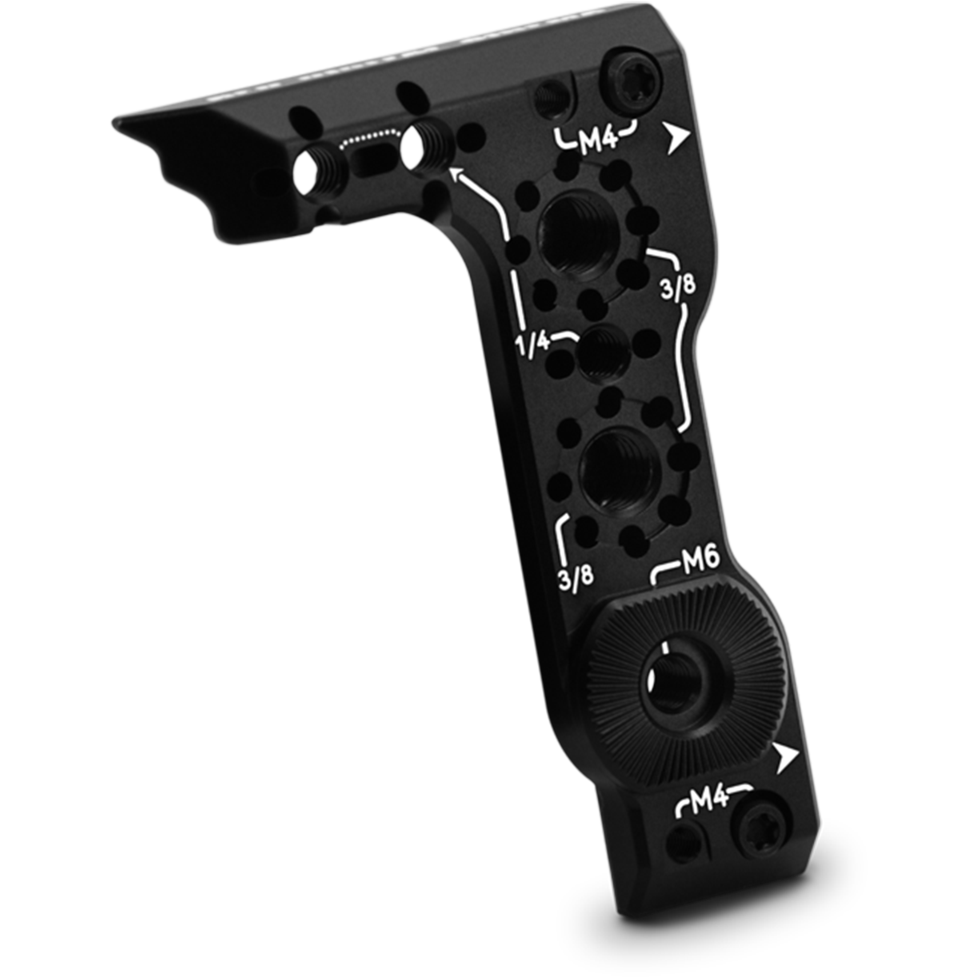

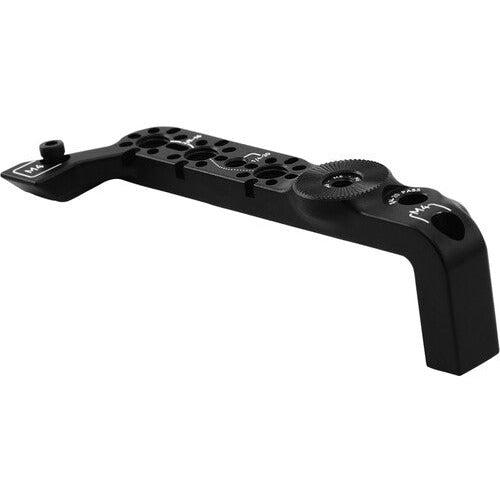

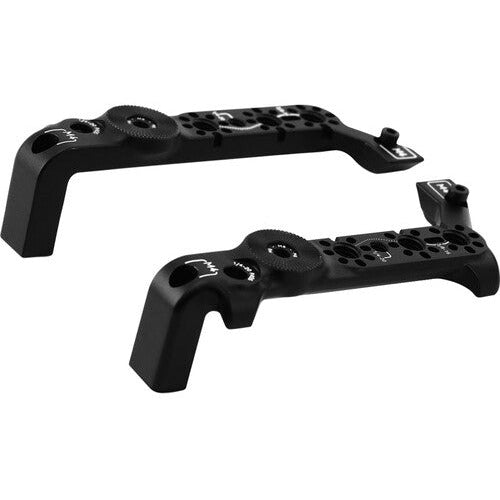

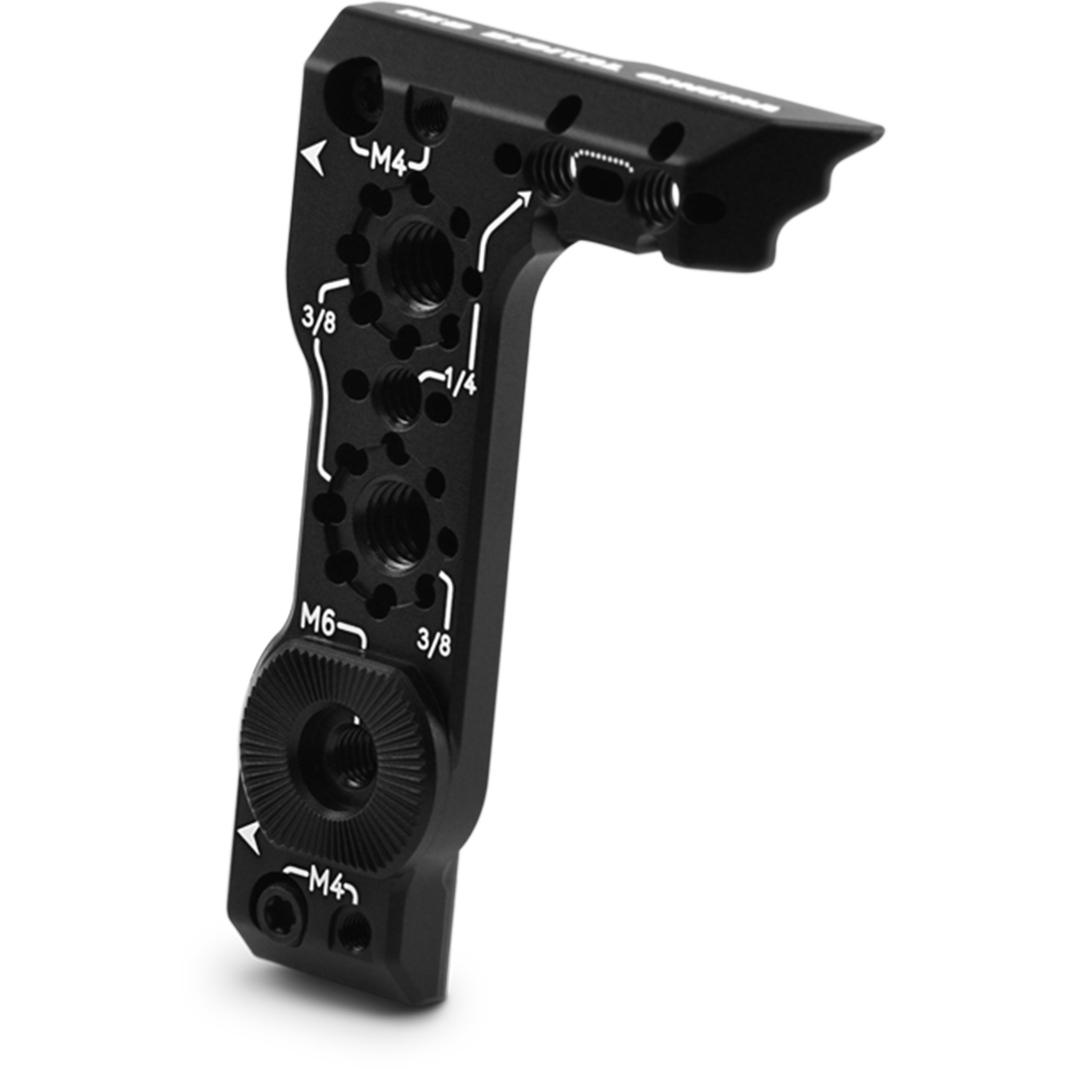

The KOMODO® Sides ribs attach to both sides of the camera and provide additional ¼-20, 3-6/16 and Arri rosette mounting points for additional accessory mounting as well as mounting points for the KOMODO® RF to PL support brackets when using the RED® RF to PL Adapter. Captive screws provide a secure attachment and allow for more convenient mount removal.

DIMENSIONS PER SIDE RIB
Height	3.71 in (94.25 mm)
Width	2.42 in (61.57 mm)
Depth	.60 in (15.15 mm)
WEIGHT PER SIDE RIB
Approximately	0.13 lbs (59 g)
MATERIALS
7075 Aluminum
MOUNTING TO KOMODO
2x M4 captive mounting screws
RIB MOUNTING
3x ¼-20
2x 3/8-16
2x M4 mounting holes per Side Rib
