Miller 3783 CX14 (1097) Sprinter II 2-St Carbon Fibre Tripod (1576) Mid-Level Spreader (993) Pan Handle (679) Feet (475) Softcase (3502)
- Compact, lightweight and versatile.
- 100mm ball levelling.
- Perfect for payloads to 0-14.0 kg (0-30.9 lbs).
- 15+0 CB Plus selectable counterbalance positions.
- Ergonomically located CB Plus switch.
- 5+0 selectable positions of fluid pan and tilt drag.
- High speed independent 1-stage leg locks.
- Lightweight carbon fibre tubing.
- Comes with mid-level spreader and rubber feet.
- Comes with 2-stage tripod bag.
- 3 year warranty.

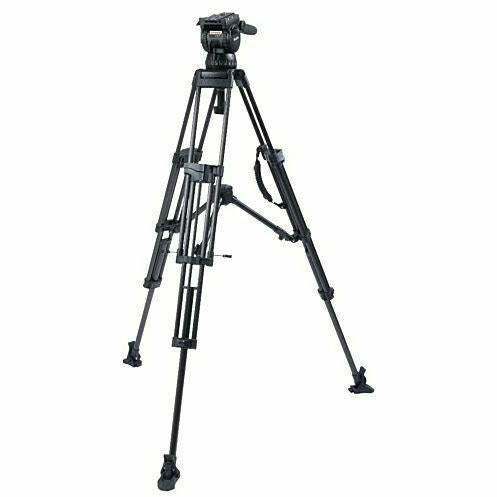

The 3783 CX14 Sprinter II 2-stage (carbon fibre) tripod system combines the 1576 Sprinter II tripod and CX14 fluid head for fast and easy set-ups. Designed for the creative professionals needing a stable, higher capacity solution, it is capable of balancing from a broadcast down to a DSLR camera, thanks to CB PlusTM technology and Miller's precision fluid drag system.

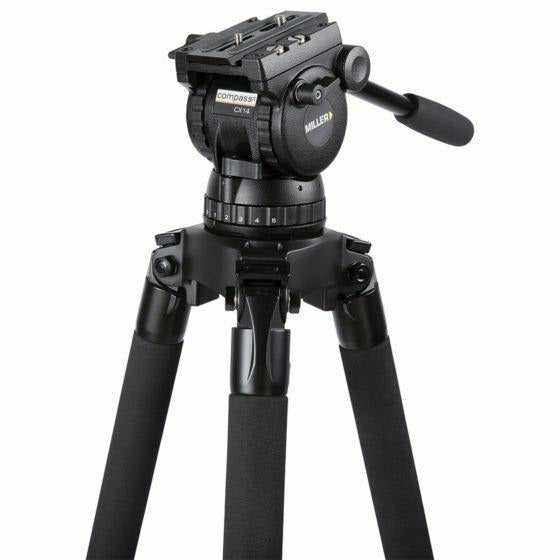

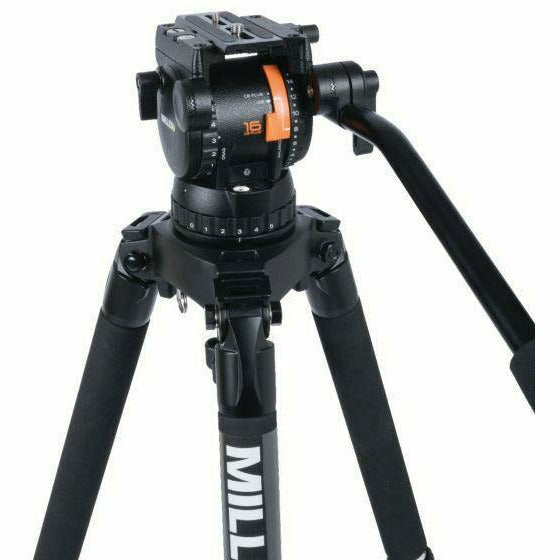

CX14 employs CB Plus™ technology providing 16 positions of counterbalance, 5+0 settings of Miller's fluid pan and tilt drag. Perfect for payloads to 0-14.0 kg (0-30.9 lbs) and with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.
Matched with the 2-stage Sprinter II (carbon fibre) tripod and mid-level spreader providing speed of set-up and incredible height range all in a light weight carbon fibre system.
| Payload Range | 0-14.0 kg (0 - 30.9 lbs) |
| Weight | 7.2kg (15.9lbs) |
| Height Range | 603-1693mm (23.7-66.6") |
| Transport Length | 853mm (33.6") |
| Counterbalance Positions | 16 selectable positions (15+0) |
| Pan Tilt Drag | 5 selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | +90° / -75° |
| Pan Range | 360° |
| Camera Platform | Quick release, side load camera plate |
| Sliding Range | 60mm (2.4”) |
| Mounting Base | Ø100mm (3.9") ball levelling |
| Height Above Bowl | 150mm (6.0") |
| Illuminated Controls | Bubble level |
| Pan Handle | Telescopic 390-590mm (15.4-23.2") |
| Temperature Range | -40° to +65°C (-40° to +150°F) |
| Leg Extension | 1-stage |
| Lock Type | HS dual action |
| Leg Material | Carbon fibre |
| Components | |
| 1097 | CX14 fluid head |
|---|---|
| 1576 | Sprinter II 2-stage tripod (carbon fibre) |
| 993 | Mid-level spreader |
| 475 | Rubber feet (set of 3) |
| 679 | Pan handle - fixed with clamp |

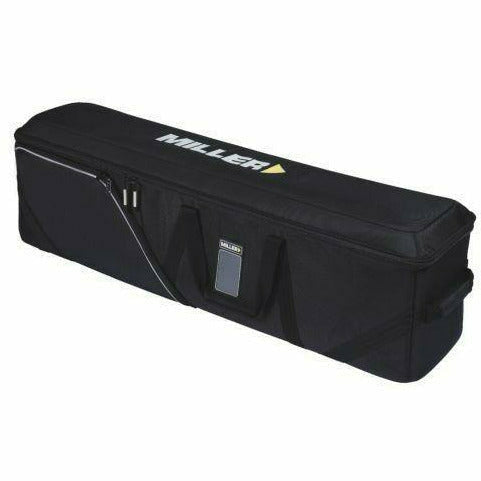

| 3502 | Arrowx softcase 2-stage |
