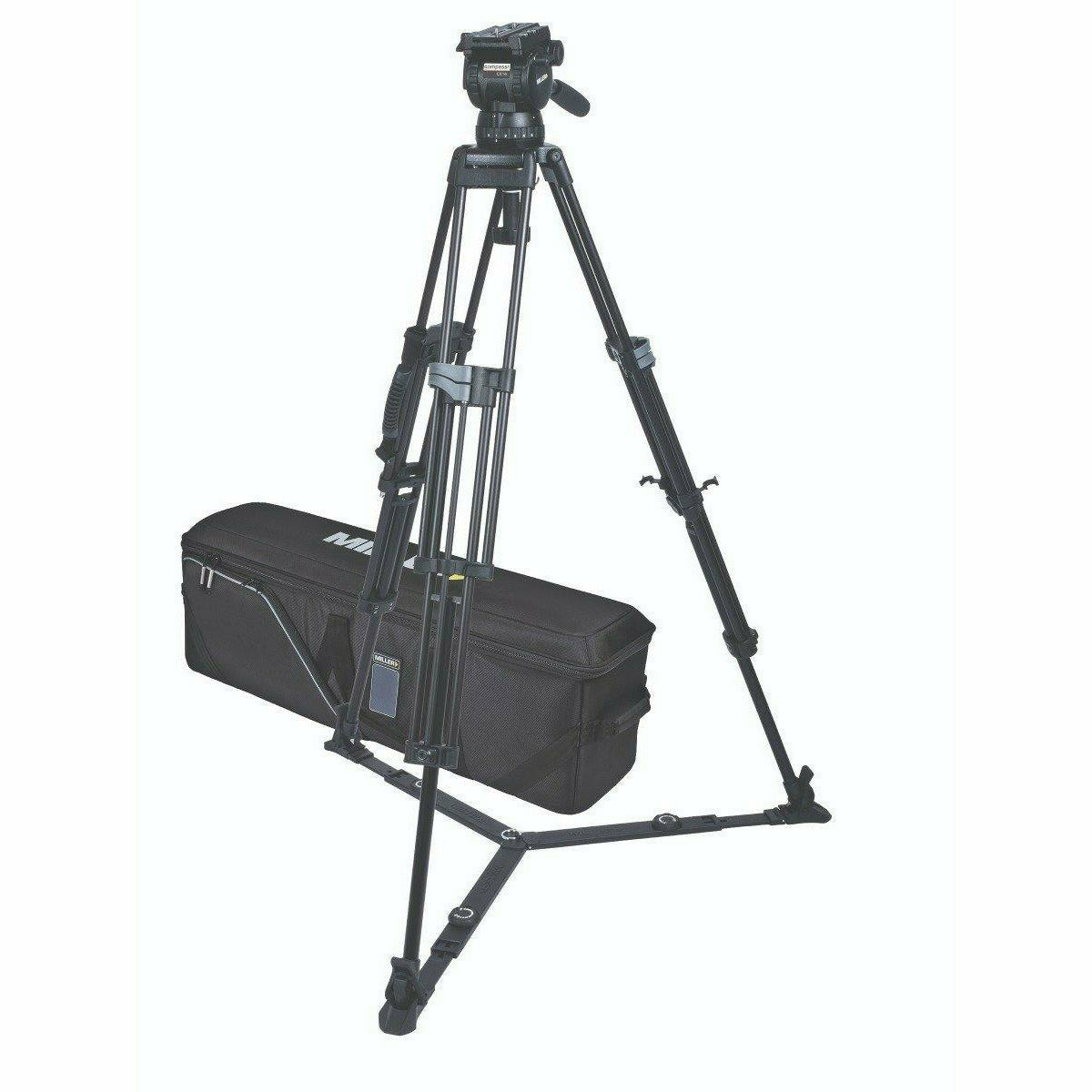

Miller 3771 CX14 (1097) Sprinter II 2-St Alloy Tripod (1580G) Ground Spreader (470) Pan Handle (679) Softcase (3502)
• Compact, lightweight and versatile.
• 100mm ball levelling.
• Perfect for payloads to 0-14.0 kg (0-30.9 lbs).
• 15+0 CB Plus selectable counterbalance positions.
• Ergonomically located CB Plus switch.
• 5+0 selectable positions of fluid pan and tilt drag.
• High speed independent 2-stage dual leg locks.
• Durable black anodised alloy tubing.
• Comes with ground spreader.
• Comes with 2-stage tripod bag.
• 3 year warranty.
The 3771 CX14 Sprinter II 2-stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.
CX14 employs CB Plus™ technology providing 16 positions of counterbalance, 5+0 settings of Miller's fluid pan and tilt drag. Perfect for payloads to 0-14.0 kg (0 - 30.9 lbs) and with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.
Matched with the 2 stage Sprinter II (alloy) tripod and the stability of a ground spreader.
| Payload Range | 0-14.0 kg (0-30.9 lbs) |
| Weight | 7.5kg (16.5lbs) |
| Height Range | 603-1693mm (23.7-66.6”) |
| Transport Length | 853mm (33.6”) |
| Counterbalance Positions | 16 selectable positions (15+0) |
| Pan Tilt Drag | 5 selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | +90° / -75° |
| Pan Range | 360° |
| Camera Platform | Quick release, side load camera plate |
| Sliding Range | 60mm (2.4") |
| Mounting Base | Ø100mm (3.9") ball levelling |
| Height Above Bowl | 150mm (6.0") |
| Illuminated Controls | Bubble level |
| Pan Handle | Fixed length 390mm (15.4") |
| Temperature Range | -40° to +65°C (-40° to +150°F) |
| Leg Extension | 2-stage |
| Lock Type | HS dual action |
| Leg Material | Alloy |
| Components | |
| 1097 | CX14 fluid head |
| 1580G | Sprinter II 2-stage tripod (alloy) |
| 470 | Ground spreader |
| 679 | Pan handle - fixed with clamp |
| 3502 | Arrow softcase 2-stage |
