Miller 3782 CX14 (1097) Sprinter II 1-St Alloy Tripod (1589) Mid-Level Spreader (993) Pan Handle (679) Feet (475) Softcase (3500)
- Compact, lightweight and versatile.
- 100mm ball levelling.
- Perfect for payloads to 0-14.0 kg (0-30.9 lbs).
- 15+0 CB Plus selectable counterbalance positions.
- Ergonomically located CB Plus switch.
- 5+0 selectable positions of fluid pan and tilt drag.
- High speed independent 2-stage dual leg locks.
- Durable black anodised alloy tubing.
- Comes with mid-level spreader and rubber feet.
- Comes with 2-stage tripod bag.
- 3 year warranty.
Regular price
$5,560.05
Regular price
-25%
$7,438.20
Sale price
$5,560.05
Available on Special-order

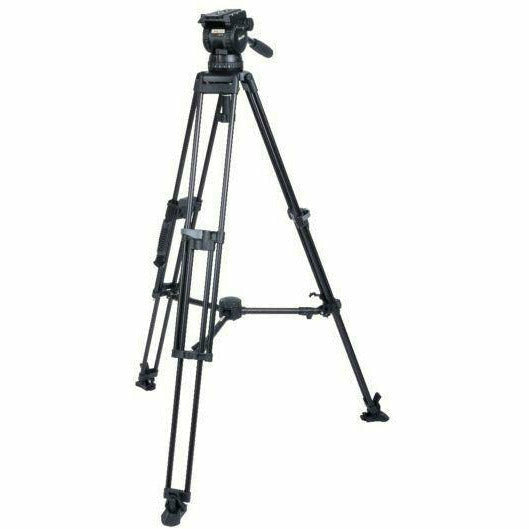

The 3782 CX14 Sprinter II 1-stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.

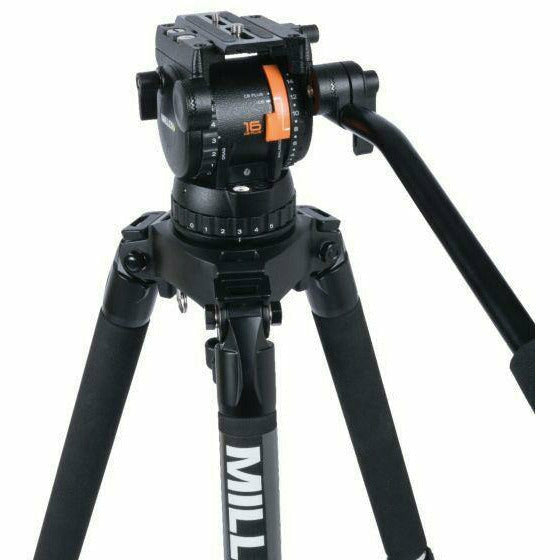

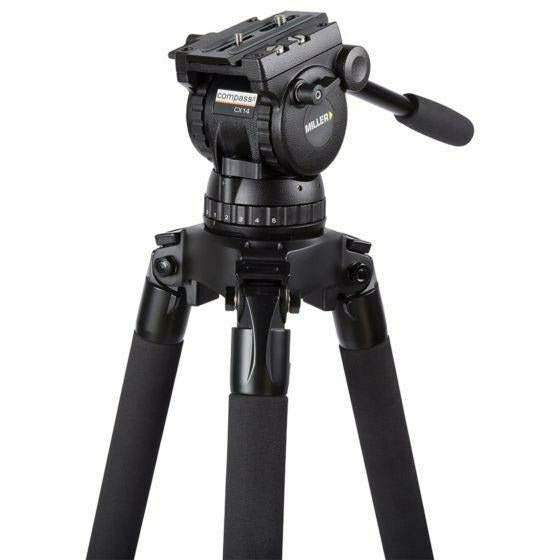

CX14 employs CB Plus™ technology providing 16 positions of counterbalance, 5+0 settings of Miller's fluid pan and tilt drag. Perfect for payloads to 0-14.0 kg (0 - 30.9 lbs) and with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.
Matched with the 1 stage Sprinter II (alloy) tripod and mid-level spreader providing incredible speed of set up, variable tripod footprint and the versatility to set up on all terrain.
| Payload Range | 0-14.0 kg (0 - 30.9 lbs) |
| Weight | 7.2kg (15.9lbs) |
| Height Range | 823-1583mm (32.4-62.3”) |
| Transport Length | 993mm (39.1”) |
| Counterbalance Positions | 16 selectable positions (15+0) |
| Pan Tilt Drag | 5 selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | +90° / -75° |
| Pan Range | 360° |
| Camera Platform | Quick release, side load camera plate |
| Sliding Range | 60mm (2.4”) |
| Mounting Base | Ø100mm (3.9") ball levelling |
| Height Above Bowl | 150mm (6.0") |
| Illuminated Controls | Bubble level |
| Pan Handle | Fixed length 390mm (15.4") |
| Temperature Range | -40° to +65°C (-40° to +150°F) |
| Leg Extension | 1-stage |
| Lock Type | HS single action |
| Leg Material | Alloy |
| Components | |
| 1097 | CX14 fluid head |
|---|---|
| 1589 | Sprinter II 1-stage tripod (alloy) |
| 993 | Mid-level spreader |
| 475 | Rubber feet (set of 3) |
| 679 | Pan handle - fixed with clamp |

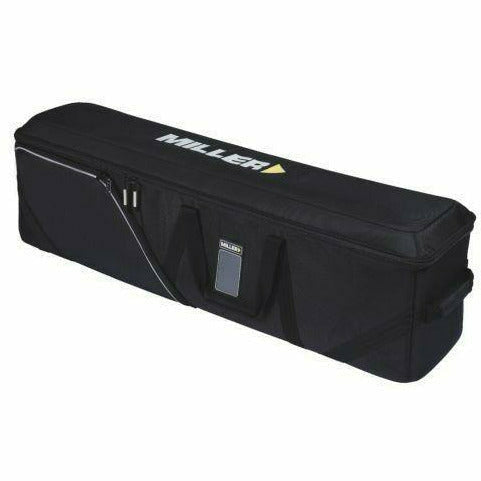

| 3500 | Arrow softcase 1-stage |
