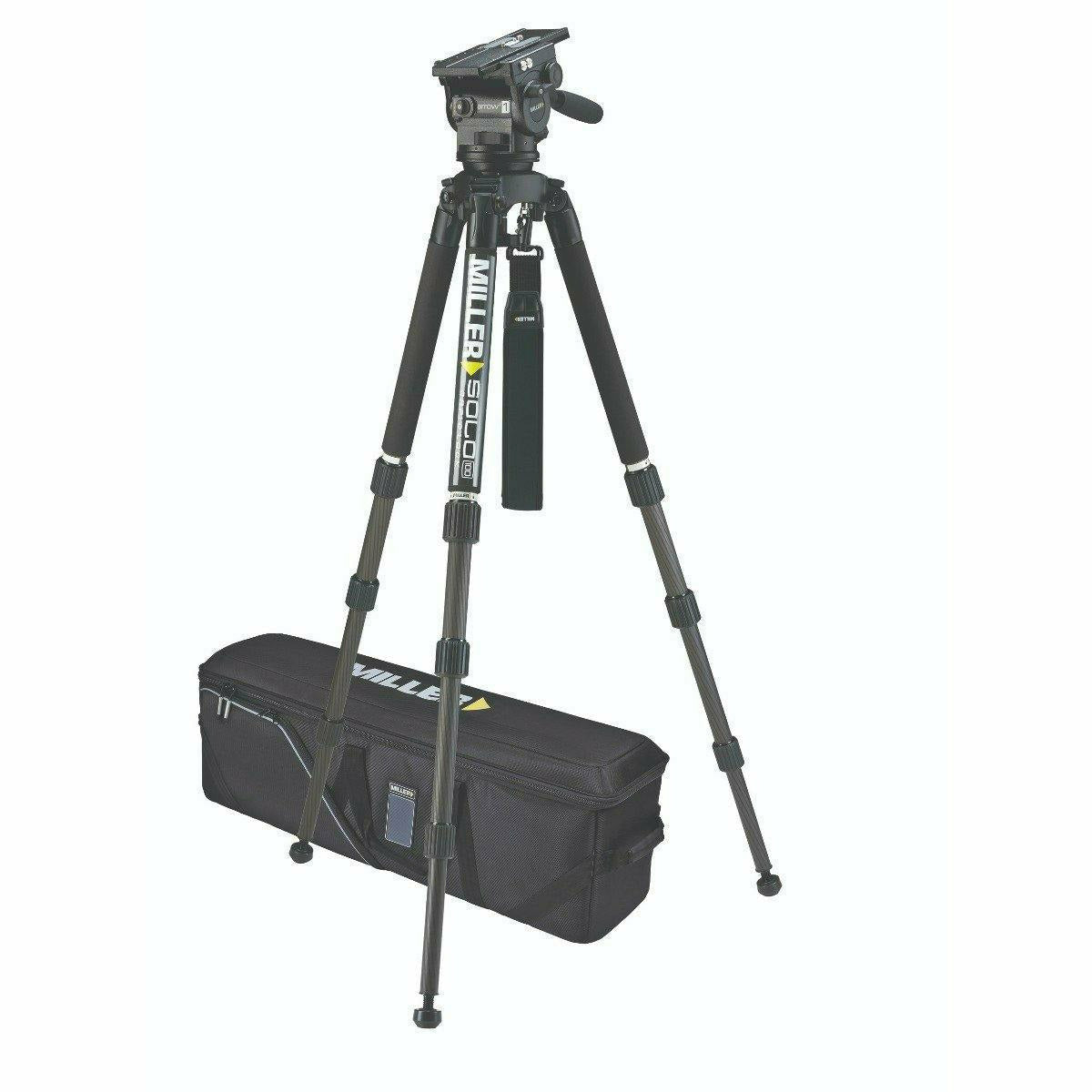

Miller 3032 ArrowX 1 (1070) Solo-Q 100 3-St Carbon Fibre Tripod (2520) Pan Handle (696) Strap (1520) Softcase (3502)
• Compact, lightweight and versatile.
• 5 selectable positions of fluid pan and tilt drag + 0.
• 16 position CB Pluscounterbalance system.
• Perfect for payloads to 0-16.0kg (0-35.3lbs).
• Integrated 100mm bowl.
• 2-stage rapid leg lock extension.
• Lightweight carbon fibre legs.
• Comes with 2-stage tripod bag.
• 3 year warranty.
The 3032 Carbon Fibre, Solo 100, 3-stage Arrowx 1 system, is designed for speed of setup, high level of stability and flexibility of payloads, The 1505 spreader less three stage tripod, included in this system provides the ultimate range of heights, speed of set up and works perfectly on all terrains.
Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 1 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
0-16.0kg (0-35.3lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make Arrowx 1 ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories.
The Arrowx 1 is matched with the 3 stage Solo (carbon fibre) tripod that results in range topping height range of 382-2032mm (15-80"), all terrain versatility in the lightest Arrowx system package.
| Payload Range | 0-16.0kg (0-35.3lbs) |
| Weight | 6.6kg (14.5lbs) |
| Height Range | 382-2032mm (15-80") |
| Transport Length | 820mm (32.3”) |
| Counterbalance Positions | 16 selectable positions |
| Pan Tilt Drag | 5 selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | +90° / -75° |
| Pan Range | 360° |
| Camera Platform | Quick release camera plate (Euro) |
| Sliding Range | 120mm (4.7") |
| Mounting Base | Ø100mm (3.9") ball levelling |
| Height Above Bowl | 162mm (6.4") |
| Illuminated Controls | Bubble level, pan-tilt drag controls |
| Pan Handle | Telescopic 390-590mm (15.4-23.2") |
| Temperature Range | -40° to +65°C (-40° to +150°F) |
| Leg Extension | 3-stage telescopic |
| Lock Type | Concentric Rapid lock |
| Leg Material | Carbon fibre |
| Components | |
| 1070 | Arrowx 1 fluid head |
| 1505 | Solo 100 3-stage tripod (carbon fibre) |
| 696 | Pan handle - telescopic with clamp |
| 1520 | Solo shoulder strap (Aircell) |
| 3502 | Arrowx soft case 2-stage |
