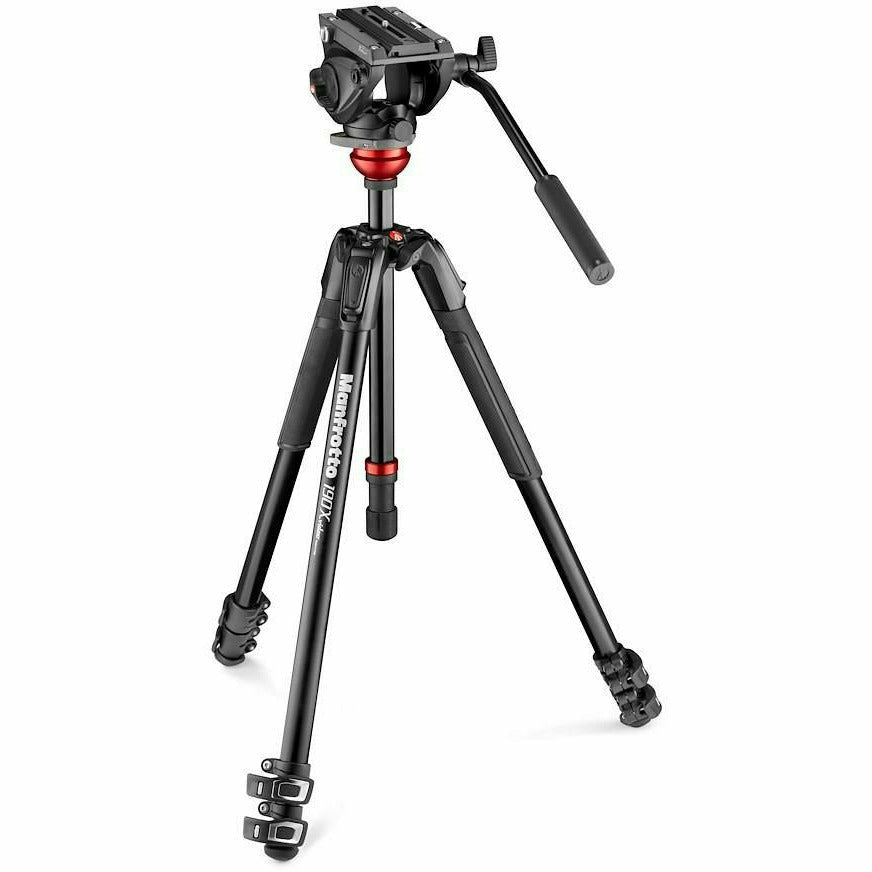

Manfrotto 500 Fluid Video Head Flat Base with 190X Video Alu Tripod MVK500190XV

SKU: MVK500190XV
  • 500 video head flat base for greater versatility
  • Single leg, 3 section alu tripod with levelling column
  • Easy link connectors for external accessories
Regular price $713.26

The new MVK500190XV is a video system composed by MVH500AH fluid video head and dedicated 190X Video aluminium tripod, ensuring the utmost versatility and carrying convenience.

The 500 head comes in the flat base version, for greater versatility when it comes to using it in combination with other video accessories (such as slider or jib). It also features fluid cartridges on both pan and tilt axes to ensure that every camera movement is smooth. It comes with a side lock system, allowing the camera and sliding plate to click quickly into the head from above, instead of needing to be aligned and slid in from the back. The side lock system also makes it quicker and simpler to lift the camera out of the head from above. The head has a pre-set counterbalance of 2.4kg at 55mm C.O.G., but can support up to 5kg of equipment. It has a 3/8'' Easy Link connector to fit an external monitor or other accessories.

The dedicated single leg, 3 section, aluminium 190X Video tripod features a levelling column for quick and easy set-up, easily extendable, adjustable legs and Quick Power Lock (QPL) levers that rapidly block or unblock each leg section.
The tripod’s casting also features an Easy Link connector equipped with anti-rotation for accessories.

The system can support up to 5 kg.

Weight 112.86 oz
Material Aluminum
Safety Payload Weight 11.02 lbs
Min Height 19.8 in
Maximum Height 68.23 in
Head Type Video/Fluid Head
Leg Sections 3
Quick Release Yes
Counterbalance Weight 5.29 lbs
Closed Length 28.43 in
Ball Flat Flat
Accessory Compatibility 500HLV
Top Attachment 1/4″ screw, 3/8″ screw
Base Diameter 2.36 in
Powered by (batteries) 0
Bubble Spirit Level (No.) 1
Certifications None
Color Black
Easy Link Yes
Front Tilt -70° / +90°
Leg Type Single
Leg Angles 25°,46°,66°,88°
Leg Lock Type Flip Lock
Maximum Height (with Center Column Down) 58.78 in
Maximum Working Temperature 60
Minimum Working Temperature -20
Pan Bar Included Yes
Pan Drag fluid cartridge with fixed drag
Panoramic Rotation 360
Plate Type 500PLONG
Tilt Drag fluid cartridge with fixed drag
Upper Disc Diameter 2.36 in
  • Manfrotto MVH500AH Fluid Video Head
  • 190X Video Aluminum Tripod
  • Leveling Column
  • Pan Bar
  • Manfrotto Warranty
