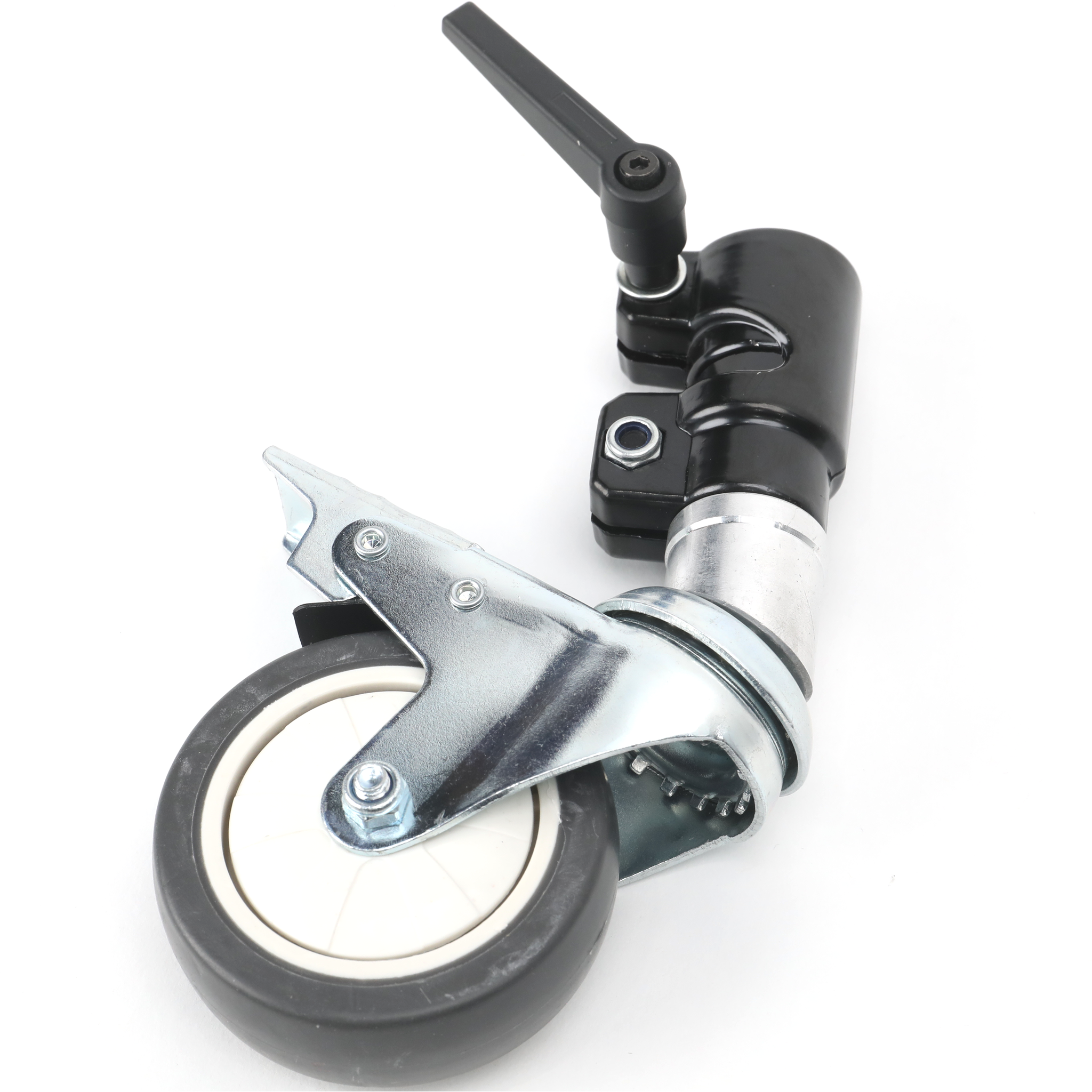

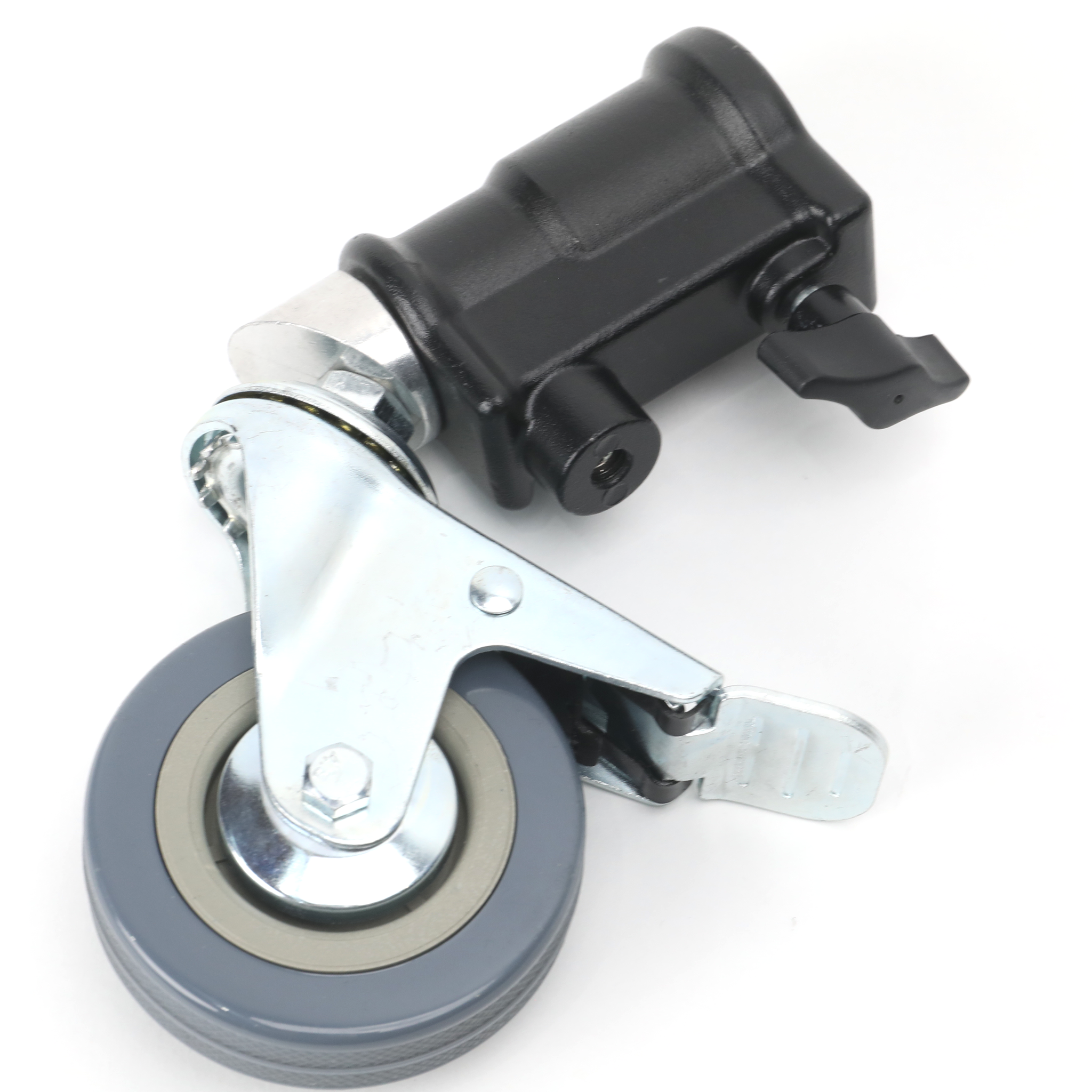

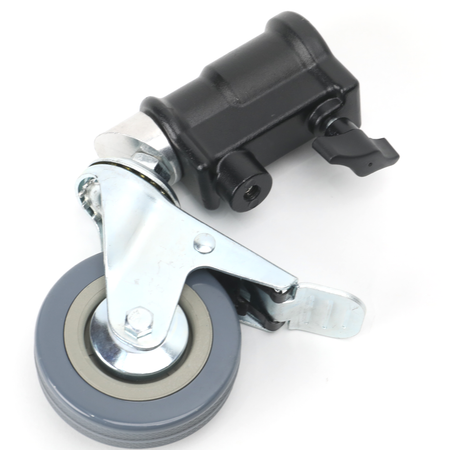

Lightpro C-Stand Wheels (Set of 3) Fits 33mm Legs

This heavy-duty caster set transforms stationary studio supports into highly mobile, fluid rigging systems engineered for rapid, secure repositioning of lighting fixtures on closed sets and studio floors.

Precision Performance in the Field

These industrial-grade caster assemblies eliminate the operational friction of manually lifting and relocating loaded structural supports. Built with a robust all-metal chassis and integrated precision bearings, each wheel delivers smooth, omnidirectional 360-degree rotation under substantial vertical loads. The outer contact surface features a high-density, non-marking rubberized coating that dampens structural vibration and protects delicate stage flooring from tracking damage, even when supporting substantial studio strobes, continuous LED arrays, or extended overhead boom configurations.

Security is maintained via independent, high-tolerance mechanical foot brakes integrated into every individual caster. Engaging the locking lever mechanically arrests both the swivel rotation and wheel revolution simultaneously, preventing any micro-movements, drift, or structural oscillation caused by uneven surfaces or off-center payloads. This ensures total static stability once a lighting setup is finalized, matching the rigid safety performance of a stationary base while maintaining instant mobility when unlocked.

Spec Sheet & Capabilities Architecture

• Product Type: Heavy-Duty Studio C-Stand Caster Wheels

• System Quantity: Set of three matching casters

• Receiver Diameter: 33mm internal clearance collar

• Chassis Material: Solid steel alloy housing

• Wheel Composition: High-density polymer core with non-marking rubber outer coating

• Rotation Interface: Dual-axis 360-degree swivel bearing assembly

• Locking Mechanism: Individual foot-actuated mechanical dual-lock brakes per caster

• Braking Action: Simultaneous wheel rotation and swivel axis lock

• Mounting Interface: Slide-over collar with dual heavy-duty tension locking screws

• Primary Applications: Studio production, commercial sound stages, high-load fixture mobility

Professional Inquiry FAQ

Q: What is the maximum structural leg diameter supported by these casters?

A: These casters feature a precision-machined 33mm internal receiver diameter, engineered to lock securely onto standard 33mm round legs found on professional heavy-duty lighting and grip supports.

Q: Do the brakes lock both the wheel rolling motion and the swivel axis?

A: Yes. The integrated foot-operated mechanical locking mechanism functions as a dual-arrest system, stopping both wheel rotation and the 360-degree swivel axis simultaneously to guarantee immobility under load.

Q: Can these casters be deployed on uneven outdoor surfaces or rough terrain?

A: These wheels are engineered specifically for smooth studio floors, polished concrete, and hard interior stages. While they can handle minor surface transitions, soft earth or heavy gravel environments require larger pneumatic all-terrain wheel systems.

Q: What tools are required for installation or removal on set?

A: No external tools are required for deployment. The integrated dual-tension locking screws on each caster collar feature ergonomic wing-bolt heads, allowing for rapid installation and secure hand-tightening directly onto the stand legs.
