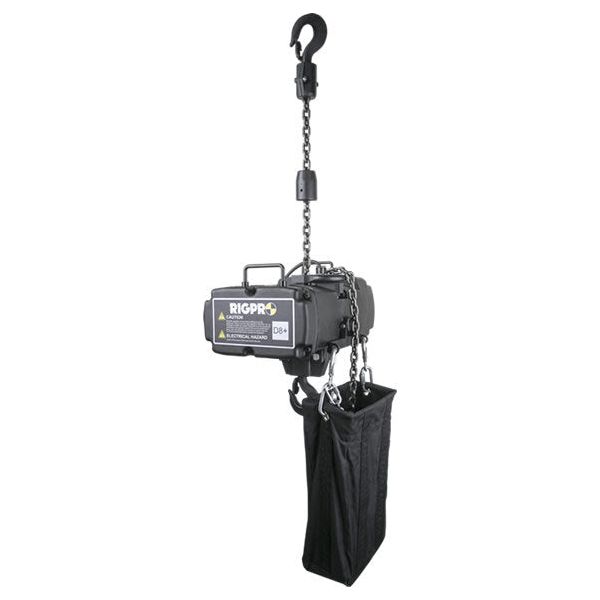

Kupo RigPro RD-750-A BGV D8+ 750KG Chain Hoist

OUTSTANDING FEATURES:
- 5-pocket lift wheel makes lifting smoother with less vibration

- Epoxy black powder coated hoist body is less visible and corrosion resistant. With the rubber gasket and mechanical design, the complete unit is IP55 rated.

- The forward-curve enhanced Nylon chain guide is robust and ensures the chain runs smoothly.

- Two foldable handles provide for easy transportation of the hoist.

- The hoist housing is fabricated of die-cast aluminium; to provide both a light weight yet robust and durable chain hoist.

- The hoist gears are made of alloy steel with heat treatment for steady operation and less wear. The precision ground gears make engagement precise with less operating noise.

- Upper and lower hooks are made of drop-forged high tensile carbon steel, allowing 360 degree swivelling.

- Over-heat protection, for the maximum limit of 140C (+/-5C, will only allow the hoist to lower the load, and not lift.

- Micro Switch Positioning (MSP) helps to easily set the upper and lower limit on travelling position (applied for RD-500P model).

Specifications
- Type: DC (direct voltage control)

- Motor: 0.75KW x 4P- Motor isolation class: F

- Operation voltage: AC 400V / 50Hz

- Lifting speed: 4M/min (50Hz), 4.8M/min (60Hz)

- Load wheel: 5-pocket

- Load chain: Grade 80, 7.1 x 20.2mm

- Duty cycle: 2m FEM class, ED 40% or 240 on/off per hour

- Friction clutch: outside the load path

- Chain hoist weight: 50kgs (without chain)

- Chain weight: 1.1kgs per meter

- Micro Switch Positioning: optional
