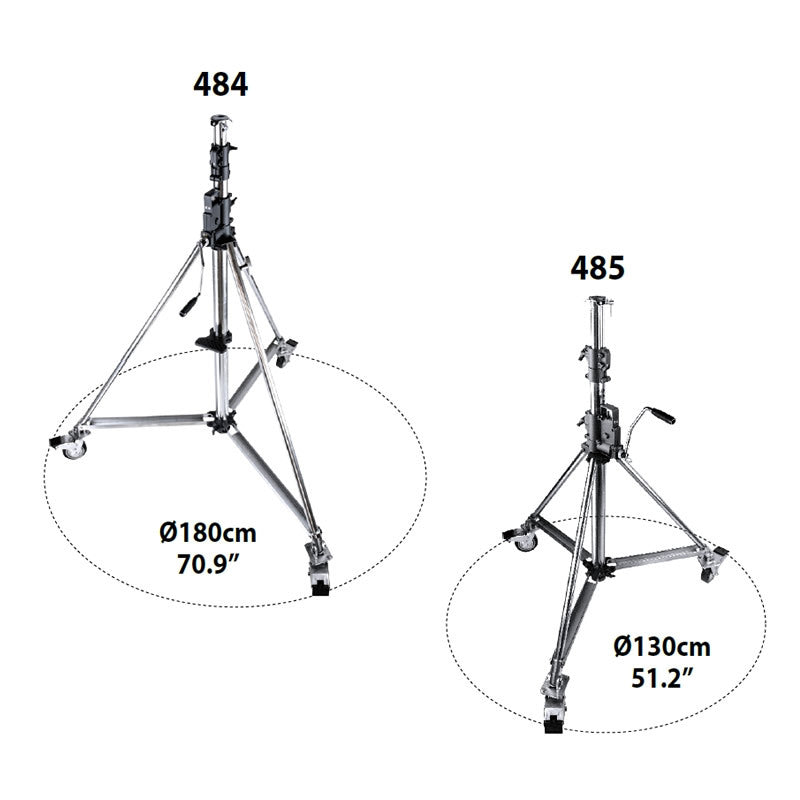

Kupo 485 Heavy Duty Wind-Up Low Base Stand (KC-150 Wheels are an optional extra)
The Kupo 485 Heavy Duty Wind-Up Stands are constructed from a combination of chrome plated steel and stainless steel, with dual risers that extend from 140cm through to 270cm. The elevation per handle turn is 4.4cm, making it possible to lift up to an 80kg load, with a single operator. The unique automatic self-locking mechanism is designed to prevent the light stand from dropping unexpectedly, making the operation safer.
LOCK POSTION: The safety pin will automatically drop into each hole in the centre post tube as the centre pole is extended.
Solid and strong handle with a knurled slip-free design offers excellent operation.
We recommend using the optional KC-150R 6” braked casters with angle adjustable plate. The feet on the KP485 enable the stand to retain stability on the ground when not using the the casters.
28mm socket with 3 side holes for wind bracing kit.
U-shaped leg struts are made of stainless steel for extra stability and safety.
Further Specifications:
2 risers, 3 sections with diameters of 70mm, 60mm & 50mm, with simultaneous operation
Leg diameter of 35mm, with 1 levelling leg
Top 2 sections are chrome plated steel, centre tube & legs are stainless steel
Folded length: 156cm
Extended maximum working height: 270cm
Minimum working height: 141cm
Footprint diameter: 130cm
Product weight: 34kg
Maximum safe working load: 80kg
Can be fitted with KC150R braked castors or KC-215A pneumatic castors
