E-Image EI-A76 7" Micro Arm with Anti-Rotation - Unyielding Rigging Stability for Heavy Accessories

The E-Image EI-A76 is a professional-grade 7-inch articulating friction arm equipped with anti-twist locating pins, engineered to securely mount field monitors, wireless video transmitters, and compact LED fixtures to your camera rig.

Built for the Demands of Modern Production

In fast-paced production environments, micro-vibrations and mounting failures are not an option. One of the most persistent issues when rigging heavier outboard accessories—such as 7-inch high-bright monitors or premium wireless video systems—is the tendency for standard friction arms to twist, sag, or unscrew under their own payload. The E-Image EI-A76 resolves this critical rigging flaw through its integrated anti-rotation locating pins. Designed to lock seamlessly into modern cinema cages and Manfrotto Easy Link systems, these pins prevent torsion and eliminate the risk of the arm loosening during dynamic camera tracking, rapid panning, or handheld gimbal operation.

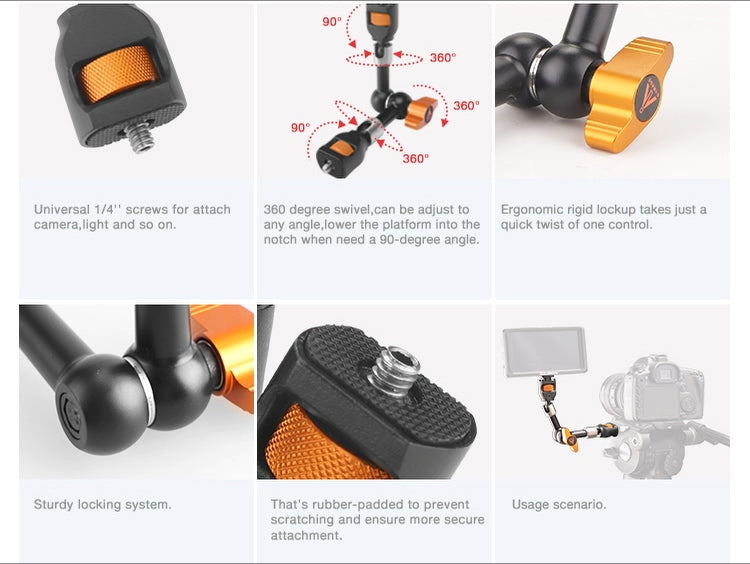

At the core of the EI-A76 is an advanced single-point locking mechanism. With just a quick twist of the ergonomic central knob, the internal locking system simultaneously clamps down on both the dual ball joints and the central pivot, delivering exceptionally rigid friction resistance. Boasting a rigorous payload capacity of 3.0 kg (6.6 lbs), this micro arm punches well above its weight class, safely supporting heavy rigging setups without microscopic drift over long shooting days.

The dual-ball head design enables full 360-degree articulation, while a precision-machined drop notch on each end allows for an immediate 90-degree angular lock. This guarantees rapid positional clearance when rigging around complex configurations involving top handles, matte boxes, and V-mount battery plates. Weighing an ultra-light 240g (0.53 lbs), the EI-A76 maximizes structural rigidity without throwing off the balance of your handheld rig.

Key Technical Specifications

Mounting Connectors: Dual 1/4"-20 threaded studs with integrated anti-rotation locating pins
Payload Capacity: 3.0 kg (6.6 lbs)

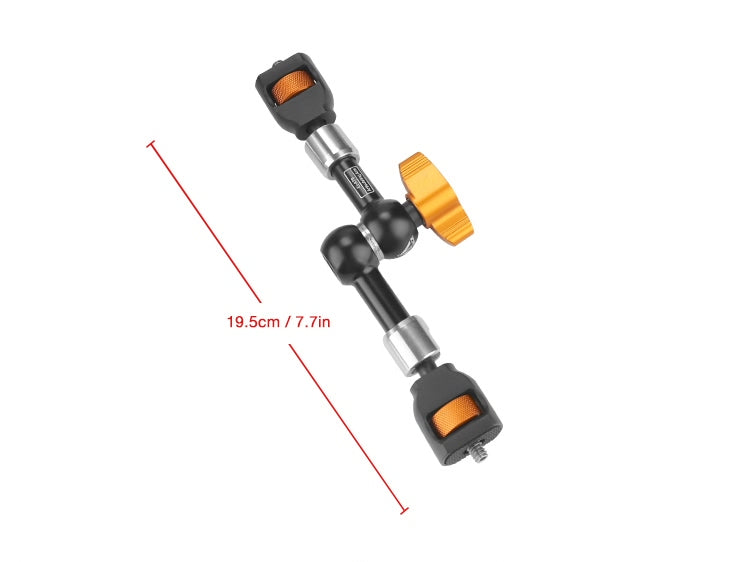

Maximum Articulated Length: 19.5 cm (7.7 inches)
Unit Weight: 240 g (0.53 lbs)
Locking Mechanism: Ergonomic single-point twist-lock system for simultaneous joint lock
Articulation: 360-degree dual ball head rotation with built-in 90-degree drop notches
Ecosystem Compatibility: Standard cinema camera cages, Manfrotto Easy Link systems, and the E-Image EI-A05M Micro Clamp
Construction Material: Precision-machined aerospace-grade aluminum alloy

Production FAQ

Will the anti-rotation pins interfere if my camera cage only has standard 1/4"-20 threads without locating holes?

The anti-rotation pins require compatible locating holes (such as Manfrotto Easy Link configurations) to seat completely flush. If you are mounting to a smooth surface or a bare 1/4"-20 thread without locating divots, the pins will prevent the screw from fully threading, meaning a compatible cage or cheese plate is recommended for maximum security.

Is the locking mechanism strong enough to hold a 7-inch high-bright monitor on a moving gimbal?

Yes. The central locking mechanism applies high-friction tension to all three pivot points simultaneously, providing a robust payload capacity of 3.0 kg (6.6 lbs). This comfortably supports large monitors and heavy wireless receivers without shifting during high-torque gimbal movements.

How quickly can I adjust the viewing angle of my monitor mid-shoot?

Adjustments are near-instantaneous. Loosening the central ergonomic lock frees both ball joints and the center pivot simultaneously, allowing you to smoothly reposition the monitor and lock it down firmly with a single, quick twist of the knob.
