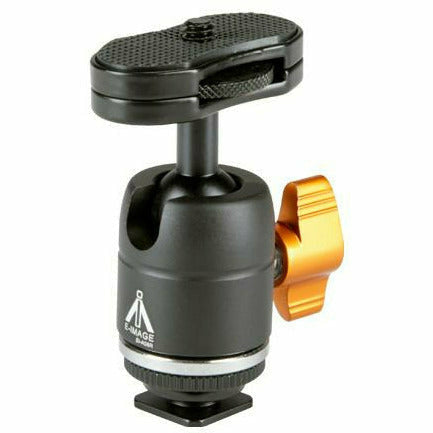

E-Image A08R Mini Ball Head with Hotshoe Mount

E-Image A08R Mini Ball Head with Hotshoe Mount // Engineered Stability for High-Density Camera Rigging

The E-Image A08R is a heavy-duty, all-aluminum mini ball head designed to securely mount critical monitor-recorders, wireless video systems, and telemetry devices to modern cinema camera cages and hotshoe receivers.

Future-Proofing Modern Digital Workflows

In the rapidly evolving landscape of digital cinema production, contemporary mirrorless and compact cinema camera ecosystems demand highly modular rigging solutions. The deployment of high-bitrate wireless video transmitters, compact production monitors, and complex audio receivers requires mounting hardware that minimizes mechanical failure while sustaining strict on-set physical efficiency. By providing an ultra-stable, slip-free point of articulation, this ball head ensures that essential secondary data paths—such as real-time monitor feeds and wireless control links—remain physically locked in place during high-vibration tracking shots or rapid handheld reconfigurations.

The integration of modern field production equipment requires a secure, high-tolerance mechanical link that interfaces seamlessly with advanced auxiliary gear. Whether securing a modern smart monitor handling real-time LUT previews or a wireless transceiver passing critical camera metadata to a remote focus station, the structural integrity of the mounting environment dictates the reliability of the entire data pipeline. This mini ball head removes physical shifting from the operational equation, ensuring that precision electronic components stay perfectly aligned to enhance reception profiles and viewability metrics across the entire shooting schedule.

Advanced Technical Profile

• Top Mount: Standard 1/4"-20 male threaded screw with non-slip rubberized contact pad

• Bottom Mount: Integrated cold shoe adapter with built-in 1/4"-20 female threaded receiver

• Rotation Capability: Full 360-degree panning articulation with independent tension lock tracking

• Tilt Adjustability: Up to 90-degree lateral drop-notch for vertical orientation or extreme downward angling

• Chassis Material: CNC-machined high-grade aluminum alloy with an anodized matte black protective finish

• Locking Mechanism: Ergonomic single-lever thumbscrew controlling simultaneous ball-joint and panning friction

• Load Capacity: Up to 3.0 kg (6.6 lbs) to accommodate fully built 5-inch and 7-inch production monitors with dual battery plates

• Dimensions: Ultra-compact form factor to reduce overall camera cage height and balance offset

Engineering & Ecosystem Compatibility FAQ

• Q: How does the mechanical design prevent structural shifting when mounting heavy, high-draw wireless video transmitters? A: The internal friction seat utilizes a high-tolerance machined surface that distributes clamping force evenly across the ball joint. This prevents micro-slippage caused by the off-center center of gravity found in modern high-power wireless transceivers, safeguarding signal propagation paths from shifting.

• Q: Can the base interface with multi-tier camera cage systems lacking traditional hotshoe plates? A: Yes. By utilizing the integrated 1/4"-20 female thread at the base, this hardware allows direct mechanical fastening onto standard cheese plates, articulating arms, and modern camera cage top handles when traditional shoe receivers are unavailable.

• Q: Is the unit resistant to the thermal dissipation common in modern high-frame-rate monitor-recorders? A: Absolutely. The all-aluminum construction acts as an auxiliary heat sink interface, dissipating conductive heat away from the mounting points of high-draw, firmware-heavy monitors, preventing the thermal retention that often accelerates component degradation in composite mounts.

• Q: Does the panning locking mechanism allow micro-adjustments for directional wireless antenna array orientation? A: Yes, the single-lever locking mechanism provides progressive friction control, allowing operators to execute precise micro-adjustments along the 360-degree panning axis to ensure optimal wireless reception paths before locking the unit completely down.
